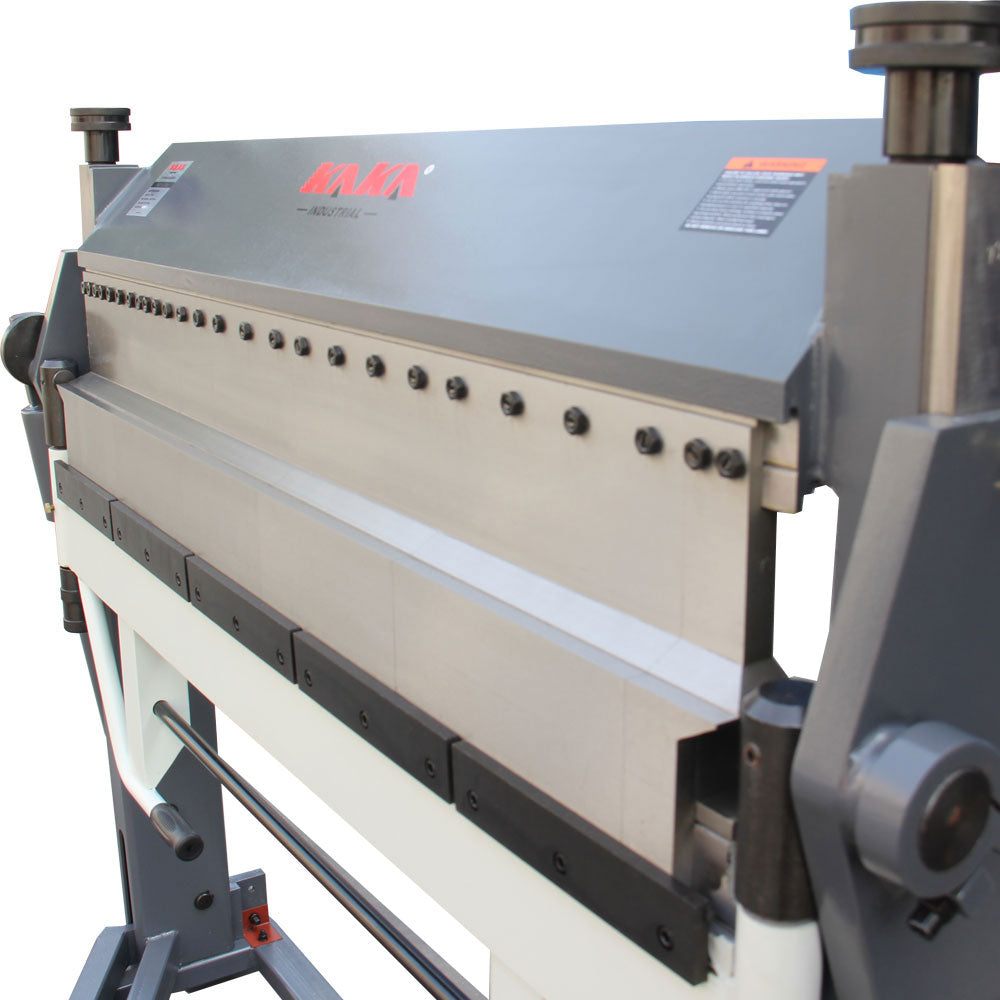

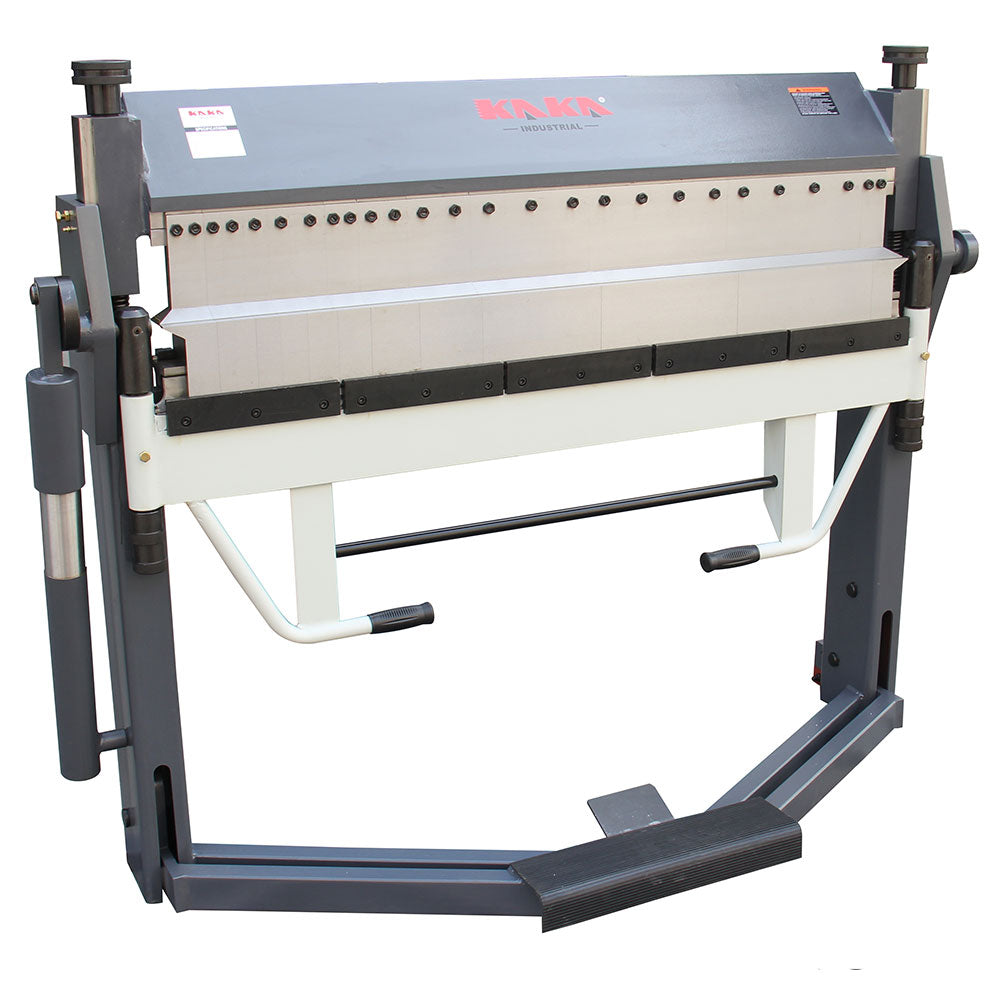

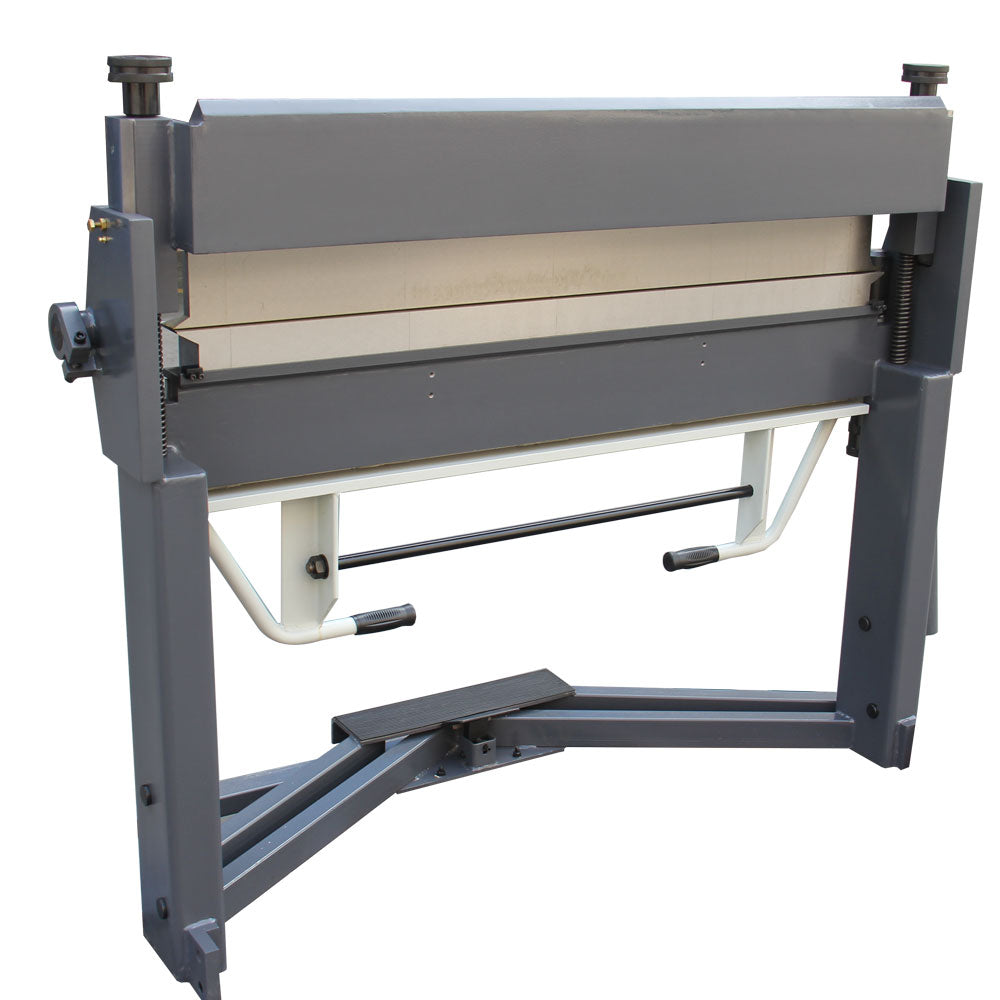

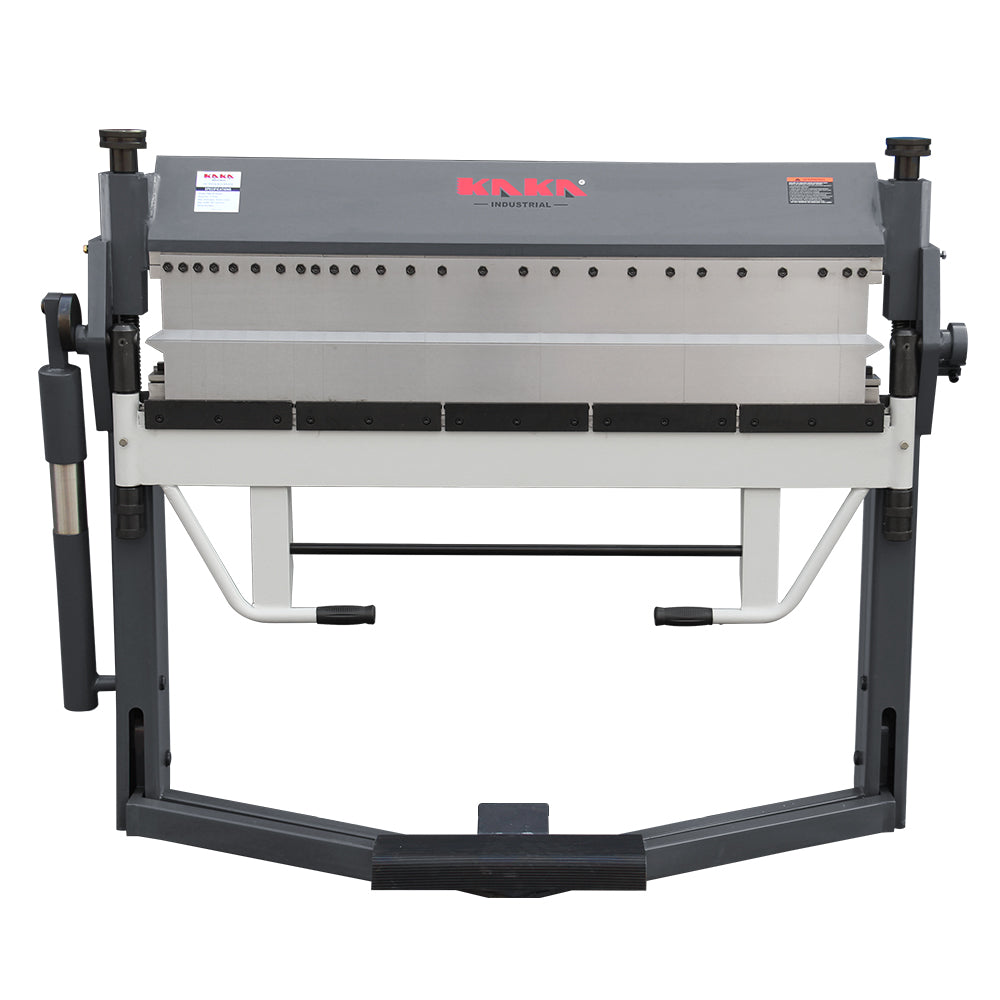

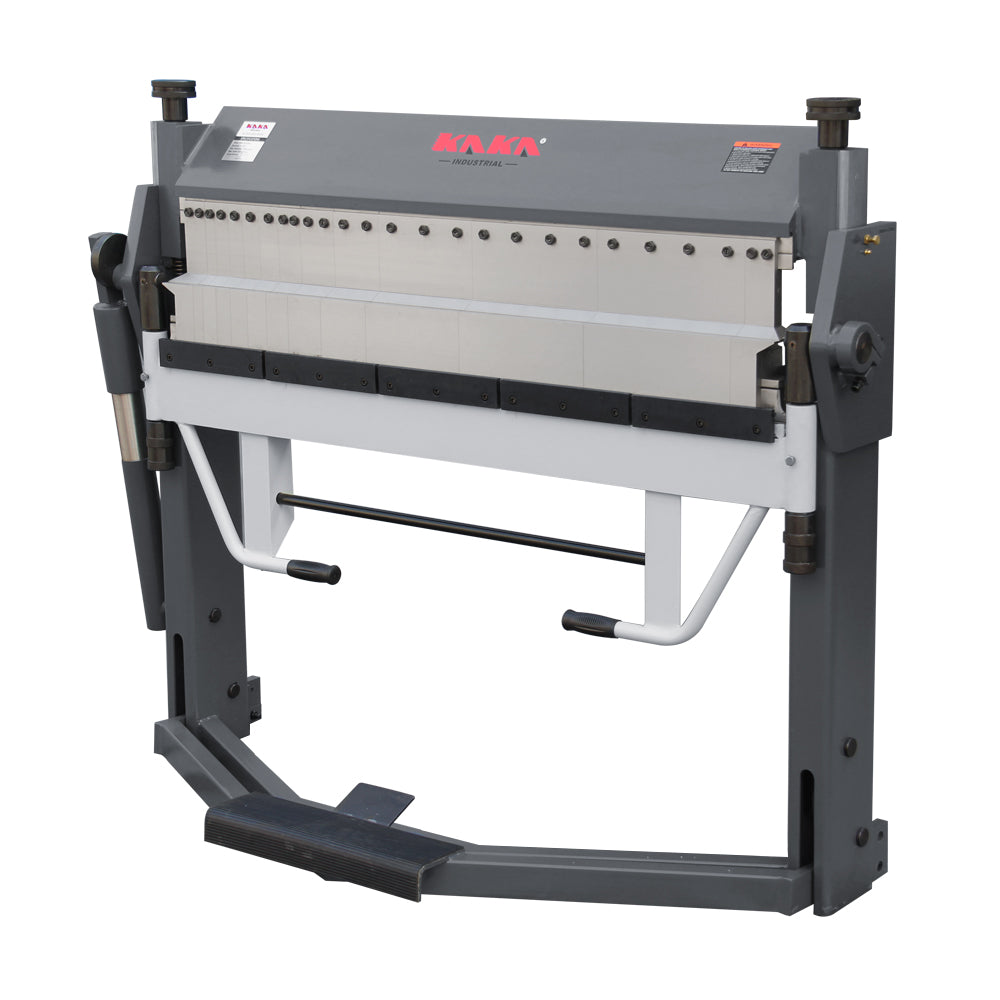

Kaka industrial PBB-5016/3SH 50"Pan & Brake Folding Machine

Features:

  1. With foot control.It is easy for operation and relax hands for adjusting the material.
  2. Bow handle for bending beam rotation
  3. Adjustablebending angle stop with scale up to 150°.
  4. Both the upper and lower blade of our precision folding machine can be dismantled for use.
  5. Our precision folding machine can choose a combination of upper blades according to the abnormity degree and length of the workpiece.
  6. A fully developed quick release system for the clamp beam segment ensures fast interchangeability
  7. The folding beams are fitted with a counterbalance and angle stop to provide a perfect and effective operation within the full capacity of the machine.
  8. The optional back-gauge can be easily mounted when using the pre-drilled fixing points.

Specification:

Item No.

173164

Model

PBB-5016/3SH

Max. working length(in)

50in

Max. sheet thickness

16Ga.

Max. clamping bar lift(in)

1.77

Folding angle

150°

Packing size(in)

65”X25”X55”

N.W/G.W(lb)

1025/1124



Standard accessories:Stand holder

Optional accessories:No optional accessories.
