KAKA INDUSTRIAL LLC | SKU:
181112V220

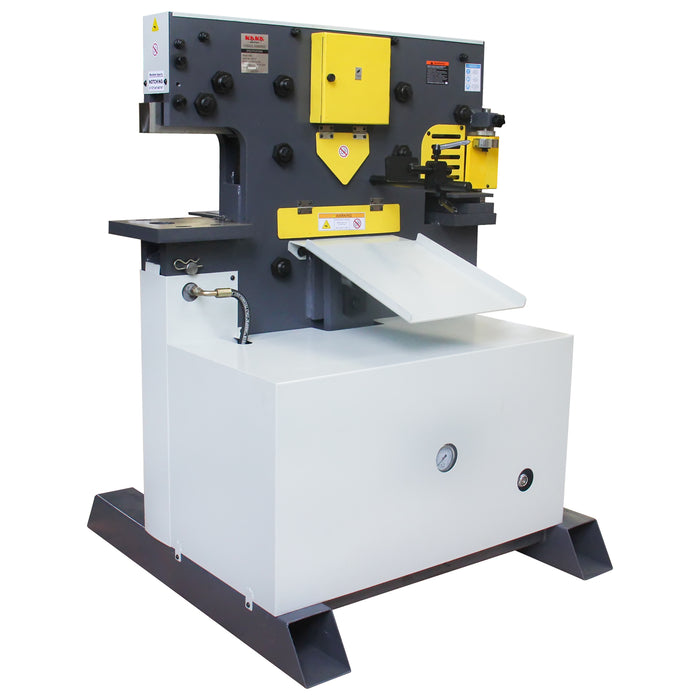

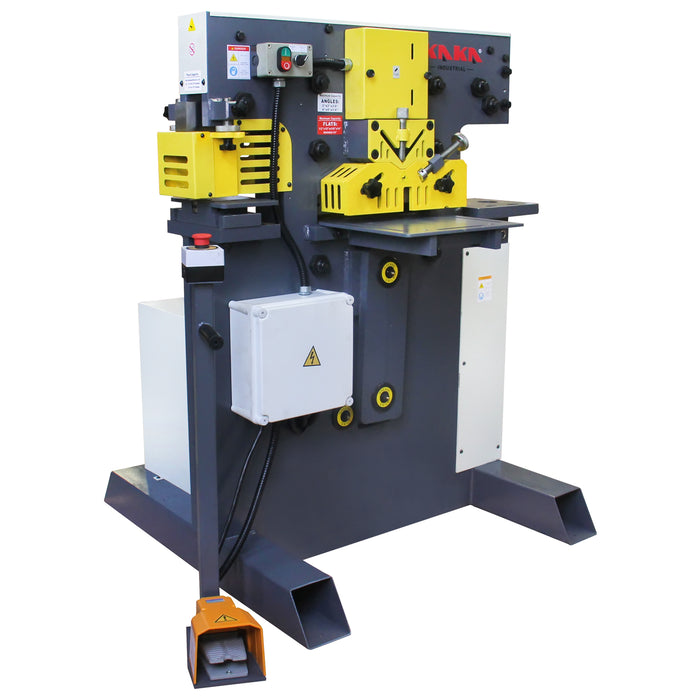

Hydraulic Ironworker, 60-Ton 4-Station Punching Shearing Notching and Bending Machine for Steel Plate, Round Bar, Angle Iron, 220V 3-Phase Metal Fabrication Equipment M-60
$10,999.00
$13,499.00
Unit price /
Unavailable
Shipping calculated at checkout.
Hydraulic Ironworker, 60-Ton 4-Station Punching Shearing Notching and Bending Machine for Steel Plate, Round Bar, Angle Iron, 220V 3-Phase Metal Fabrication Equipment M-60 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
60-Ton Hydraulic Powerhouse for Demanding Metal Tasks Tackle tough jobs with confidence. The M-60 delivers a solid 60 tons of force at each of its four integrated stations, allowing you to punch, shear, notch, and bend mild steel plate, bar stock, and angle iron efficiently. This all-in-one design is perfect for fabrication shops aiming to consolidate equipment, save valuable floor space, and boost overall workflow productivity .

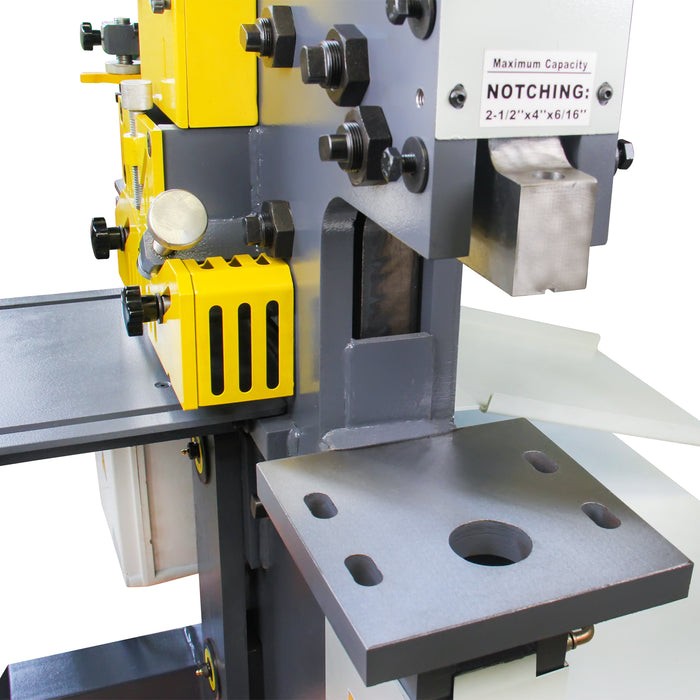

Engineered for Precision and Professional Results Achieve clean, accurate cuts and punches consistently. The robust hydraulic system and electric stroke control ensure smooth, consistent operation, which is crucial for tasks like creating precise notches in structural frames or cleanly shearing support brackets. This results in high-quality finishes that minimize the need for time-consuming secondary cleanup work .
Built-in Safety and Ease of Operation We designed the M-60 with your well-being in mind. It comes equipped with essential safety features, including safety guards and emergency stop buttons. The reliable hydraulic system gives the operator responsive control, while the intuitive design helps protect both users and the equipment during heavy-duty operation .
Flexible and Ready for Future Expansion Start with core tasks and expand as needed. The machine includes a universal open tooling station, and with 7 different multi-function molds available (optional), you can adapt its capabilities for specific projects. This makes the M-60 a scalable investment that can grow with your business needs, whether you're working on standard fabrications or specialized components .
Robust Construction for the Demanding Workshop This machine is built to last. With a net weight of over 3400 lbs, it's designed for stability and long-term reliability in industrial environments like metal fabrication shops, construction sites, and repair facilities. Its powerful 5.5 kW (7-3/8 HP) motor ensures it can handle continuous professional use .

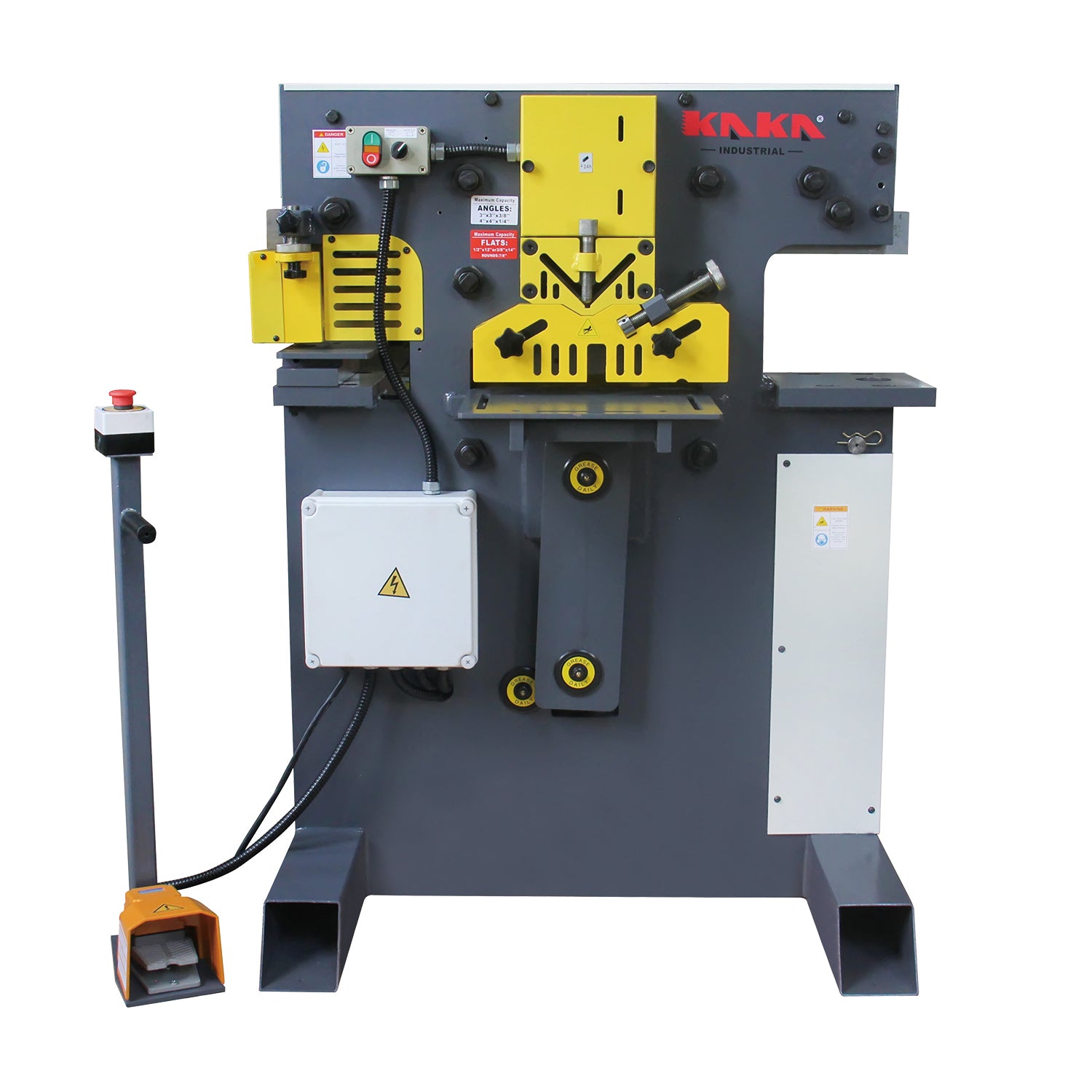

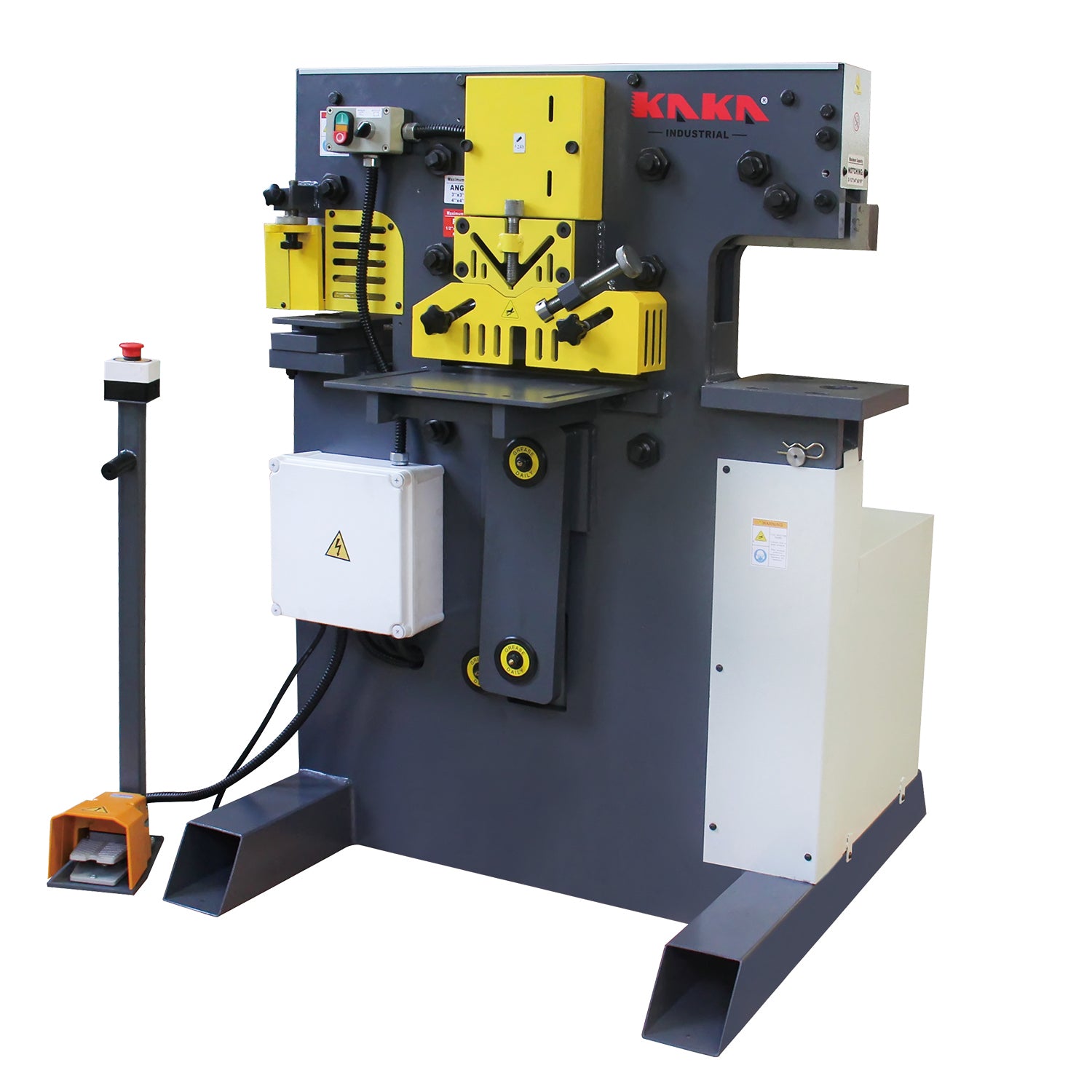

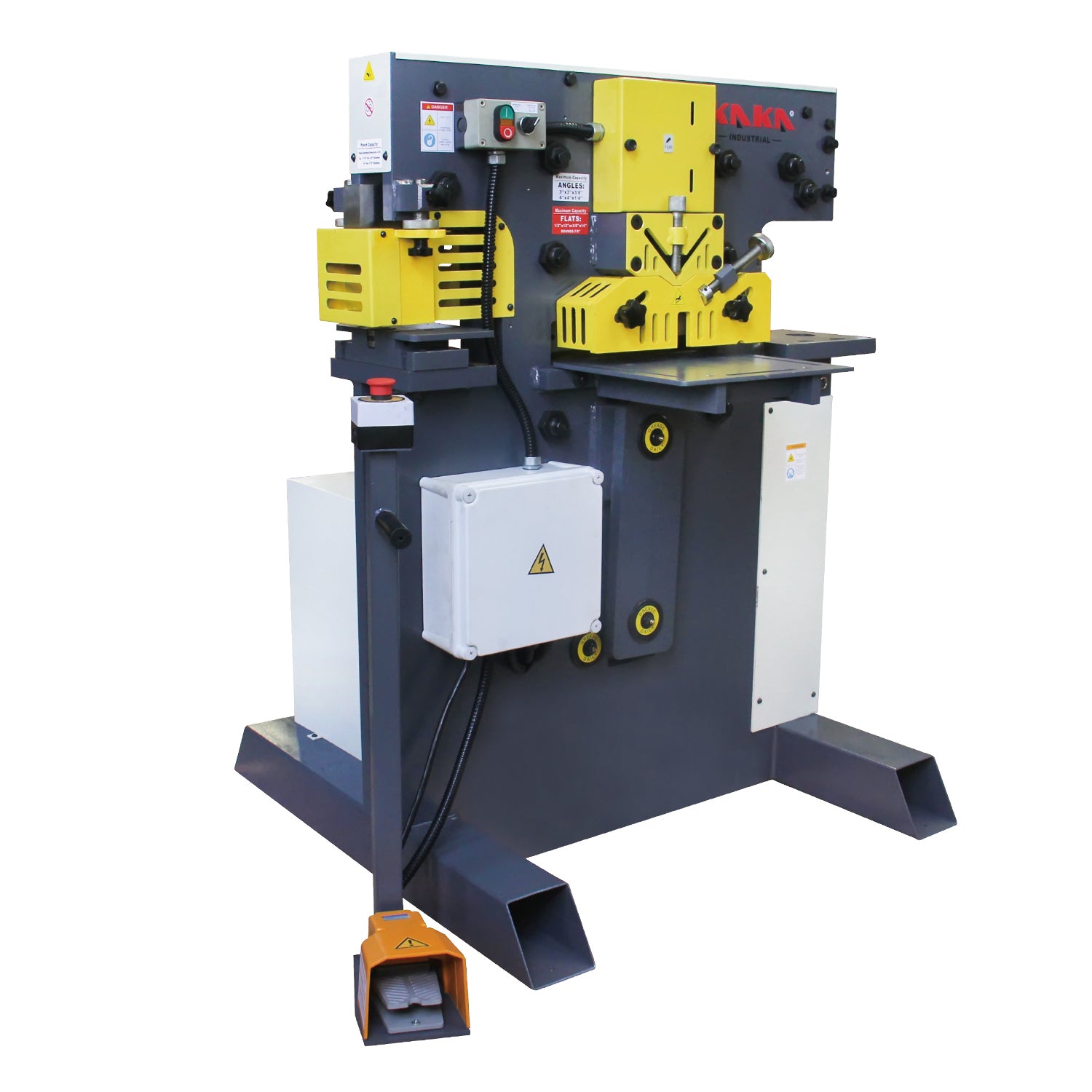

60 Ton multi-function Metal Ironworker M-60
It runs on a powerful 220V-60Hz-3PH industrial-grade hydraulic ironworker motor.
It is standard with punch assembly, flat bar shear, angle shear, and a universal open tooling station for optional toolings.
Safety guards and emergency stop buttons ensure the machine is safe to operate, protecting users during heavy-duty work.
Perfect for metal fabrication, construction, repair shops, and industrial applications. Suitable for handling various metals, including mild steel, stainless steel, and aluminum.
| Item No. | 181112 |
| Model | M-60 |
| Rated capacity | 60 Ton |

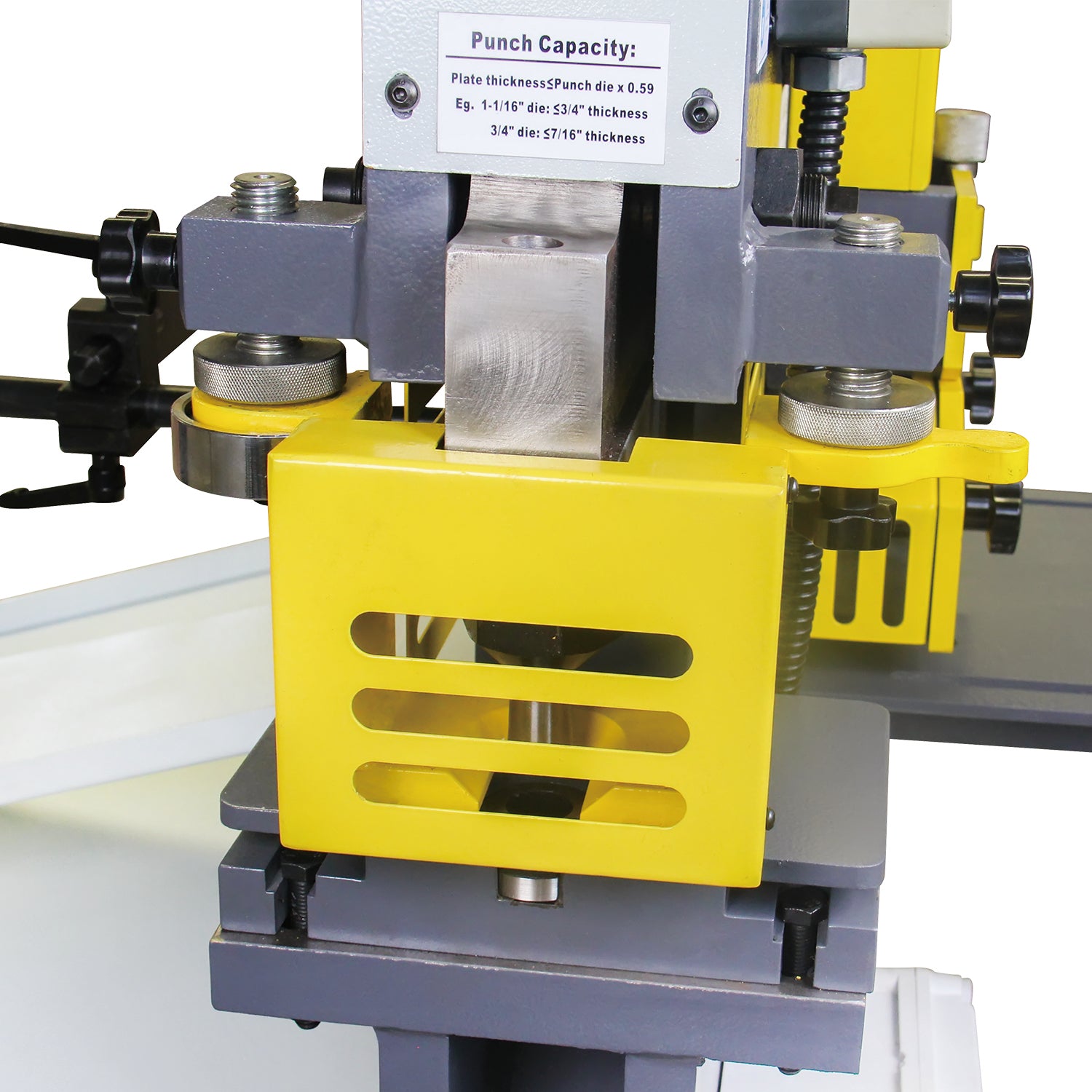

| Punch capacity - Diameter | 1"dia.in 3/4"plate |
| Punch capacity - Throat depth | 7-1/16" |
| Punch capacity - Stroke | 1-1/4" |
| Punch capacity - Work height | 37-1/2" |
| Flat Bar Shearing - Max. width | 1/16"x12" or 3/8"x14" |
| Flat Bar Shearing - Max. round | 7/8" |
| Flat Bar Shearing - Max. square | 7/8"x7/8" |
| Flat Bar Shearing - Work height | 34-5/8" |

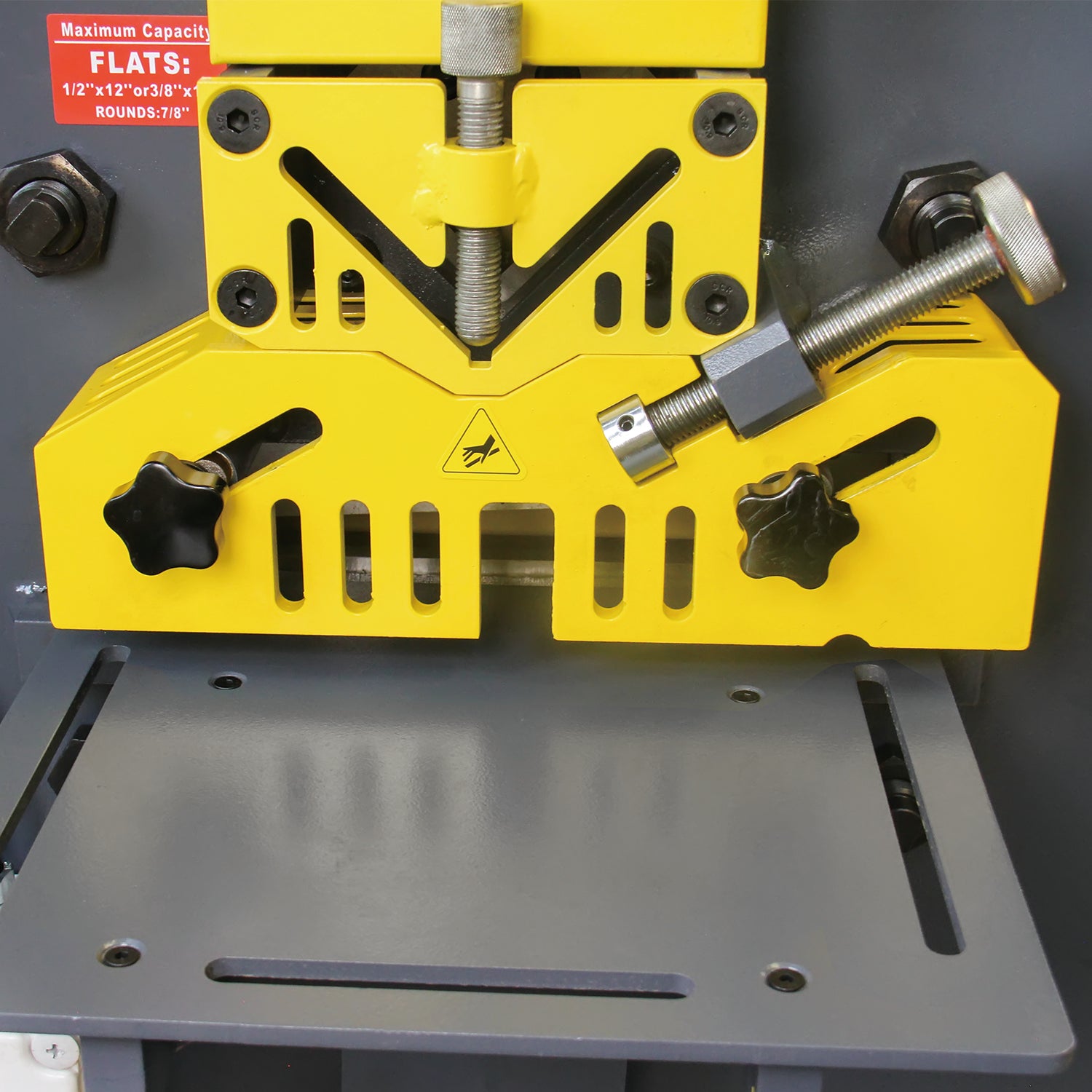

| Angle Shearing - Max. capacity | 4"x4"x3/8" or 3"x3"x1/2" |
| Angle Shearing - Throat depth | 7-3/8" |
| Angle Shearing - Work height | 40-1/2" |
| Open station - Open height | 8" |
| Open station - Shut height | 6-3/4" |
| Open station - Throat depth | 7-1/16" |
| Open station - Work height | 35-1/4" |
| Motor power | 5.5 kW (7-3/8HP) |
| Packing size | 48.5x44.5x60 in |
| N.W./G.W. | 3417/3637 lbs |
| Voltage | 220V-60Hz-3PH |
| Shipping Method: | Large Freight (LTL-Trucking) |
