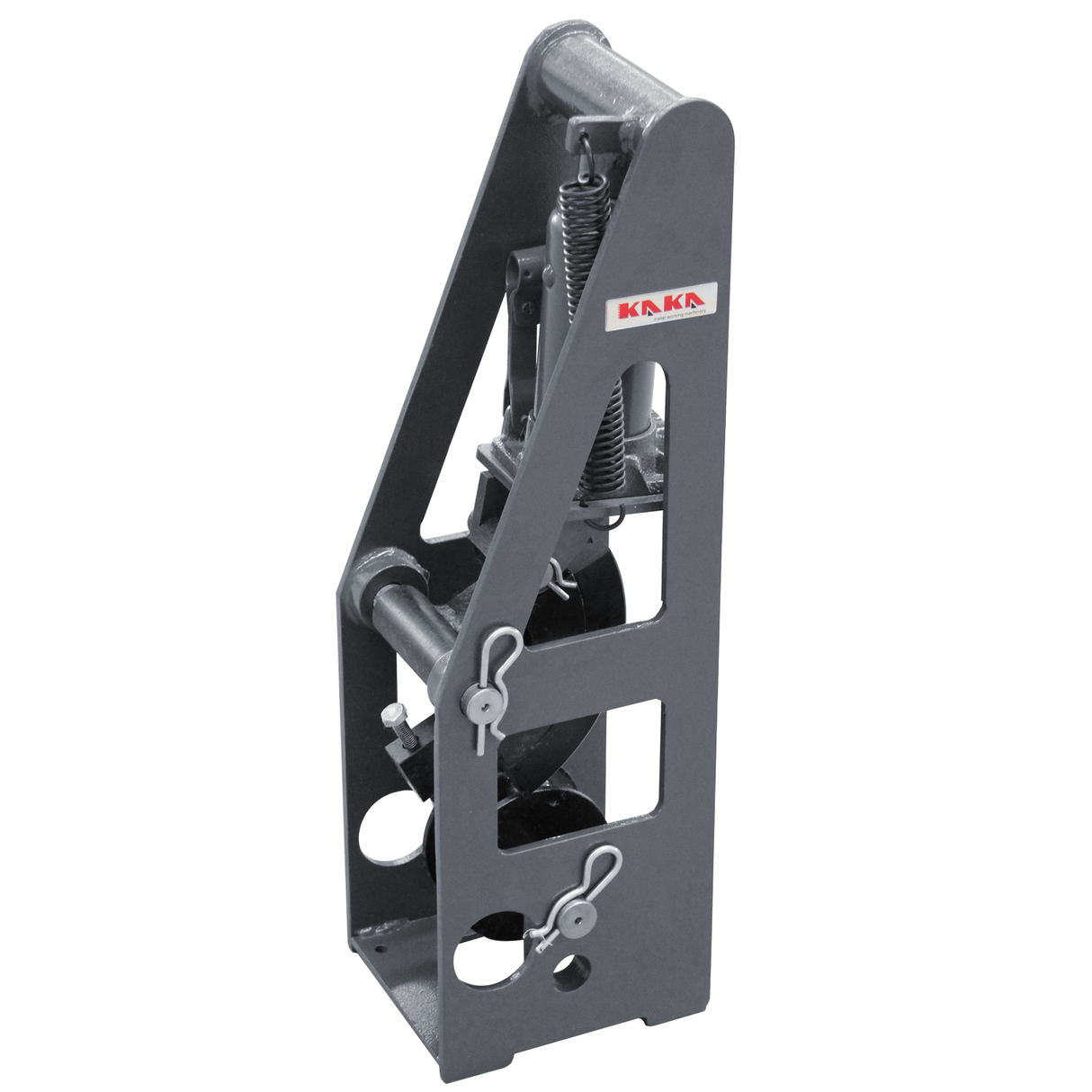

KAKA Industrial 8 Ton Tubing Bender Overview

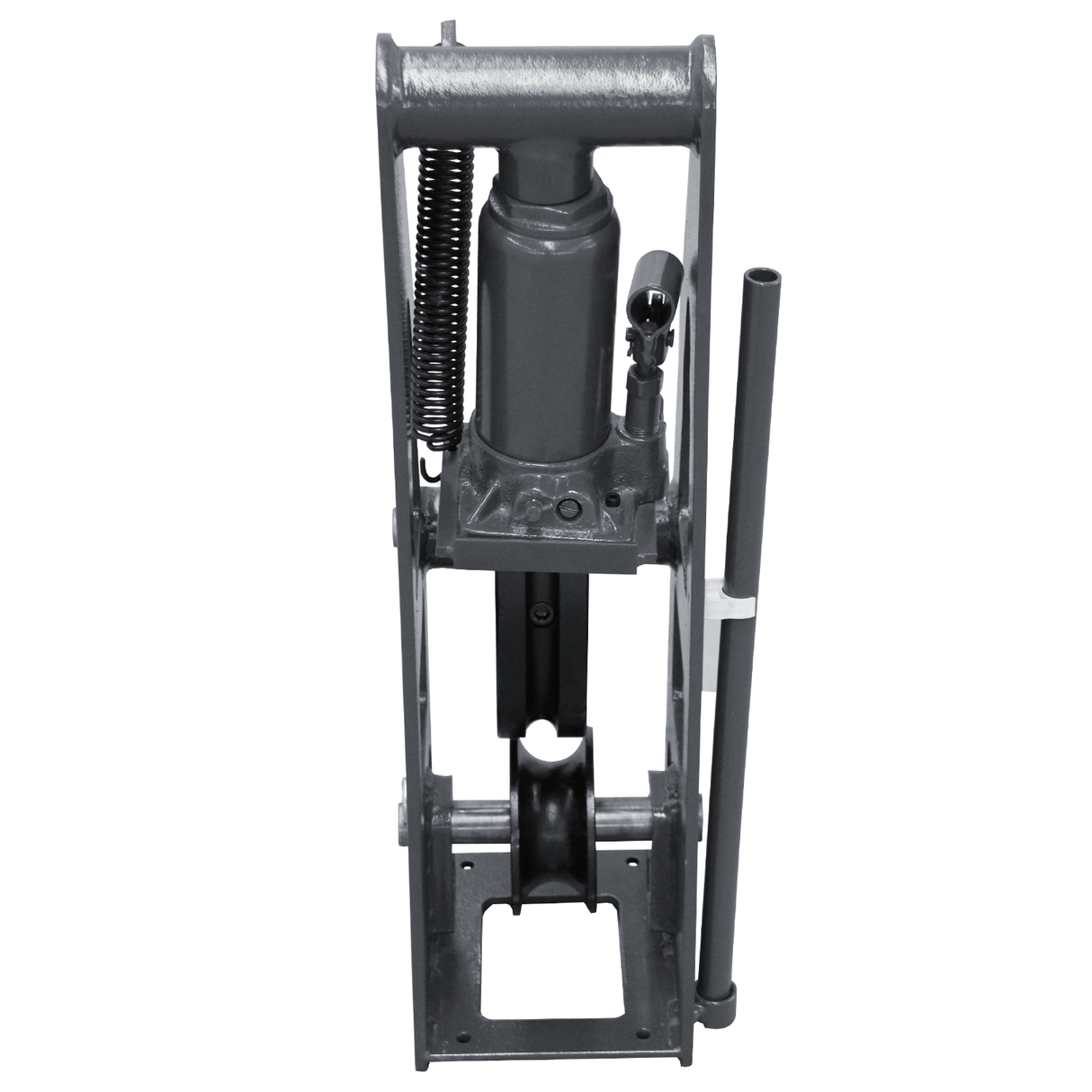

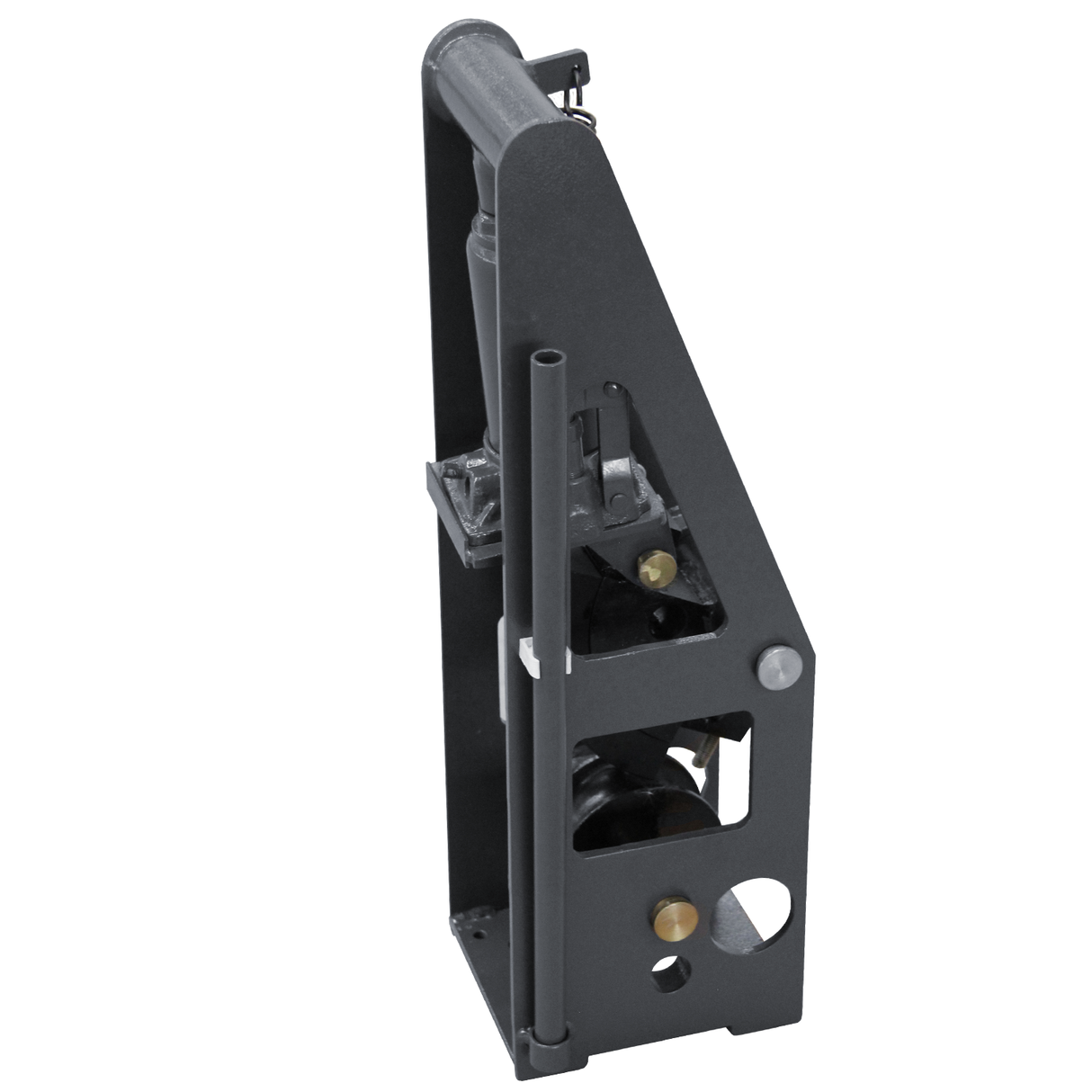

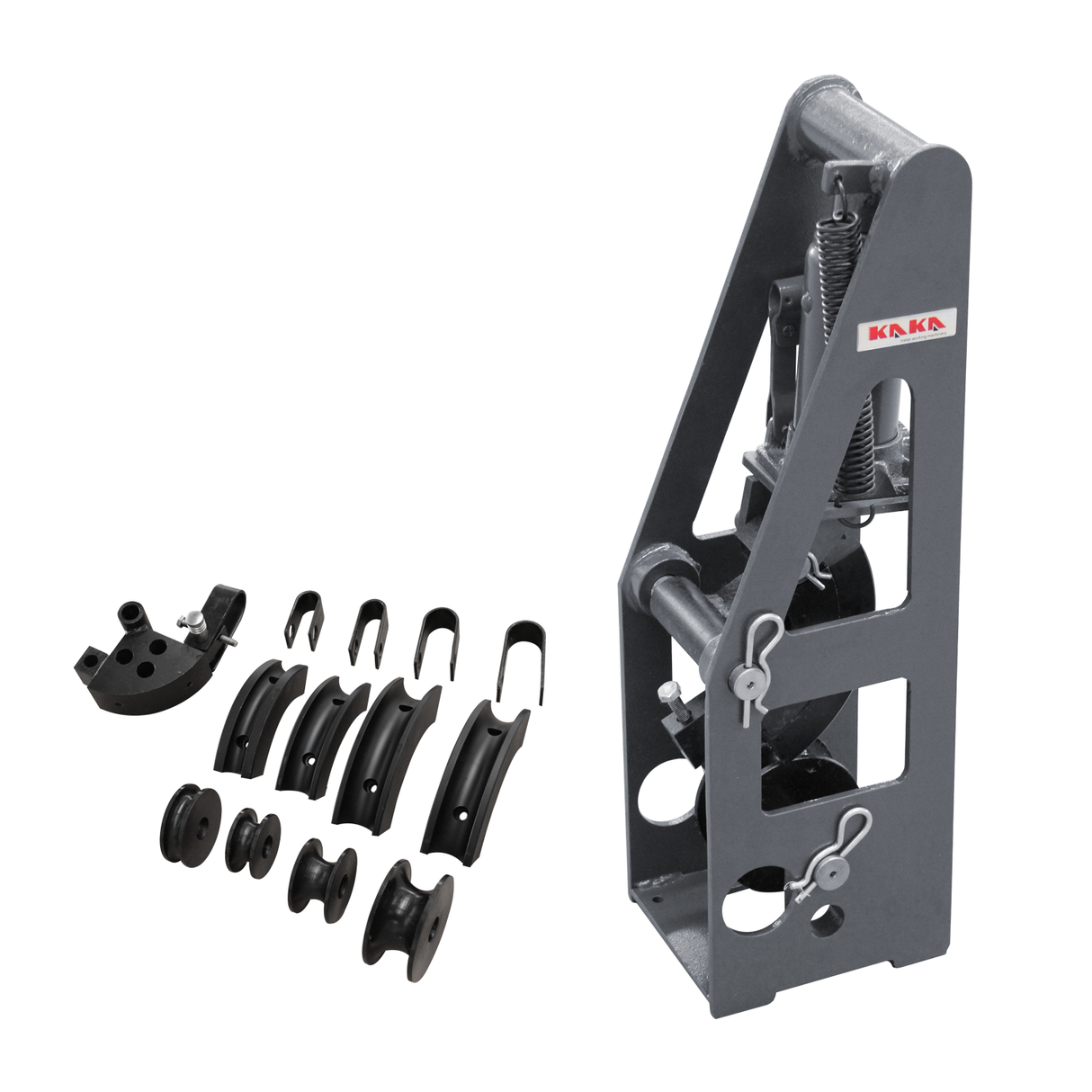

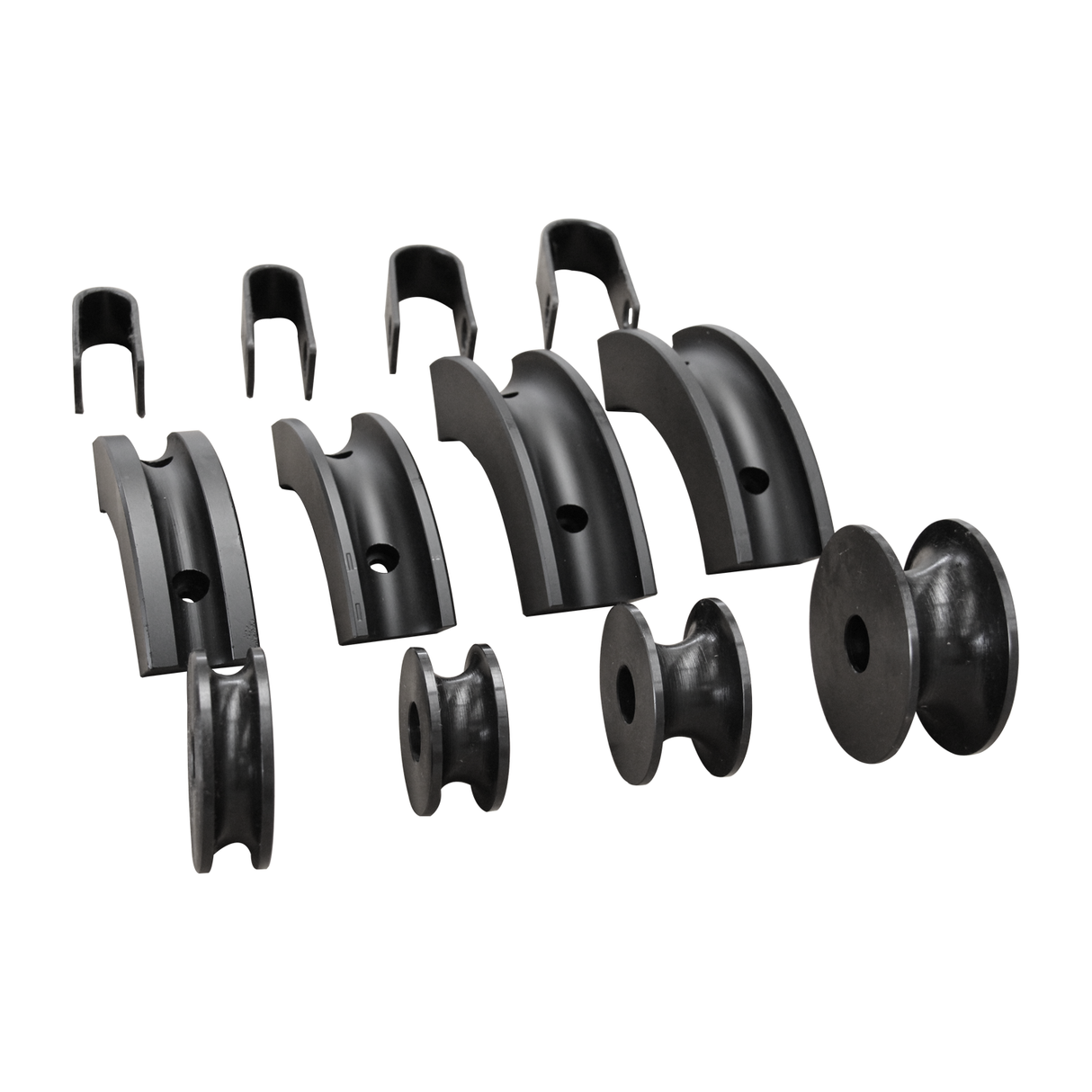

KAKA Industrial 8 ton tubing bender is designed to bend steel and chrome-molybdenum tubing in a range from 3/4” to 1-3/4”. With the cylinder, it can bender pipe easily. Stability of bending process can be achieve through the sturdy steel frame and 8 ton forming jack, making sure the safety bending process. One thing to be noted is that this bender delivers with five different dies, which are 3/4", 1", 1-1/2", 1-5/8", 1-3/4" diameter for round tubing.
High Precision, Quality Construction, Easy Operation and High Flexibility Kaka Industrial Metal Tubing Bender

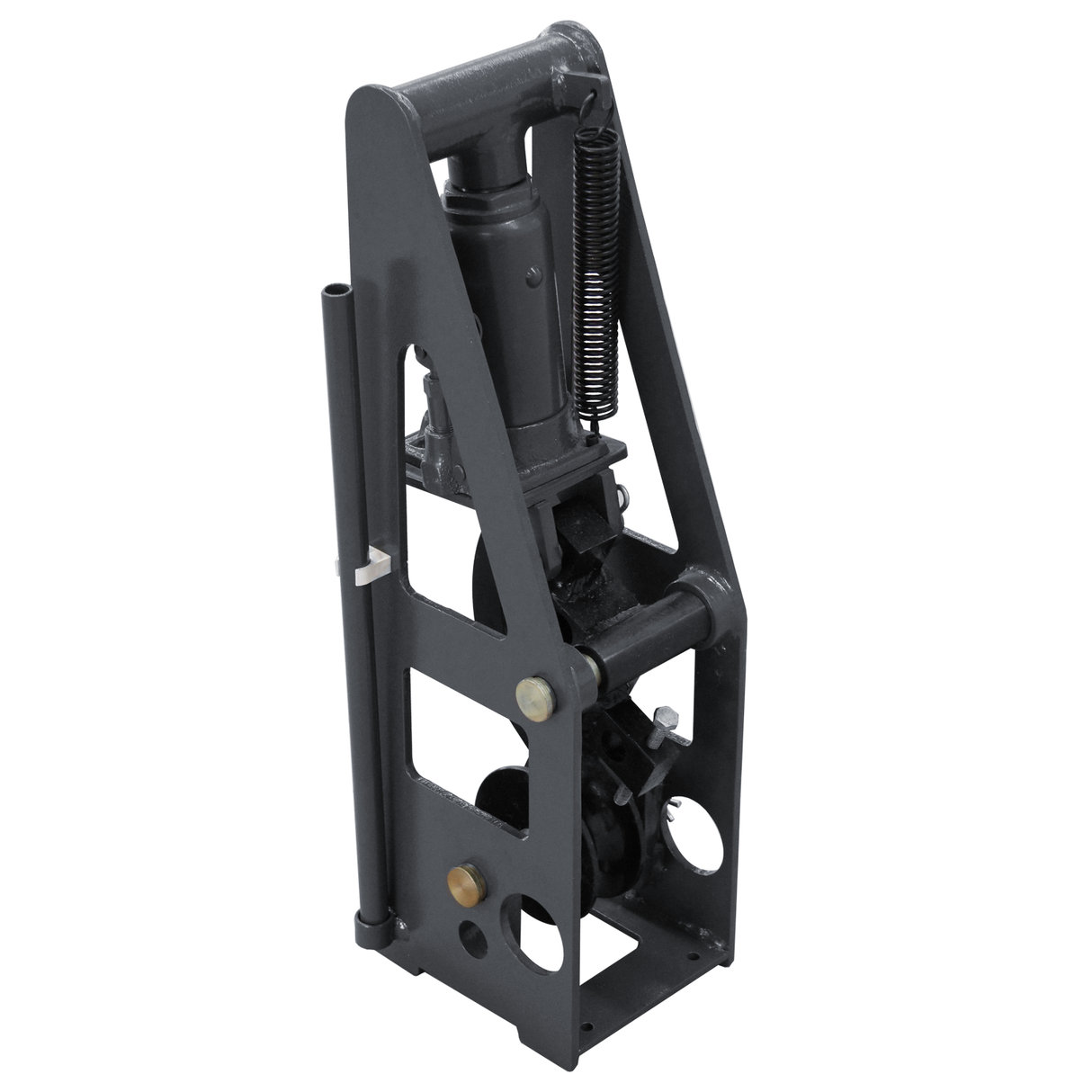

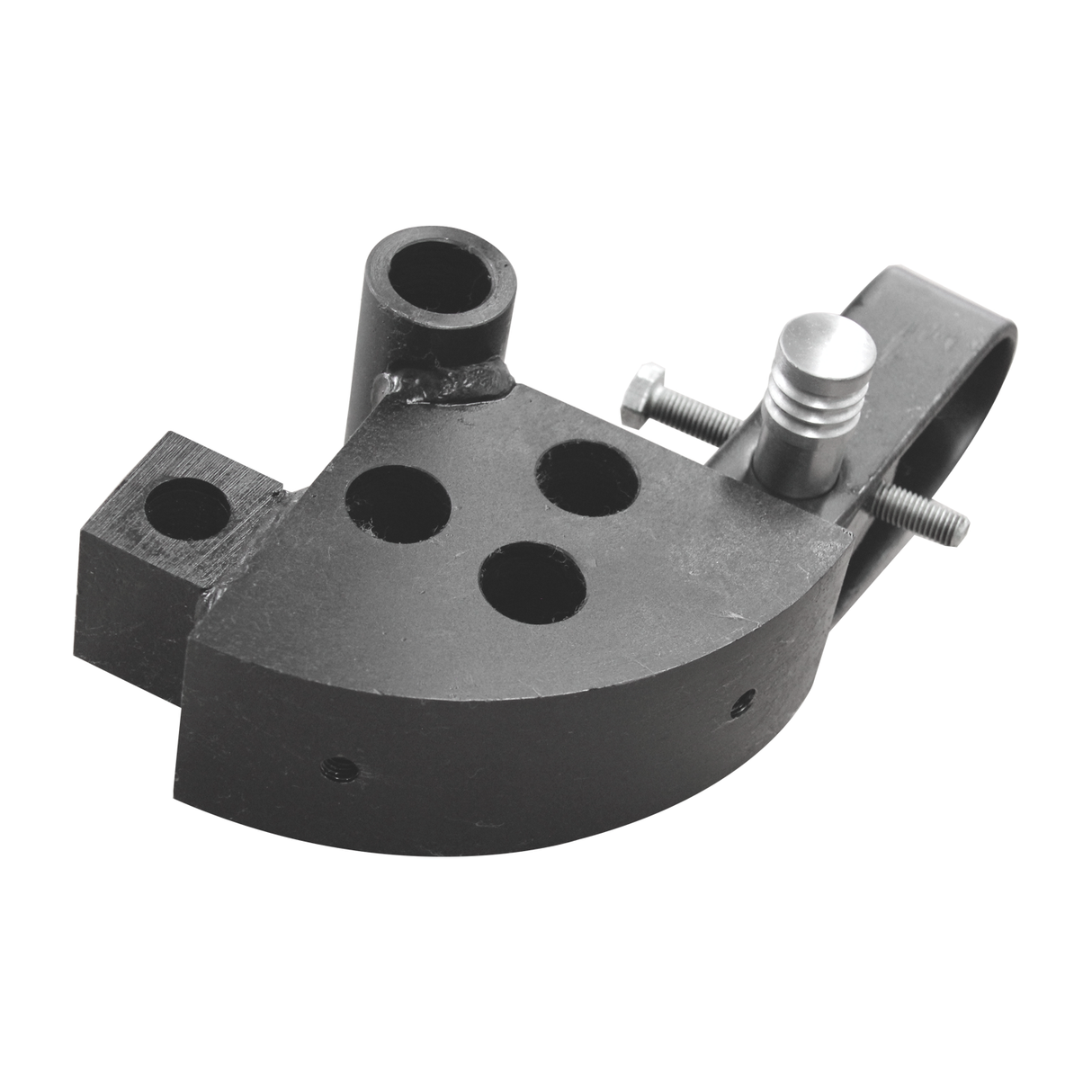

This metal tubing bender is also a high precise bending machine with the support of steel forming dies and cast followers, bending the material without flattening or deforming the edges.This quality construction tubing bending would be a smart purchase for small shops in which want to customize the tube components and transmission mounts. The hydraulic backed and hand-operated system allow easy bending process. It also can bend up to 90 degree. Quick changes ensures for flexibility that can be achieved through changing different dies. Overall, it is a great quality metal bending machine you will not want to miss!
Specification
|
Item No.
|
175005
|
|
Model
|
HB-8
|
|
Maximum Pressure (ton)
|
8 Ton
|
|
Maximum Ram Strike (in)
|
4.7"
|
|
Packing dimension (in)
|
28-1/2x14-1/4x11-1/4
|
|
N.W./G.W.(lbs)
|
95/99
|
|

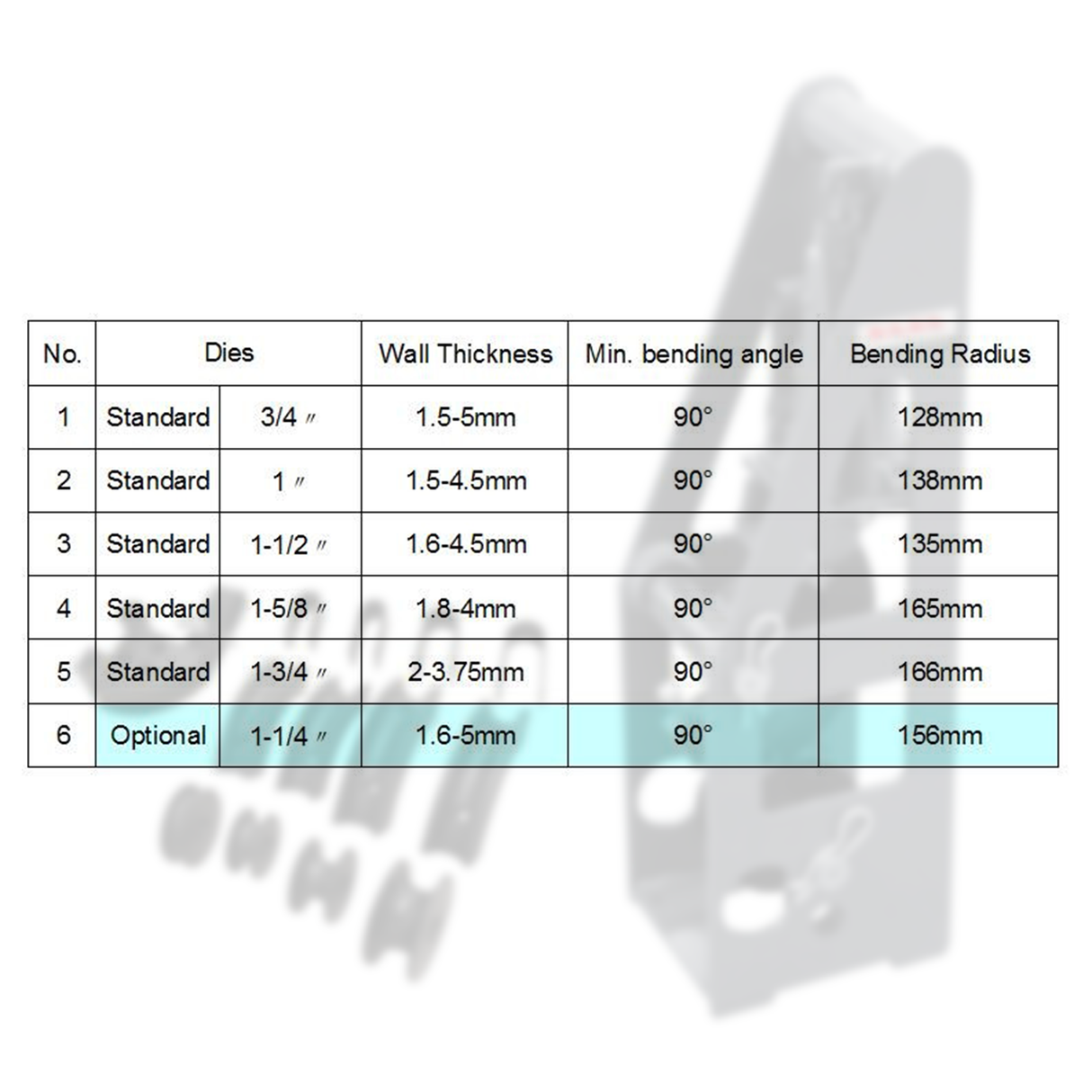

Chromoly Tubing (90 Degrees)
|
Bends up to 90 Degrees in 3/4”, 1” and 1-1/2”diameter with wall thickness up to 0.040”
|
|
Mild Steel Tubing (90 Degrees)
|
Bends up to 90 Degrees in 3/4” and 1” diameter with wall thickness from 0.049” to 0.090”
|
|
Chromoly Tubing (60 Degrees)
|
Bends up to 60 Degrees in 3/4”,1.0”, 1-1/2”, 1-5/8” and 1-3/4” diameter with wall thickness up to 0.040”
|
|
Mild Steel Tubing (60 Degrees)
|
Bends up to 60 Degrees in 3/4”, 1.0”, 1-1/2”, 1-5/8” and 1-3/4” diameter with wall thickness from 0.049” to 0.090”
|
KAKA Industrial provides 12 months warranty for this product.
