Kaka Industrial FNL-100B Horizontal vertical collet index

$299.99 $621.00
Shipping calculated at checkout.

Care information

Delivery and Shipping

  1. The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
  2. The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

Payment & Security

Payment methods

  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

FNL 100B can be mounted on milling machine, grinding machine, drilling machine and other machine tools. The divisions of 2,3,4,6,8,12,and24 can be divided. It can also be used for marking out of

components. This index has the advantage of use in horizontal and vertical, compact construction, light in weight, operating by single handle, It can accept a5C collet. Consequently, it is a reliable device for enhancing work efficiency.

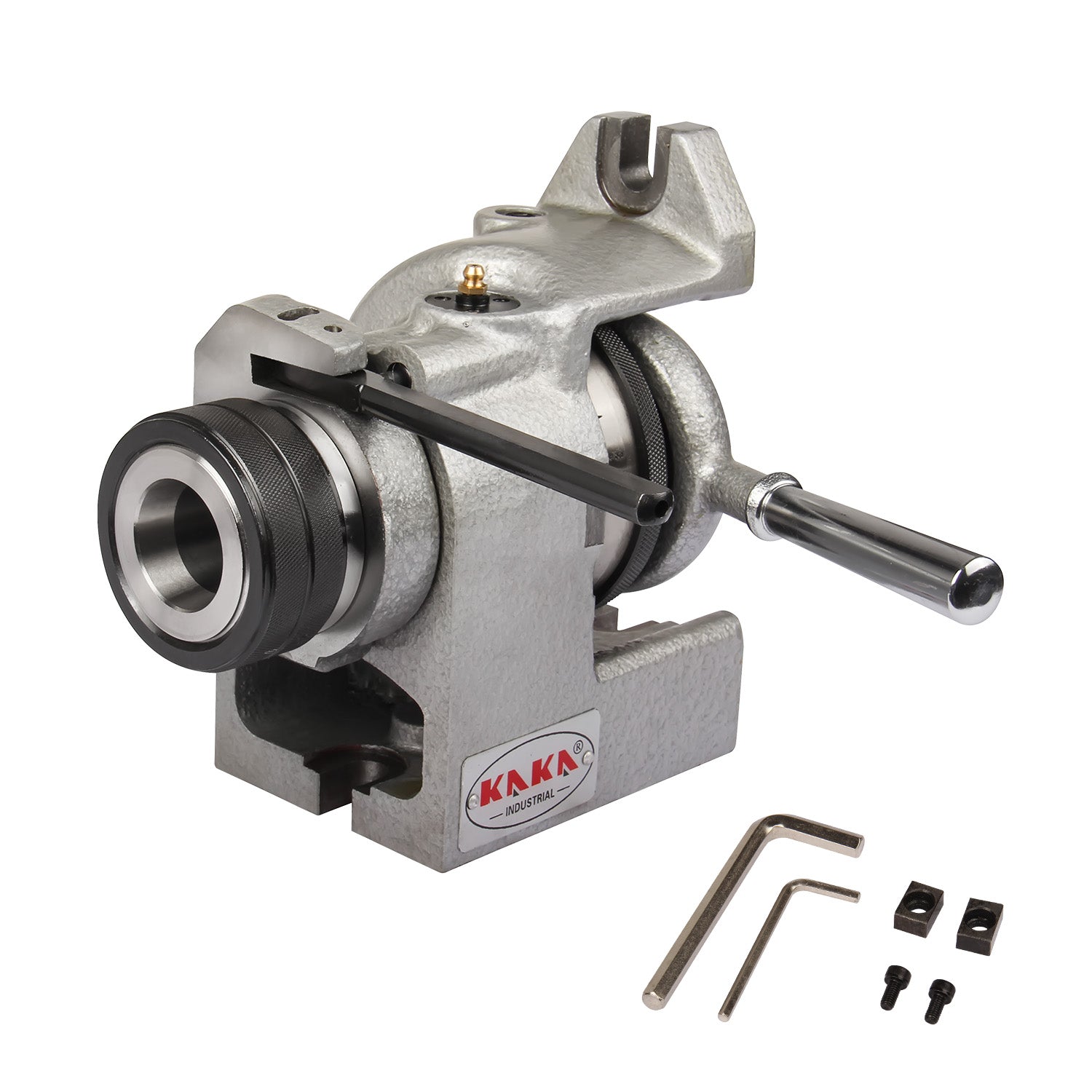

Hex wrench (4mm8mm1 piece each)Socket hexagon  100


items      FNL100B

Center height mm 101.6

Min.ID of spindle mm   31.75


Spindle screw 24x8

Can be equipped with elastic chuck:  5C

Dividing accuracy: individual spacing error:±3”

Net weight (lb)28

Gross weight(lb)    33

Case dimensions(in) 12x10x11

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
