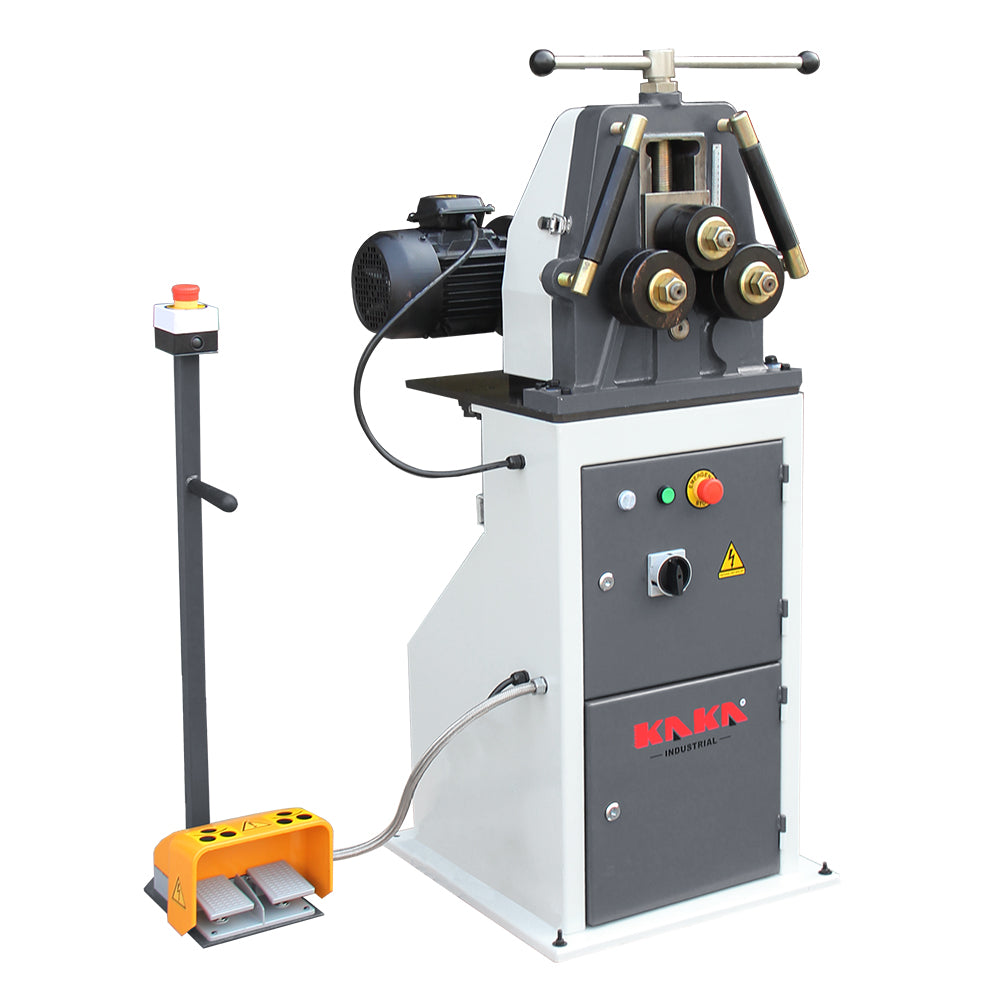

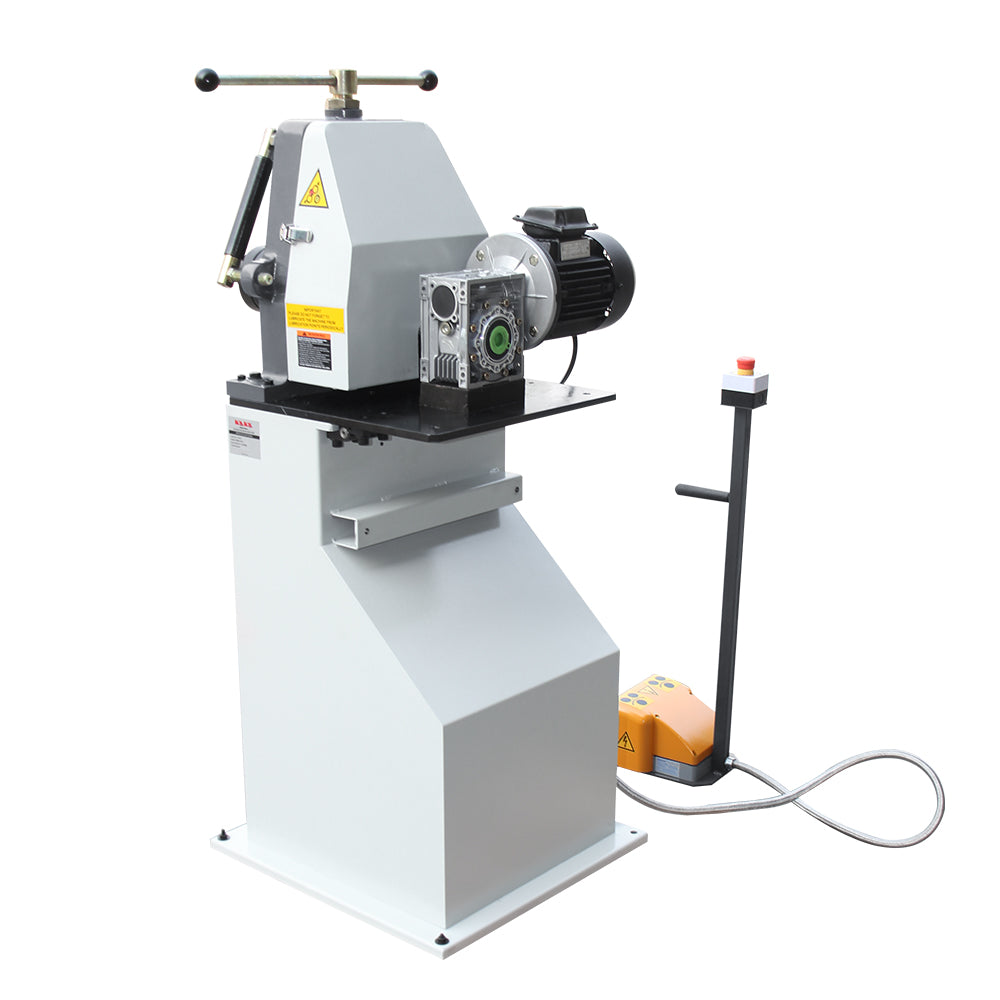

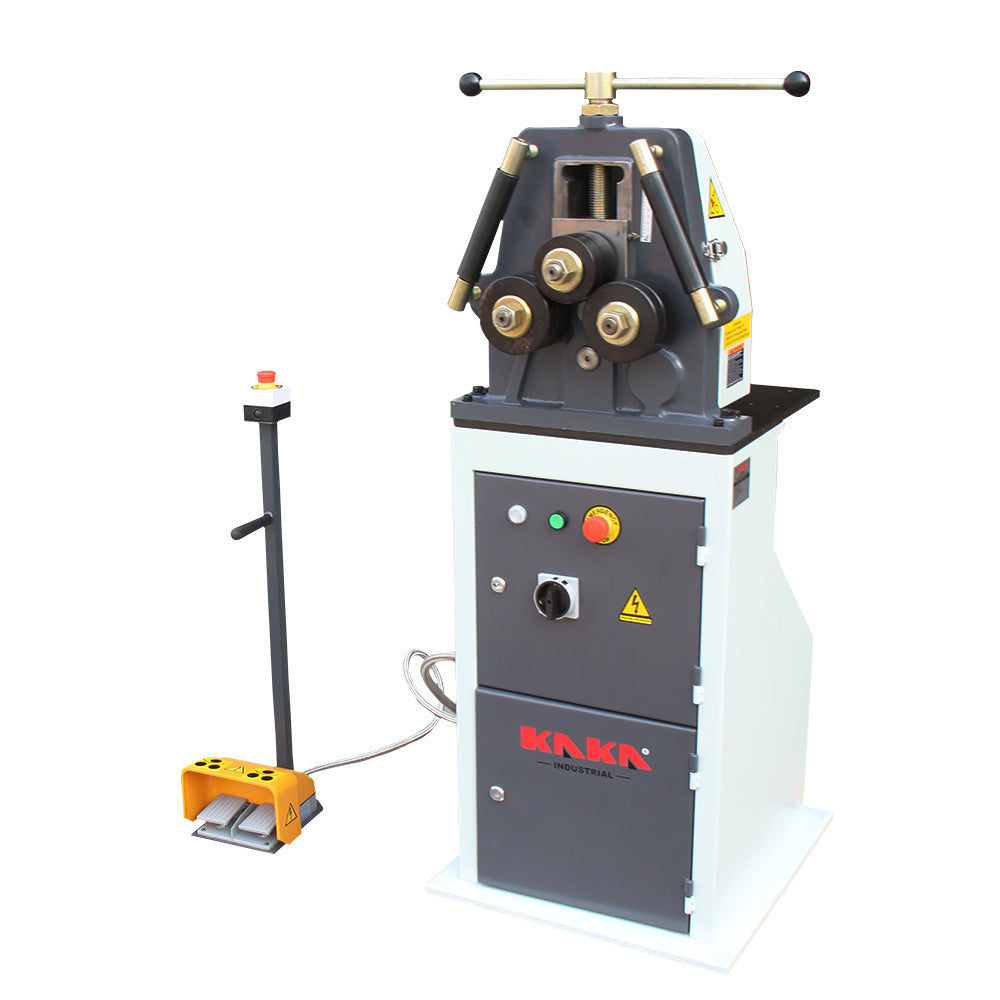

KAKA INDUSTRIAL Electric Roll Bending Machine, Heavy Duty Bender, 2"x0.4" Flat Bar and 1.97"x0.39" Square Steel, 1.5HP Motor, Horizontal/Vertical Operation, 230V/460V 3-Phase ERBM-10HV
KAKA INDUSTRIAL Electric Roll Bending Machine, Heavy Duty Bender, 2"x0.4" Flat Bar and 1.97"x0.39" Square Steel, 1.5HP Motor, Horizontal/Vertical Operation, 230V/460V 3-Phase ERBM-10HV is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
- The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
EXTENDED ELECTRIC BENDING CAPACITY – Powered by a 1.5HP (1.1kW) electric motor, this machine bends 1.18-inch mild steel round tubing, 2"x0.4" flat bars, and 1.97"x0.39" square steel. It processes steel, aluminum, and stainless steel with precision for diverse industrial applications.

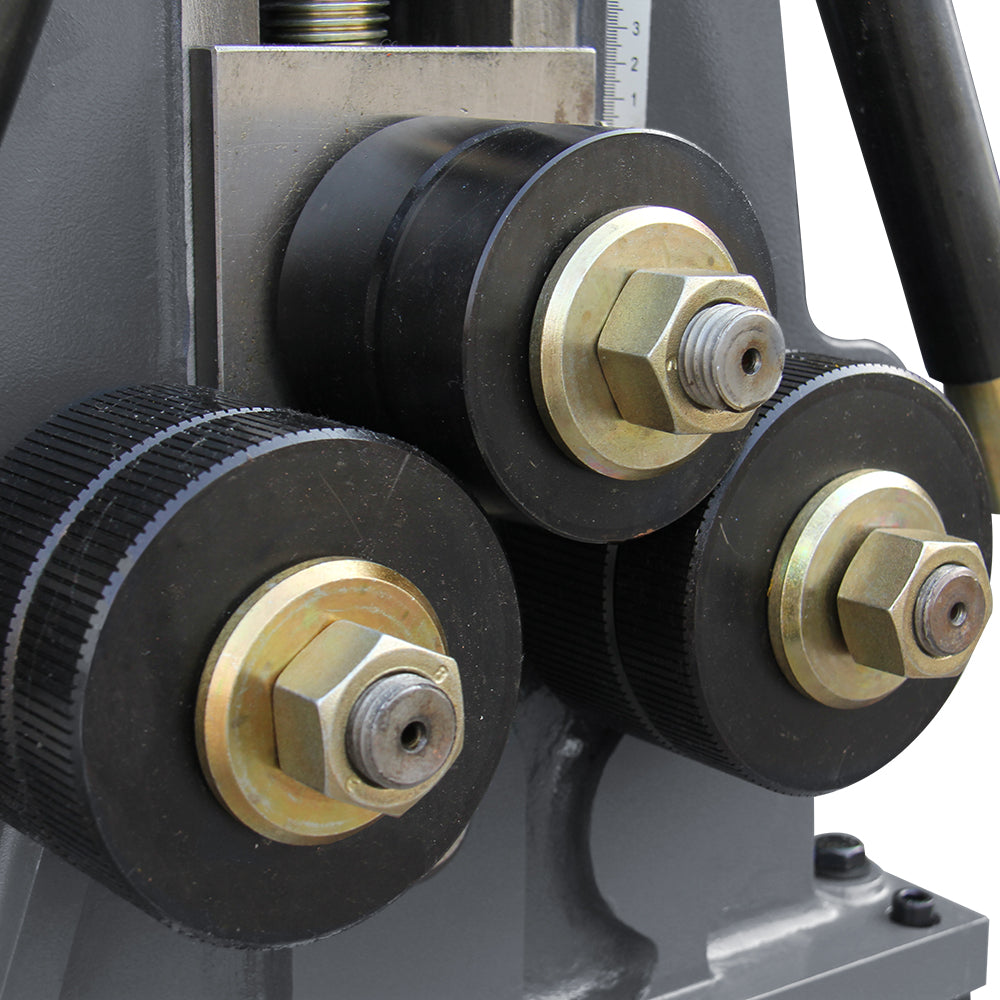

PRECISION ROLLER SYSTEM & DUAL OPERATION – Features three hardened steel rollers (1.18" diameter) and supports both horizontal and vertical operation modes. This flexibility allows for complex arcs on long beams, wide plates, pipes, and structural shapes, with an open-face design enabling full-circle rolling.
INDUSTRIAL-GRADE CONSTRUCTION – Built with a reinforced steel frame (net weight 507 lbs / 230 kg) to resist deformation under continuous heavy-duty use. This robust construction ensures processing stability and an extended service life in demanding workshop environments.
EFFICIENT MOTOR-DRIVEN OPERATION – The electric motor system delivers consistent power for smooth and precise bending, reducing operator fatigue compared to manual models. Includes integrated safety features such as an emergency stop button.
VERSATILE INDUSTRIAL APPLICATIONS – Ideal for structural square steel bending, round tubing hoops for construction, automotive exhaust pipes, and HVAC duct fabrication. Its ability to handle various profiles makes it essential for metalworking workshops and fabrication shops.
Specification:
|
Item No. |
191010V230 |
|
|
Model |
ERBM-10HV |
|
|
Dia. Of roller |
1.18” |
|
|
Power |
1.1 kW/1.5HP |
|
|
Spindle speed |
@60Hz 21r/min |
|
|
Packing size |
37"x31"x53" |
|
|
N.W./G.W. |
517/627 lbs |
|
|
Max. capacity (one set standardroller) |
Size |
Min dia. |
 |
20x5 mm 30x10 mm |
190 mm 500 mm |
|
20x5 mm 50x10 mm |
160 mm 400 mm |
 |
10x10 mm 20x20 mm |
160 mm 500 mm |
Standard accessories:
- Foot pedal
- One set standard roller
1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.
2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.
3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
