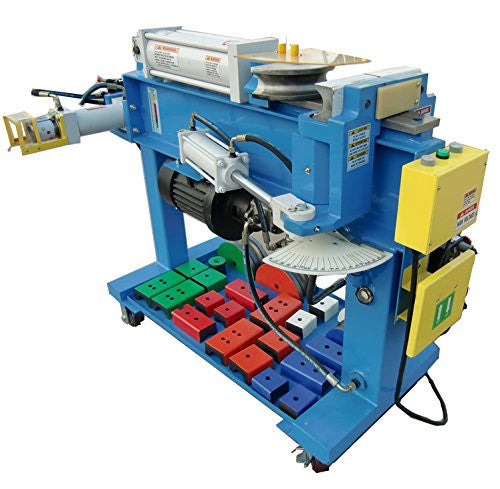

Kaka Industrial EPB-3 Hydraulic Exhaust Pipe Tube Bender, Heavy Duty Swager & Expander

  • $6,999.99

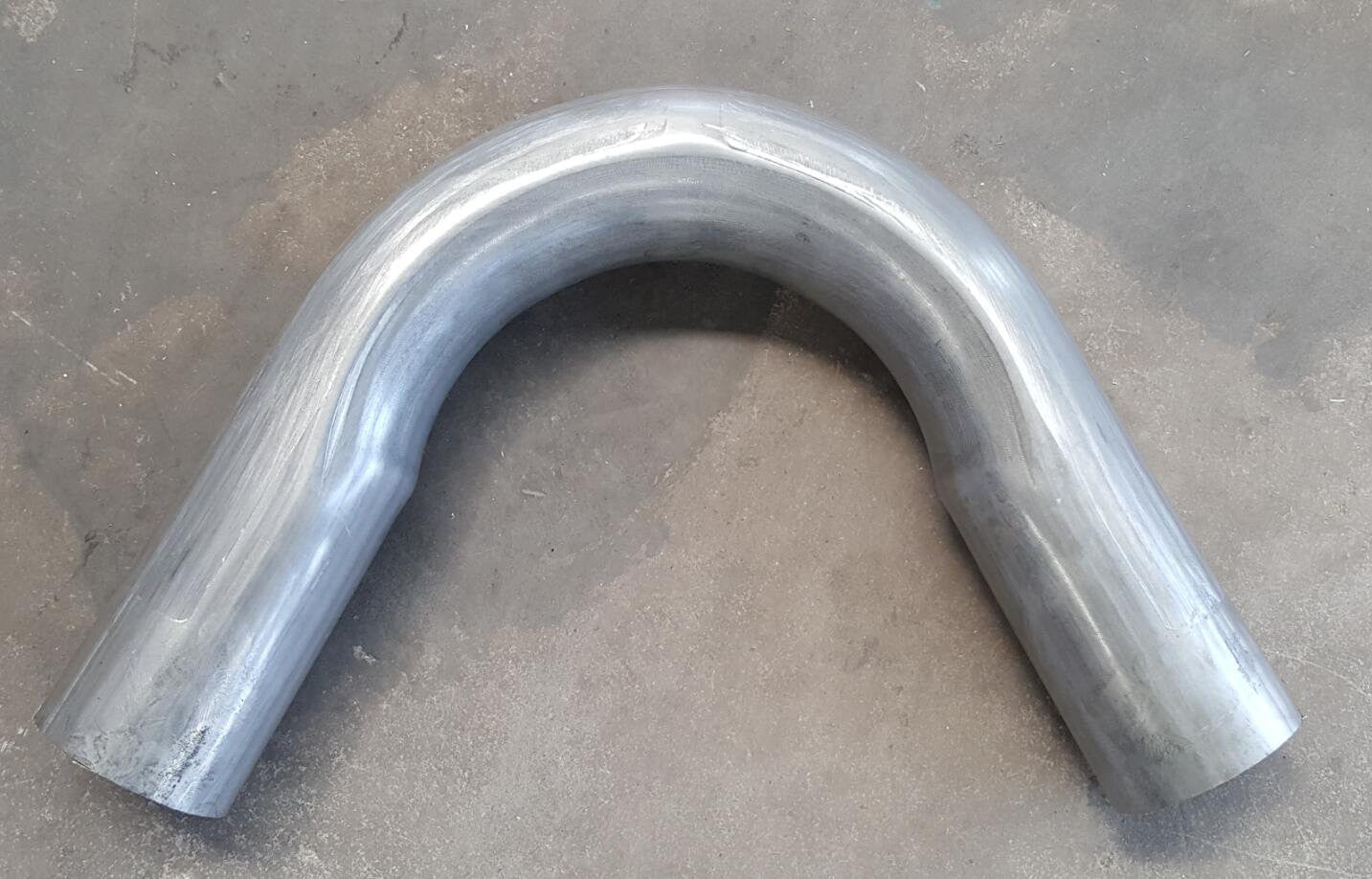

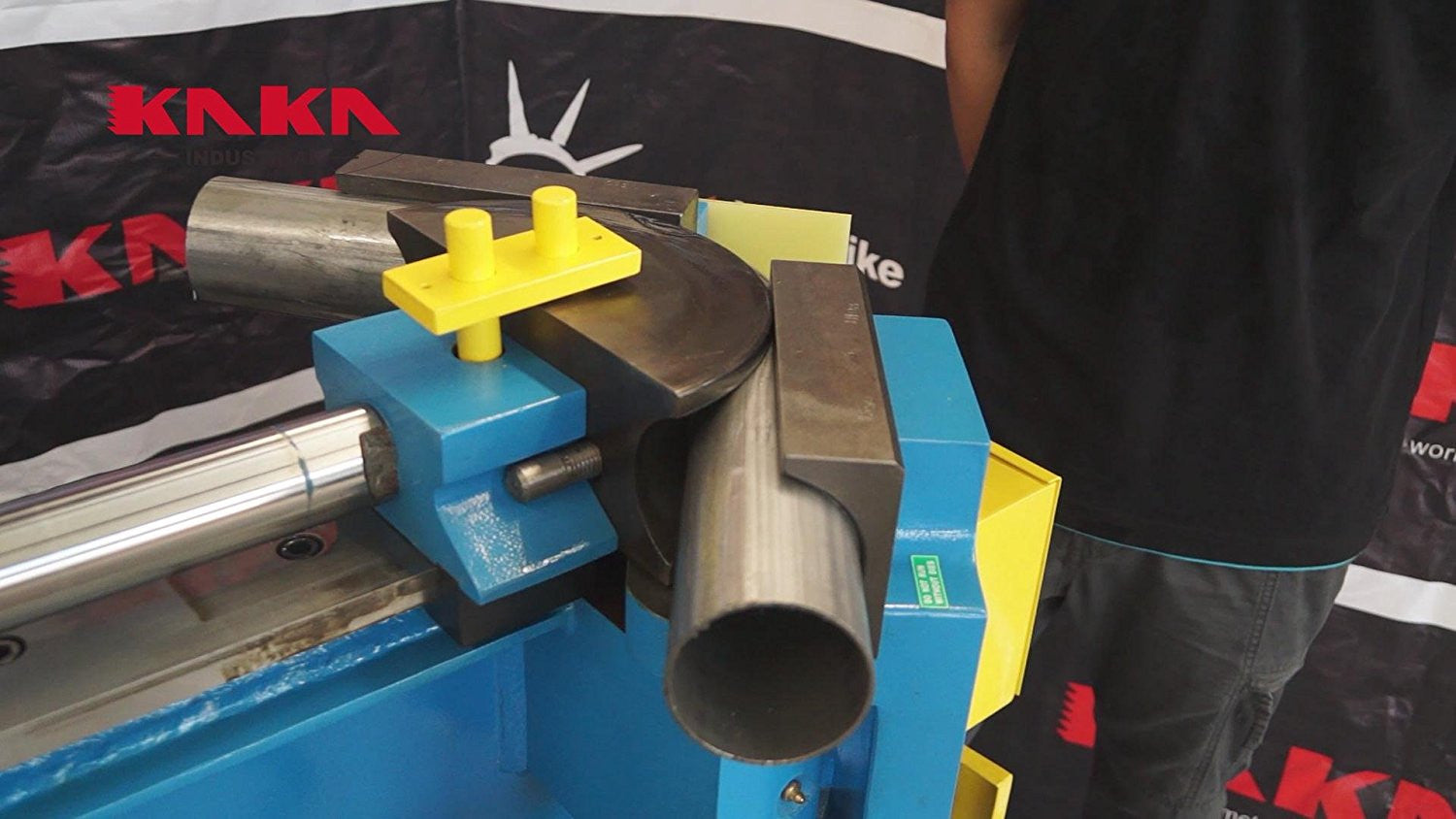

  • Bend up to 3" tubing, expand up to 3" tube and perform multiple endforming applications
  • Standard tooling package includes most popular tools

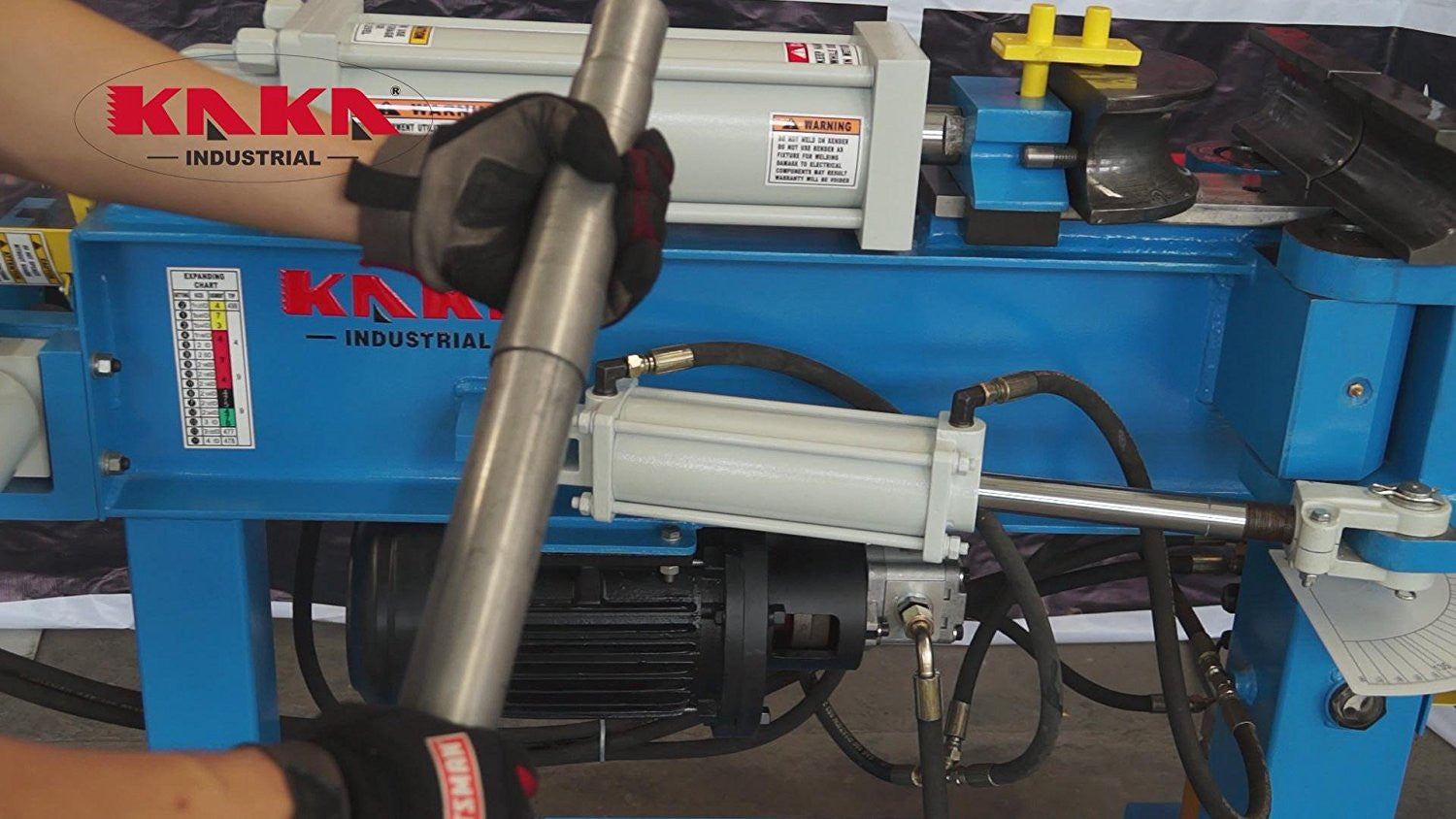

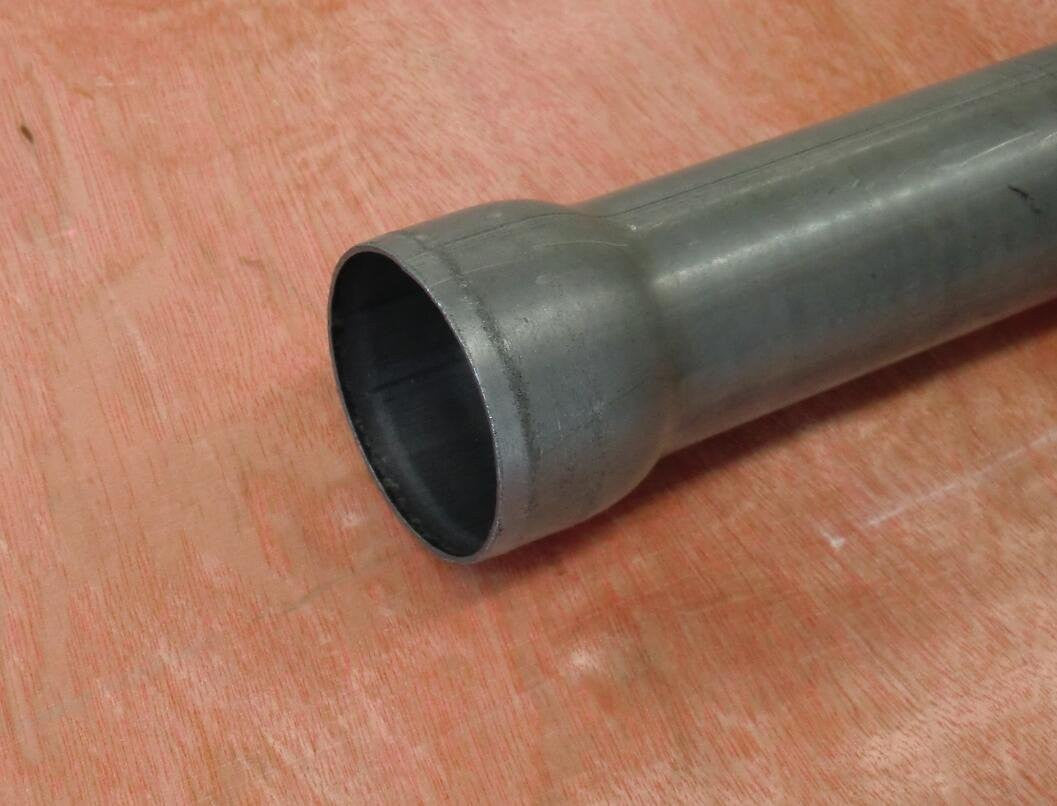

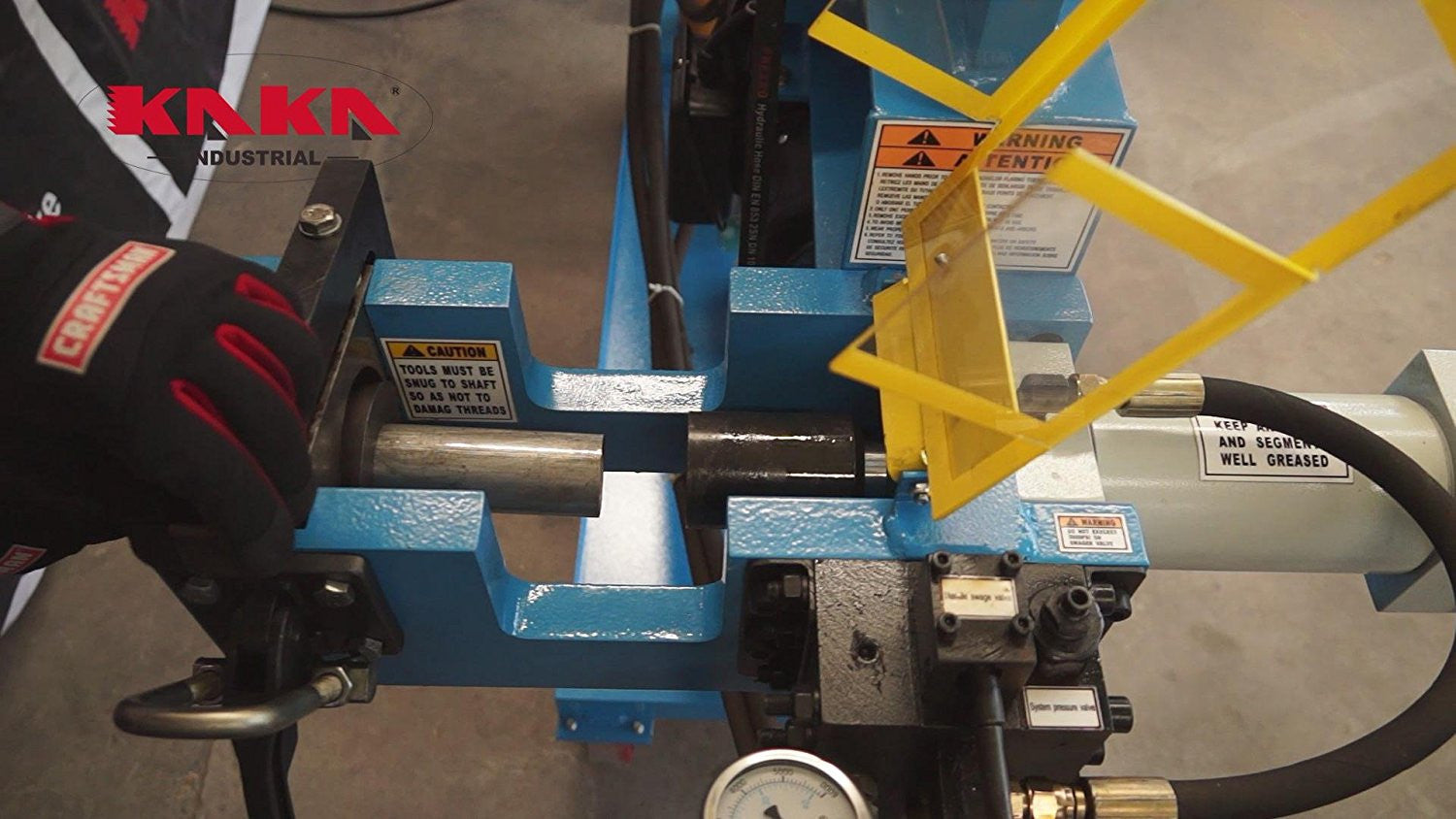

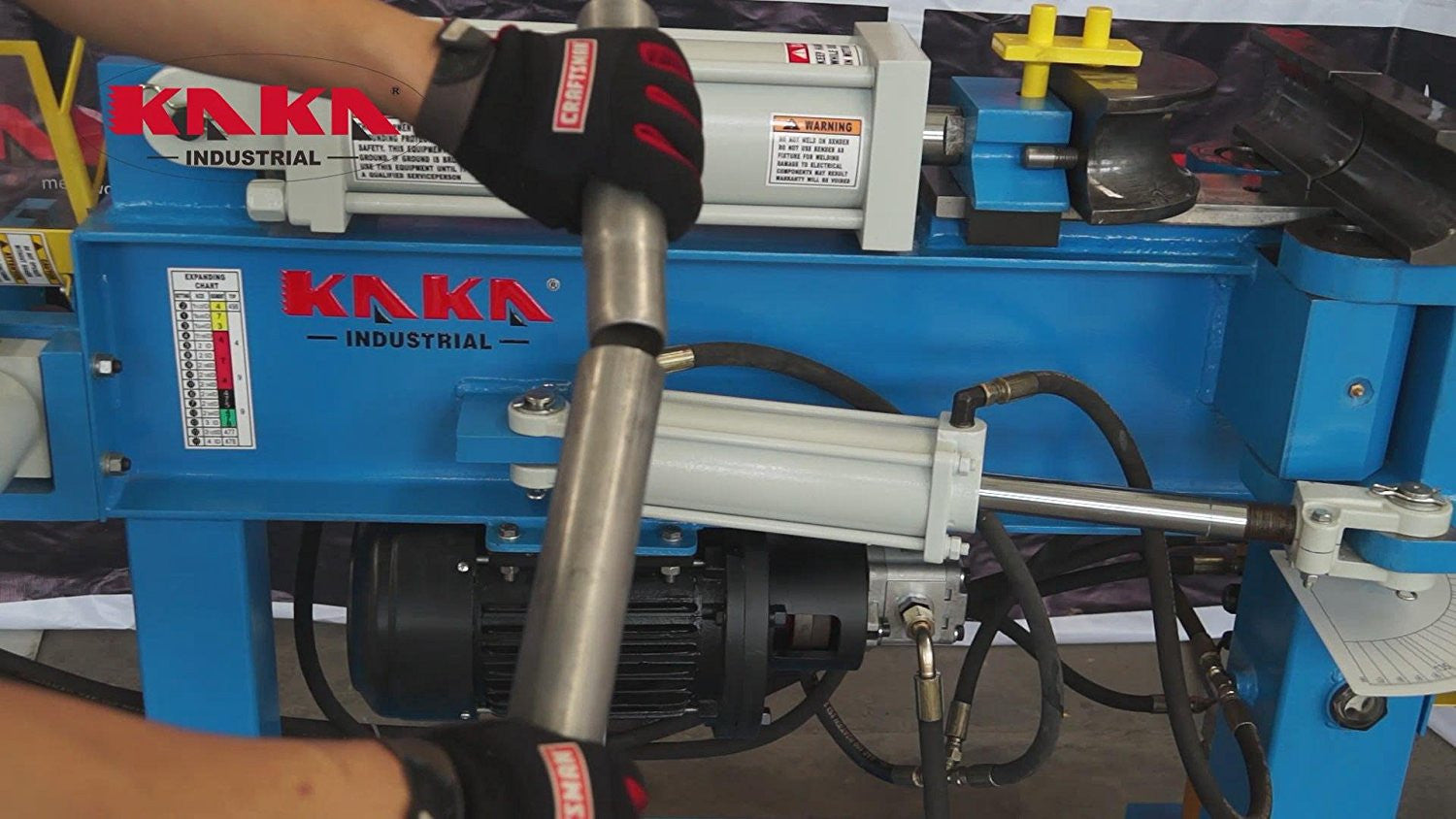

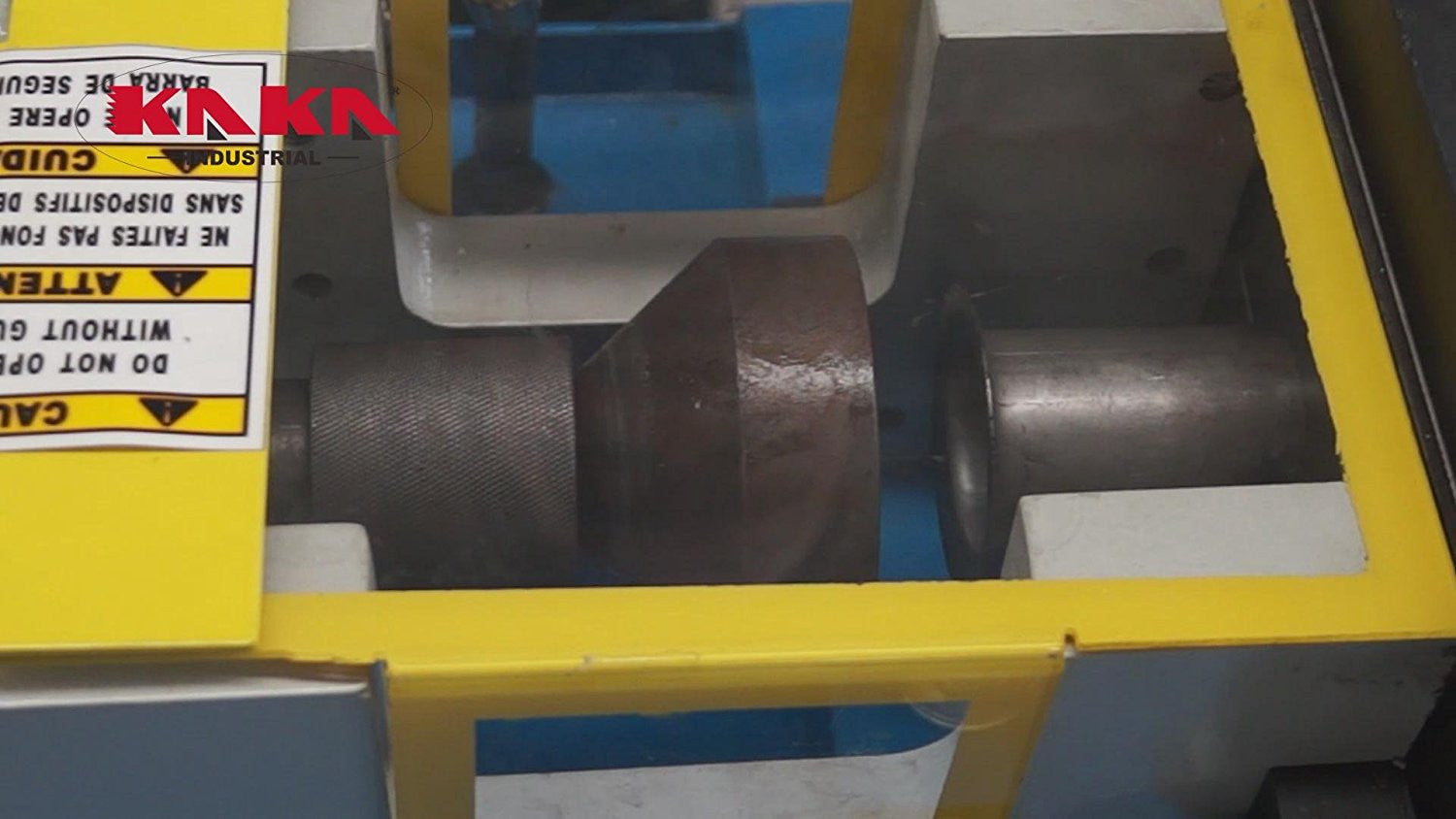

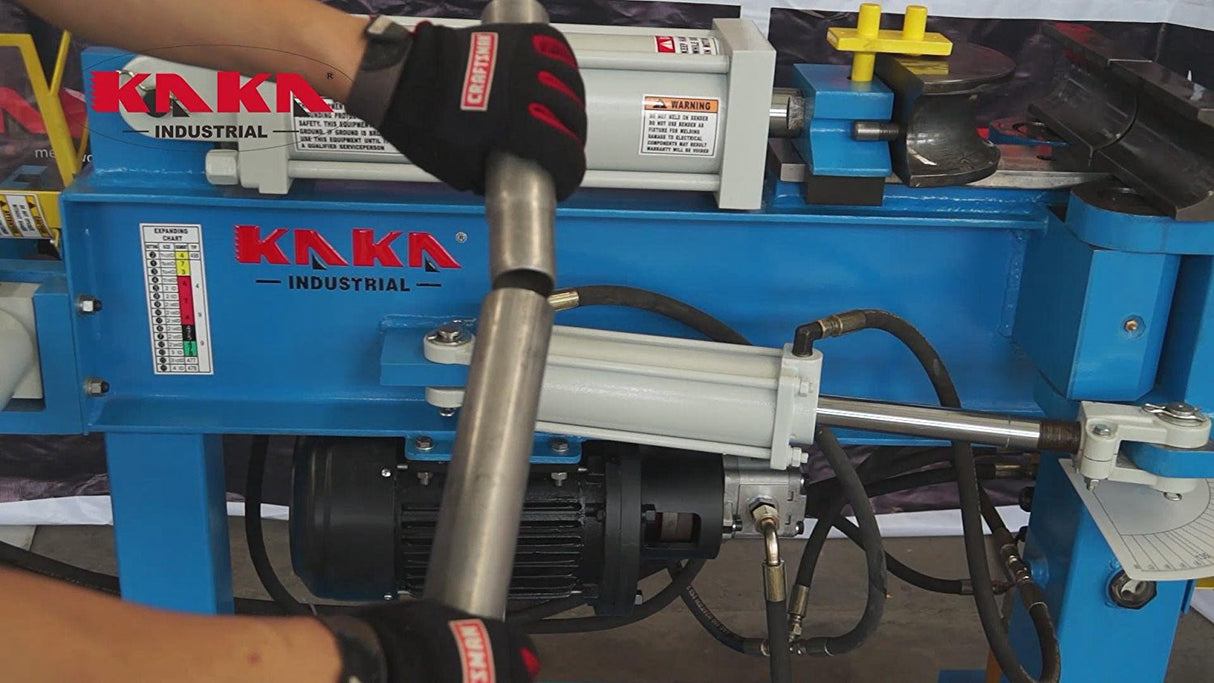

  • Includes a built-in swager/expander for complete end-finishing
  • Knee-pad control free the operator hands deal with workpieces

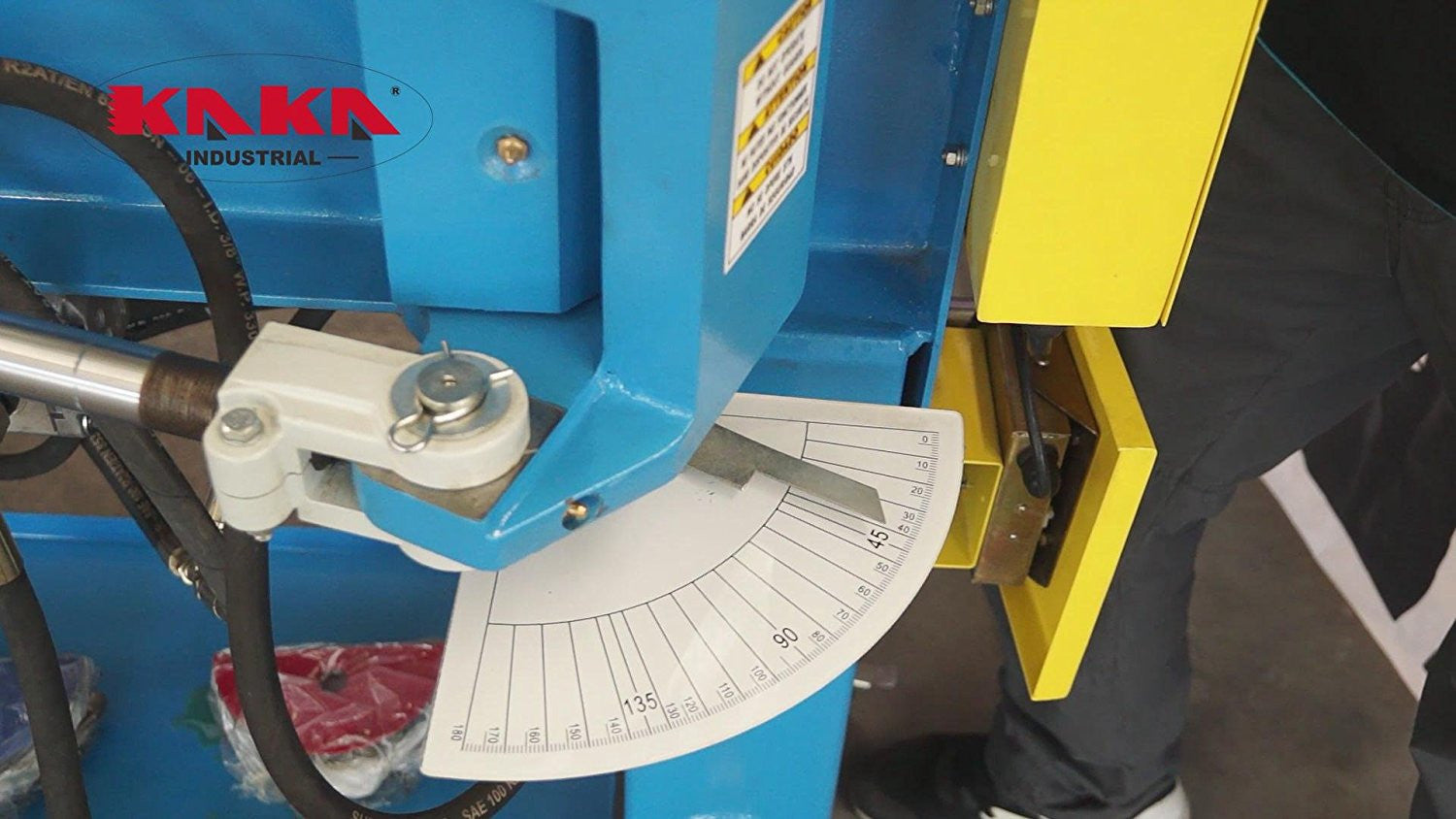

  • Manual Depth-of-bend indicator
  • The EPB-3 bender is an entry level bender, designed to introduce you to quality while showing you the incredible profit potential. It can bend up to 3" tubing and includes a built-in swager/expander for complete end-finishing.
  • Standard comprehensive tooling package
  • Easy-To-Use Knee Pad Control
  • Manual Depth-of-Bend Indicator
  • 58,000 lbs of bending power - More than enough for 3" tubing
  • Come with a Flat Tool Tray
  • Front Swivel Casters w/ Brakes
    • ITEM NO.: 1745011
    • Model : EPB-3
    • Capacity: 1-1/2”-3”
    • Angle: 120º /240º
    • Packing dimension (in):70X33X51
    • N.W./G.W.(lb):1278/1320
  • TOOLING PACKAGE INCLUDES:
  • 5530 5” Radius Die 3”
  • 5412 5” Radius Die 2-1/2”
  • 5414 5” Radius Die 2-1/4”
  • 5200 5” Radius Die 2”
  • 4414 4” Radius Die 2-1/4”
  • 4200 4” Radius Die 2”
  • 3134 3” Radius Die 1-3/4”
  • 3112 3” Radius Die 1-1/2”
  • 1350 Full Back Shoes 2-1/2” (2)
  • 4412 Full Back Shoes 2-1/4” (2)
  • 1200 Full Back Shoes 2”(2)
  • 1134 Full Back Shoes 1-3/4”(2)
  • 1112 Full Back Shoes 1-1/2”(2)
  • 4410 Haft shoe 2-1/2”
  • 4416 Haft shoe 2-1/4”
  • 1045 Half shoe 2”
  • 1040 Half shoe 1-3/4”
  • 1038 Half shoe 1-1/2”
  • 1750 Collet 2-1/2”
  • 1725 Collet 2-1/4”
  • 1720 Collet 2”
  • 1734 Collet 1-3/4”
  • 1712 Collet 1-1/2”
  • 853 Flare Tool 1-1/2”-3”
  • 550 Male Ball Die 1-3/4”: Swage 2”
  • 552 Male Ball Die 2”: Swage 2-1/4”
  • 553 Male Ball Die 2-1/4”: Swage 2-1/2”
  • 554 Male Ball Die 2-1/2”: Swage 2-3/4”
  • 555 Male Ball Die 1-3/4”-2”
  • 556 Male Ball Die 2-3/4”-2-1/2”
  • 112 Swage Die 1-1/2”
  • 134 Swage Die 1-3/4”
  • 508 Arbor 1-3/8”-3-1/2”
  • 498 Arbor Tip 1-1/2”-1-3/4”
  • 499 Arbor Tip 1-3/4”-3-1/2”
  • 474 Segment 1-3/4”-2-1/8”
  • 475 Segment 2-1/8”-2-1/2”
  • 476 Segment 2-1/2”-3”
  • 815 Die Holder (853)
  • 816 Die Holder Pin
  • 855 Die Pins M18
  • 1079 Full Shoe Spacer
  • 1080 Half Shoe Spacer
  • 782 Reducing Die 2-1/2”-2-/4”
  • 790 Reducing Die 3”-2-3/4”
  • 97050 Die Spring
  • 870 O-Ring Kit
