Kaka industrial CH-70 Hydraulic Hole Puncher for 35T Hole Digger Force Puncher Smooth Hole Puncher for Iron Plate Copper Bar Aluminum Stainless Steel Round Circle Punch

Hydraulic Hole Punching Tool or Iron Plate Copper Bar Aluminum Stainless Steel

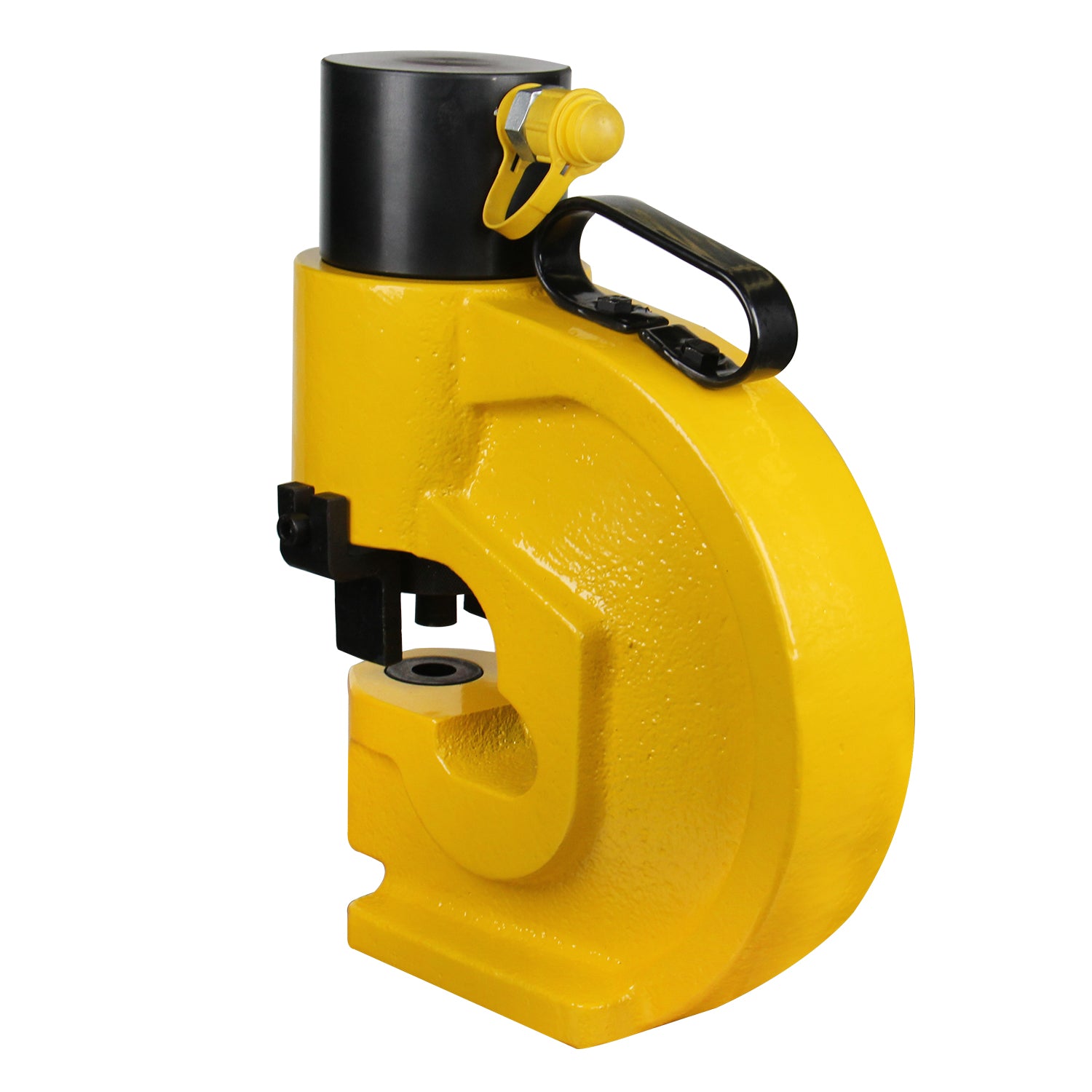

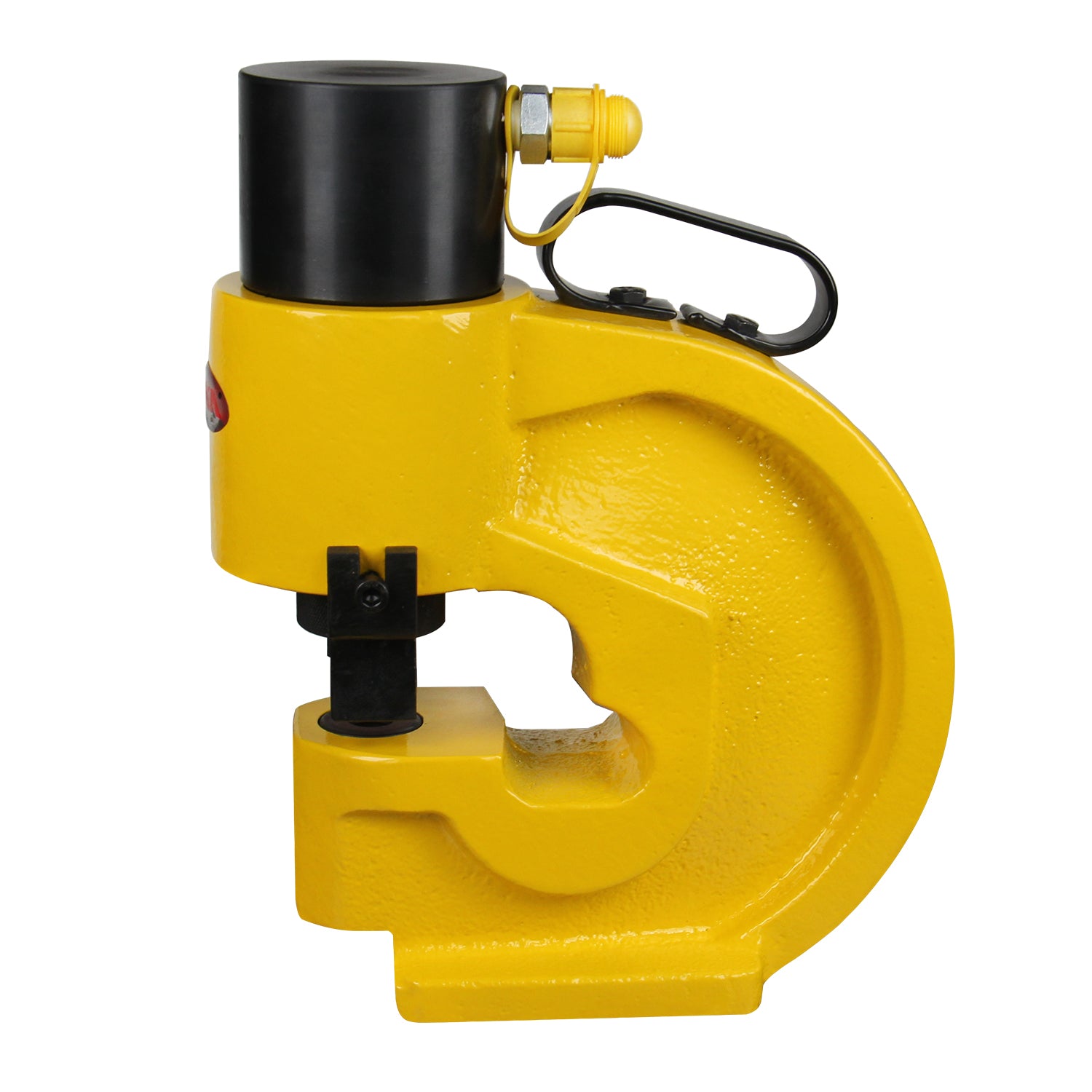

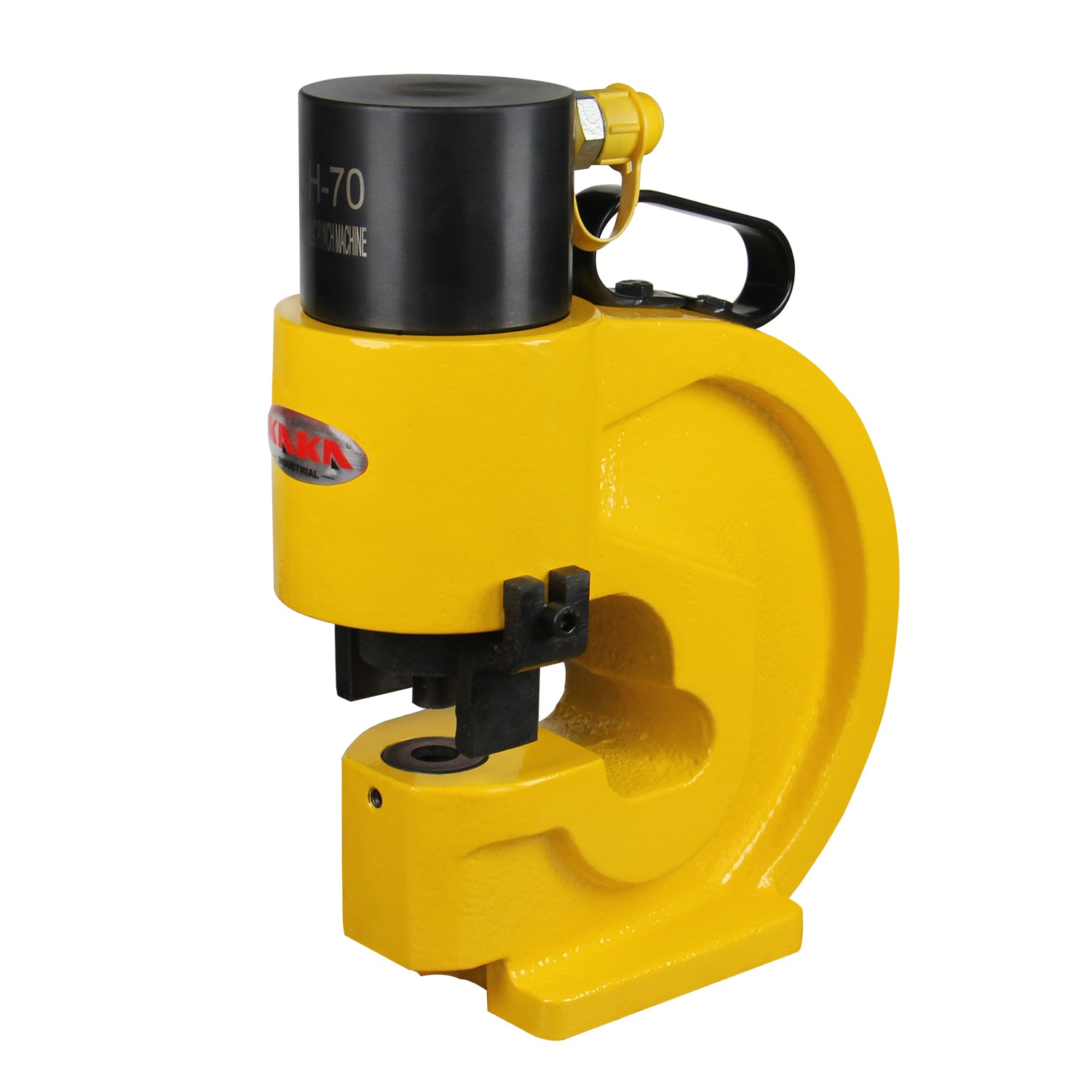

• The C-type working head is made of high-strength alloy steel, which is durable and long-lasting. It is designed for single action and is equipped with a high-strength spring for resetting.
• The punching die is made of high-carbon tungsten alloy steel and is suitable for punching steel, iron, copper, aluminum bars, and other metals.
• Compact design with a flat and stable base, could be taken to the site or fixed in the factory for batch punching work.

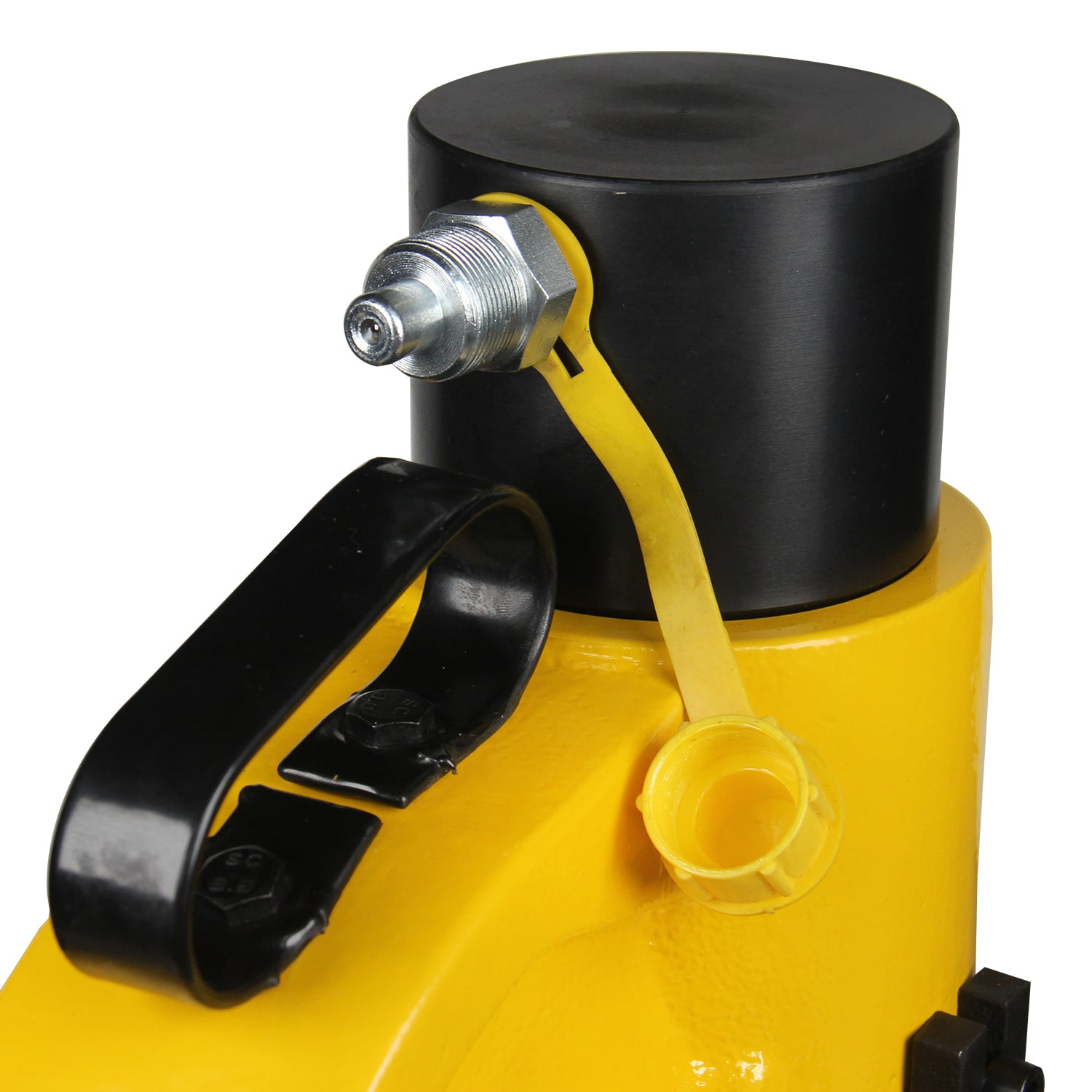

• It is equipped with a ZG3/8 quick coupler and dust cap.
• 4 sets standard round toolings, including Ф3/8"(10.5mm) , Ф1/2"(13.8mm),  Ф5/8"(17.5mm),  Ф3/4"(20.5mm)
• It can be connected to various 700bar hydraulic pumps. Pump is NOT included.
• The product and die accessories are all placed in a wooden box.

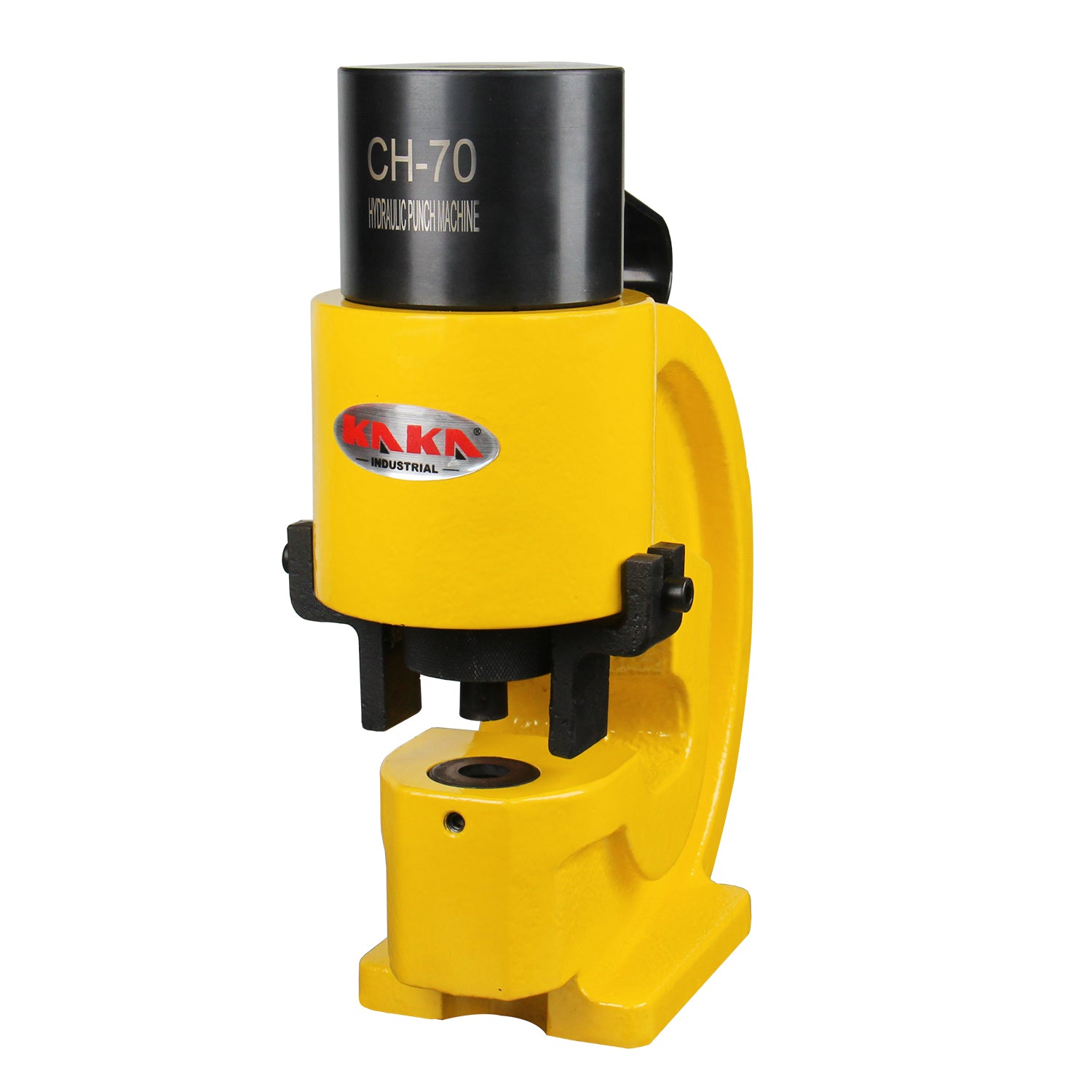

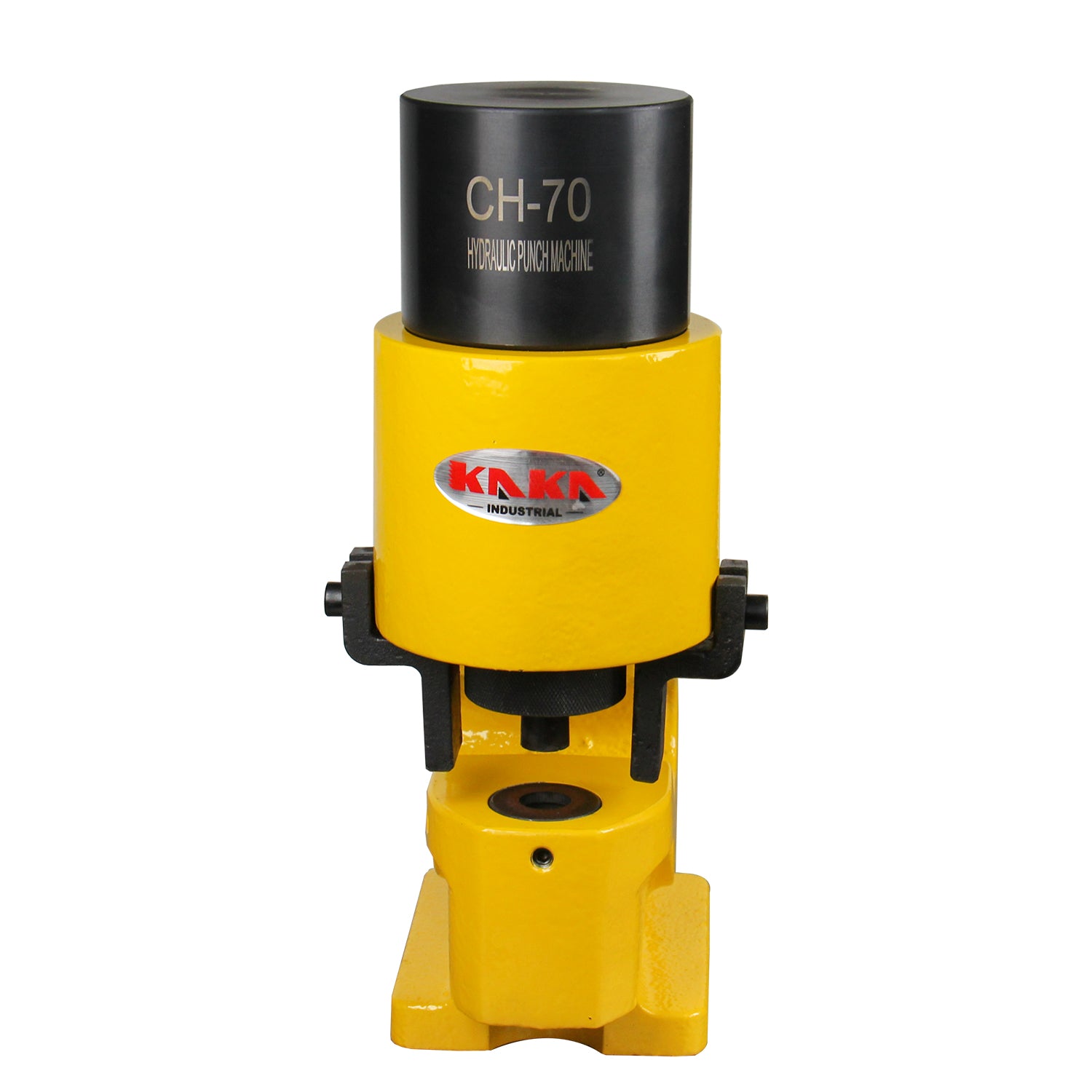

Model CH-70

Standard round tooling(inch) Ф3/8", Ф1/2", Ф5/8", Ф3/4"

Capacity (Ton) 35

Max thickness(inch) Iron sheet 1/3”

                                Copper Busbar 8/17”

                                Angle iron 1/5”-1/3”

Throat Depth(inch) 4.3”

packing dimensions(inch) 14.57 × 7.28 × 12.20

gross weight(lb) 83lbs

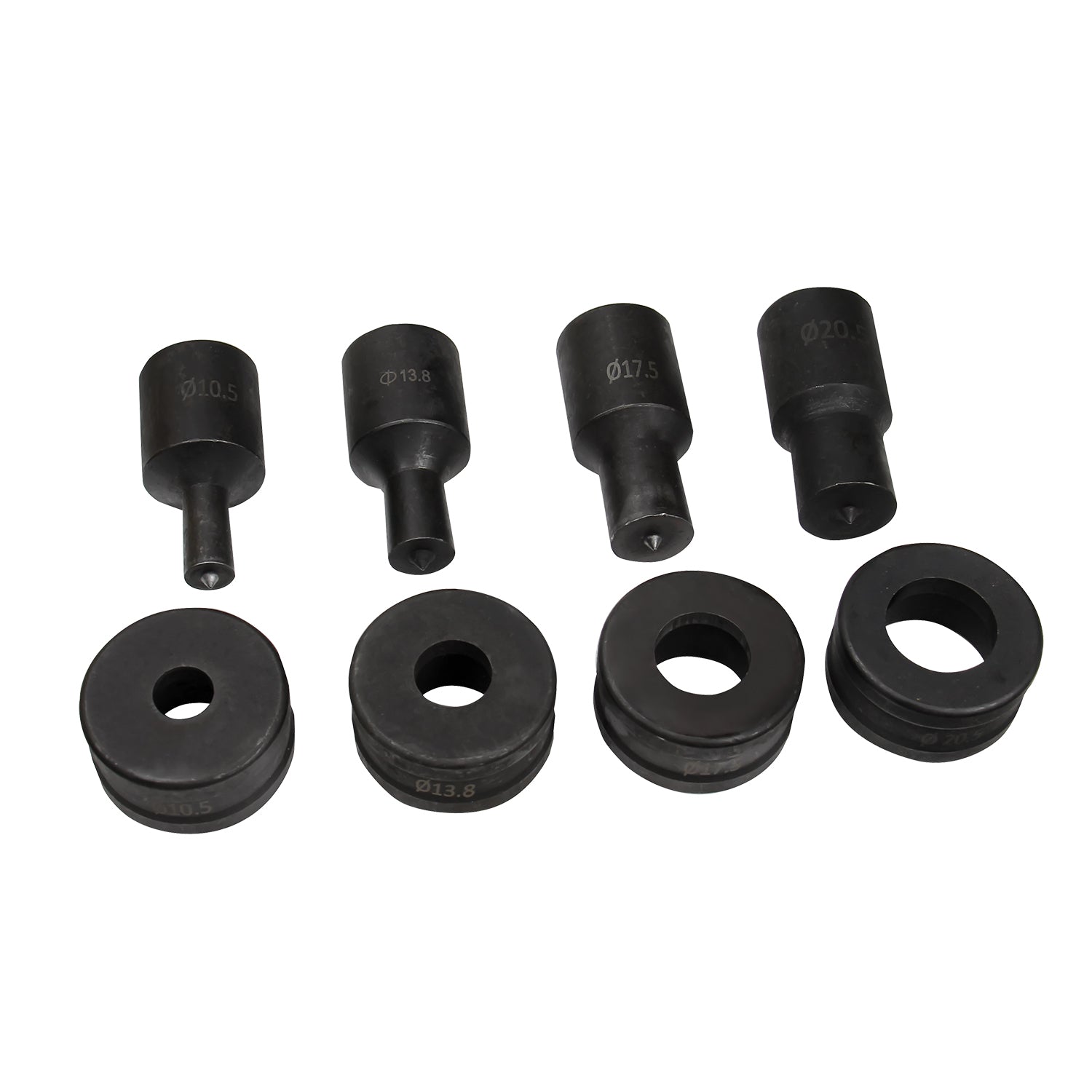

Standard dies(mm):Ф3/8"(10.5) , Ф1/2"(13.8),  Ф5/8"(17.5),  Ф3/4"(20.5) x4Sets

A pump is required (need to purchase seperately):CP-700, ZCB-700D etc.

Optional toolings :

Round: Ф5.5mm，Ф6mm，Ф6.5mm.Ф7mm，Ф7.5mm.Ф8.5mm，Ф9mm

Oval: 7x11mm，9x13mm，11x17mm，13x21mm，17x24mm etc.

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
