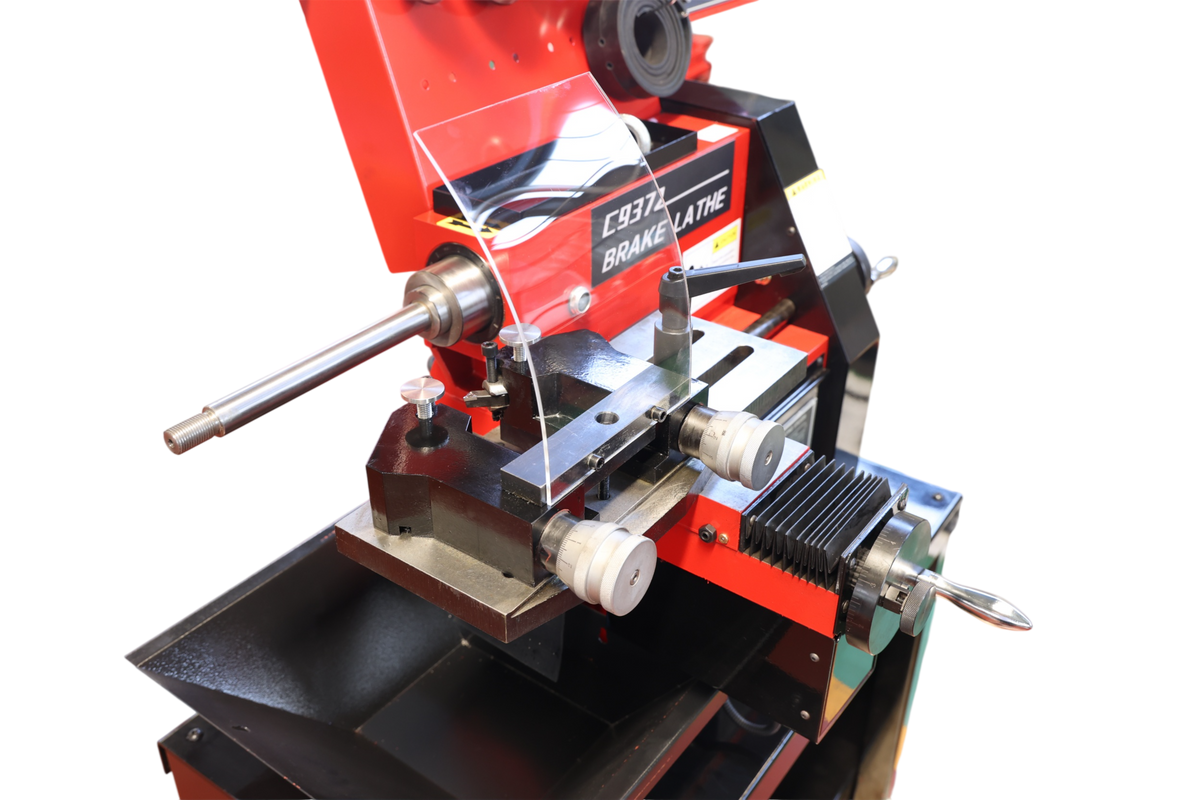

KAKA INDUSTRIAL C9372 Brake Rotor and Drum Lathe, DC Drive, 20 in Max Rotors 7.1-20 in, 70-320 rpm, DC drive, stepless feed, 0.8 HP, auto repair shops, garages, fleet
KAKA INDUSTRIAL C9372 Brake Rotor and Drum Lathe, DC Drive, 20 in Max Rotors 7.1-20 in, 70-320 rpm, DC drive, stepless feed, 0.8 HP, auto repair shops, garages, fleet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
- The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

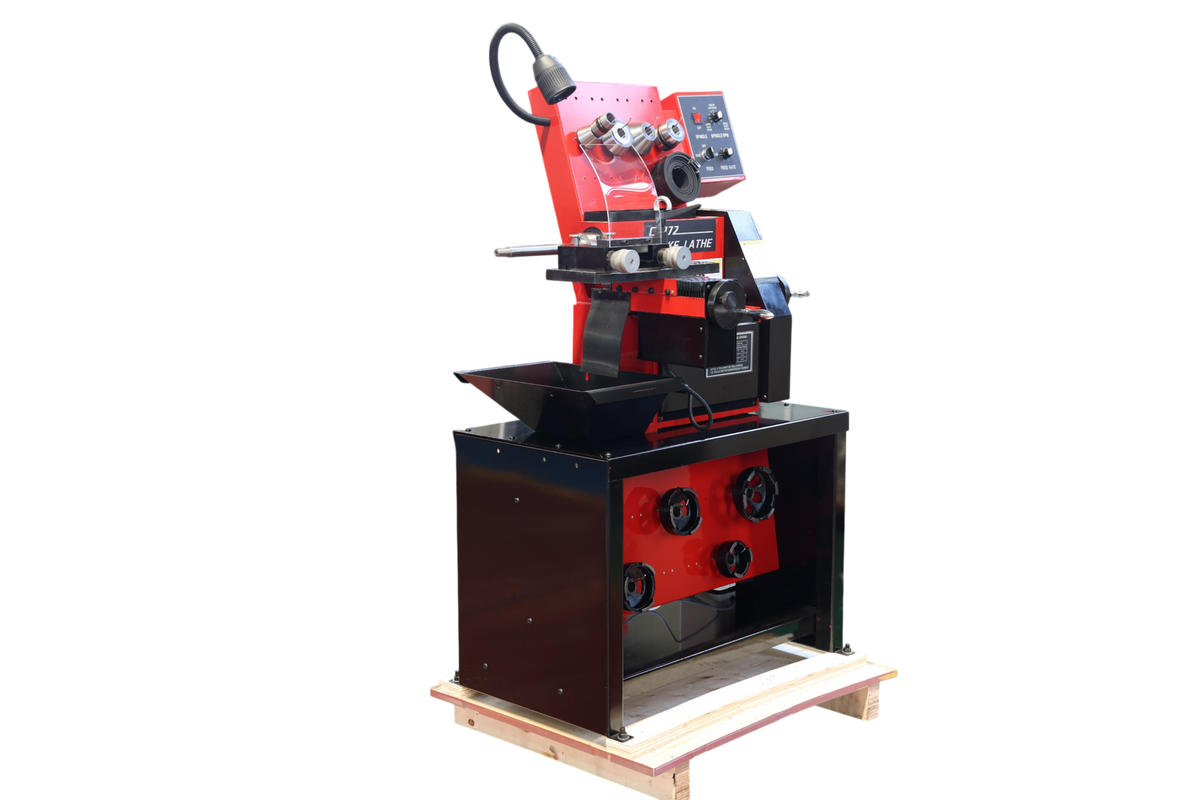

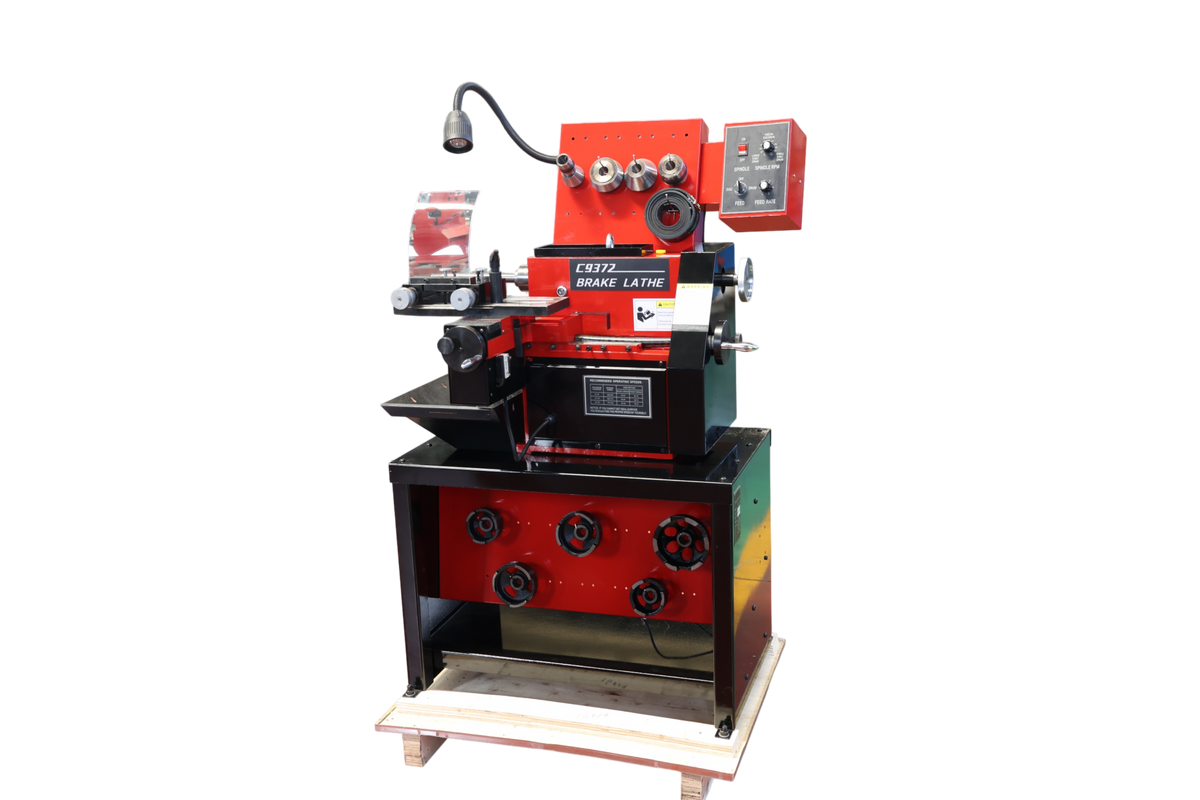

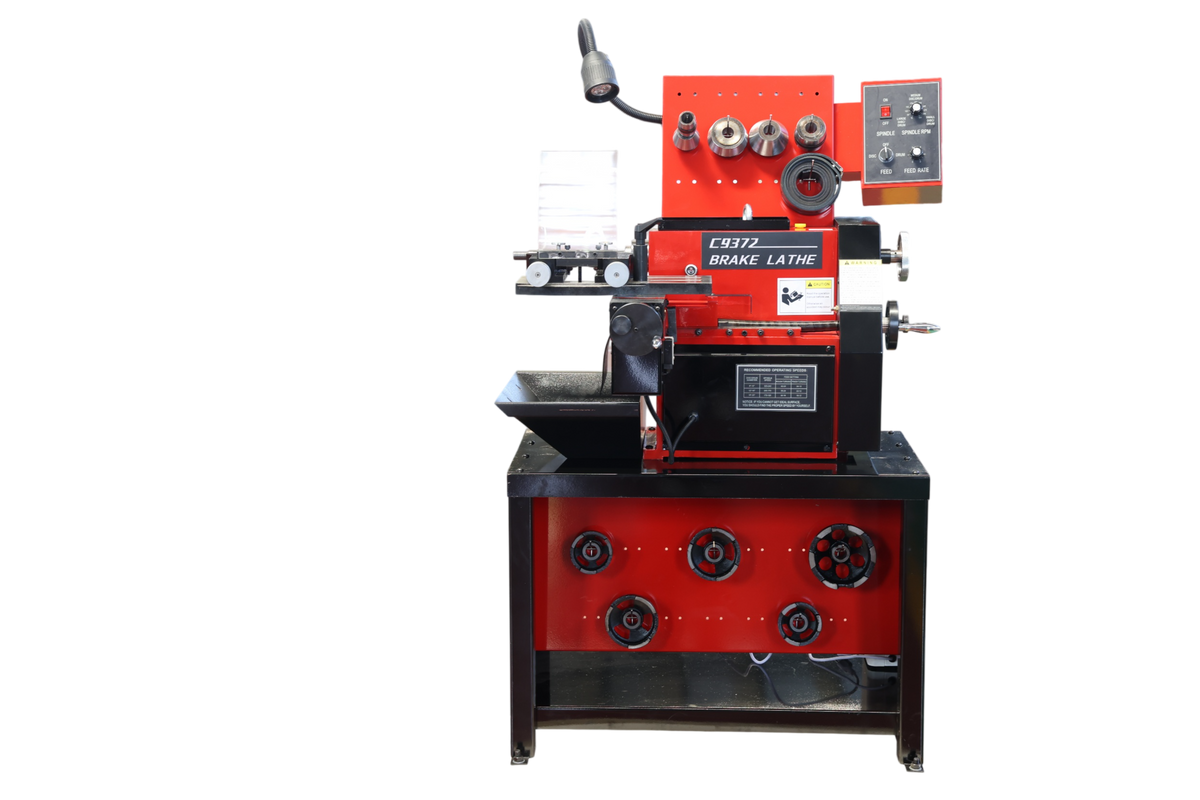

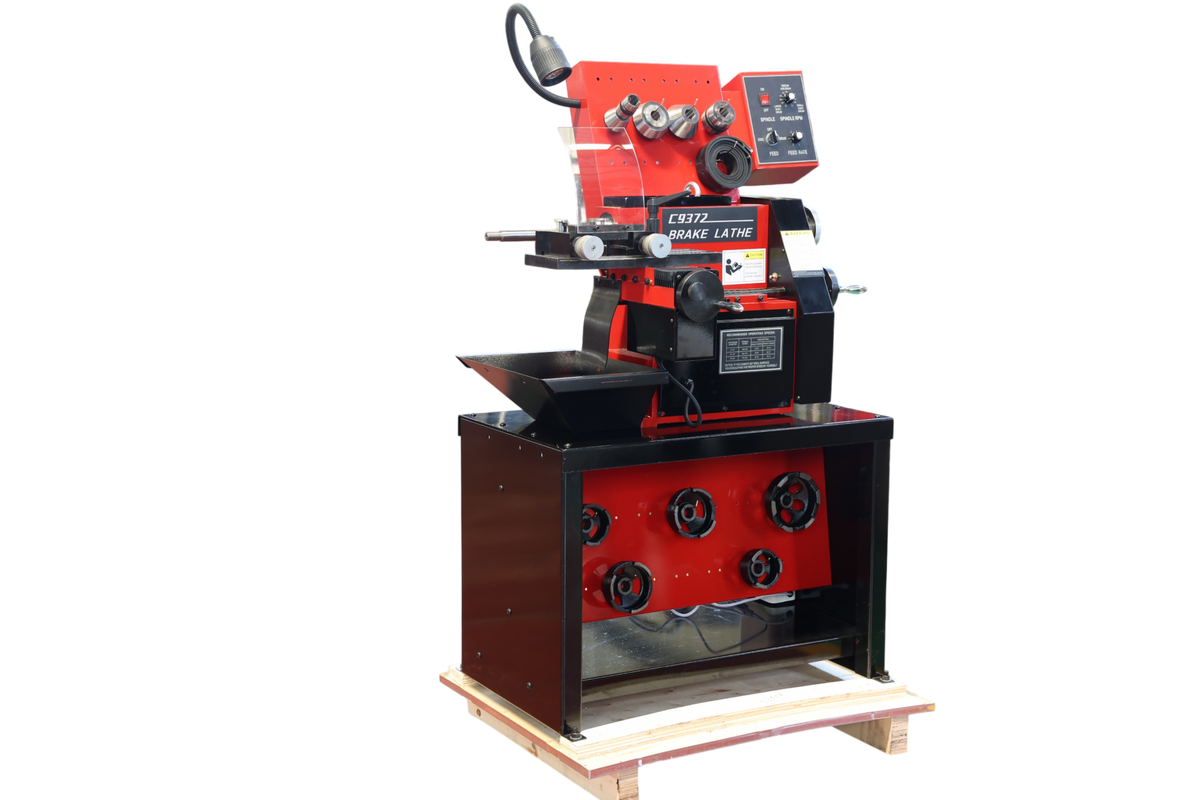

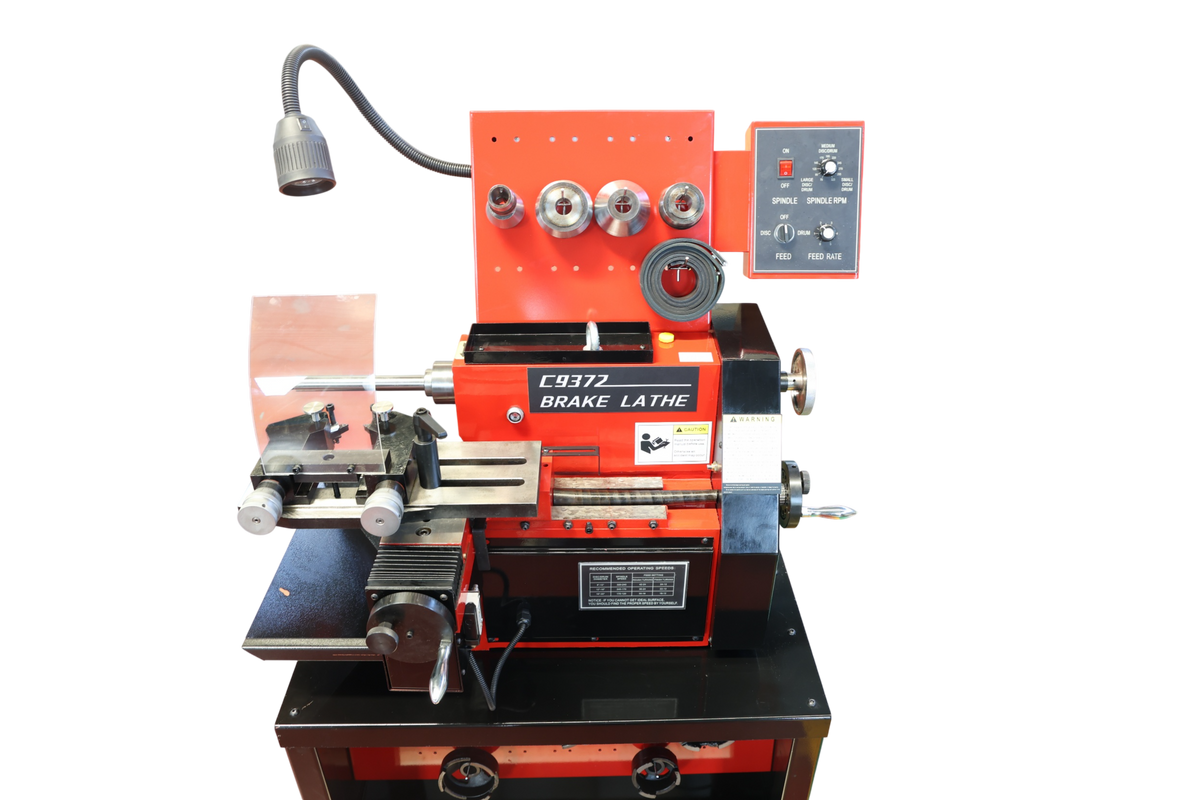

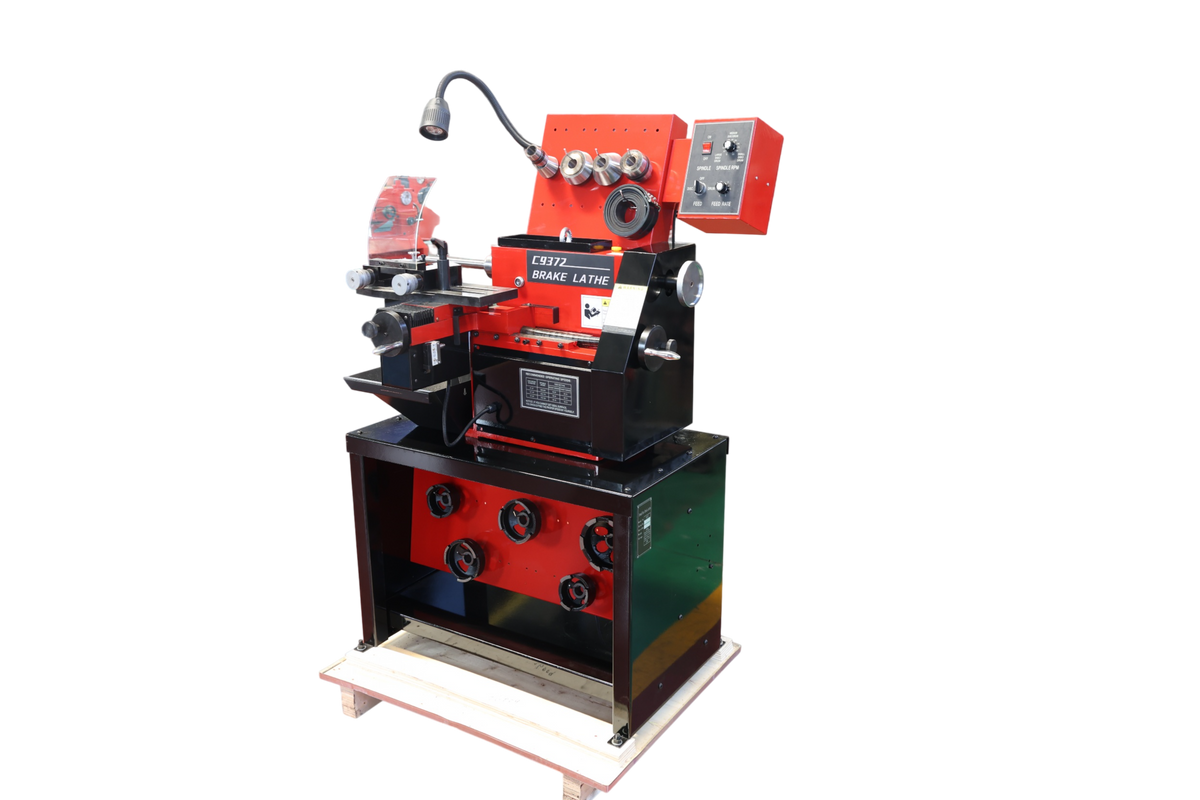

KAKA INDUSTRIAL C9372 Combination Disc and Drum Brake Lathe – Off-Car, DC Drive, Variable Speed and Feed
The C9372 is an off-car (bench-type) combination brake lathe for resurfacing medium and small brake discs (rotors) and brake drums in auto repair shops, garages, and fleet maintenance shops. The disc or drum is removed from the vehicle and mounted on the lathe with the standard accessory set.
A DC drive gives variable spindle speed up to 320 rpm and variable feeding speed, so the speed and feed can be set for the part being machined. It handles brake discs from 180 to 508 mm (7.1 to 20 in) in diameter and up to 73 mm (2.9 in) thick, and brake drums from 152 to 500 mm (6.0 to 19.7 in) in diameter and up to 165 mm (6.5 in) deep.
Key Features
- Disc and drum in one machine: Brake discs (rotors) and brake drums.

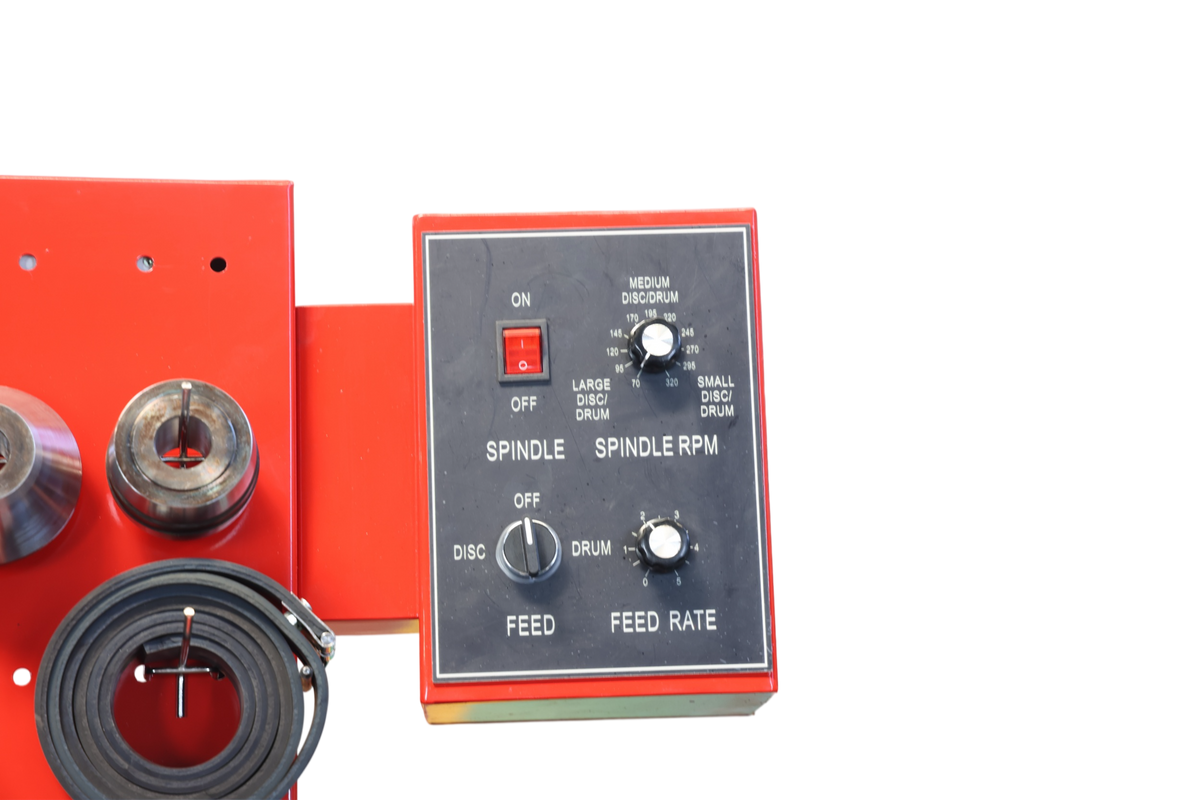

- Stepless spindle speed: 70–320 rpm, DC drive.
- Stepless feed: 0–0.66 mm/rev (0–0.026 in/rev).
- 0.6 kW (0.8 HP) DC drive motor.

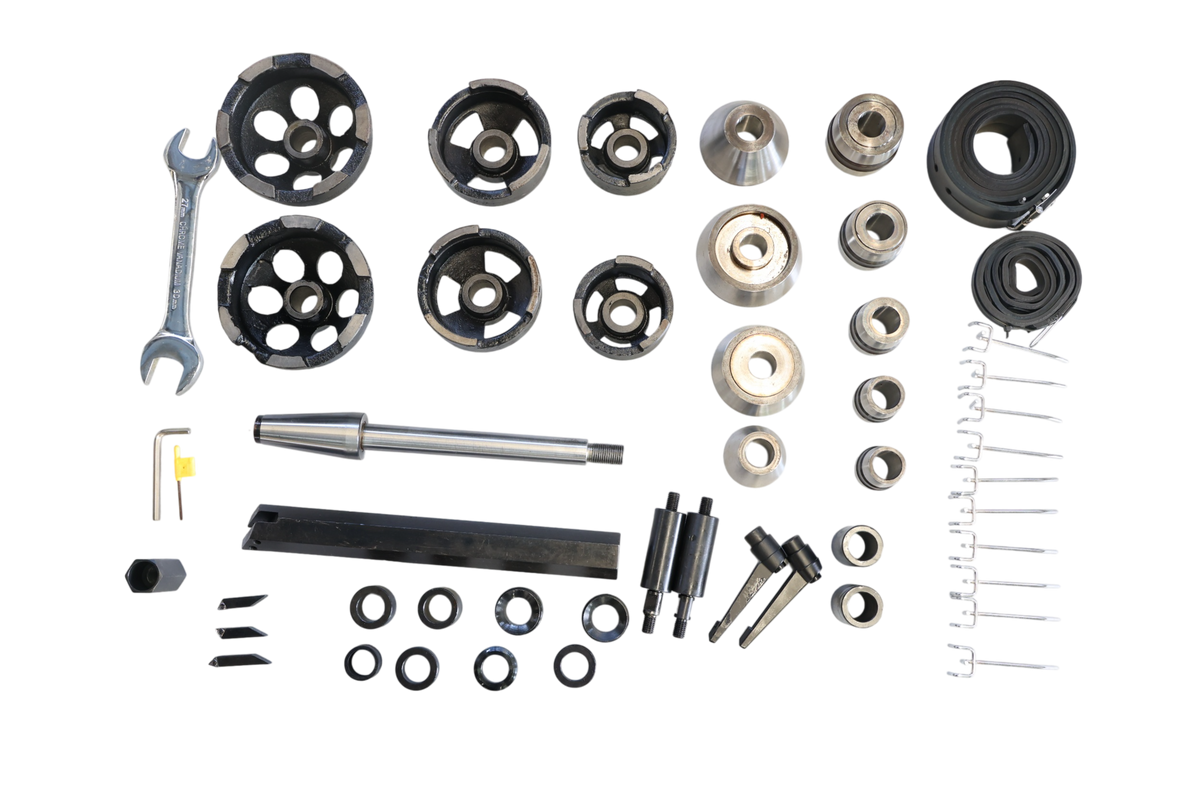

- Standard accessory set as shown in the product images.
- Floor-standing steel stand.
Capacity
- Brake disc diameter: 180–508 mm (7.1–20.0 in)
- Brake disc thickness: up to 73 mm (2.9 in)
- Brake drum diameter: 152–500 mm (6.0–19.7 in)
- Brake drum depth: up to 165 mm (6.5 in)
Specifications
- Model: C9372
- Spindle speed: 70–320 rpm, stepless
- Feeding capacity: 0–0.66 mm/rev (0–0.026 in/rev)
- Motor power: 0.6 kW (0.8 HP), DC drive
- Overall dimensions (L x W x H): 1010 x 720 x 1430 mm (39.8 x 28.3 x 56.3 in)
- Packing dimensions (L x W x H): 910 x 730 x 1310 mm (35.8 x 28.7 x 51.6 in)
- Net / gross weight: 245 / 280 kg (540 / 617 lb)
Notes
This is an off-car lathe and is not for on-car use. Follow the manufacturer's minimum thickness (discard) specification for each rotor and drum. Wear eye protection and a dust mask, since brake dust may be hazardous. Check the machine nameplate and your shop power supply before ordering. Check floor space, delivery, and installation requirements before ordering.
