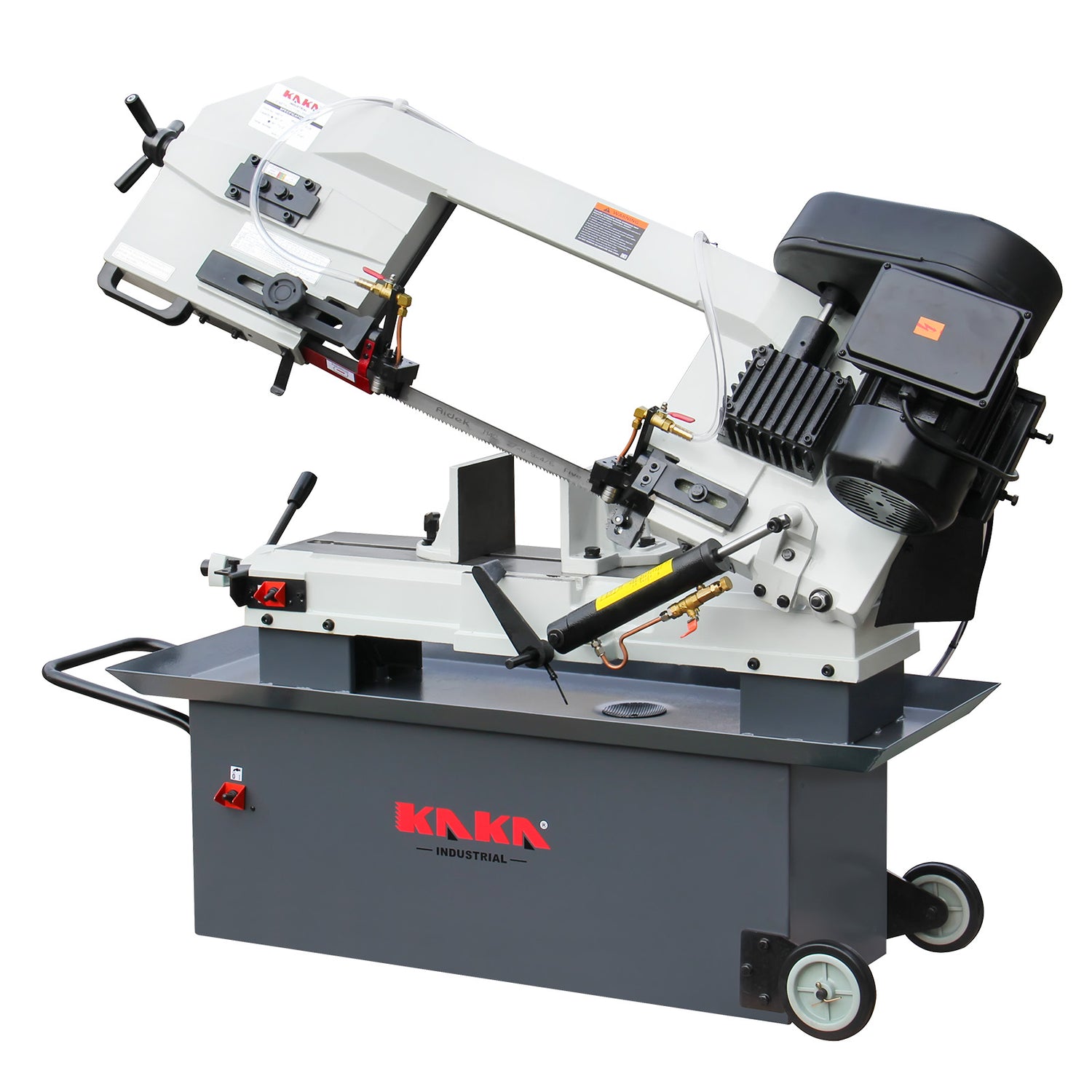

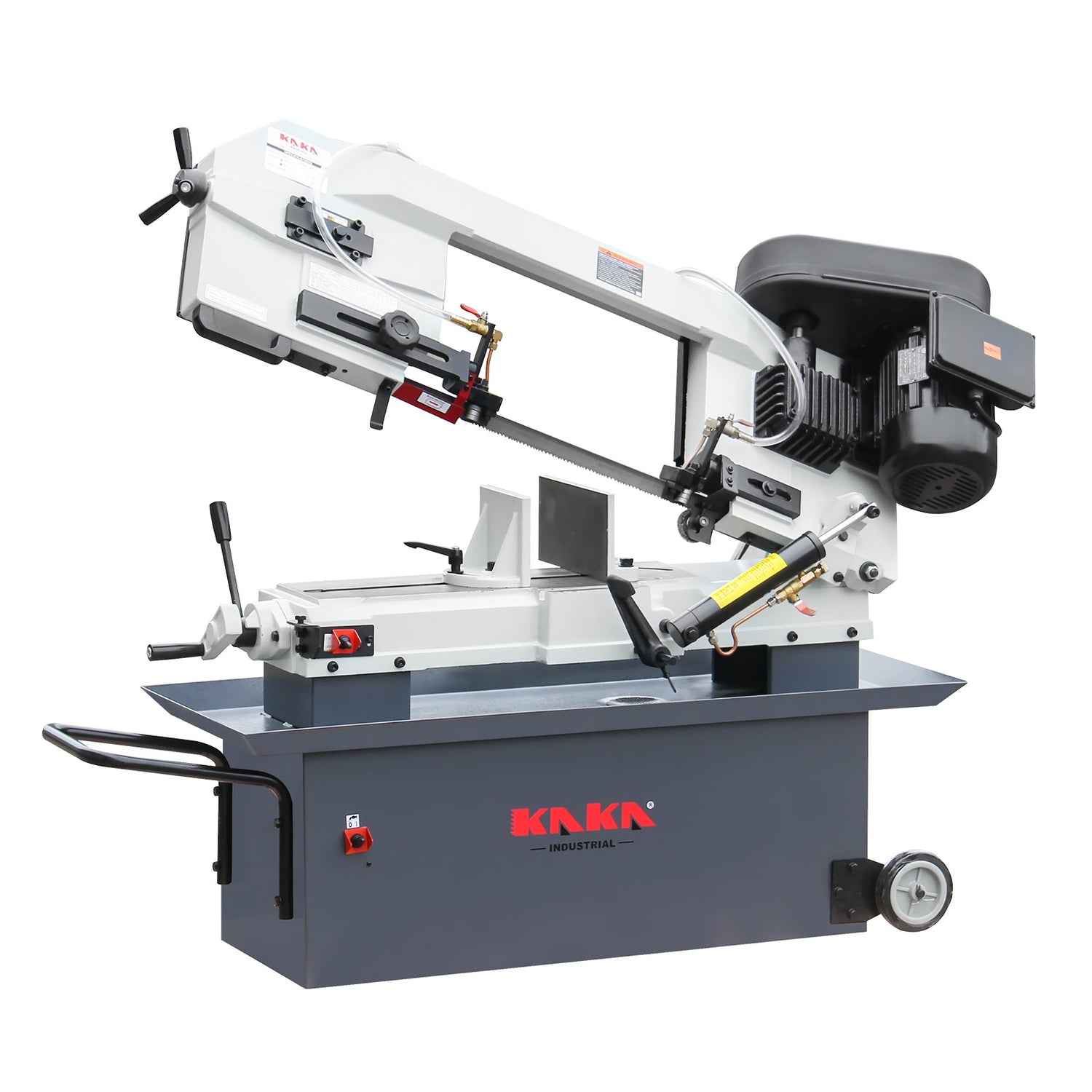

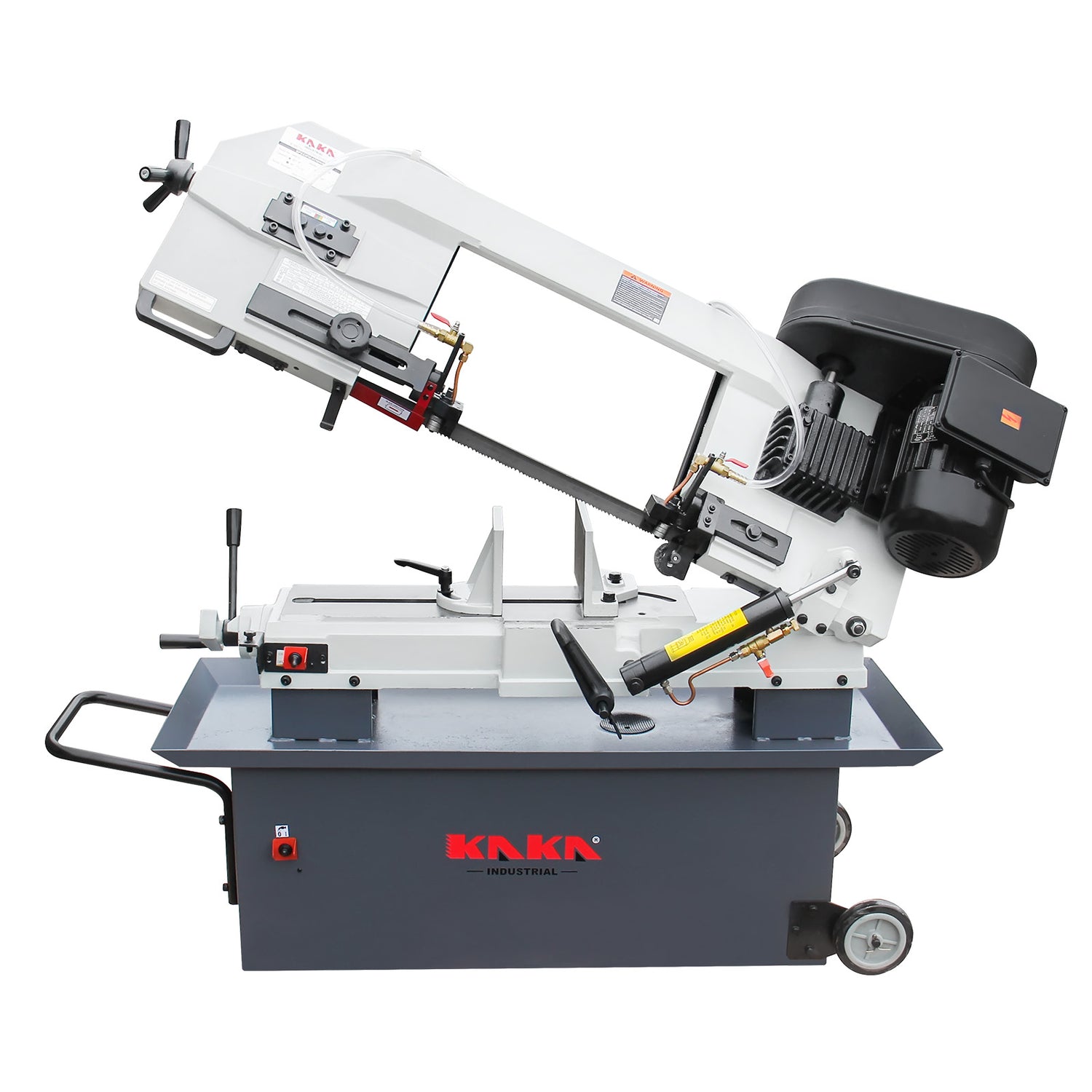

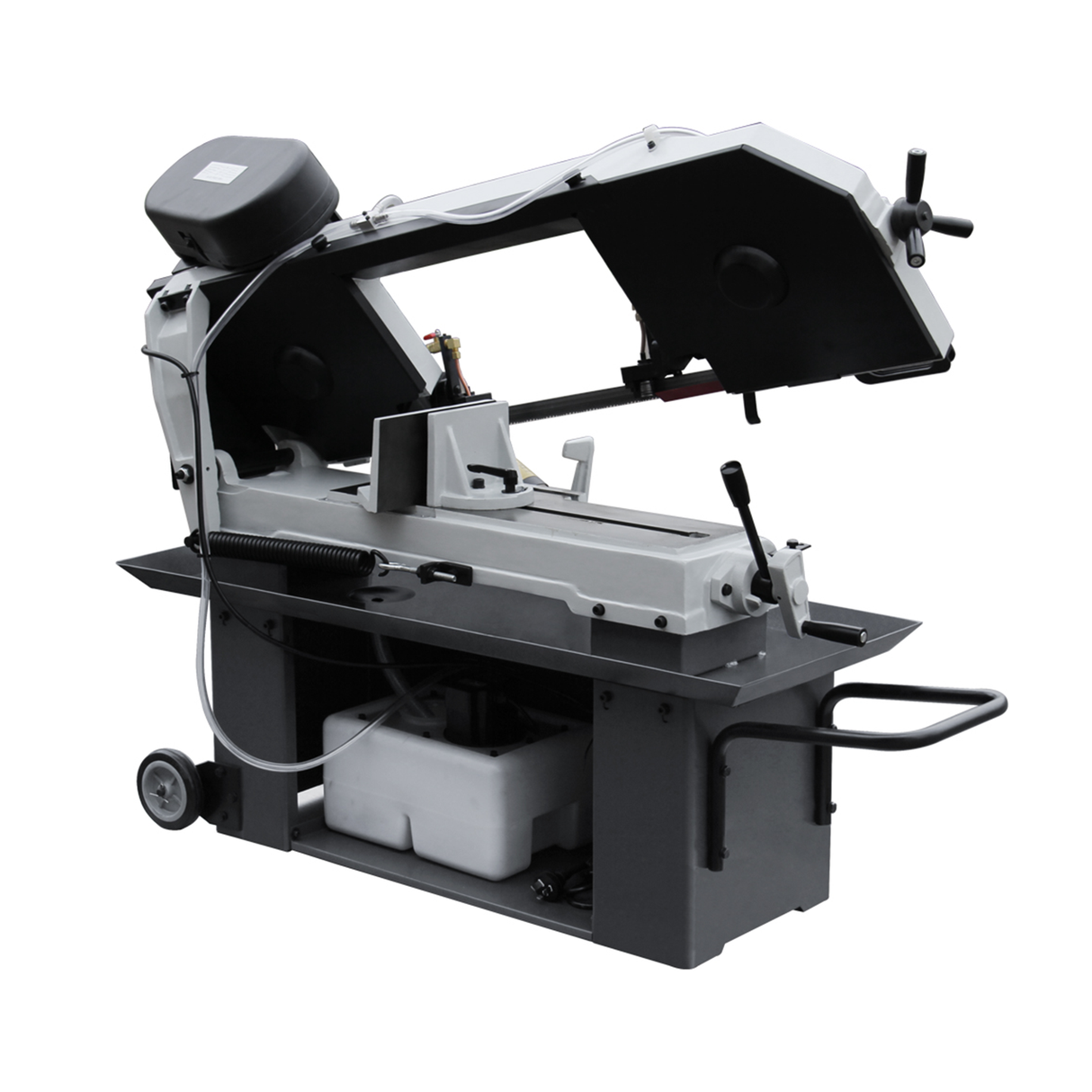

KAKA Industrial BS-912B 9" Metal Cutting Band Saw

  • $1,488.99


1. The maximum processing capability of BAND SAW BS-912B is 9"(229mm)

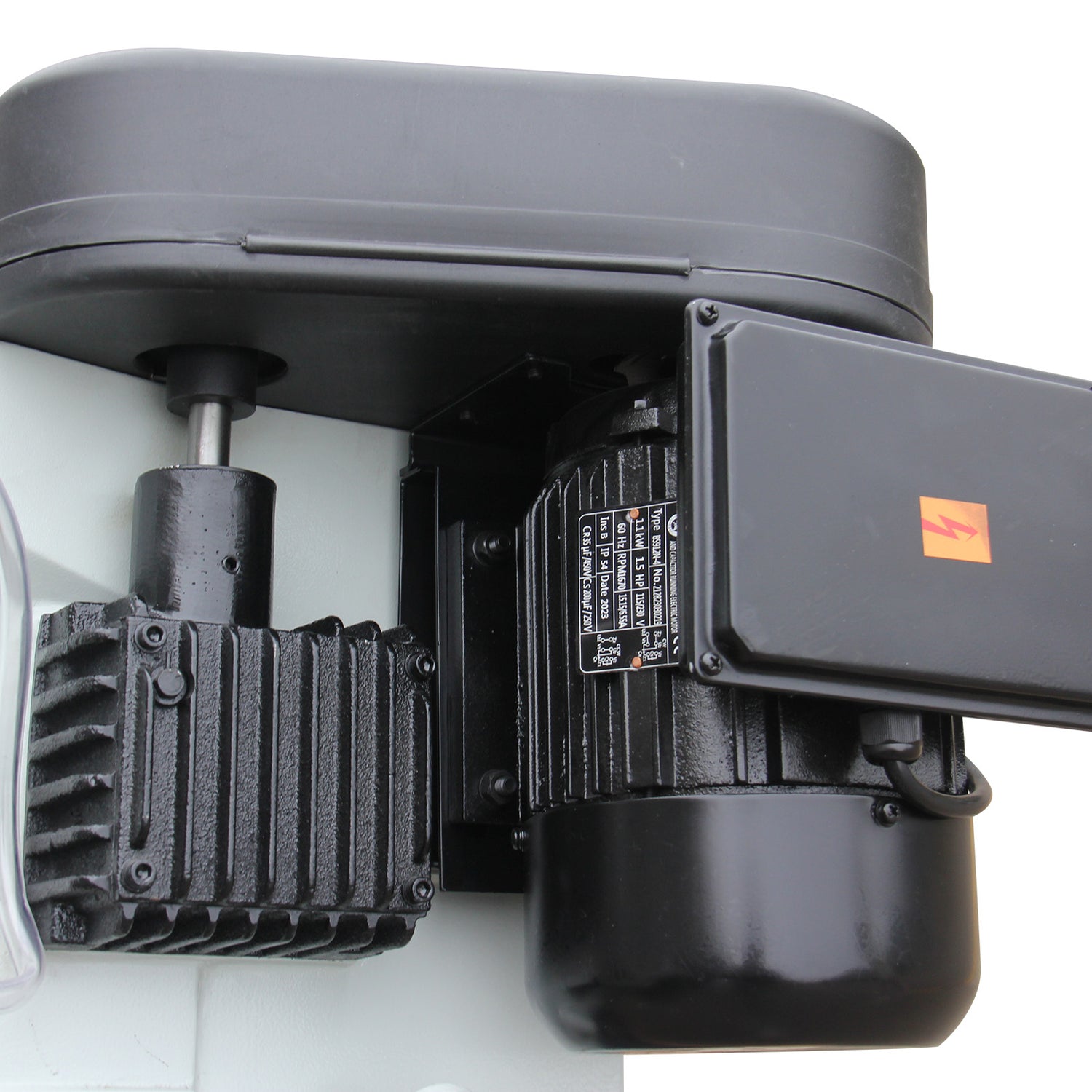

2. High-capacity due to controlled by motor

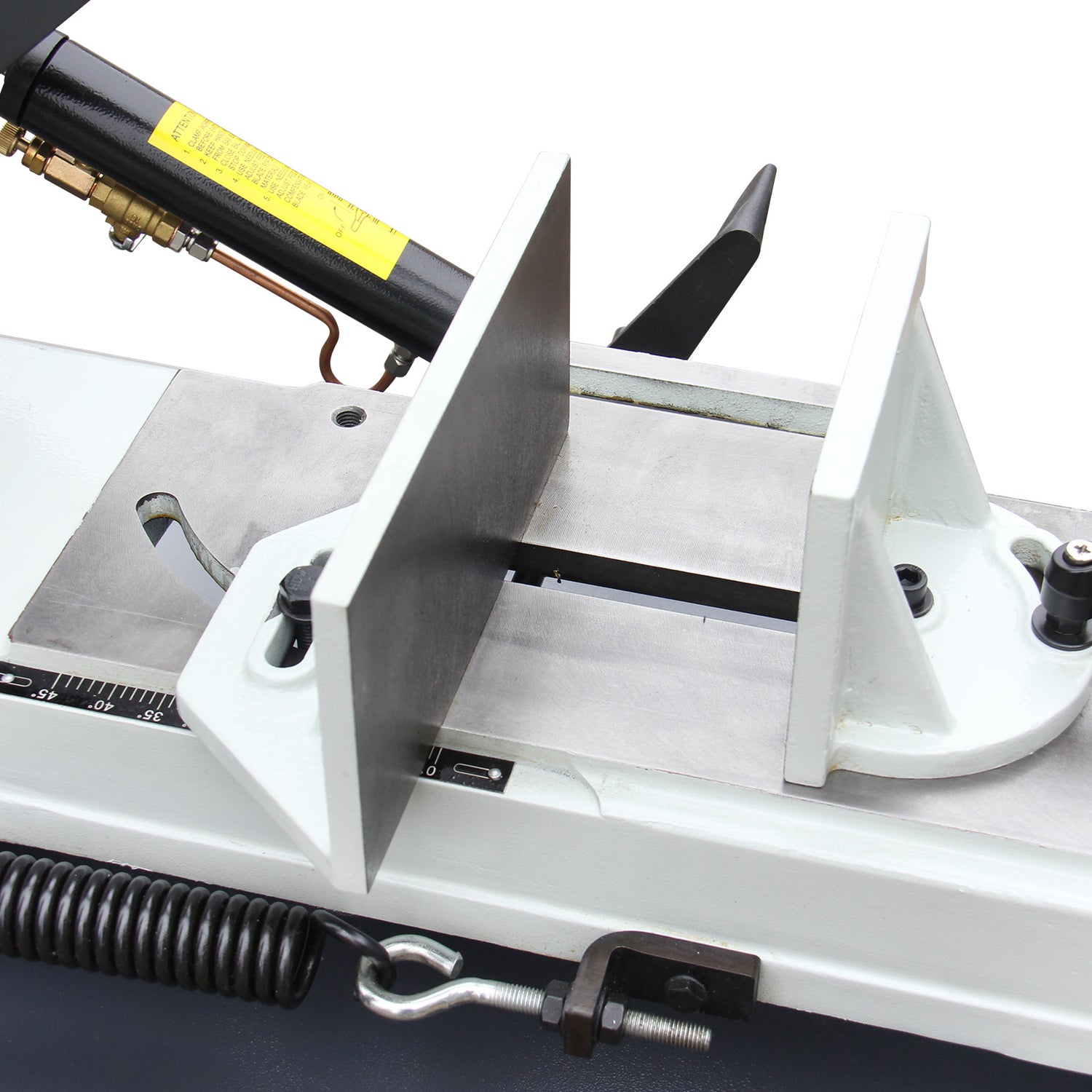

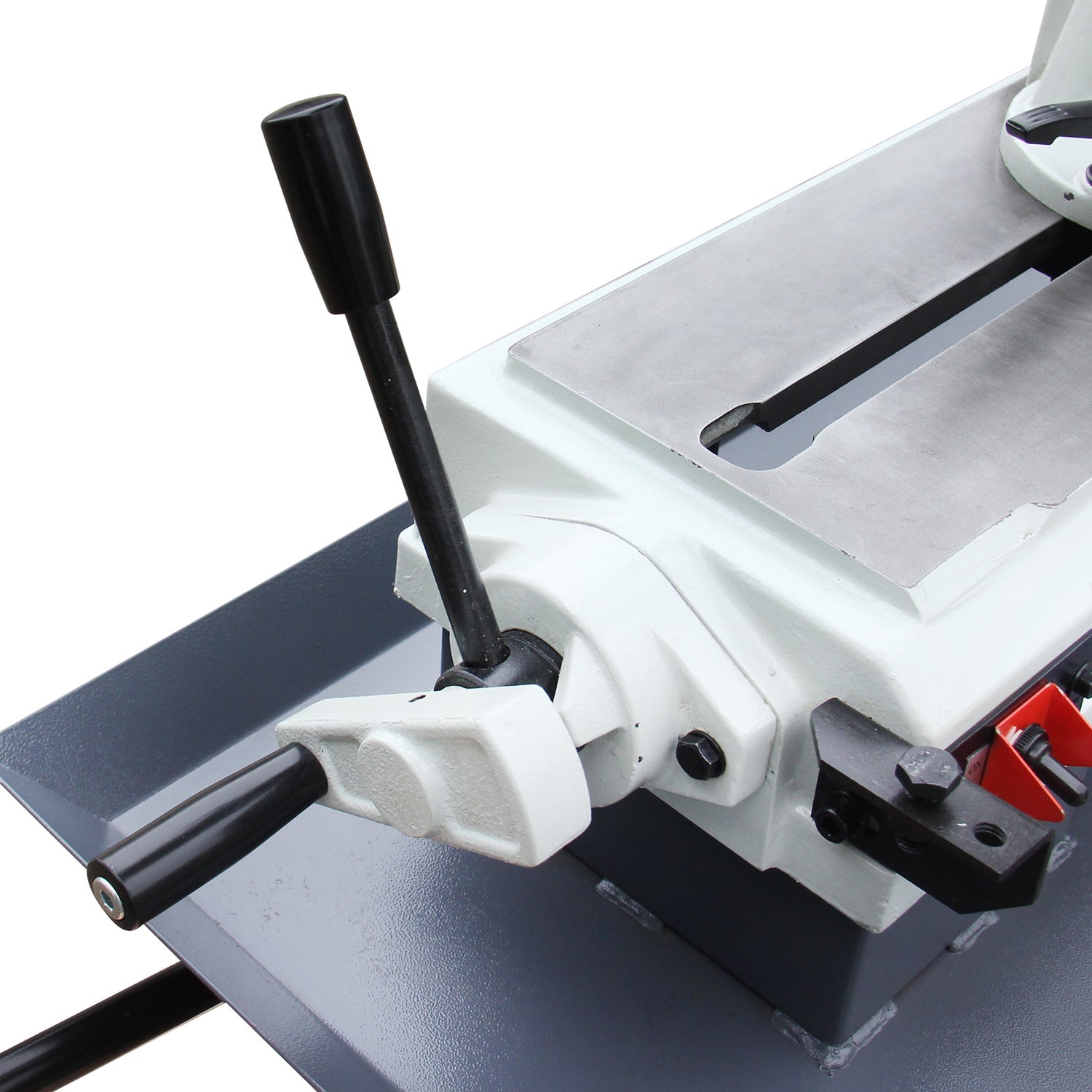

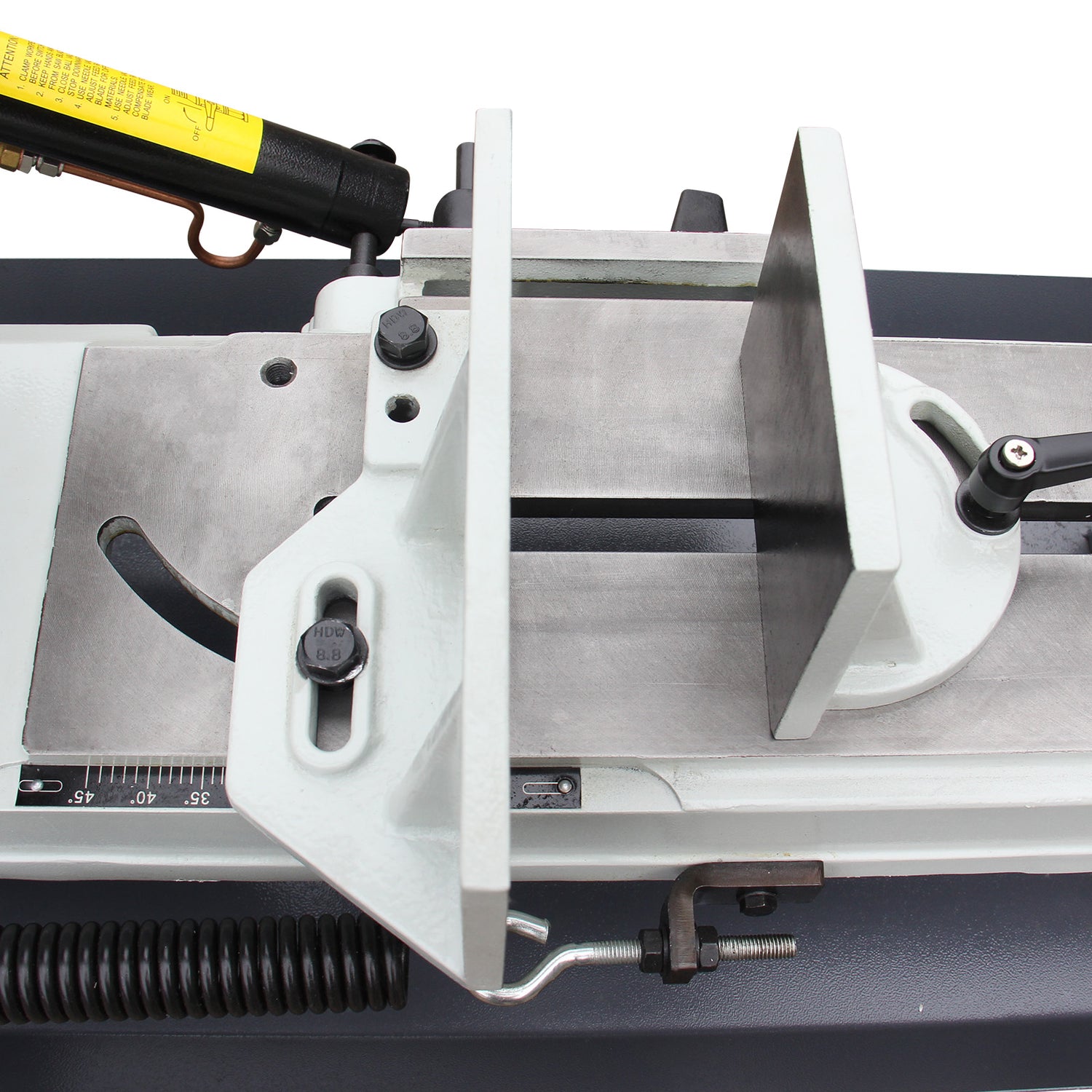

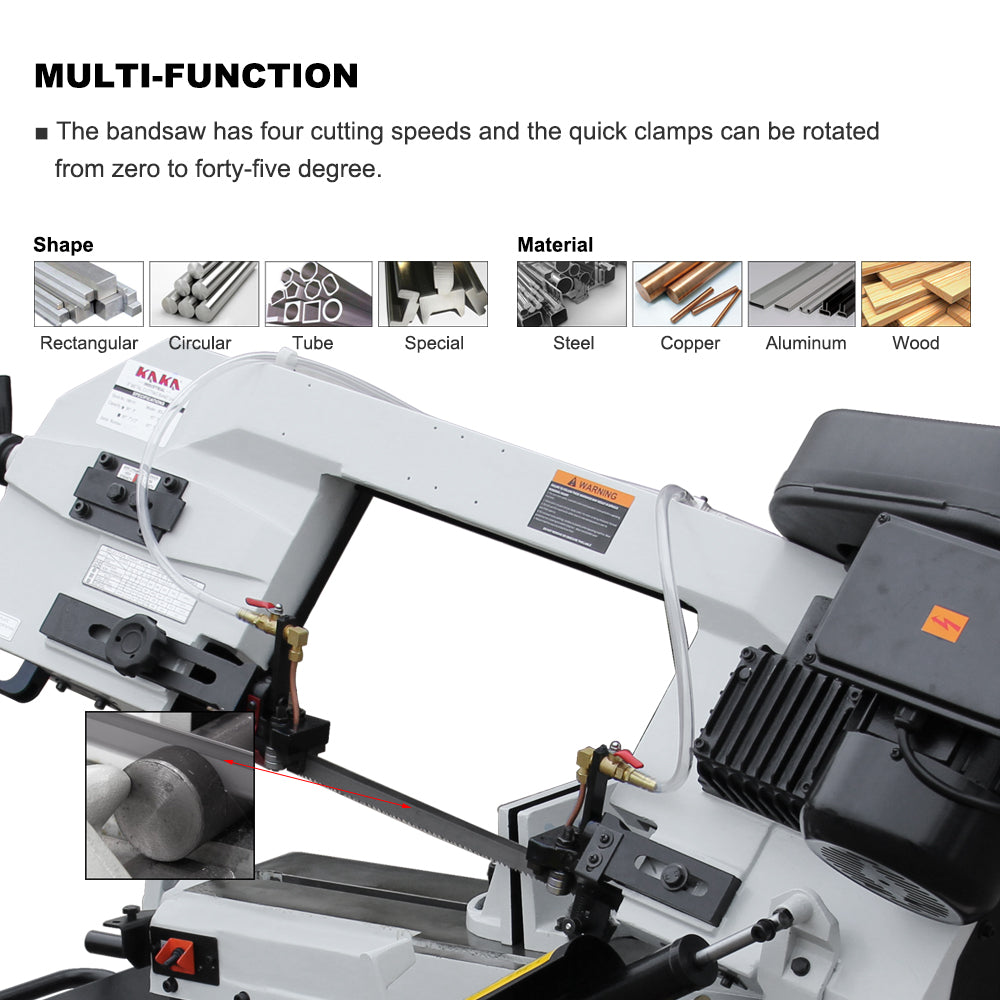

3. Has quick clamps that can be rotated from 0° to 45°

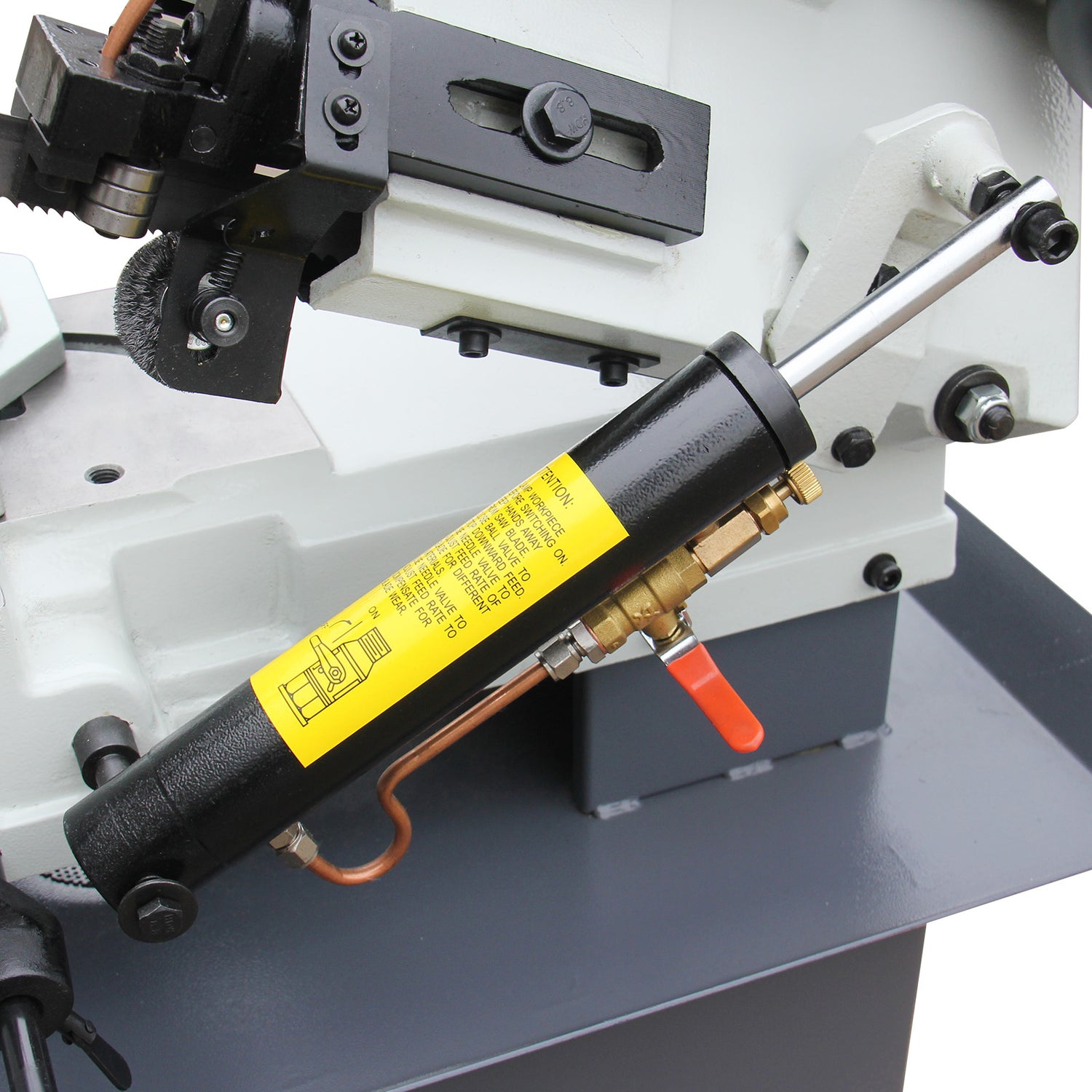

4. The falling speed of saw bow is controlled by hydraulic cylinder

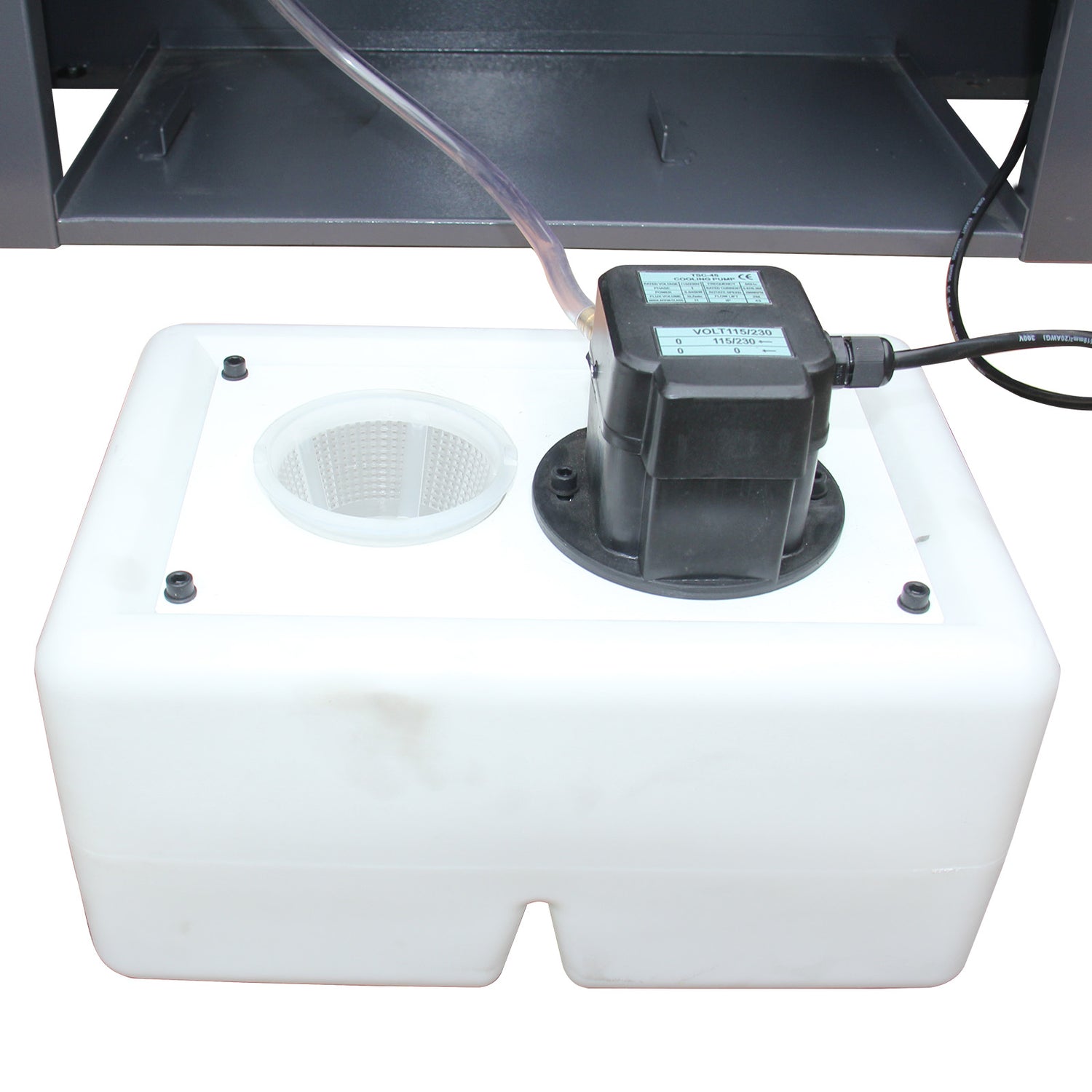

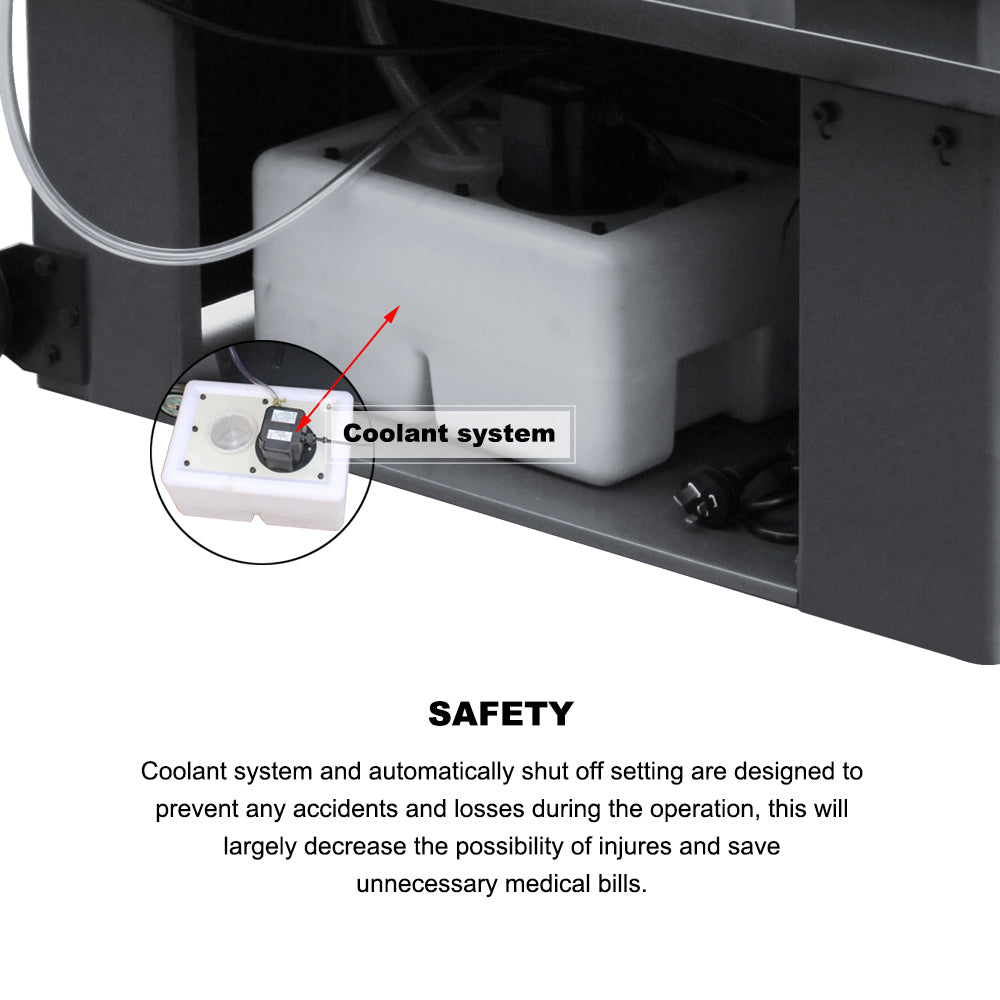

5..With coolant system, can prolong the service life of saw blade and improve the precision of work piece

6. Has a block feeder ( with fixed sawing length)

7.Main technical parameter

Item No.

188010

Model



BS-912B

Capacity

Circular @90°

229mm(9”)

Rectangular  @90°

178x305mm (7”x12”)

Circular @45°

150mm(6”)

Rectangular  @45°

127x150mm (5”x6”)

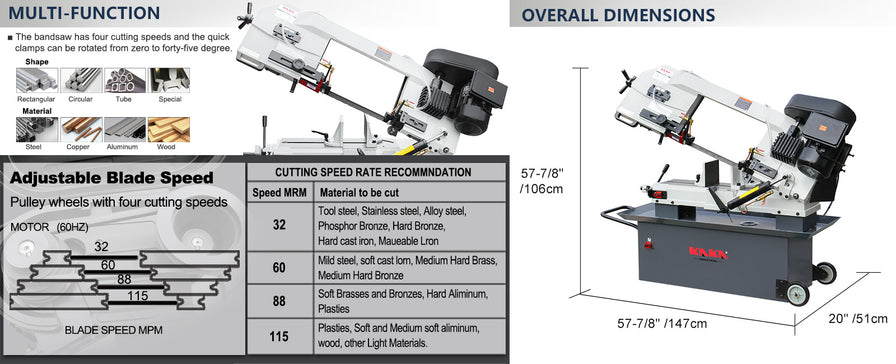

Blade speed

@60Hz

32,60,88,115MPM

@50Hz

26,50,73,95MPM

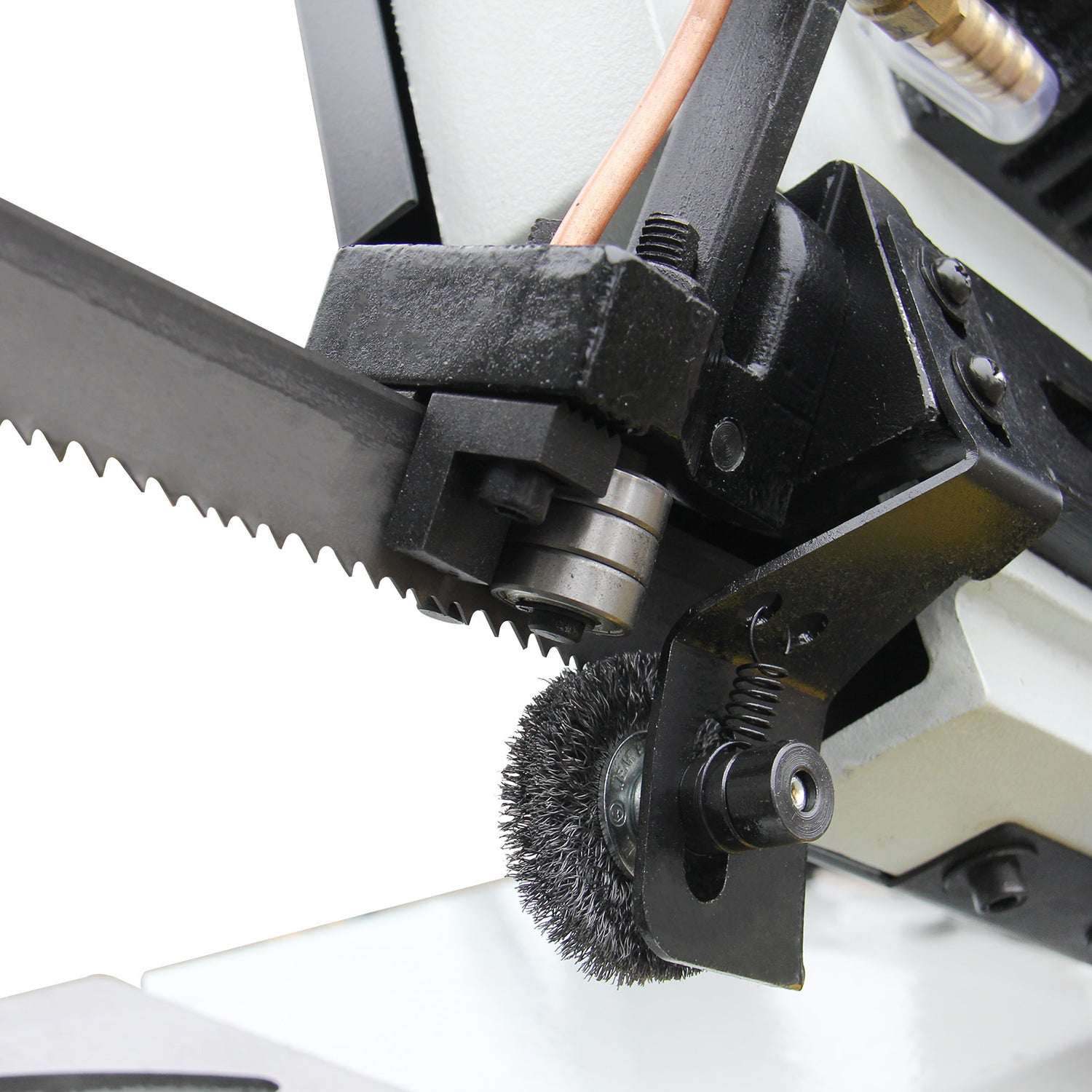

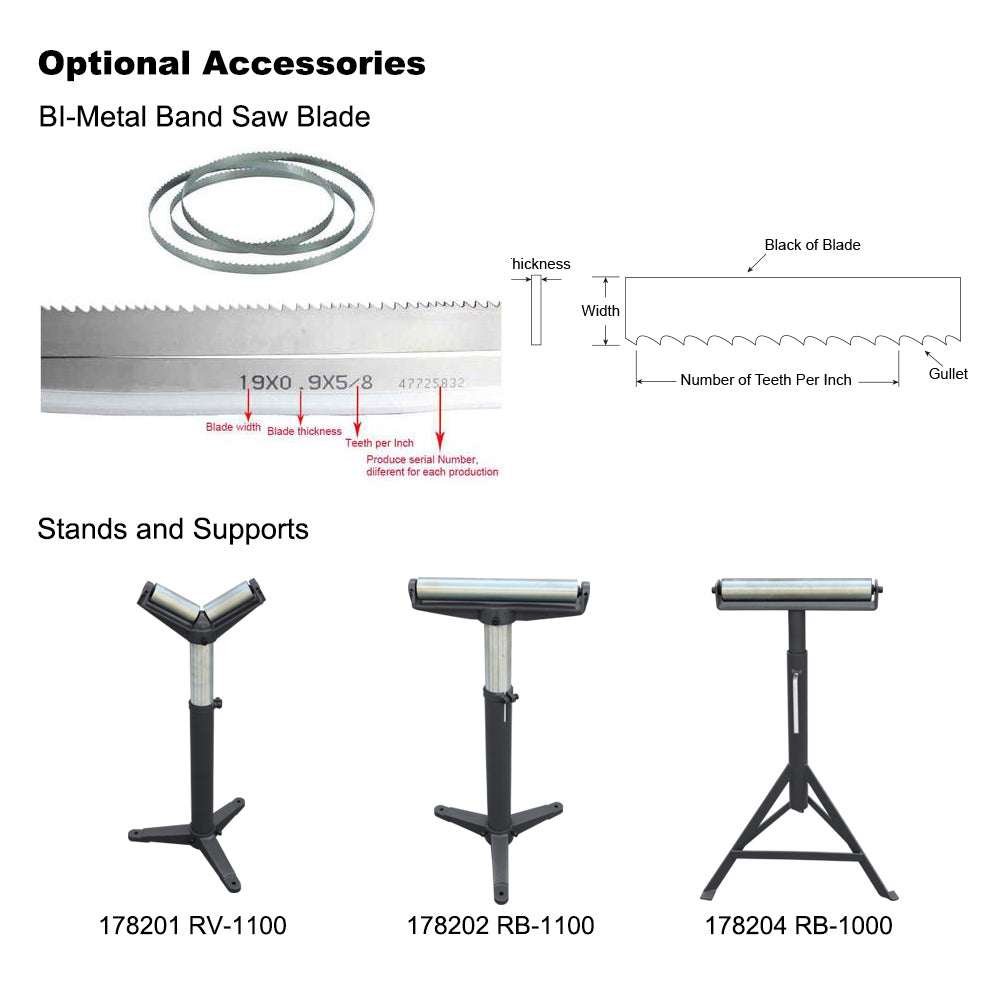

Blade size

27x0.9x2655mm

Motor power

1.1kw 1.5HP(3PH),1.5kw 2HP(1PH)

Drive

V-belt

Packing size

154x59x115cm

N.W./G.W.

230/260 kg
