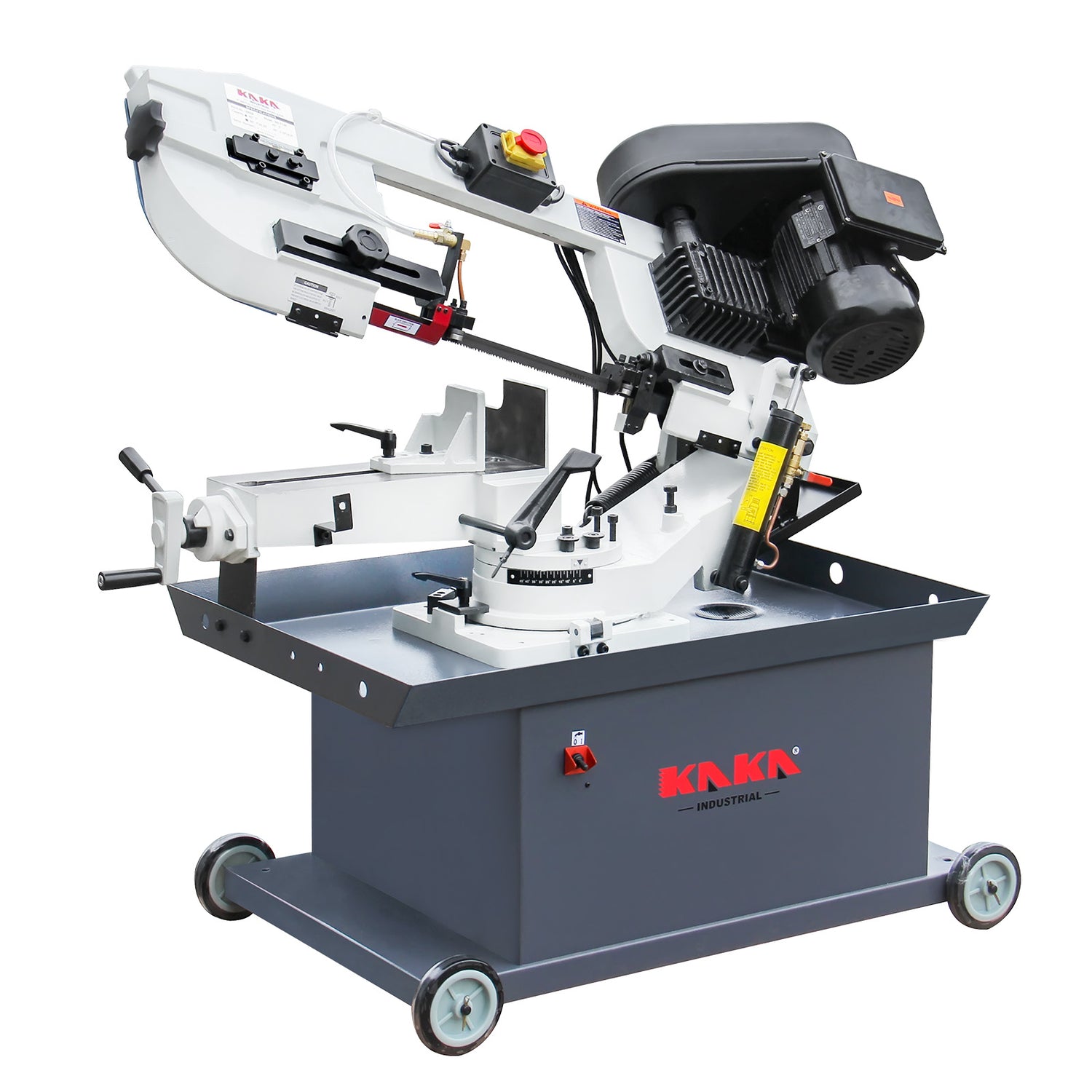

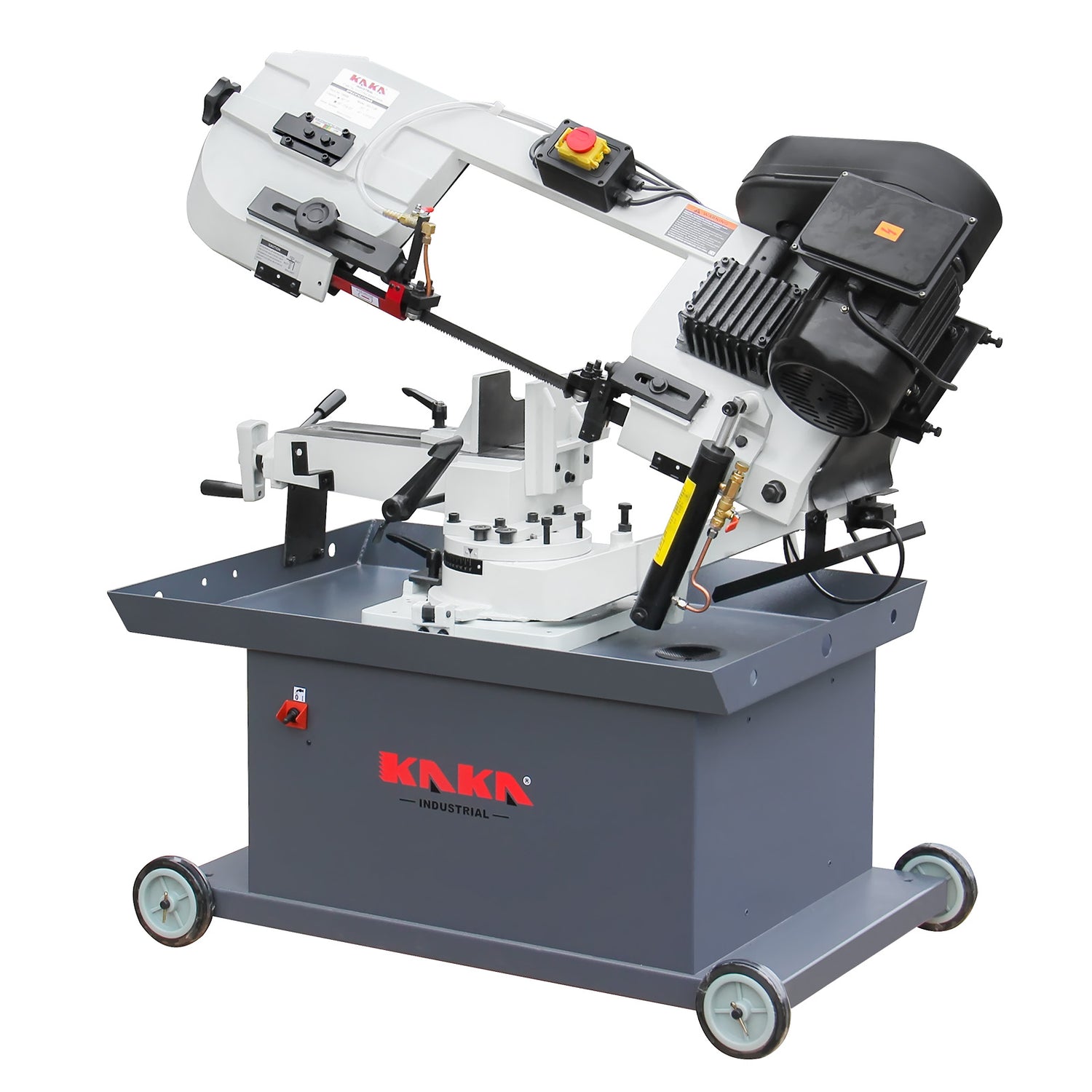

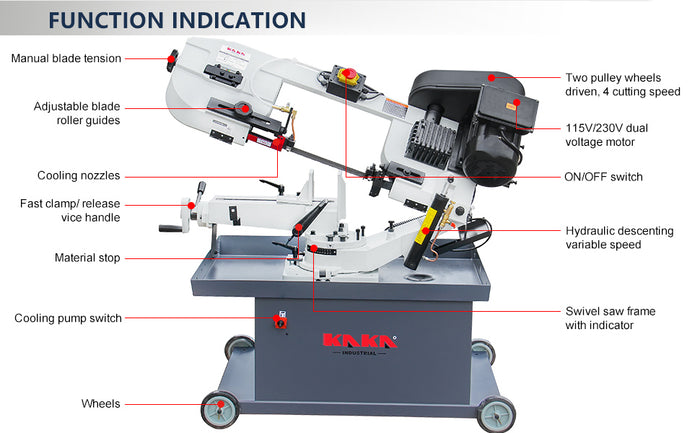

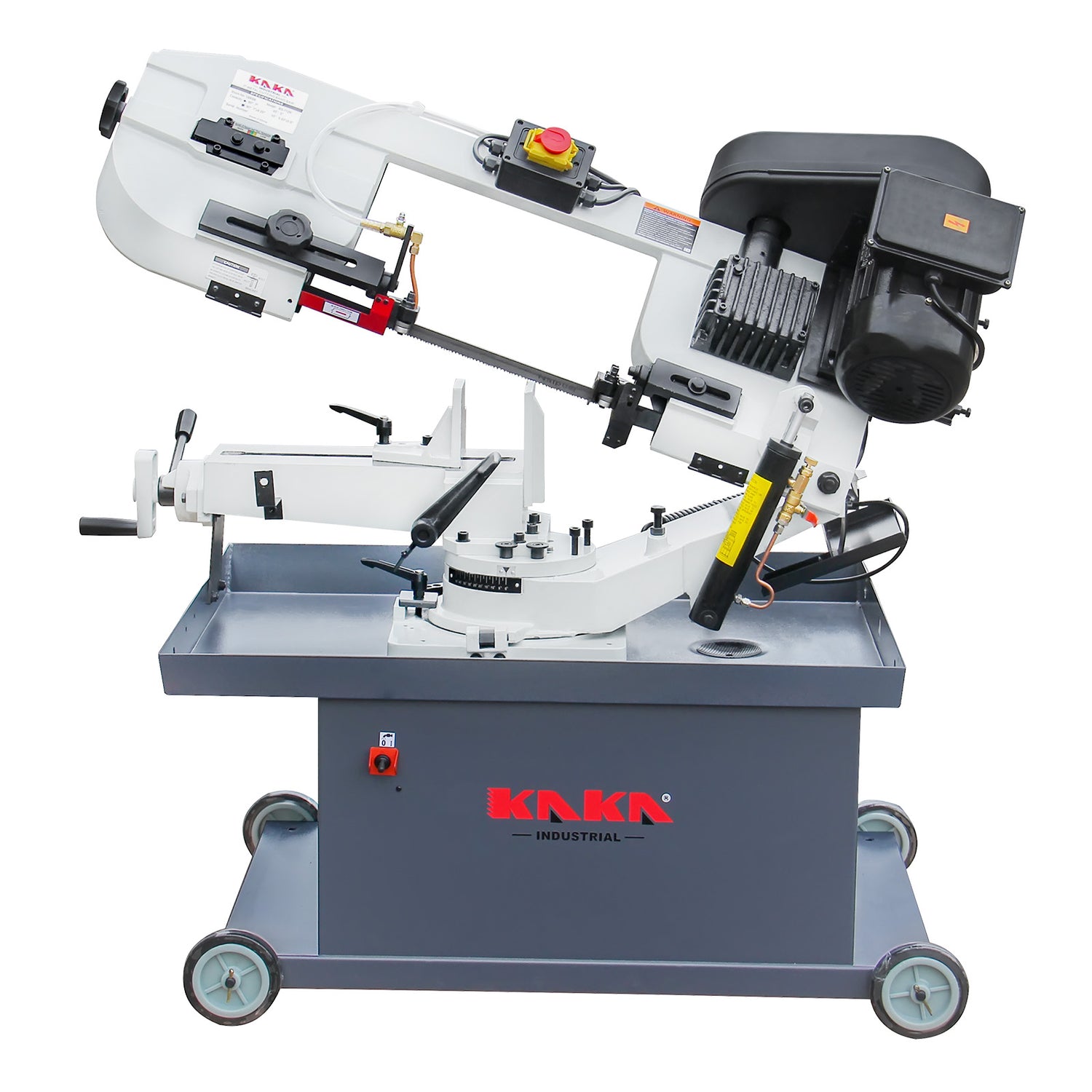

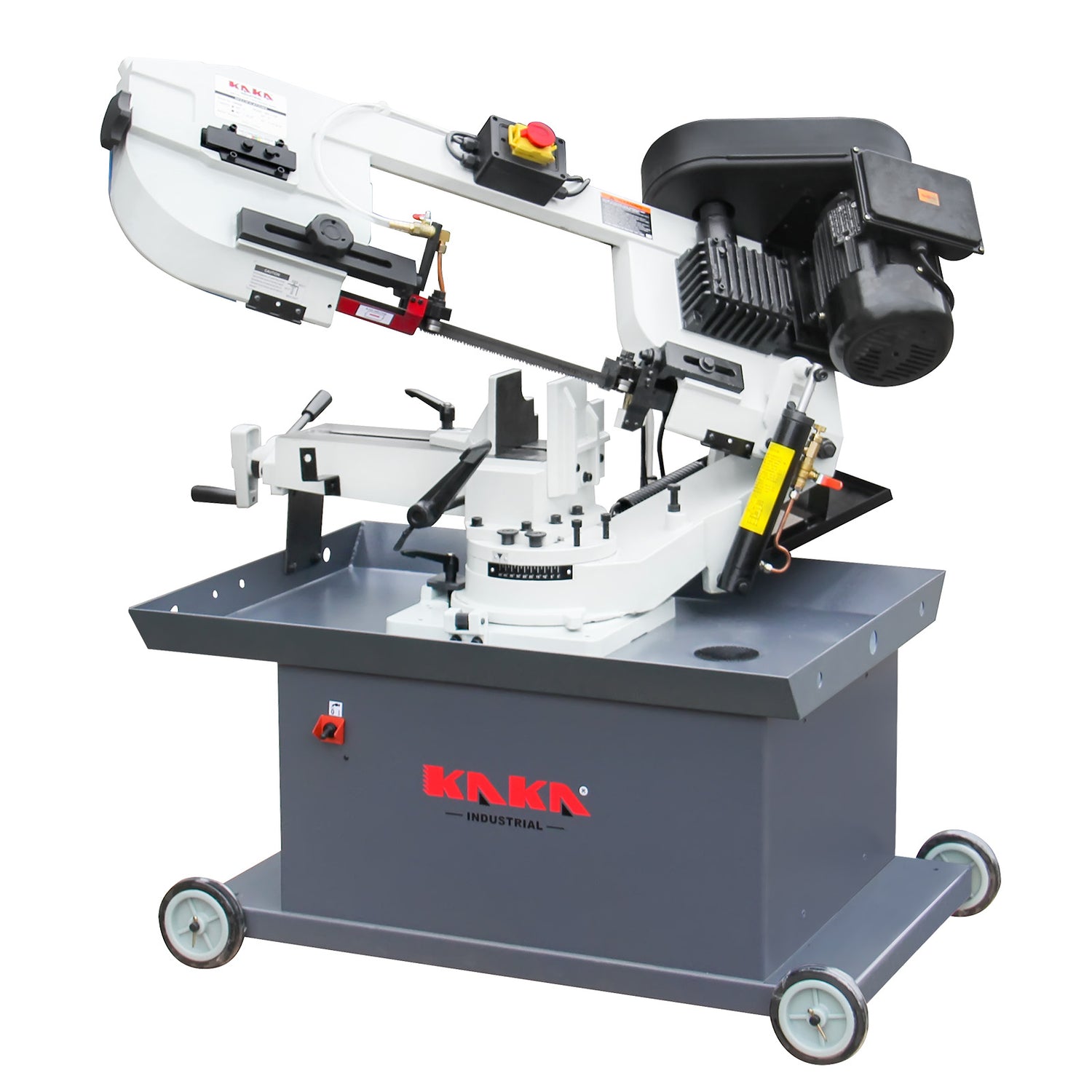

1. 7" Metal Band Saw Machine

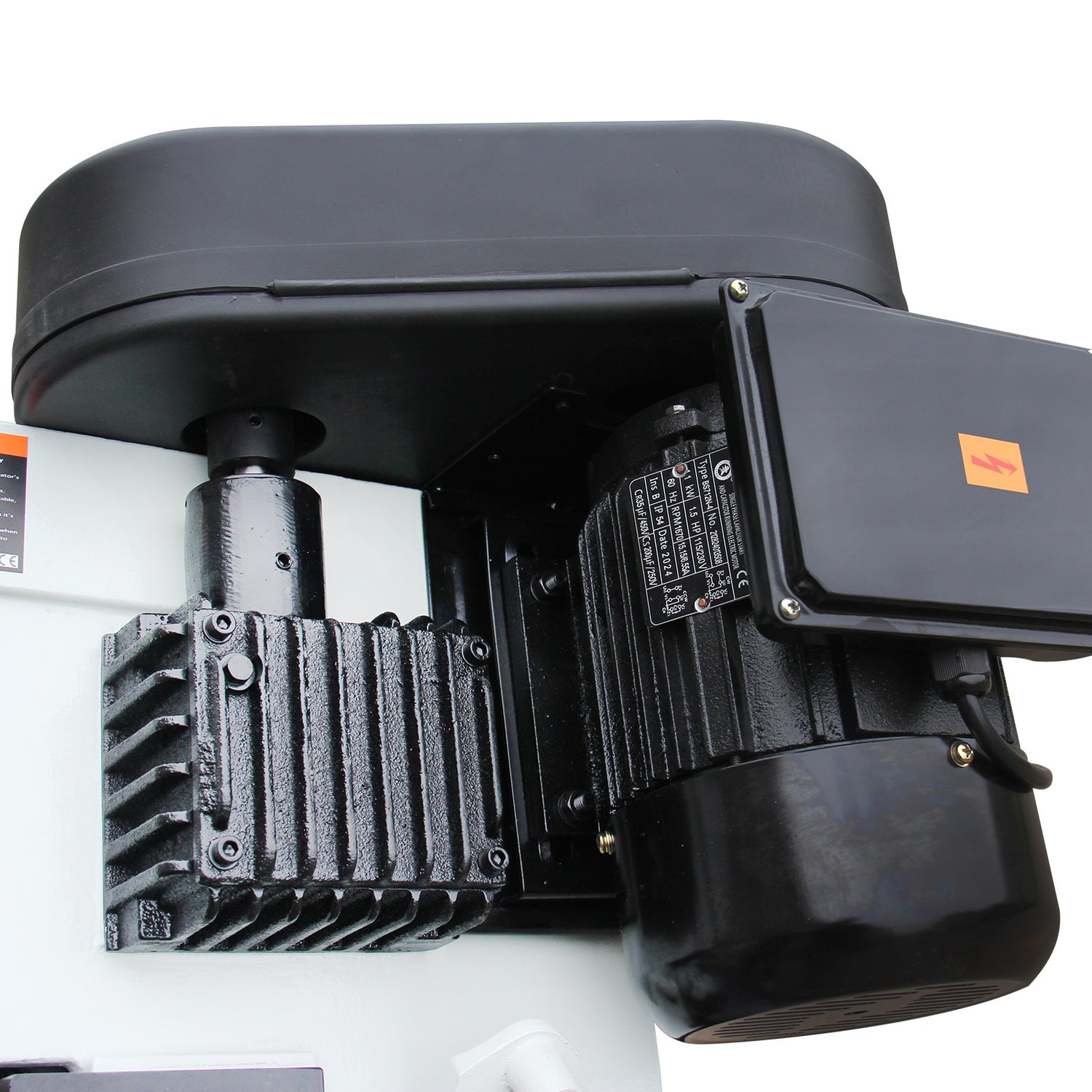

2. V-belt drive
3. Can be swiveled
4. With 4 different speed
5. The maximum processing capability of BAND SAW BS-712R is 7"(178mm)
6. The belt gear of it has four cutting speeds

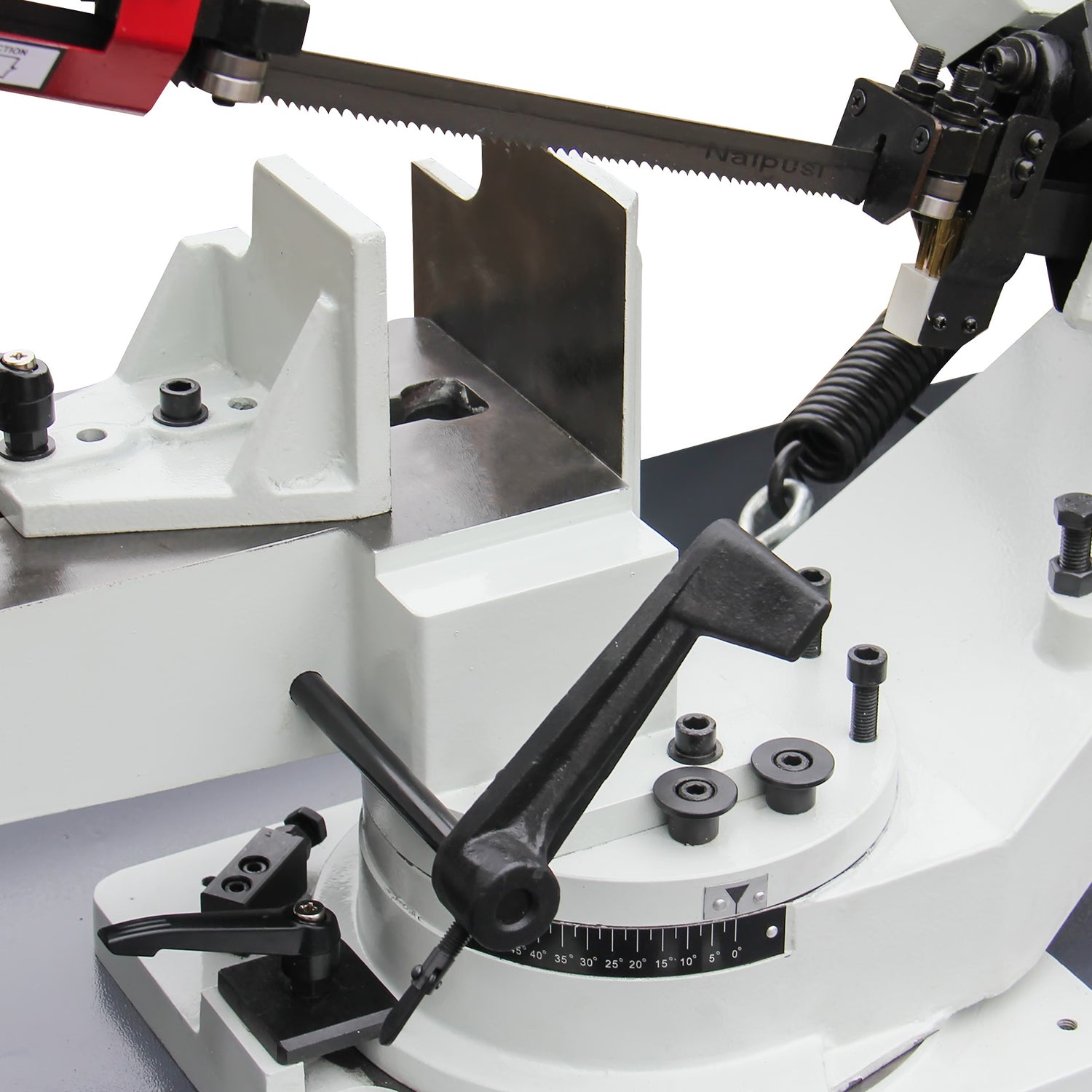

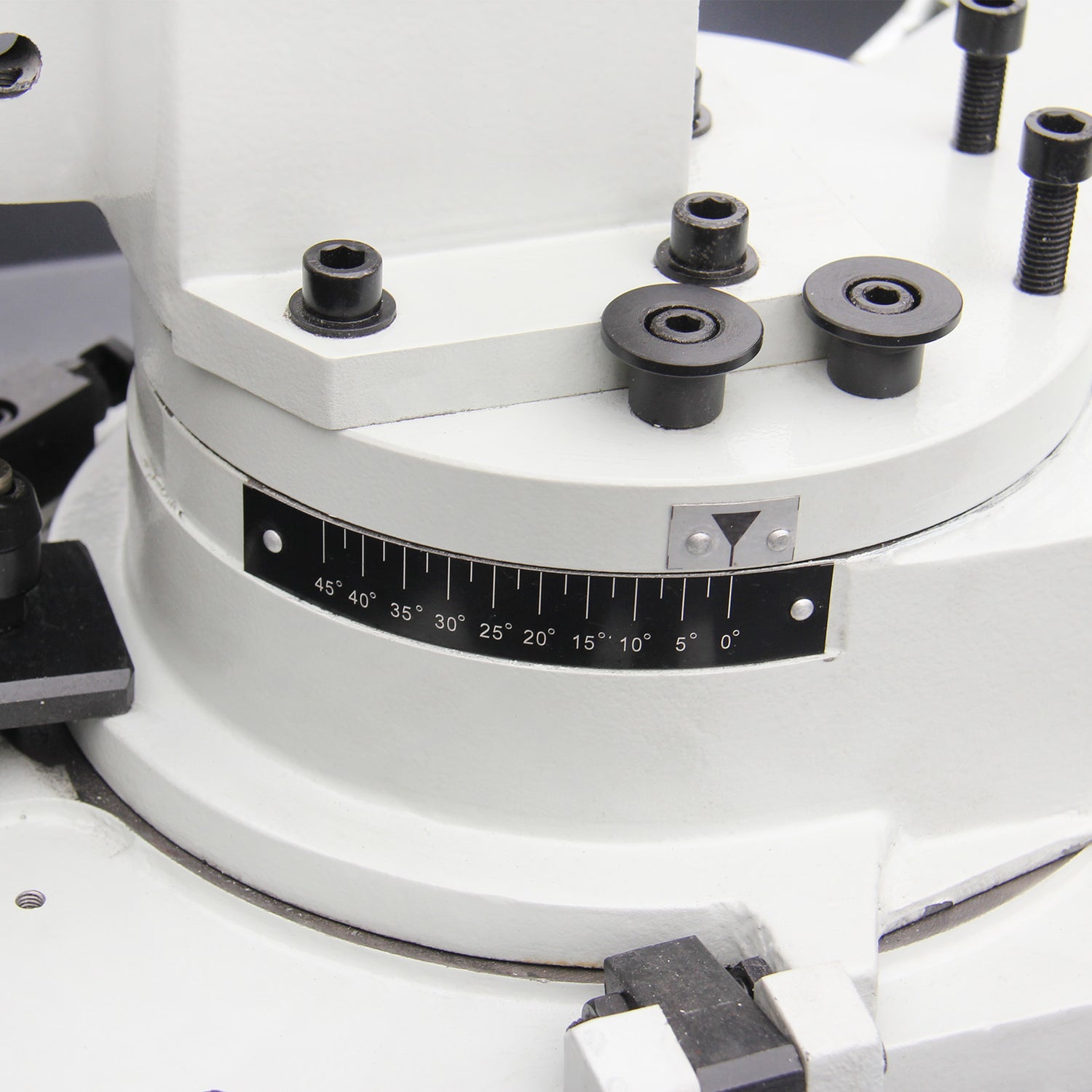

7. The bow can be swiveled between 45° and 90°

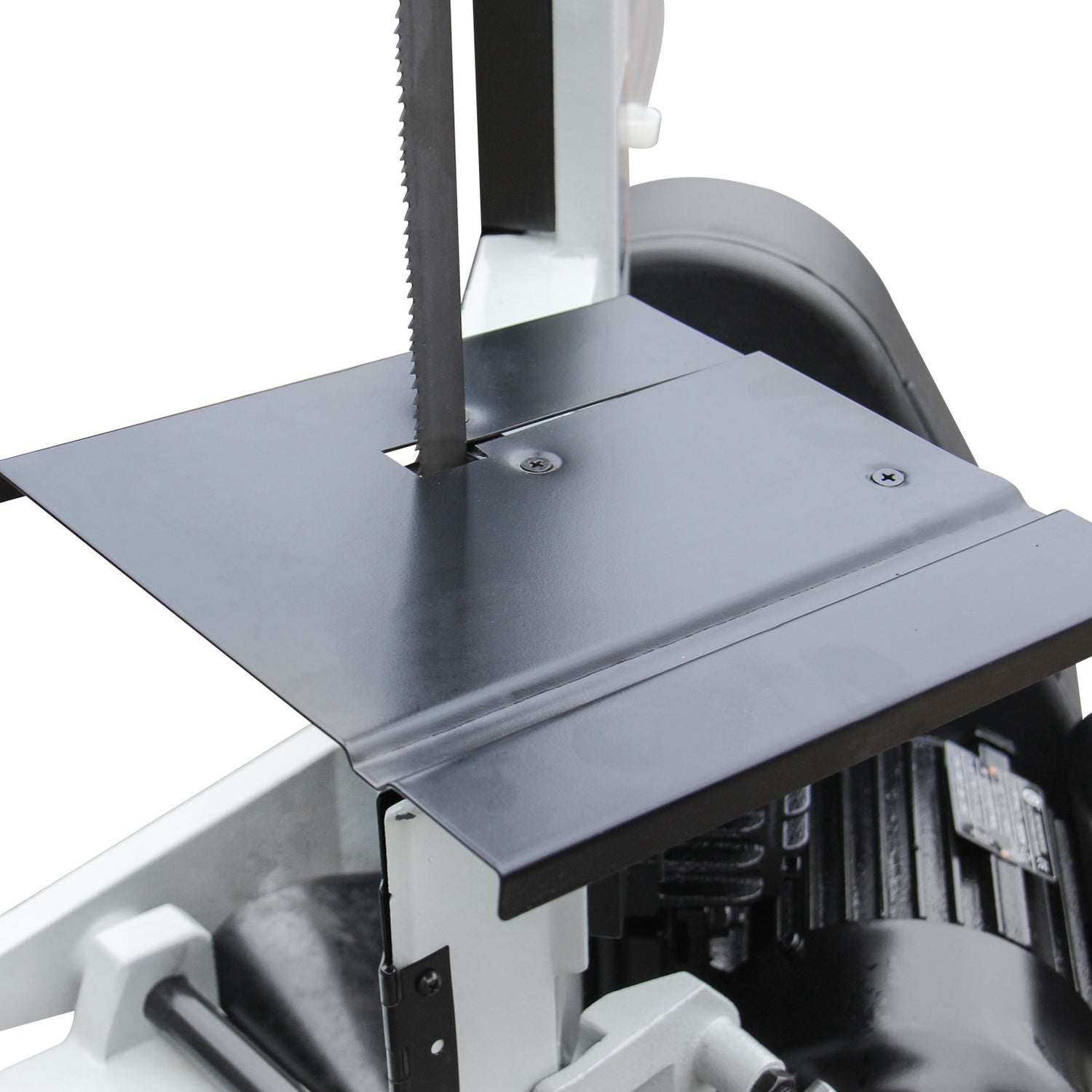

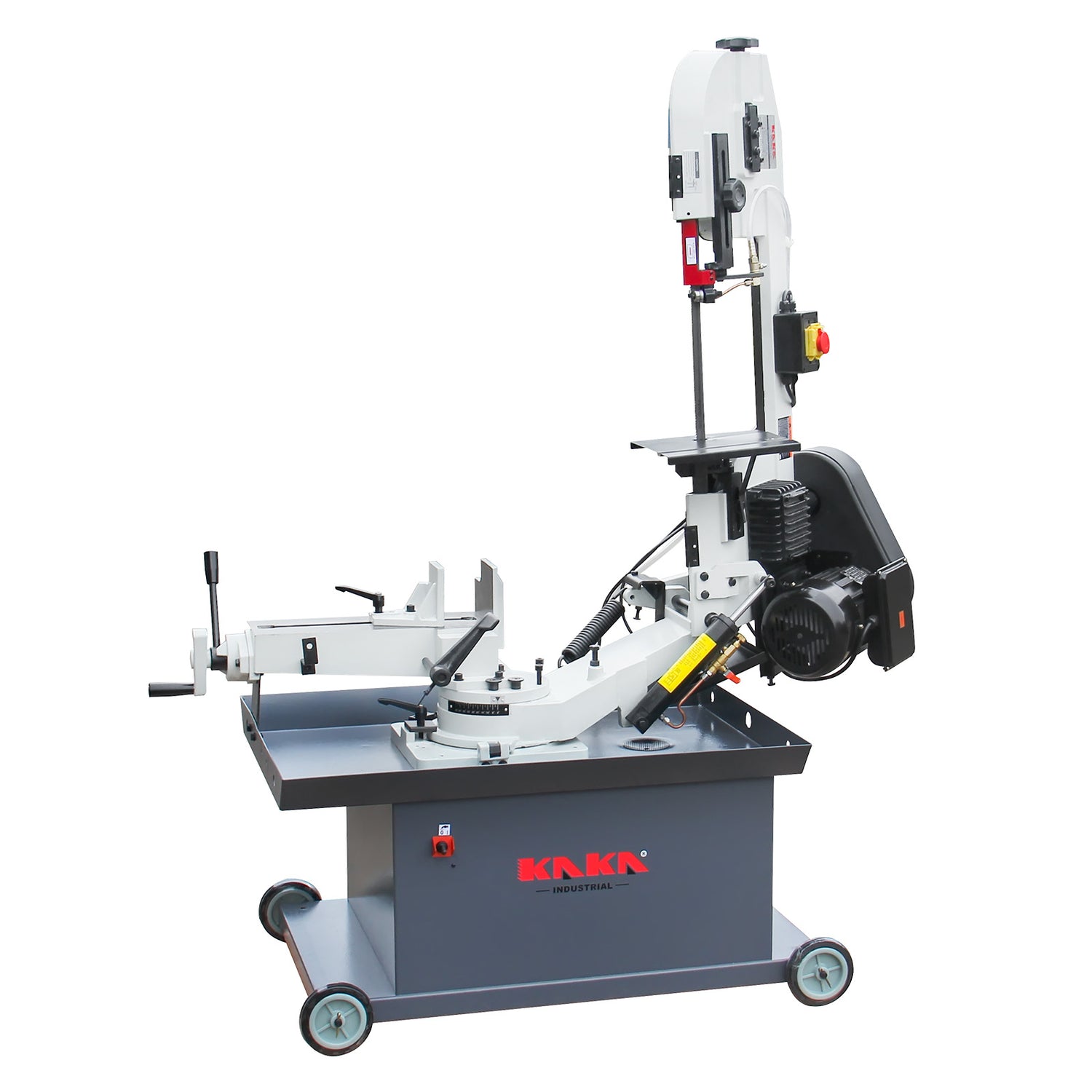

8. Can be used both vertically and horizontally
9. High-capacity due to controlled by motor

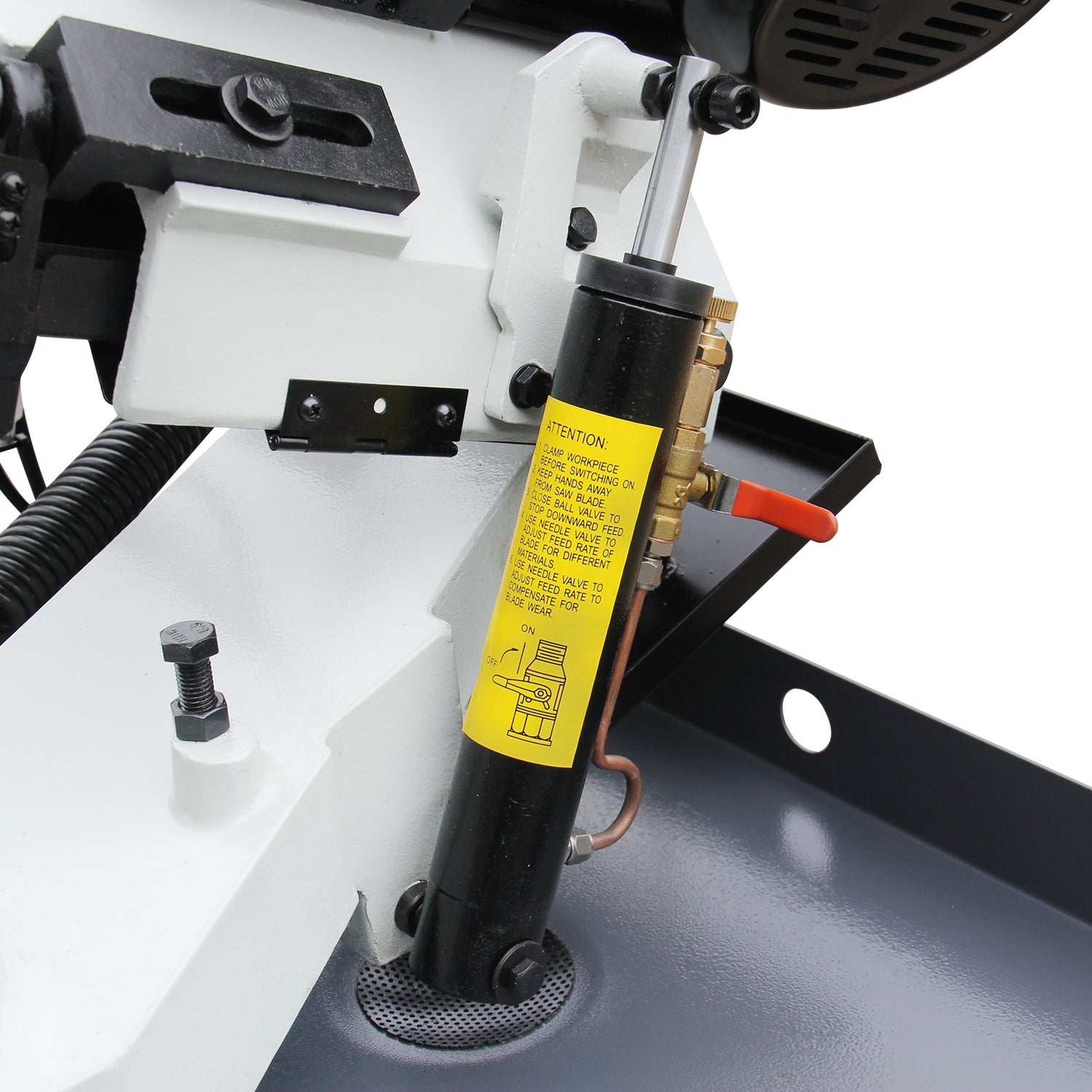

10. The falling speed of saw bow is controlled by hydraulic cylinder. The base of the roller can be move freely.
11. Has a sizing device (the machine will automatically stop after sawing materials)
12. With power break protection device, machine will power off automatically when the rear protective cover is opened

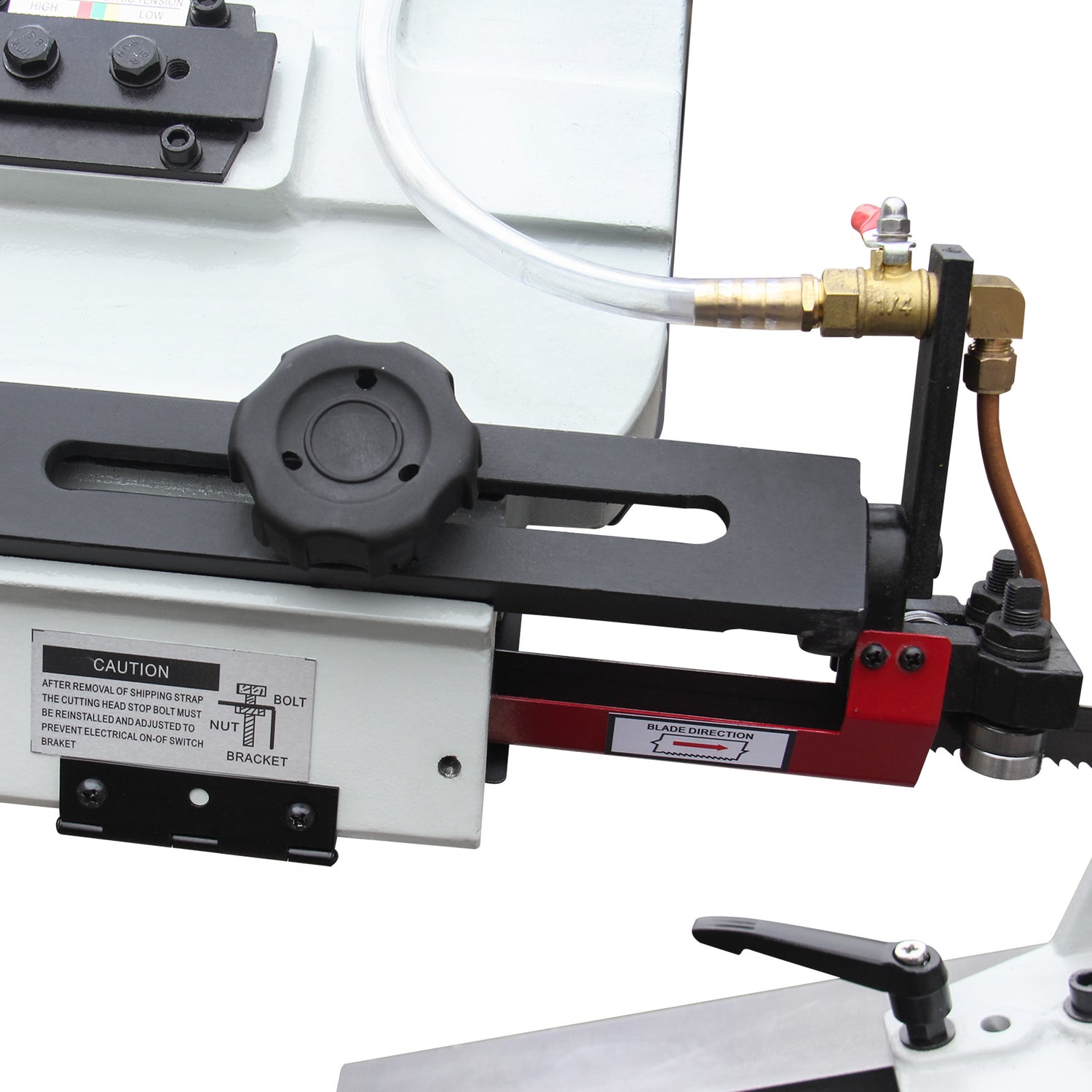

13. With cooling system, can prolong the service life of saw blade and improve the precision of work piece
14. Is equipped with a block feeder (with fixed sawing length)
15. Main technical parameter
- Item No.:188008
- Capacity Circular: @90° 178mm(7”)
- Rectangular: @90° 178x210mm (7”x8.25”)
- Circular: @45° 127mm(5”)
- Rectangular: @45° 85x140mm (3.33”x5.5”)
- Blade speed: @60Hz 27,41,59,78MPM
- @50Hz 22,34,49,64MPM
- Blade size: 20x0.9x2362mm
- Motor power: 750W 1HP(3PH), 1.1KW 1.5HP(1PH)

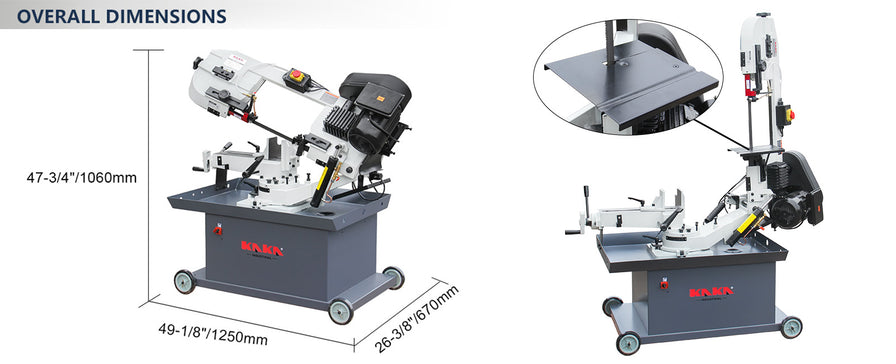

- Packing size(in):50x28x45
KAKA Industrial provides 12 months warranty for this product.
1.10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted after this time.
2.You must obtain a Kaka Industral issued RGA number PRIOR to returning any materials.
3.Returned materials must be received at Kaka Industrial in new condition and in original packaging.
4.Altered items are not eligible for return.
5.Buyer is responsible for all shipping charges.
6.A 15% re-stocking fee applies to all returns.
