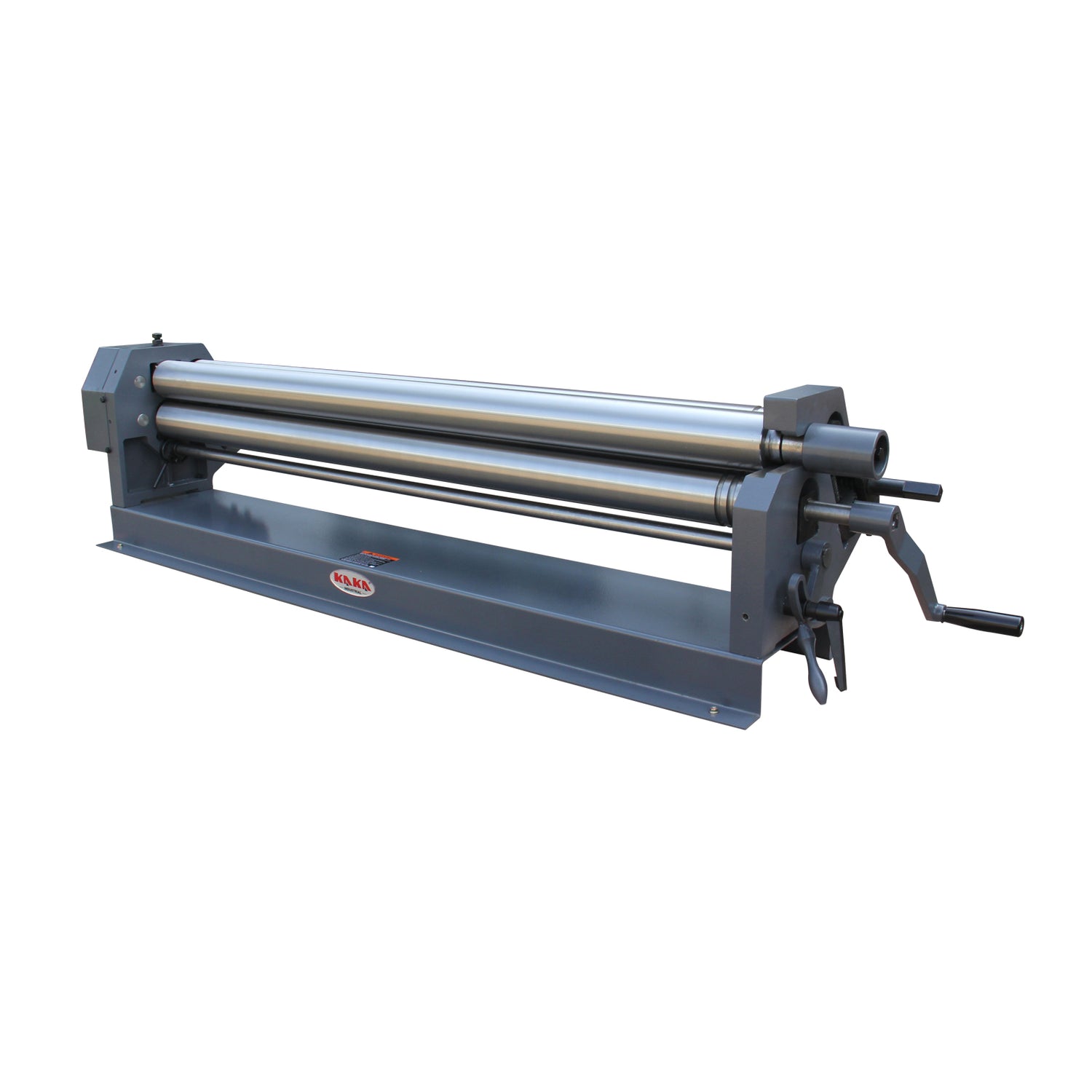

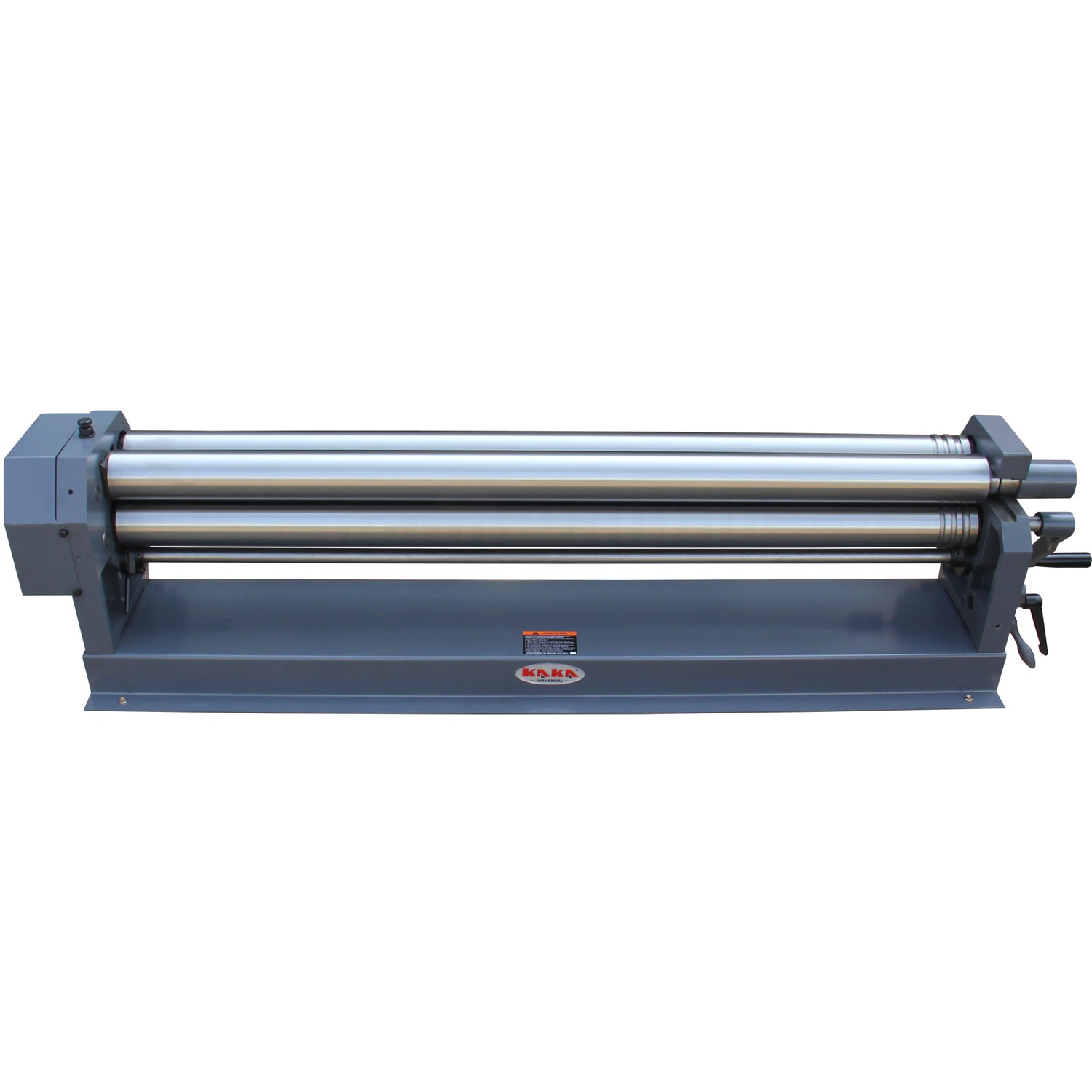

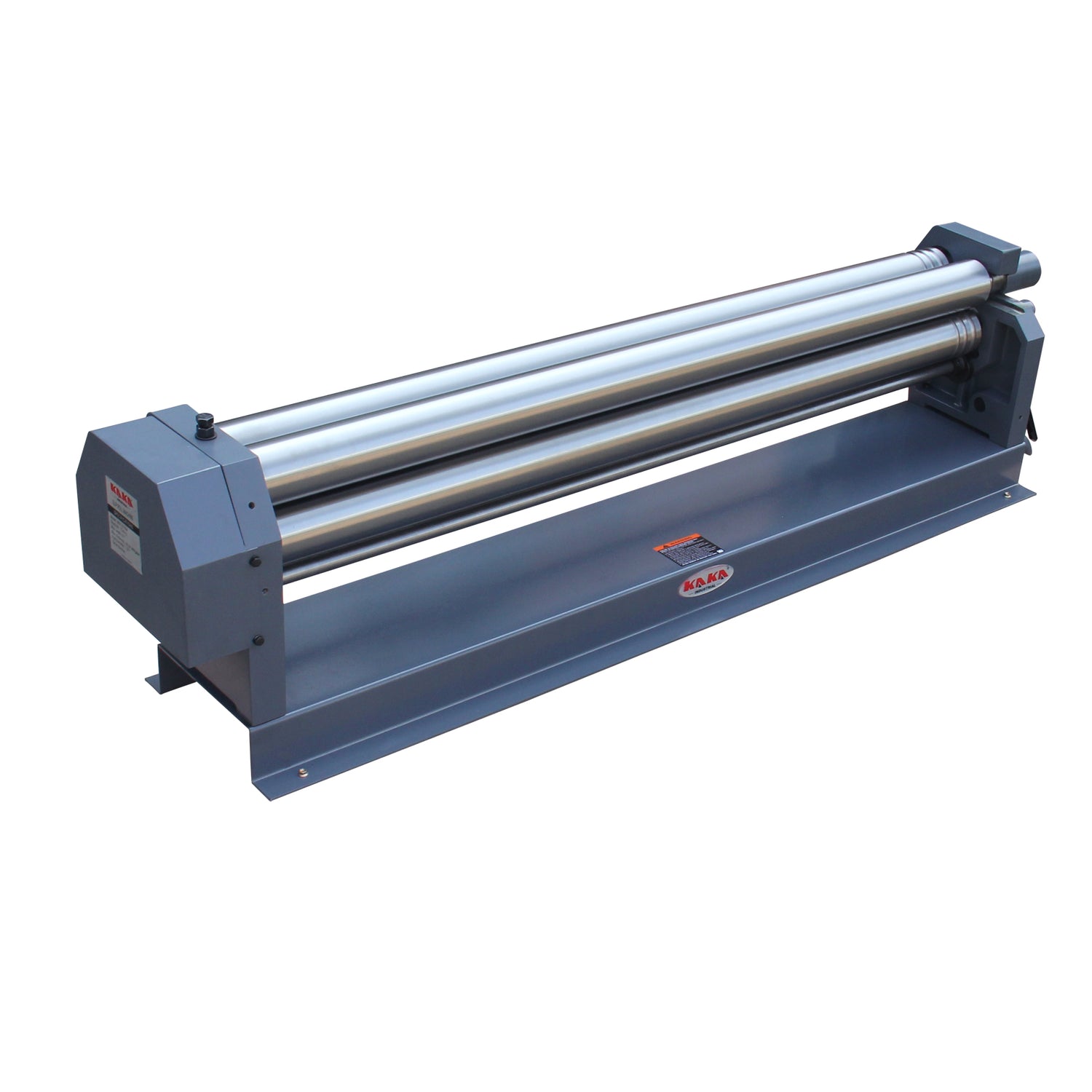

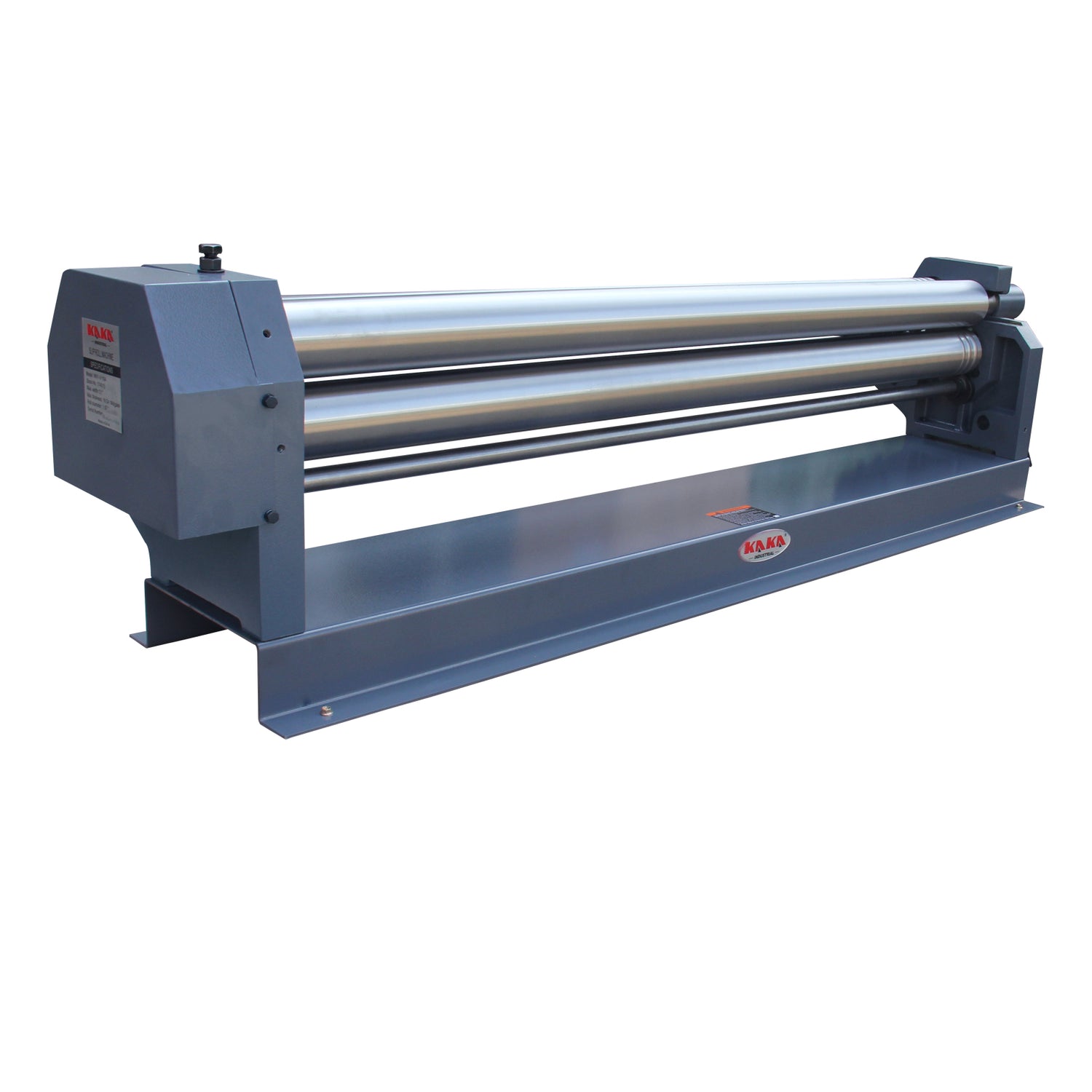

KAKA INDUSTRIAL 51-Inch Slip Roll Machine, 14-Gauge Steel Bending Capacity, Rear Axle Lifting, W01-5116A Metal Roller, Sheet Metal Round Bending, Two Removable Rollers Included

• Easy Manual Operation – Designed for user-friendly and efficient performance.
• Integrated Rear Axle Lifting – Enhances precision and simplifies operation.
• Durable Construction – Features hardened steel gearing, high-strength steel rolls, and precision-ground cast iron rollers for long-lasting reliability.
• Versatile Rolling Capabilities – Processes materials ranging from 305 mm to 1300 mm, with a rolling radius of 12 to 51 inches for forming smooth curves, cones, and cylinders.

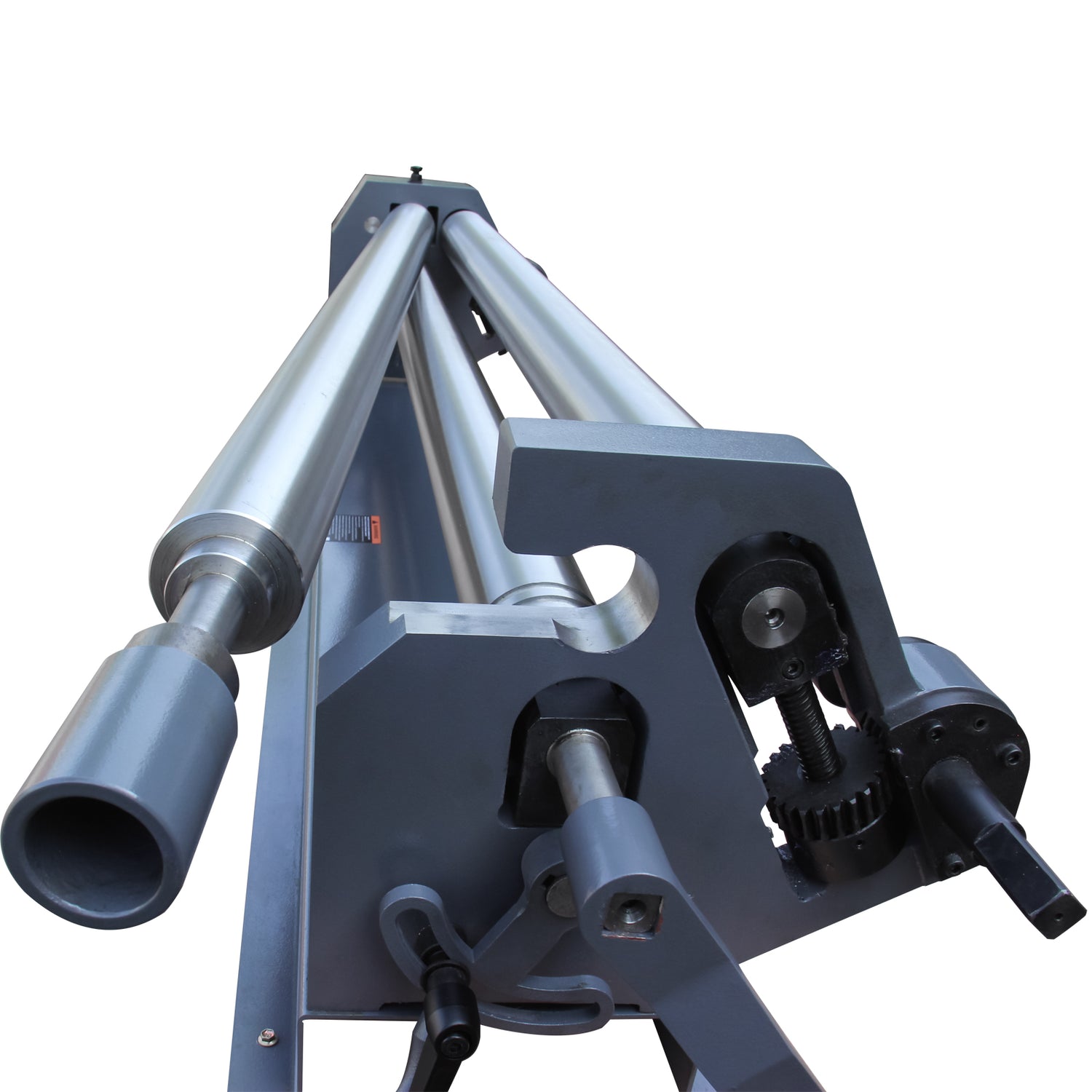

• Removable Top Roller – Swing-out top roll and removable axis allow for easy removal of finished products.

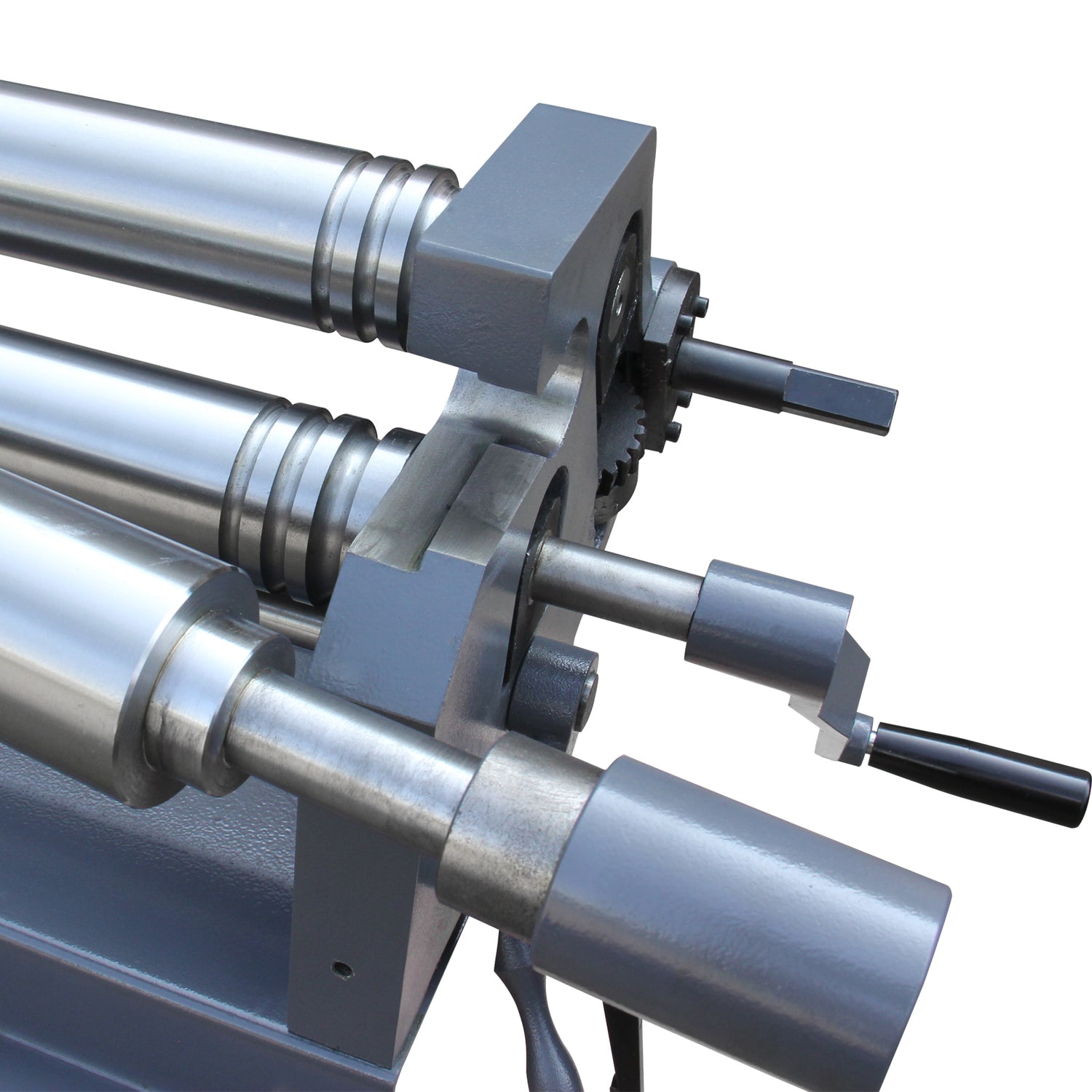

• Wire Shaping – Includes two rollers with three wire grooves for added versatility.

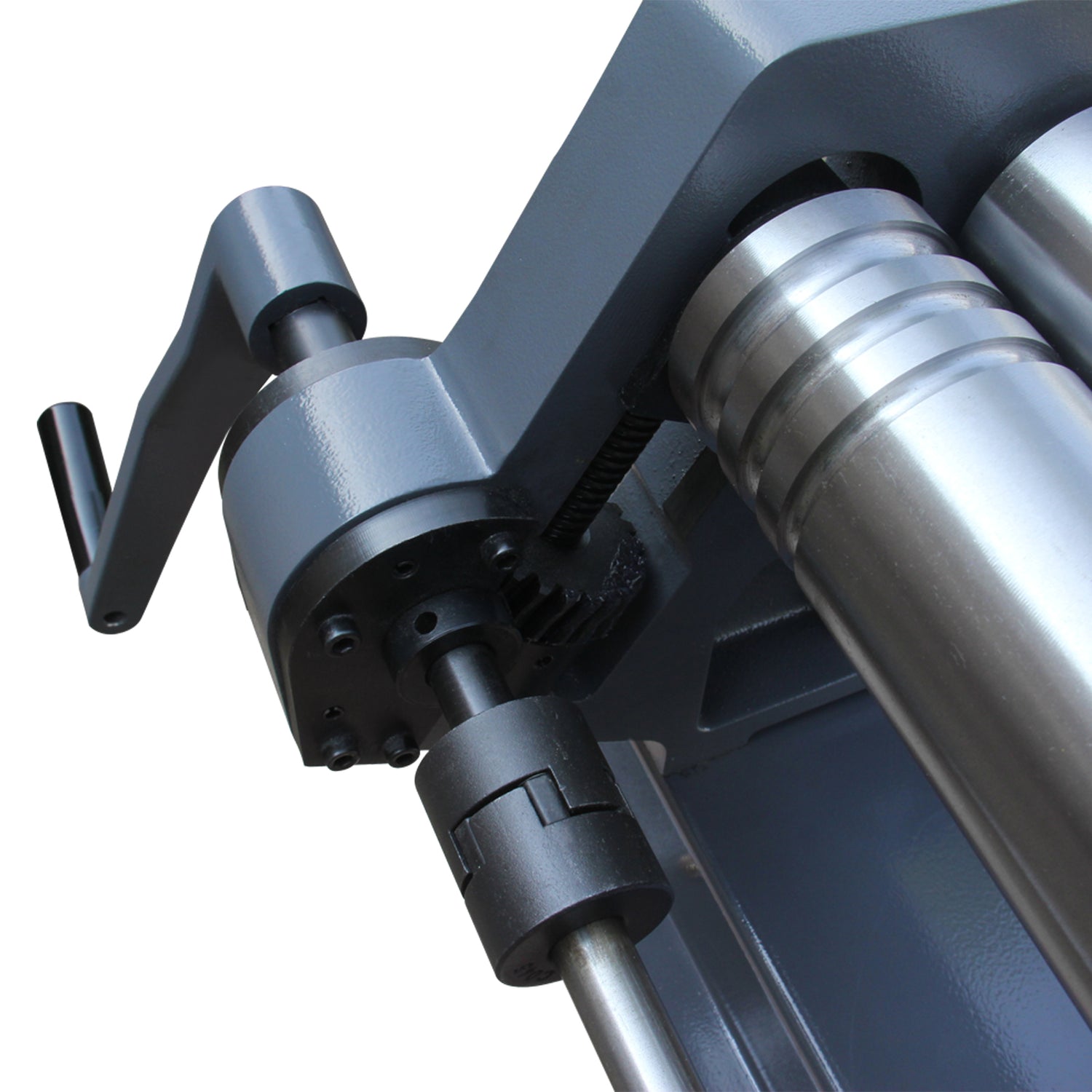

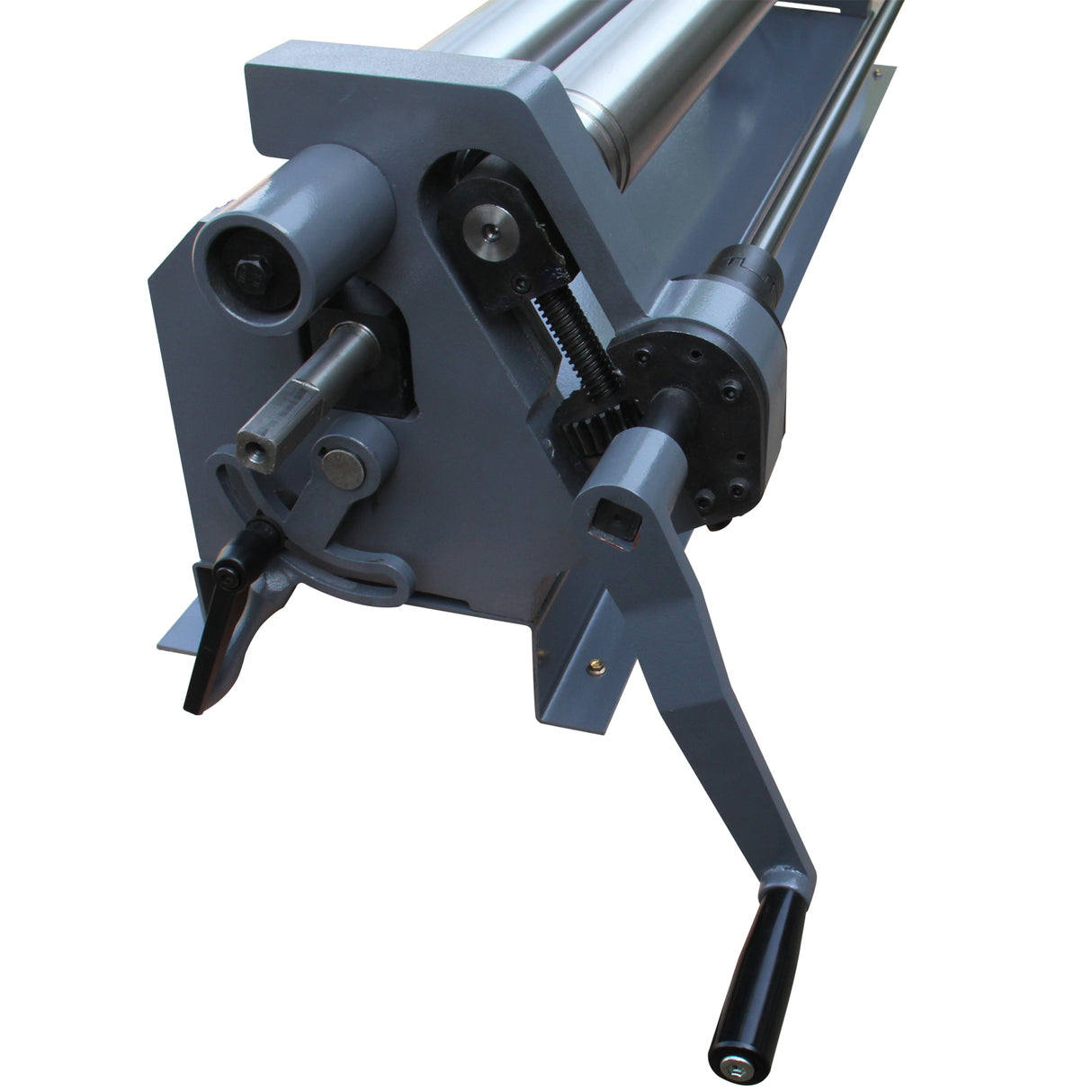

• Adjustable Lower Roll – Fine-tune operations with a cam and adjustment lever.
• Multi-Material Compatibility – Suitable for forming decorative iron, mild steel, aluminum, and round bar steel.
• Dual Functionality – Supports both reeling and coning operations.

Item NO. 174005

Model:W01-5116A

Max.thickness:14Ga.

Max.width(in)51"

Dia of roll (in): 2.95"

packing dimension(in):67x17x22

N.W./G./W(LB):458/525 LB

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
