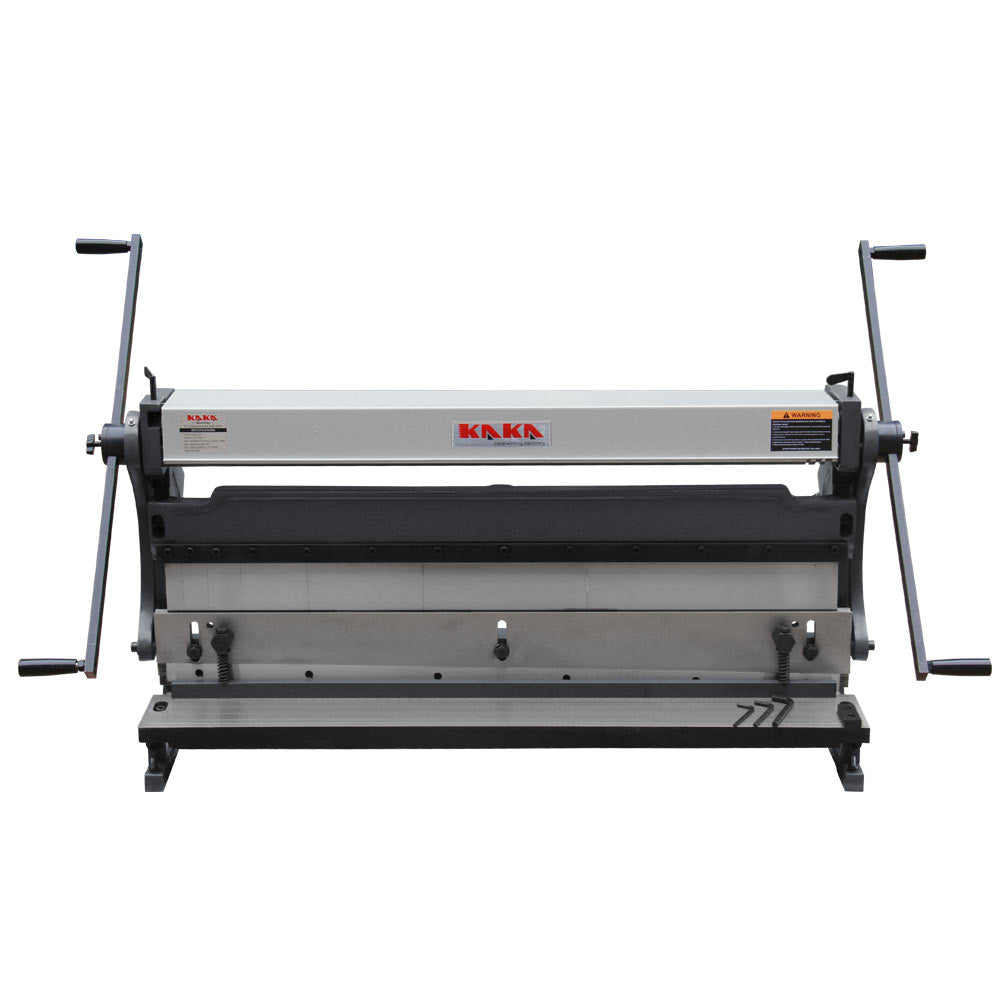

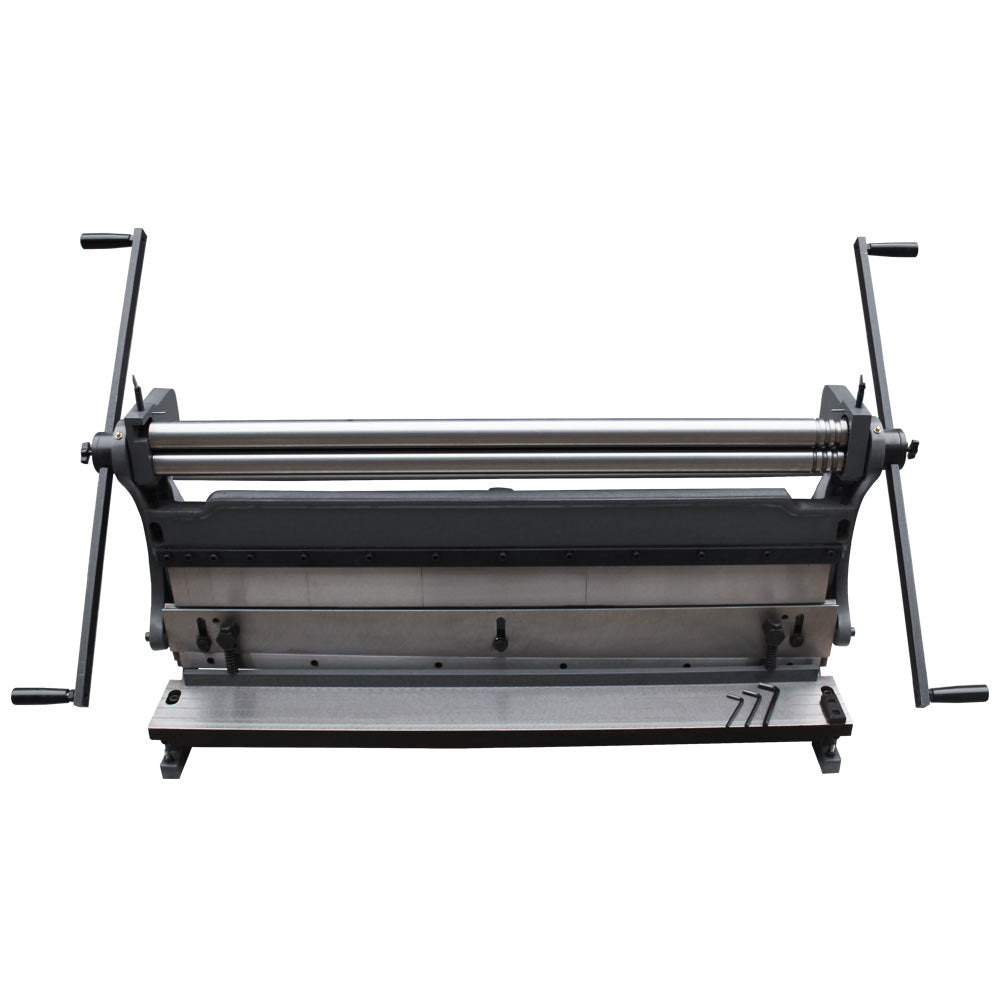

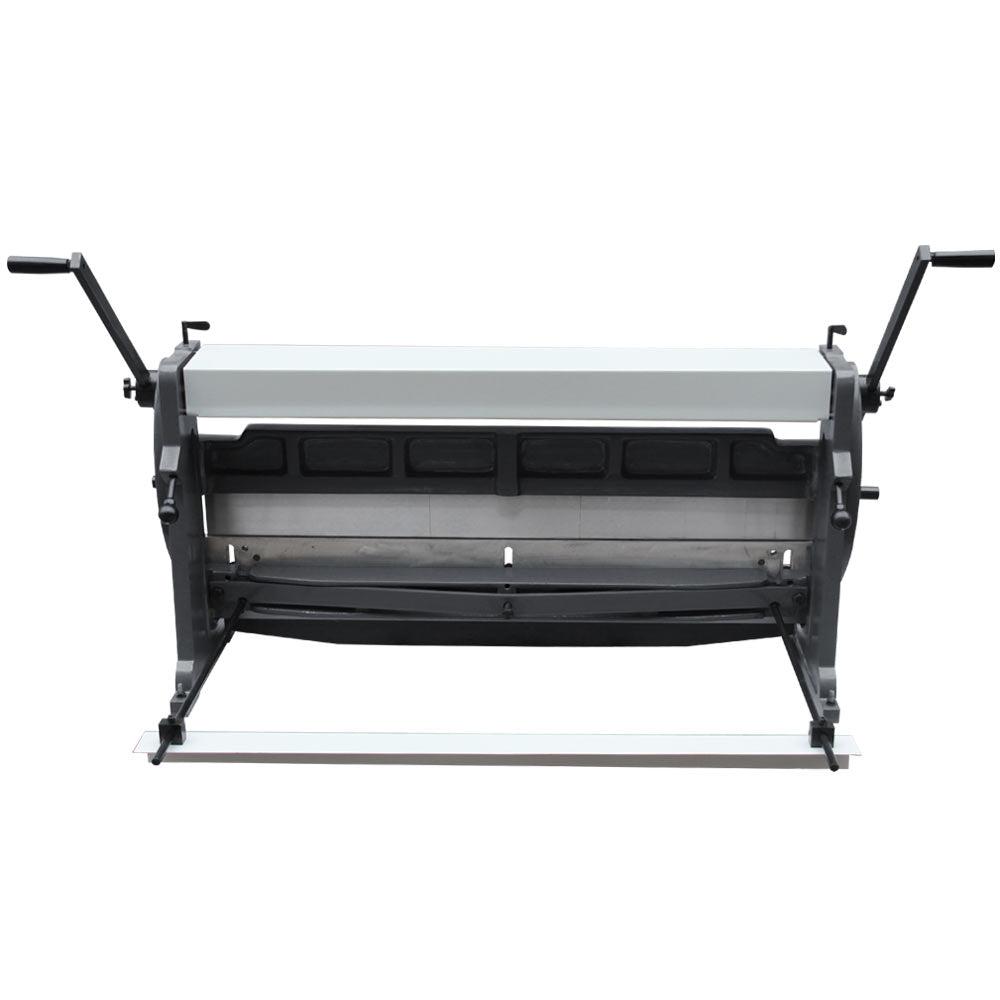

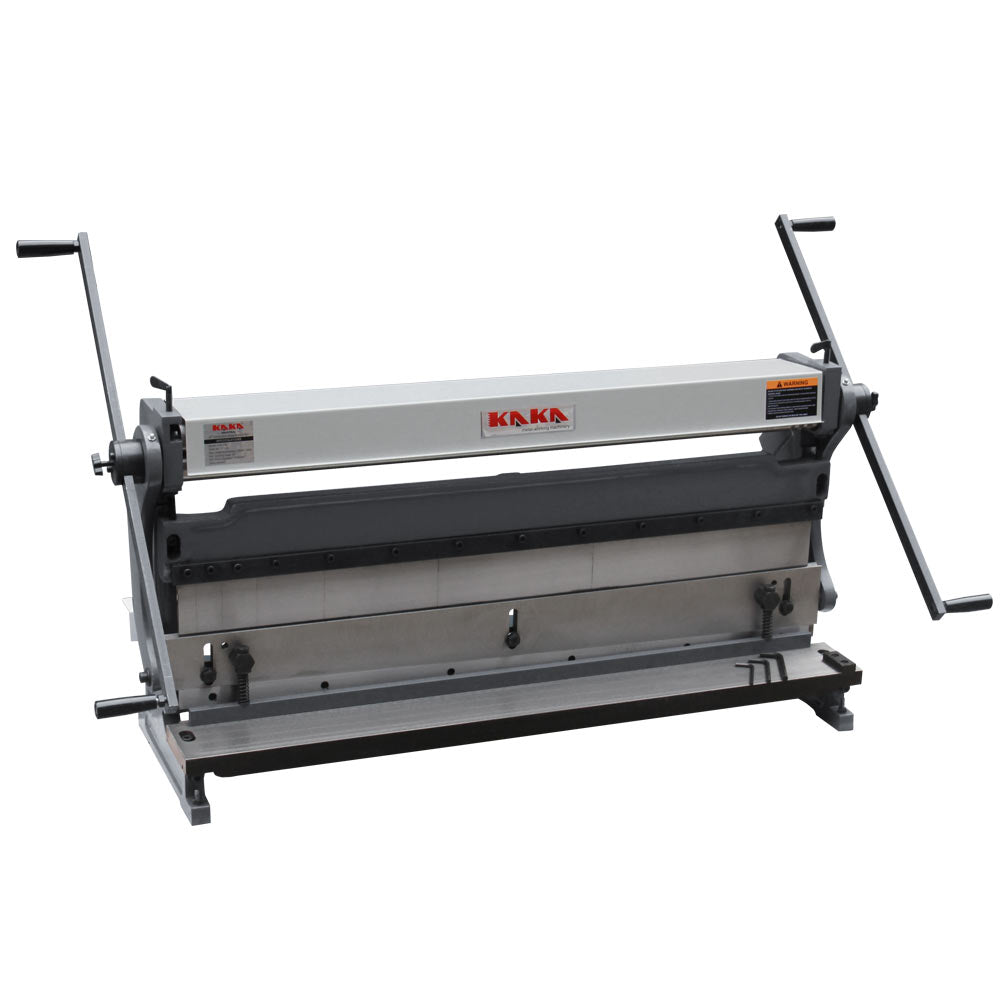

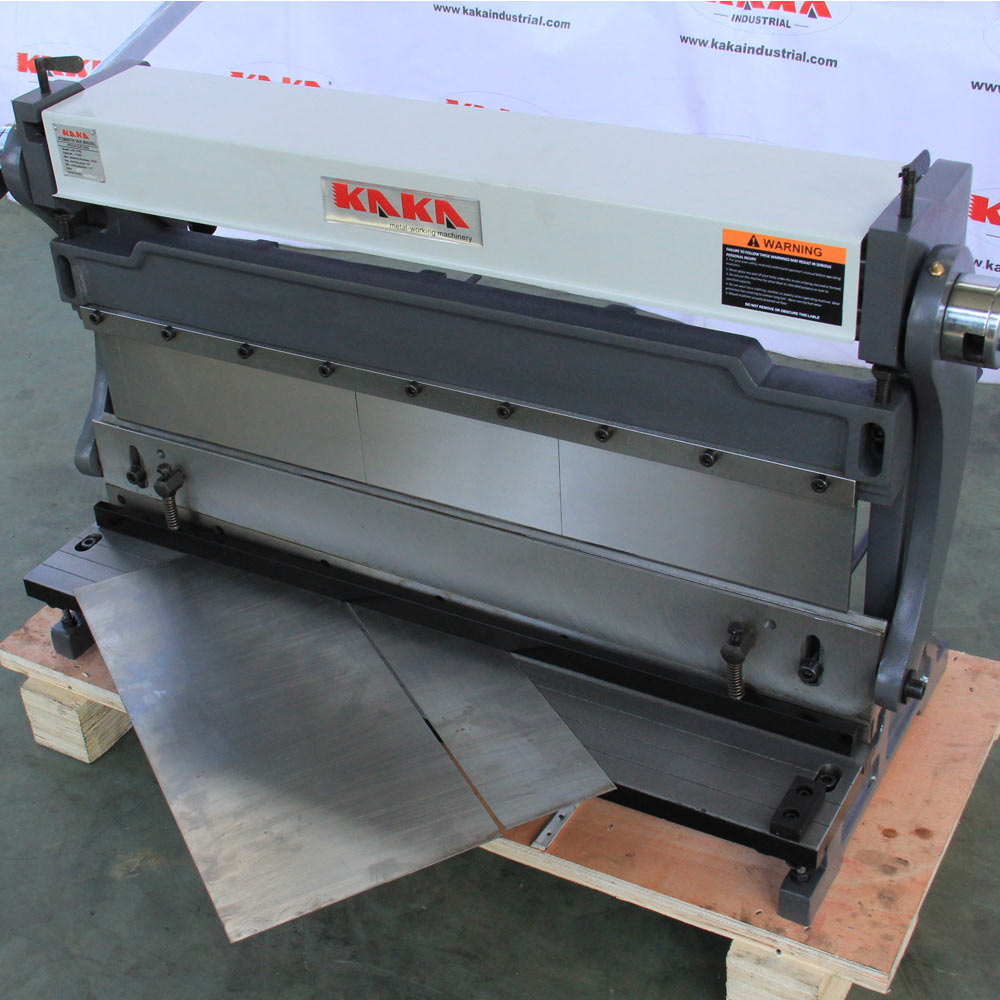

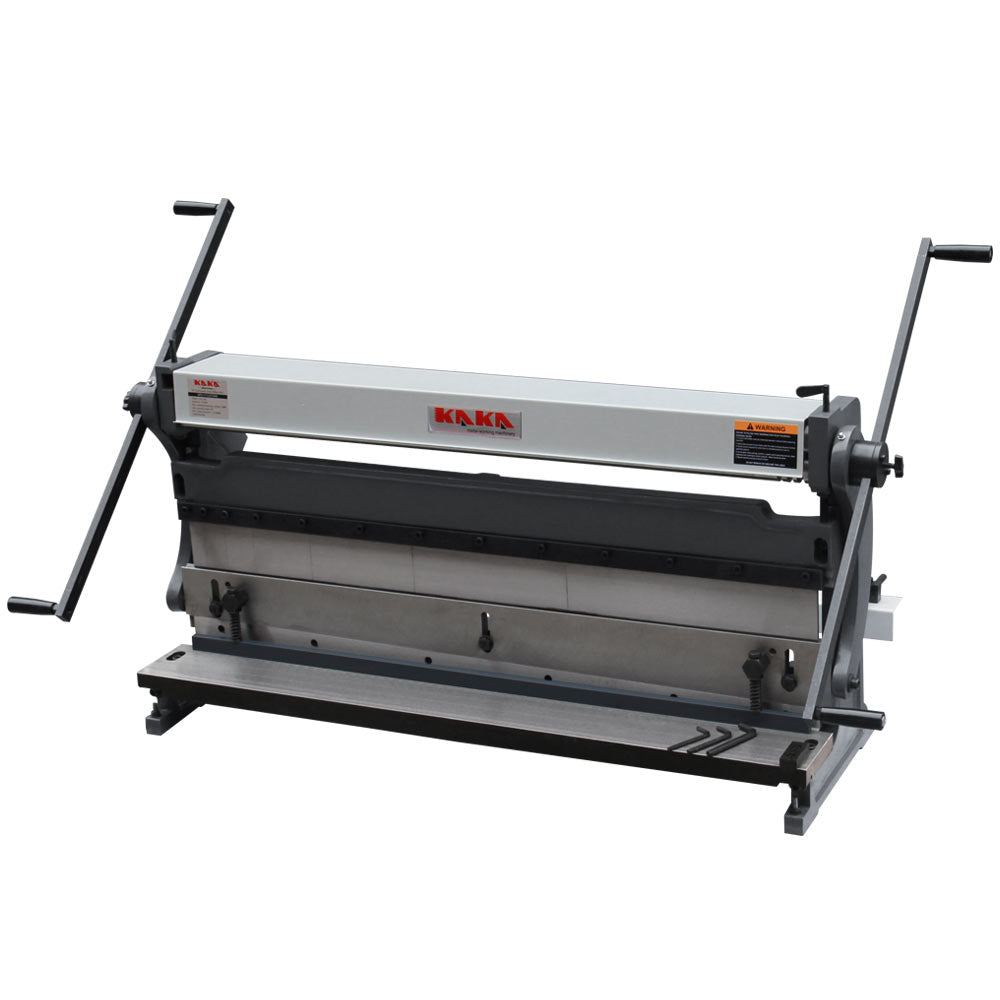

KAKA 3-IN-1/40, 40-In Sheet Metal Brake, 3-In-1 Shear Brake Roll Combinations
KAKA 3-IN-1/40, 40-In Sheet Metal Brake, 3-In-1 Shear Brake Roll Combinations
KAKA 3-IN-1/40, 40-In Sheet Metal Brake, 3-In-1 Shear Brake Roll Combinations
KAKA 3-IN-1/40, 40-In Sheet Metal Brake, 3-In-1 Shear Brake Roll Combinations
KAKA 3-IN-1/40, 40-In Sheet Metal Brake, 3-In-1 Shear Brake Roll Combinations
KAKA 3-IN-1/40, 40-In Sheet Metal Brake, 3-In-1 Shear Brake Roll Combinations
KAKA 3-IN-1/40, 40-In Sheet Metal Brake, 3-In-1 Shear Brake Roll Combinations
KAKA 3-IN-1/40, 40-In Sheet Metal Brake, 3-In-1 Shear Brake Roll Combinations
KAKA 3-IN-1/40, 40-In Sheet Metal Brake, 3-In-1 Shear Brake Roll Combinations
KAKA 3-IN-1/40, 40-In Sheet Metal Brake, 3-In-1 Shear Brake Roll Combinations

KAKA 3-IN-1/40, 40-In Sheet Metal Brake, 3-In-1 Shear Brake Roll Combinations

Features:

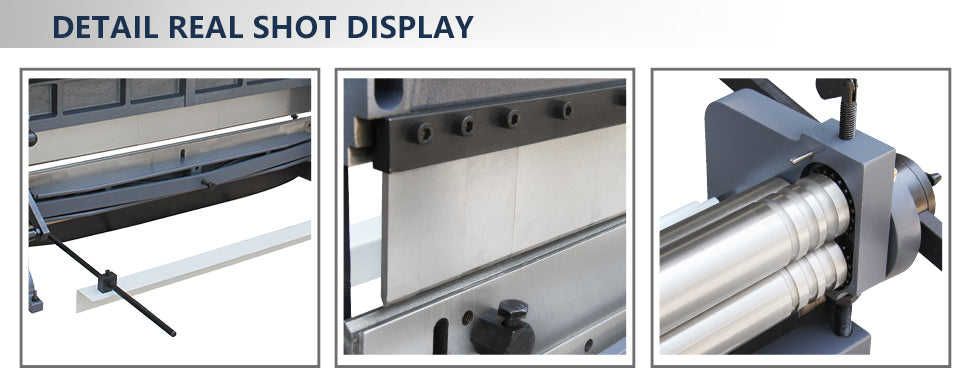

1. Press brake has hardened adjustable dies that allows the fabricator to make certain boxes and pans

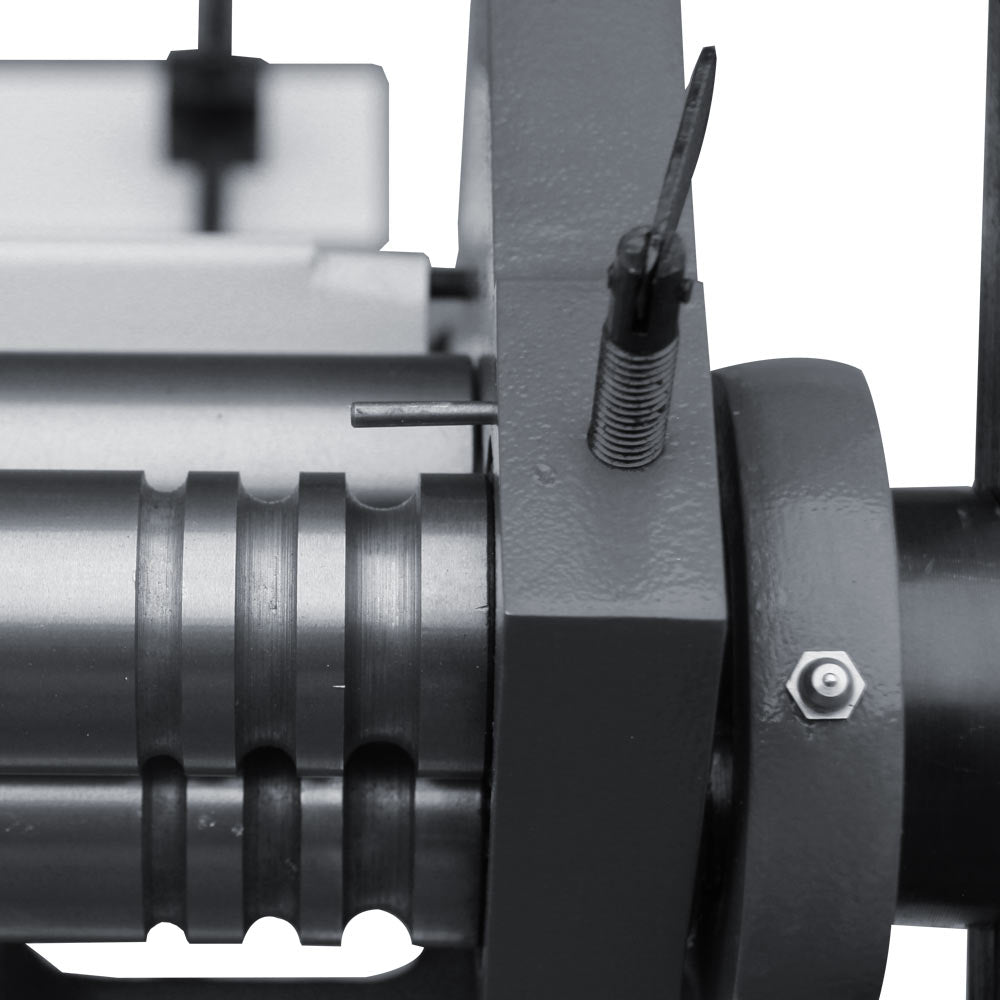

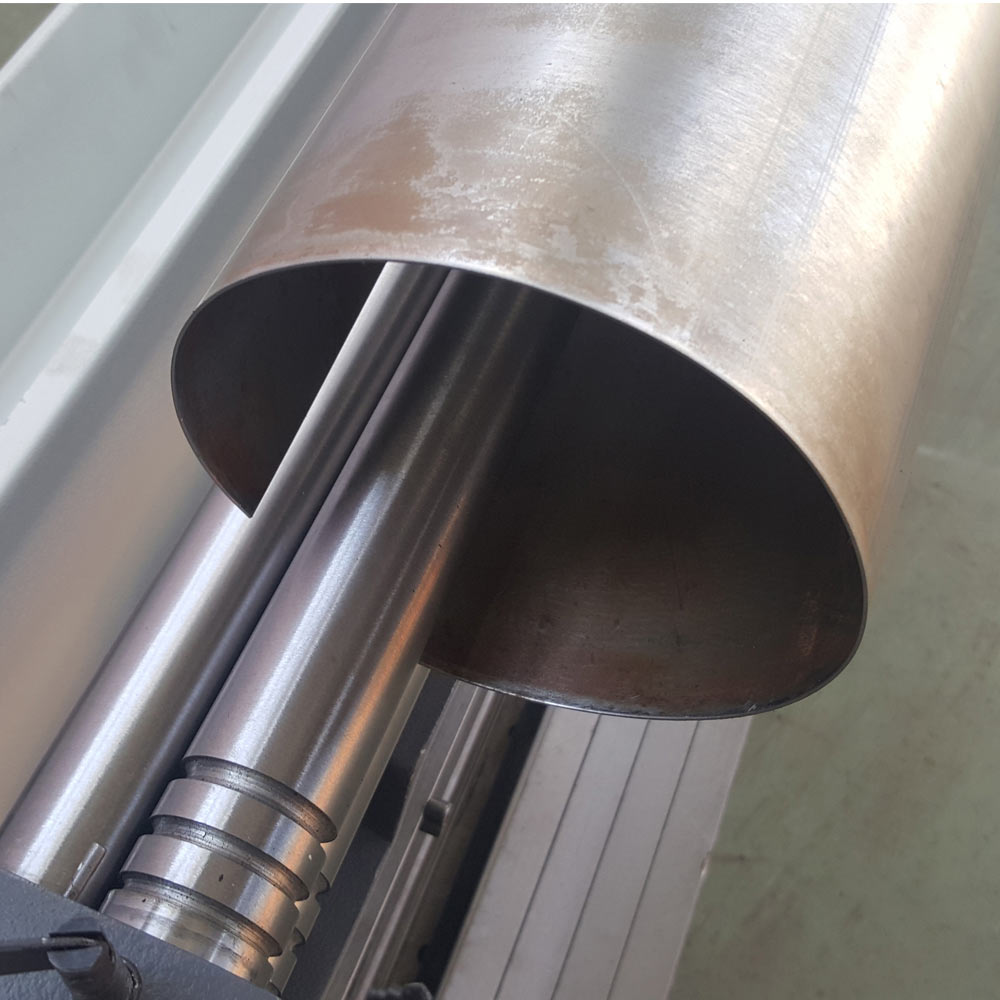

2. Slip rolls has hardened rolls with three wire grooves for small round stock

3. The metal shear can cut at full capacity across the entire width of the machine.

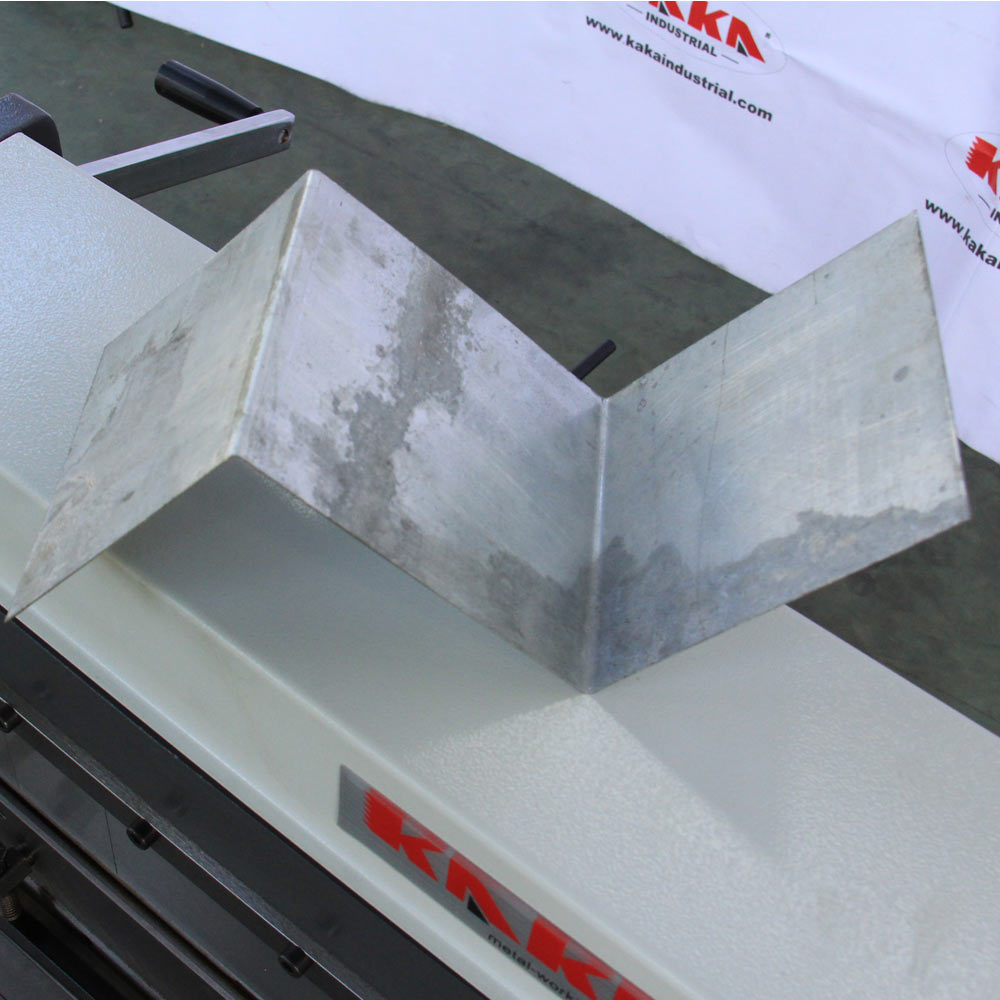

4. Folding with max. Angle of 90°

5. A back gauge is included to help with repeatability.

6. Heavy Cast Iron Frame

Specification:

· Item No.171004

· Model3-IN-1/40

· Bed width (in) 40”

· Max. shearing thickness:  20Ga

· Max. bending thickness :  20Ga

· Max. Bending angle90°

· Max. Rolling thickness:  20Ga

· Min. Rolling dia. (in)1.57”

· Packing size (in) 53”x18”x29 ”



· N.W. / G.W. (lb)429/458lb



Standard accessories:



Back gauge



HandlesOptional accessories:



No optional accessories.
