(Not Brand New) KAKA INDUSTRIAL H-Frame Shop Press, 50 Ton, 8.6 in Stroke, HP-50

Features

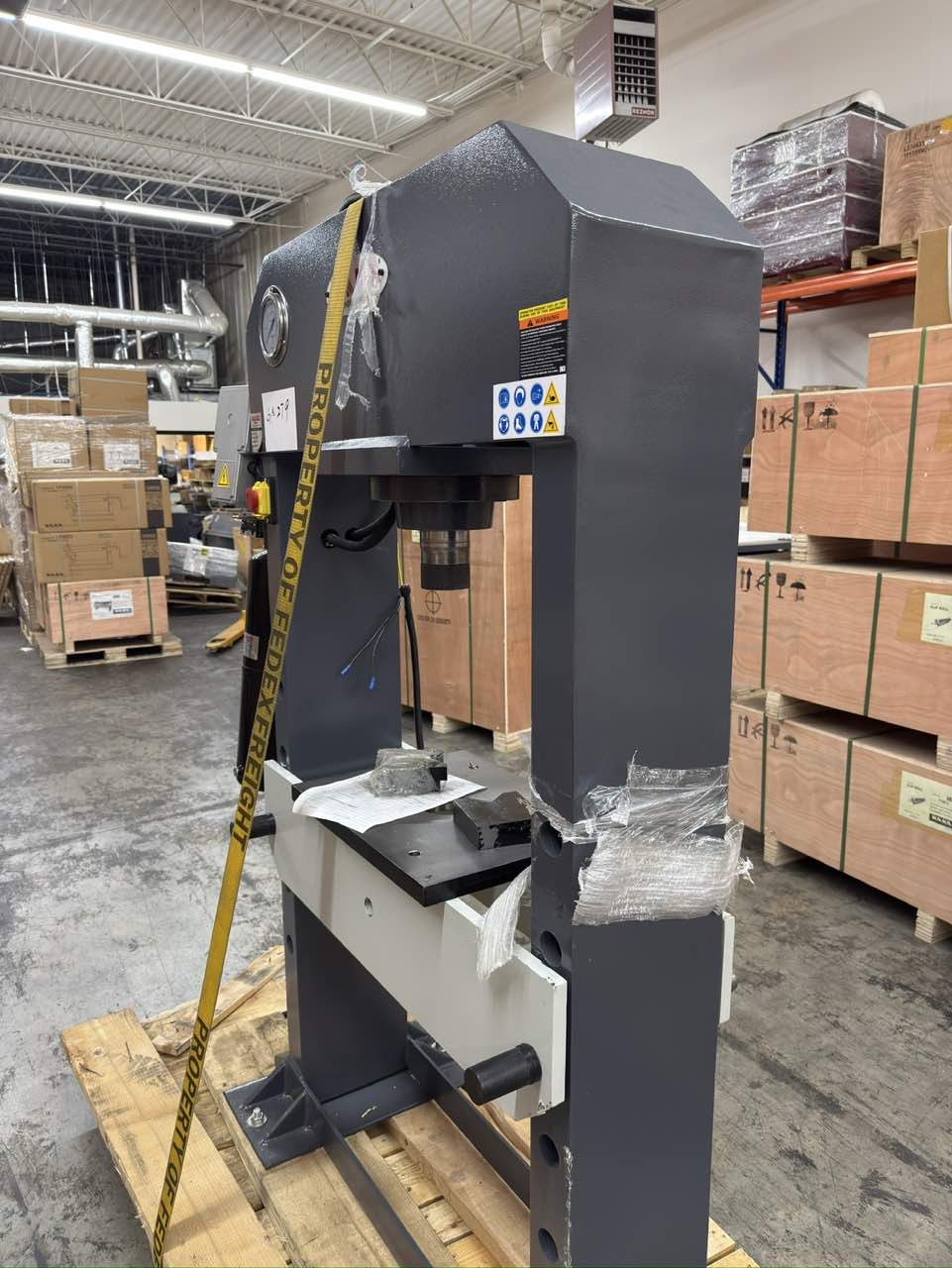

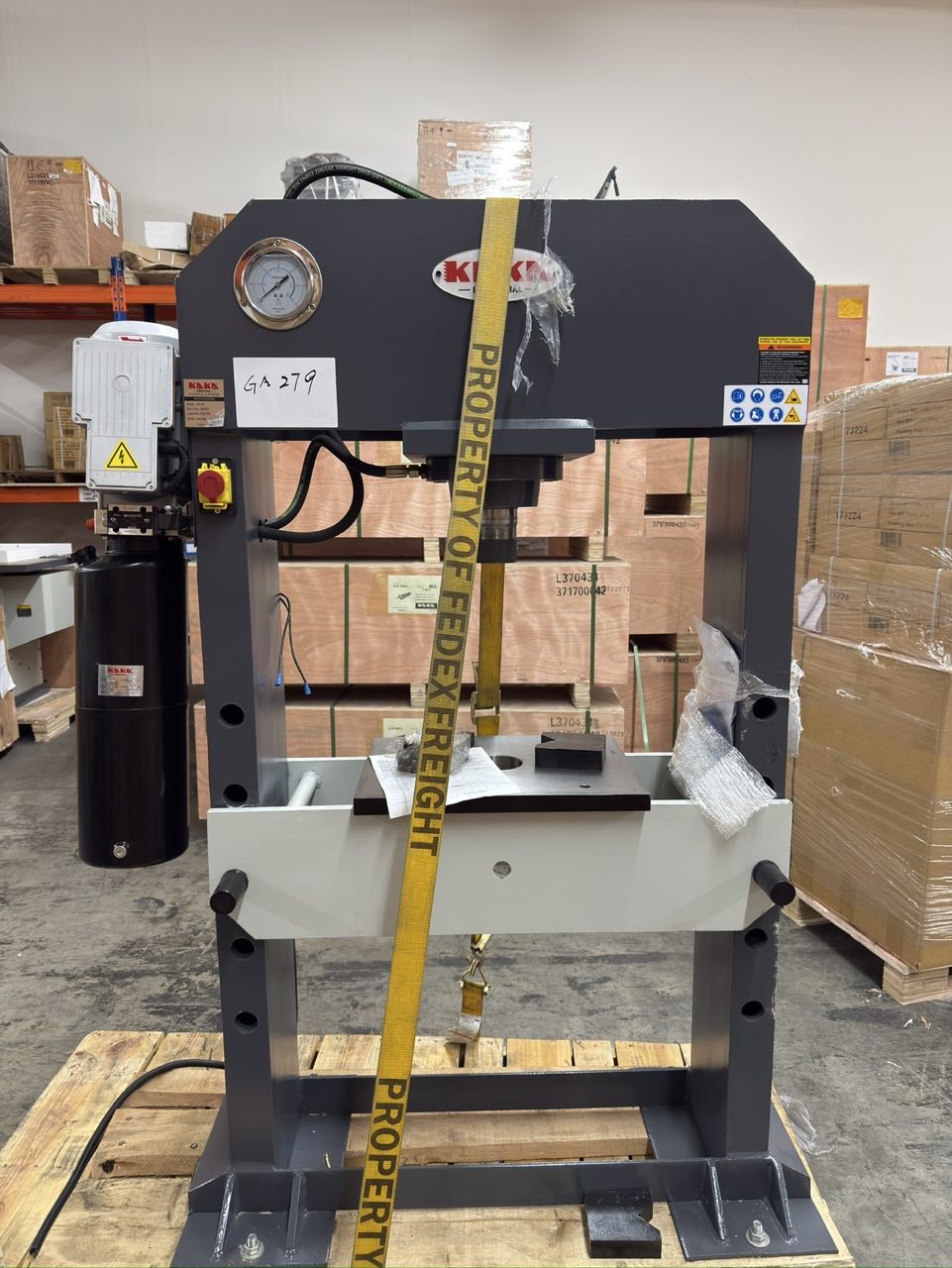

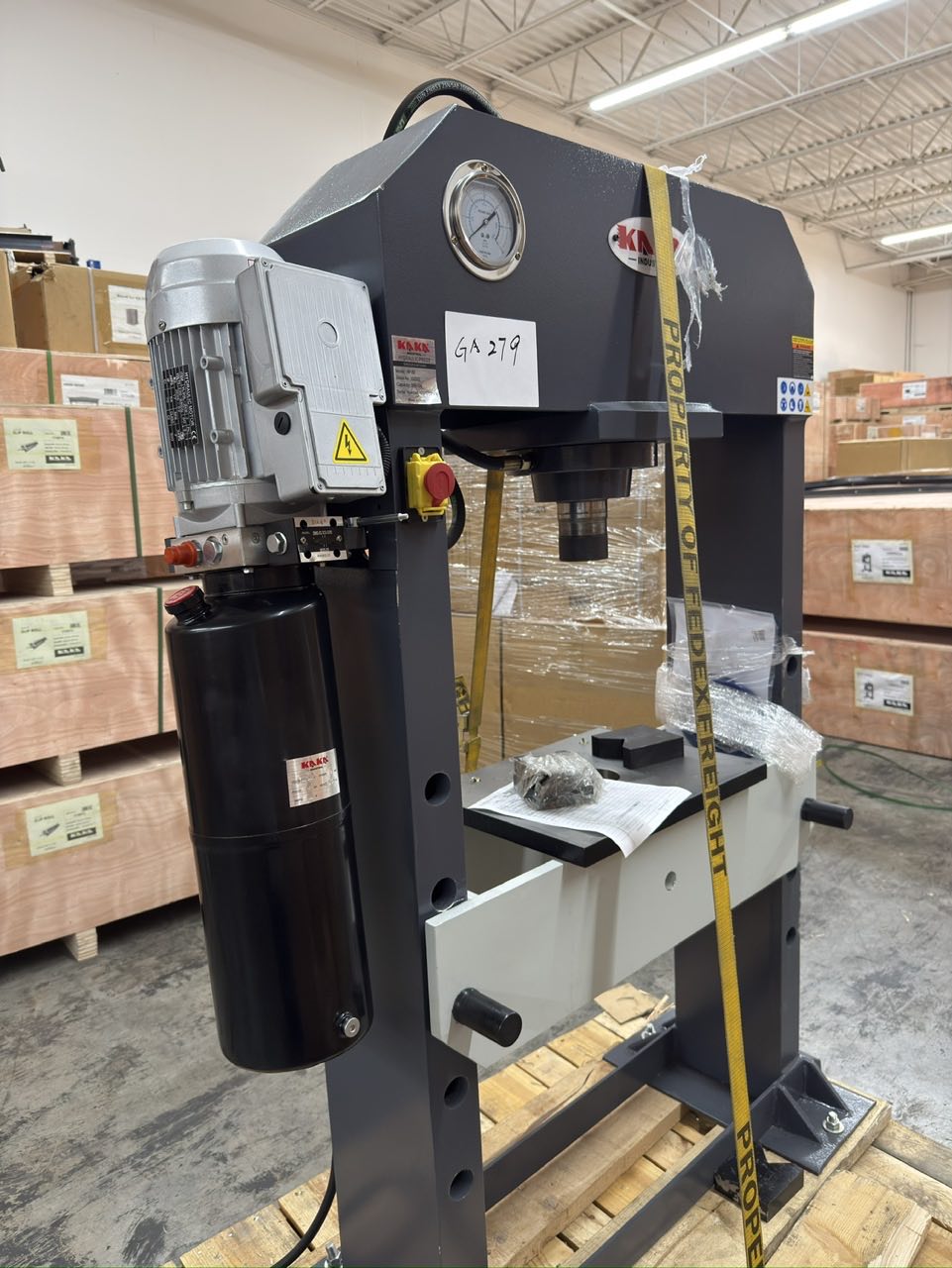

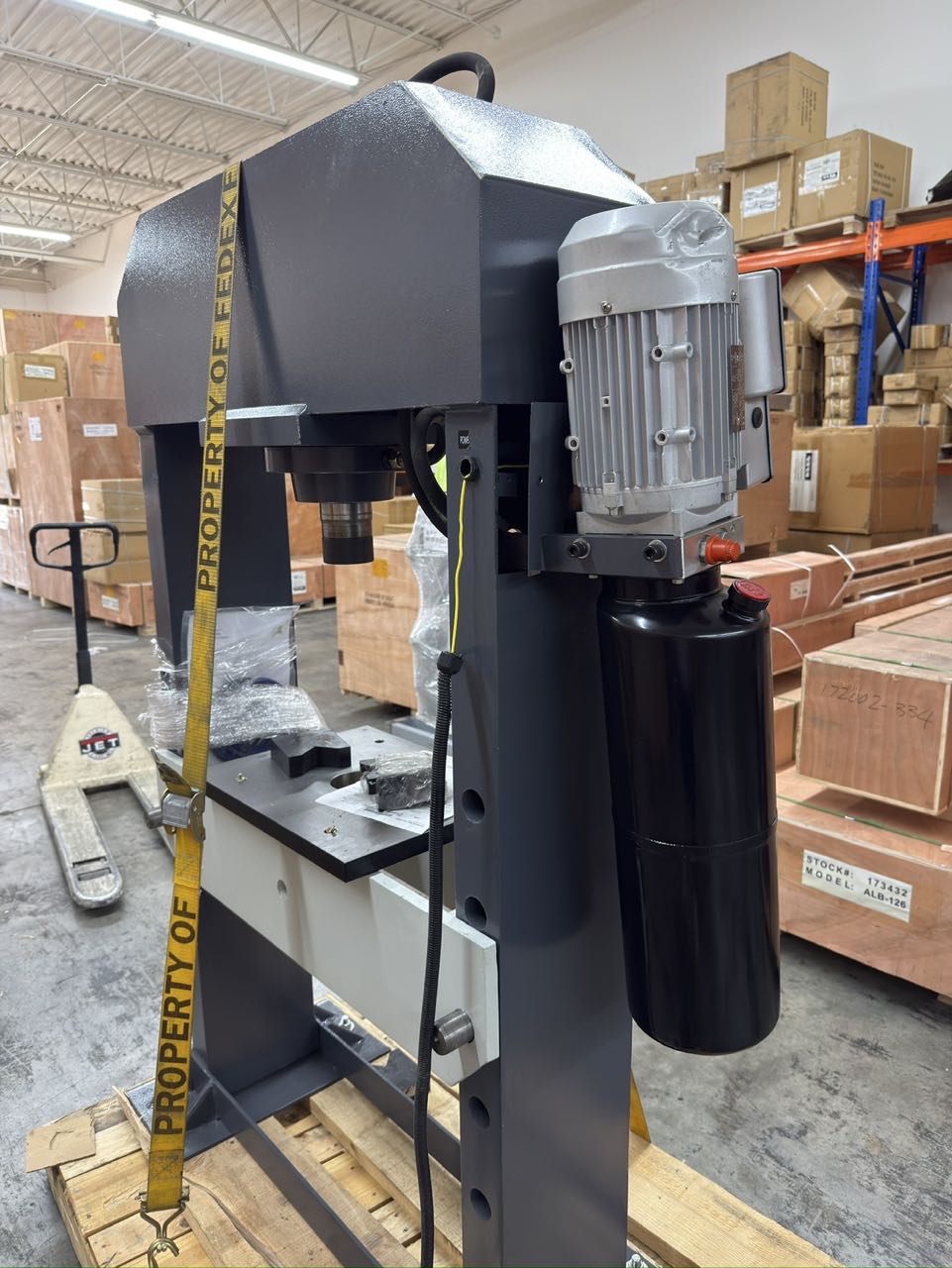

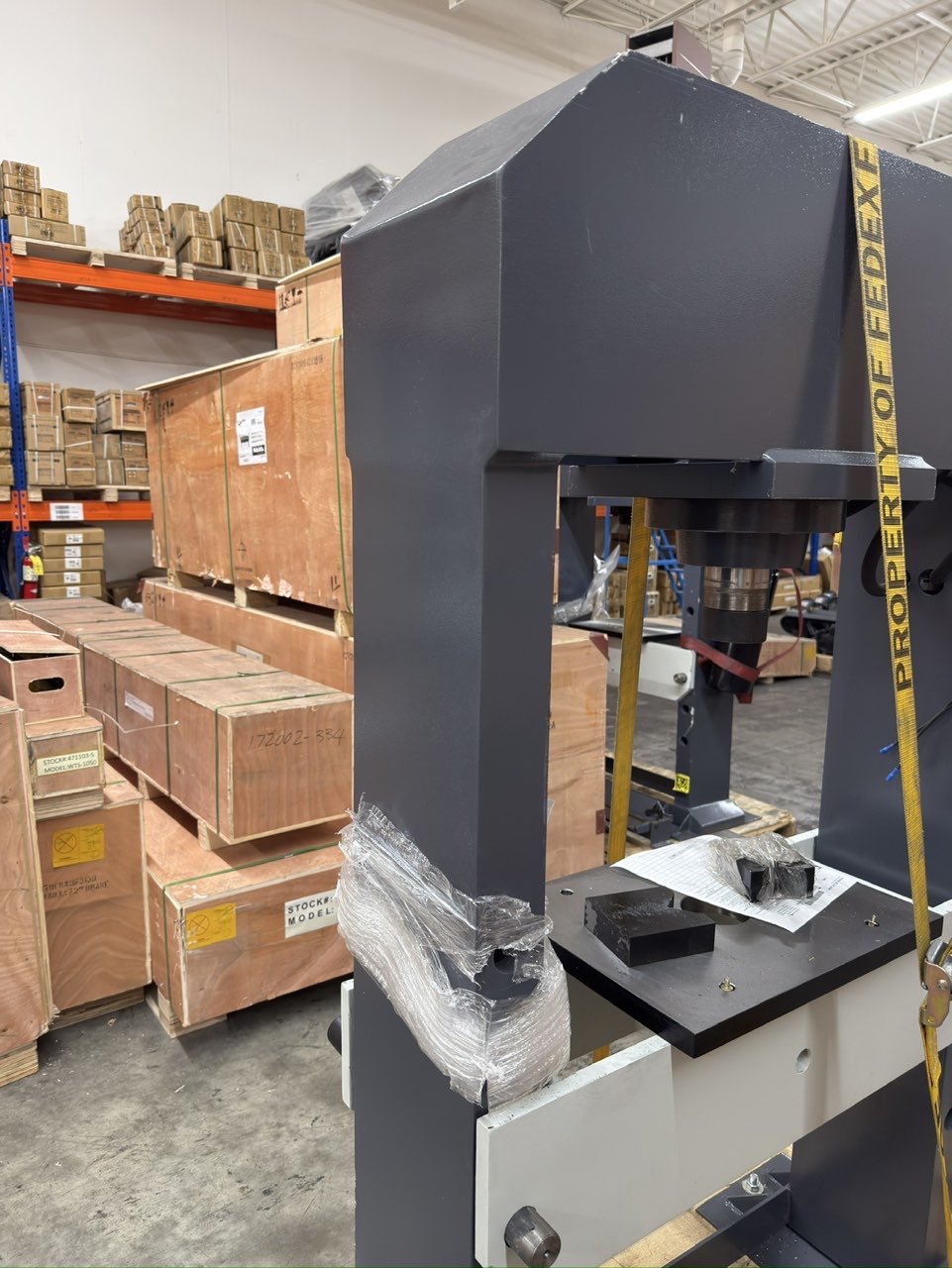

• Due to rough handling by the carrier during transportation, the machine has visible dents, scratches, and surface damage. The motor also has some cosmetic impact marks from the shipping process.The machine has been fully tested and is confirmed to be operating properly. Please note that this is a used machine and it is being sold in its current condition. Buyers are encouraged to carefully review the pictures and product details before purchase.
• 50 Ton H-Frame Shop Press - Built for pressing, bending, forming, punching, staking, clamping, and straightening tasks in automotive shops, repair rooms, fabrication spaces, and maintenance departments.

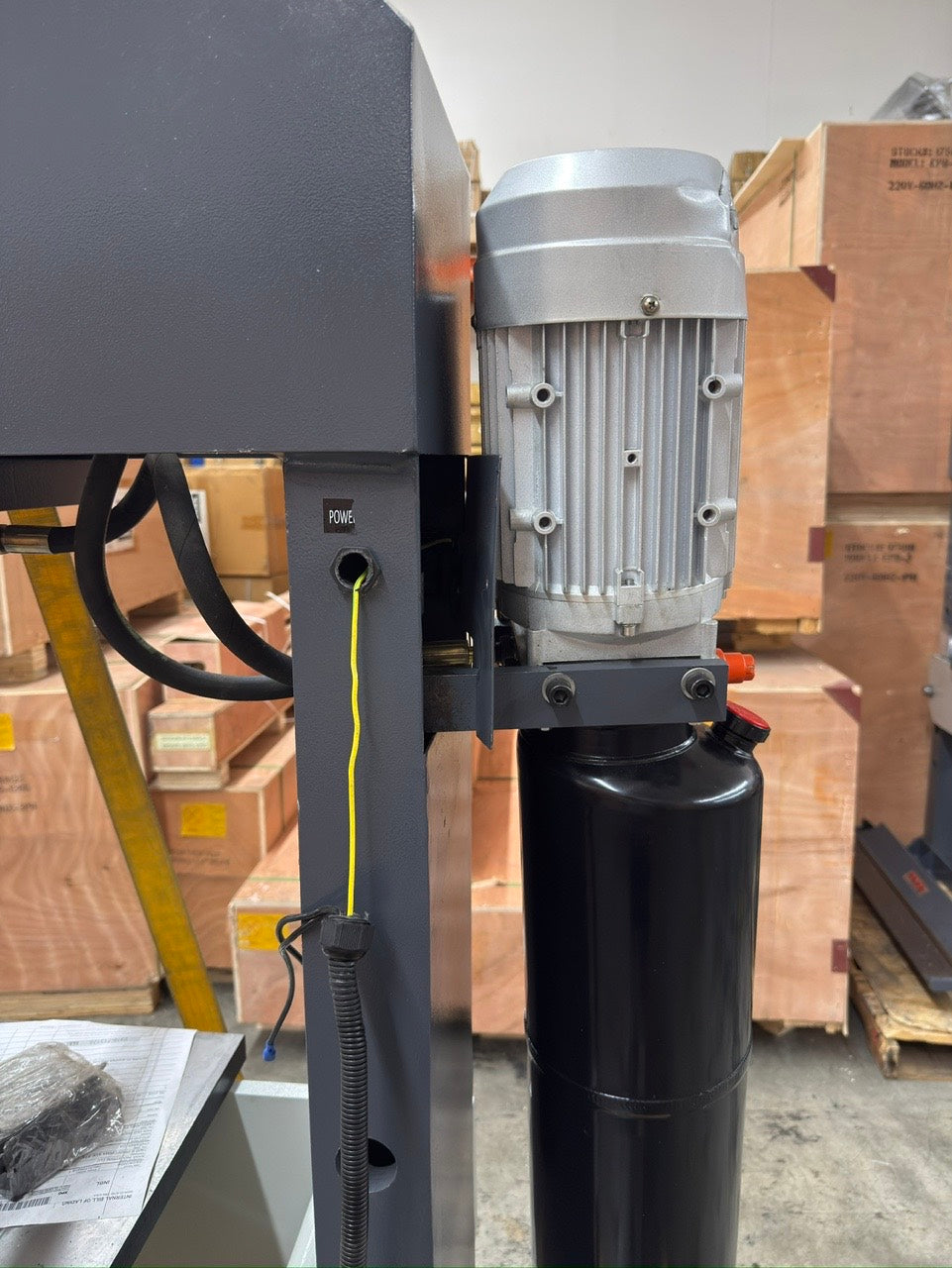

• Electric Hydraulic Operation - Gear pump CBN2.0 and 12 L reservoir help power the hydraulic system for smoother pressing workflow compared with fully manual shop press operation.
• 8.6 in Ram Stroke - Ram stroke of 8.6 in / 8-5/8 in and 6.25 in ram diameter support demanding work such as bearing installation, bushing removal, metal forming, and straightening parts.

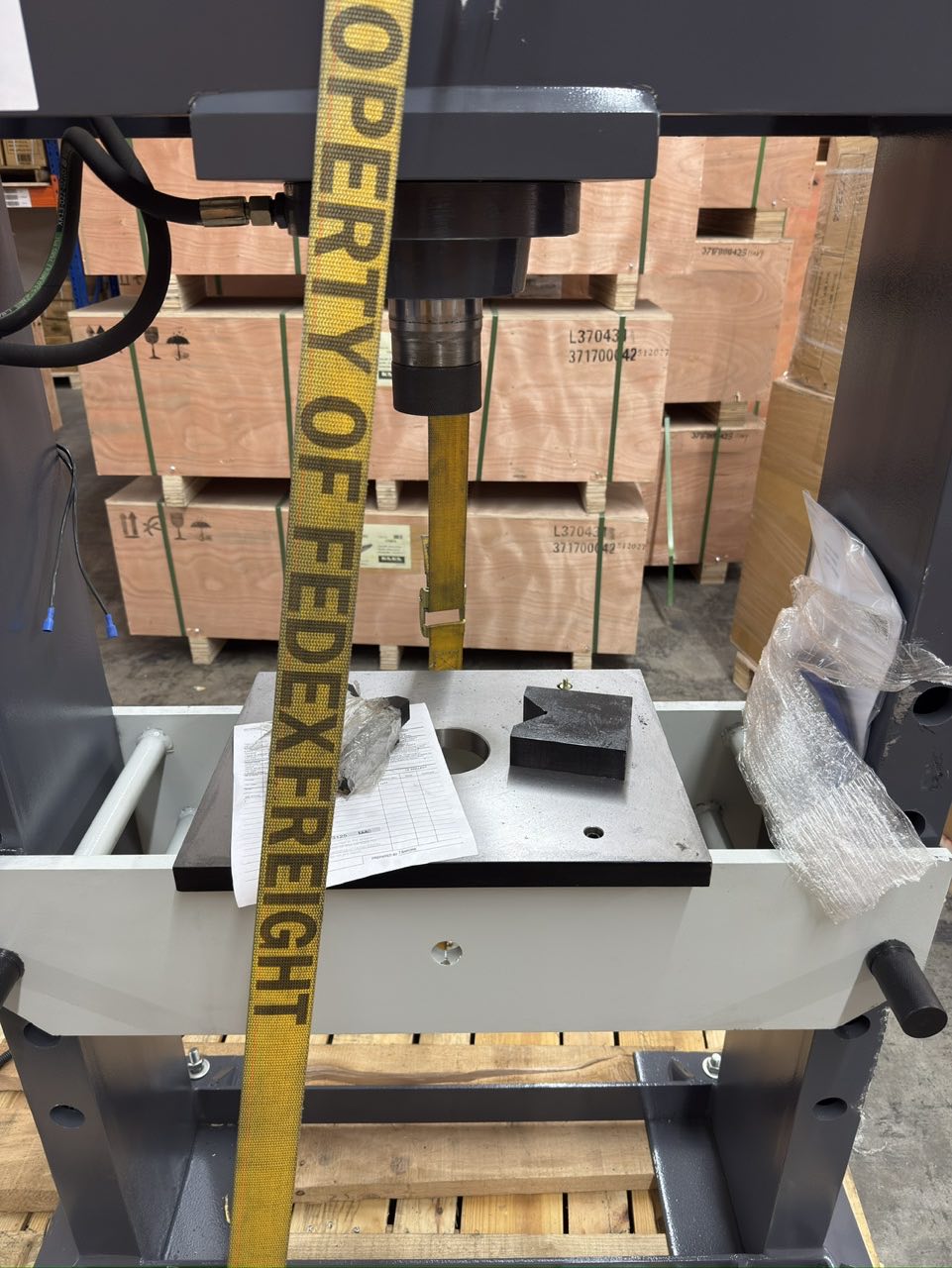

• Adjustable Worktable - Five bed adjustment holes on each side let users set the table height for different projects, with up to 27.5 in maximum distance to the table for larger workpieces.
• Pressure Gauge and V-Blocks Included - Fluid-filled dual-scale pressure gauge helps monitor pressing force, while included V-shaped blocks support round stock, shafts, and irregular workpieces during setup.



Specifications

Model	HP-50
Pressure	50 ton
Ram Maximum Stroke	8.66 in
Ram Diameter	6.3 in
Maximum Distance to Table	25.98 in
Base Size	18-8/7 × 14-1/6 in
Bed Support Pin Diameter	1.516 in
Number of Bed Adjustment Holes	5
Bed Adjustment Hole Spacing	5.31 in
Pump Type	Gear Pump CBN2.0
Reservoir Capacity	12 L
Packing Size	58 × 25 × 87 in
N.W. / G.W.	1322 / 1477 lbs
