KAKA INDUSTRIAL F2.0x630 English Wheel – 24.8 in Throat, 14 Gauge (2.0 mm) Mild Steel, 6 Hardened Anvils

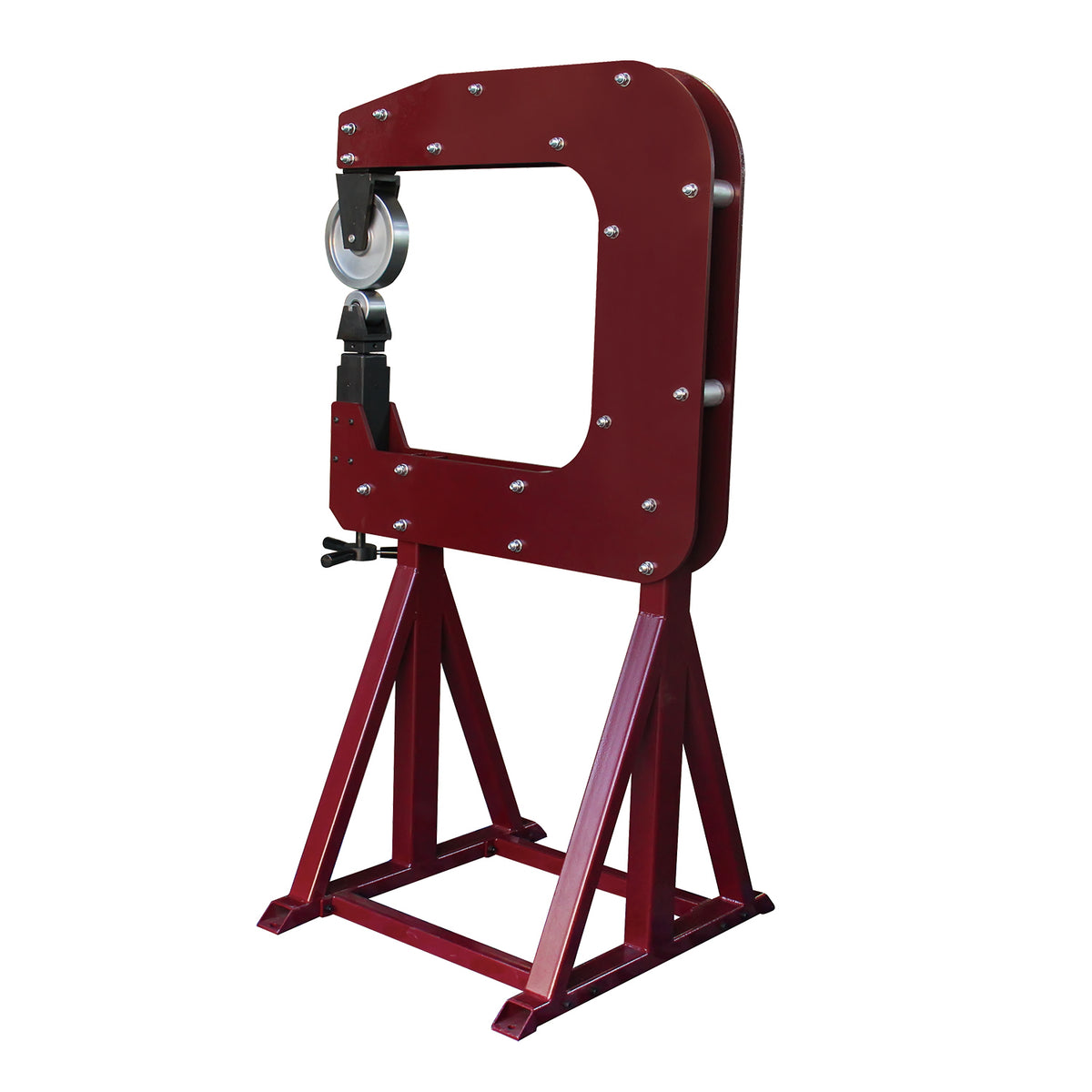

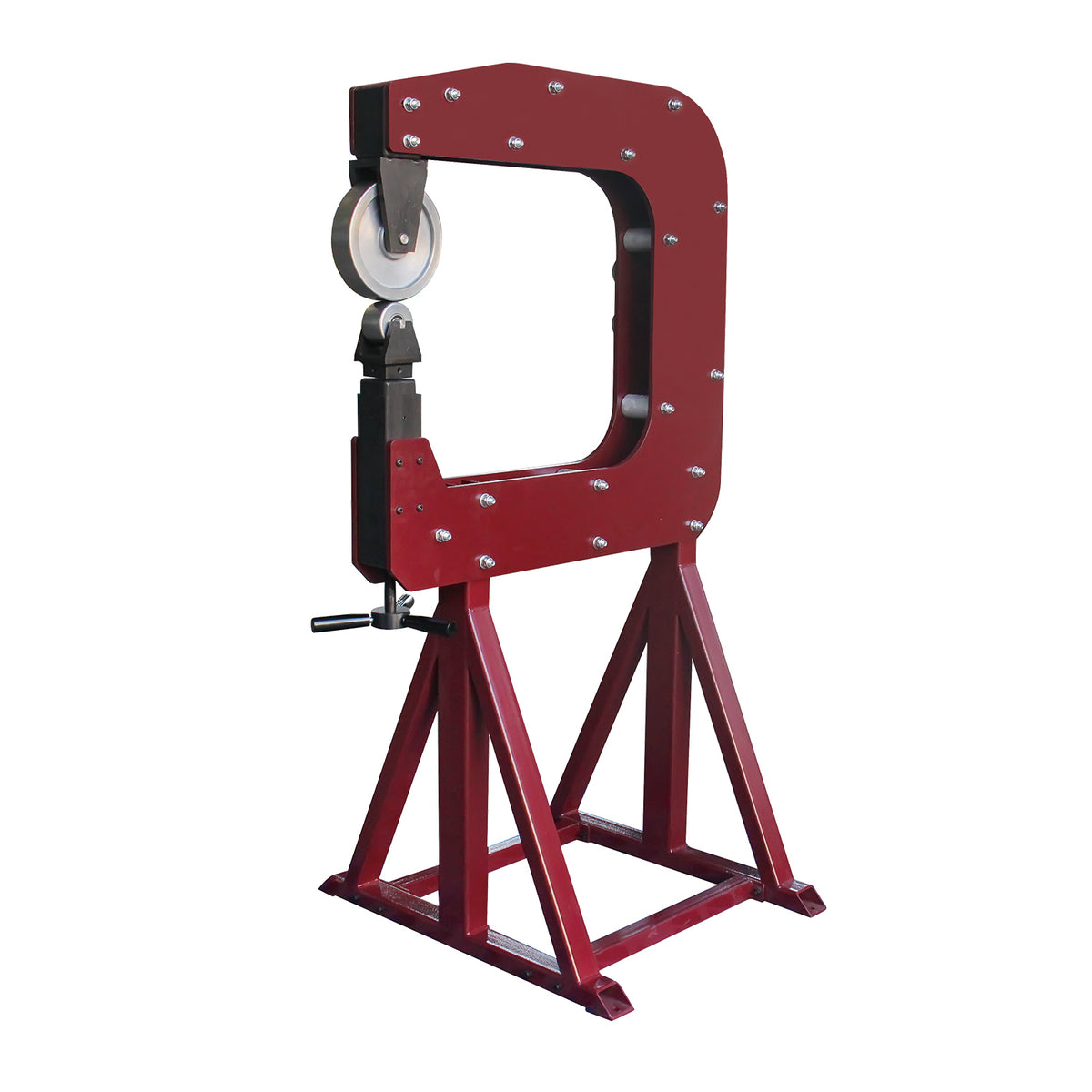

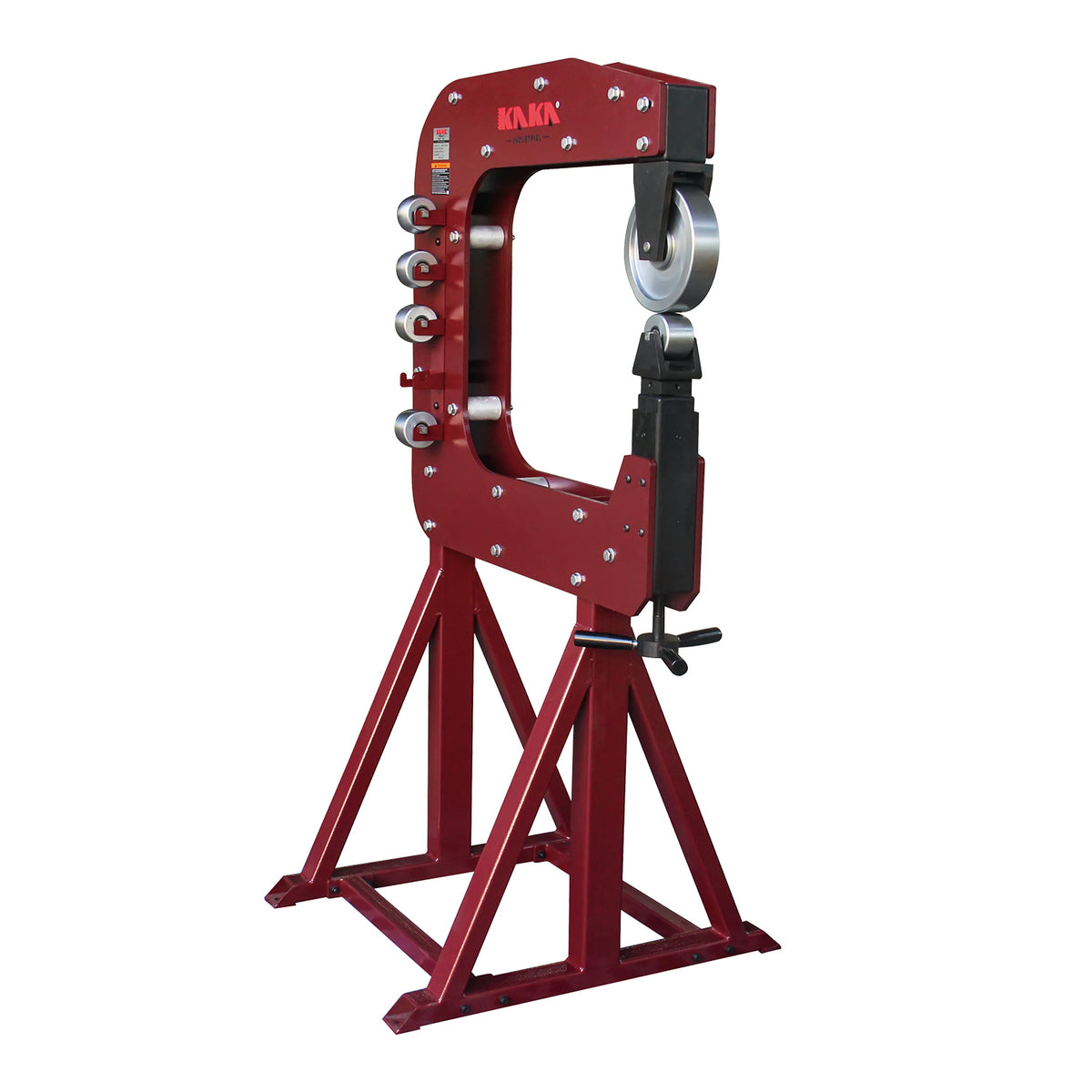

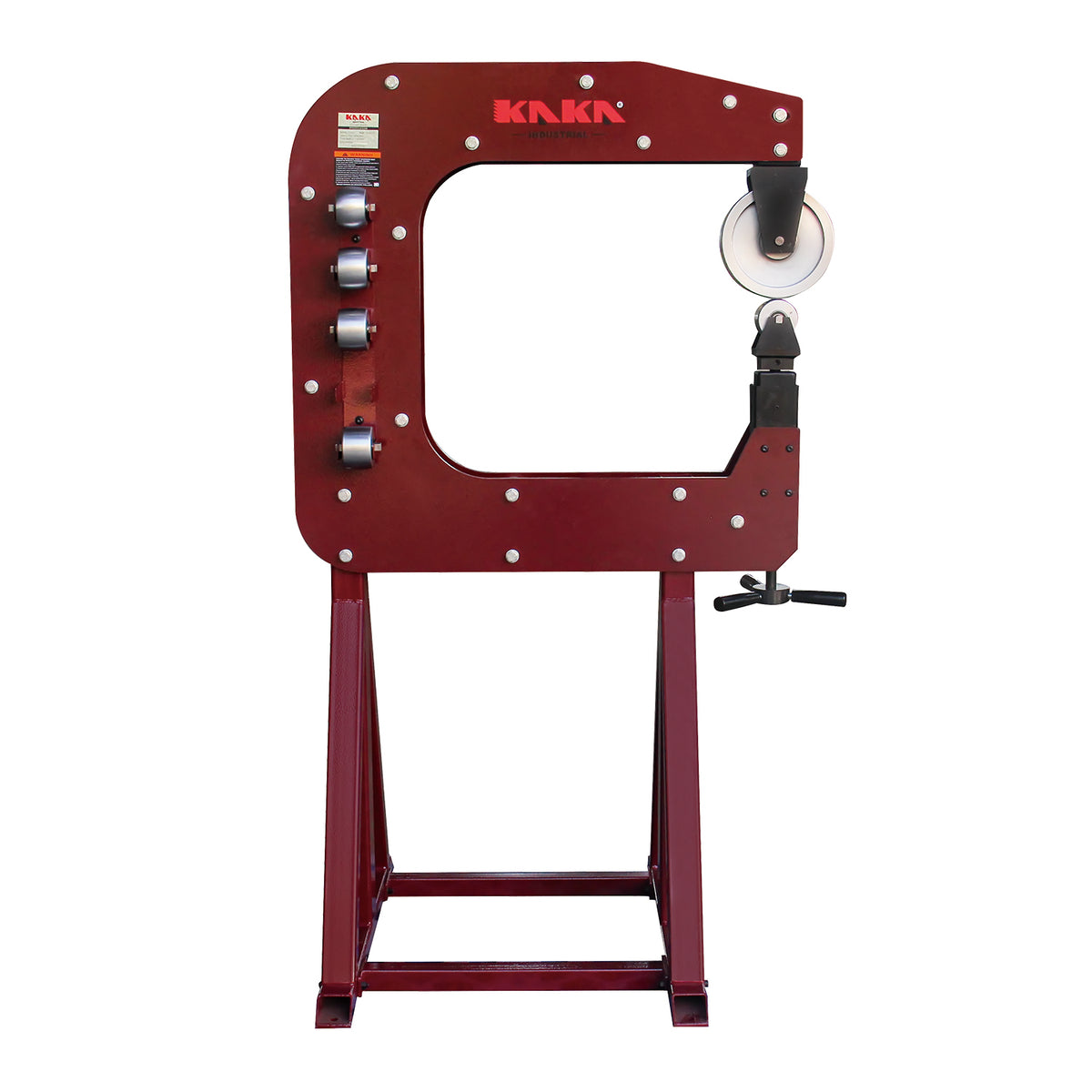

The F2.0x630 is a floor-model English wheel (wheeling machine) for shaping compound curves in sheet metal. It is suited to auto body restoration, custom fabrication, and metal shaping shops. The 630 mm (24.8 in) throat gives room for medium to large panels such as car roofs and hoods, and the machine shapes mild steel up to 2.0 mm (14 gauge).

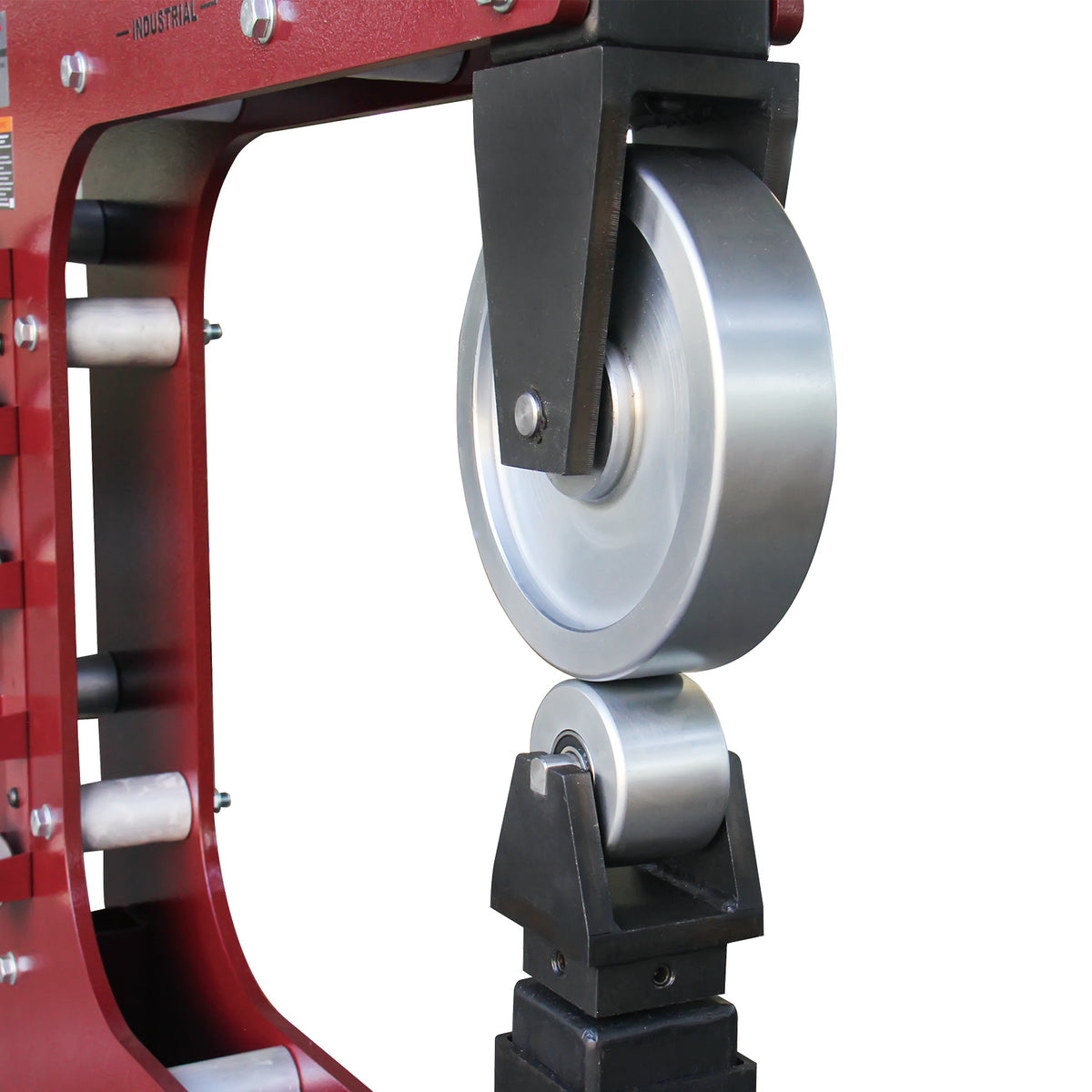

The Ø203.2 x 76.2 mm (8 x 3 in) upper wheel is hardened to 45–50 HRC. It pairs with six hardened lower anvils: flat plus 2, 4, 6, 8, and 12 in radius. A quick-release anvil cradle speeds up anvil changes and makes panel removal easier, and the caster and camber of the bottom anvil are adjustable.
Key Features
- 24.8 in (630 mm) throat depth: Room for medium to large panels.
- 2.0 mm (14 gauge) mild steel capacity.
- Upper wheel: Ø203.2 x 76.2 mm (8 x 3 in), hardened to 45–50 HRC.

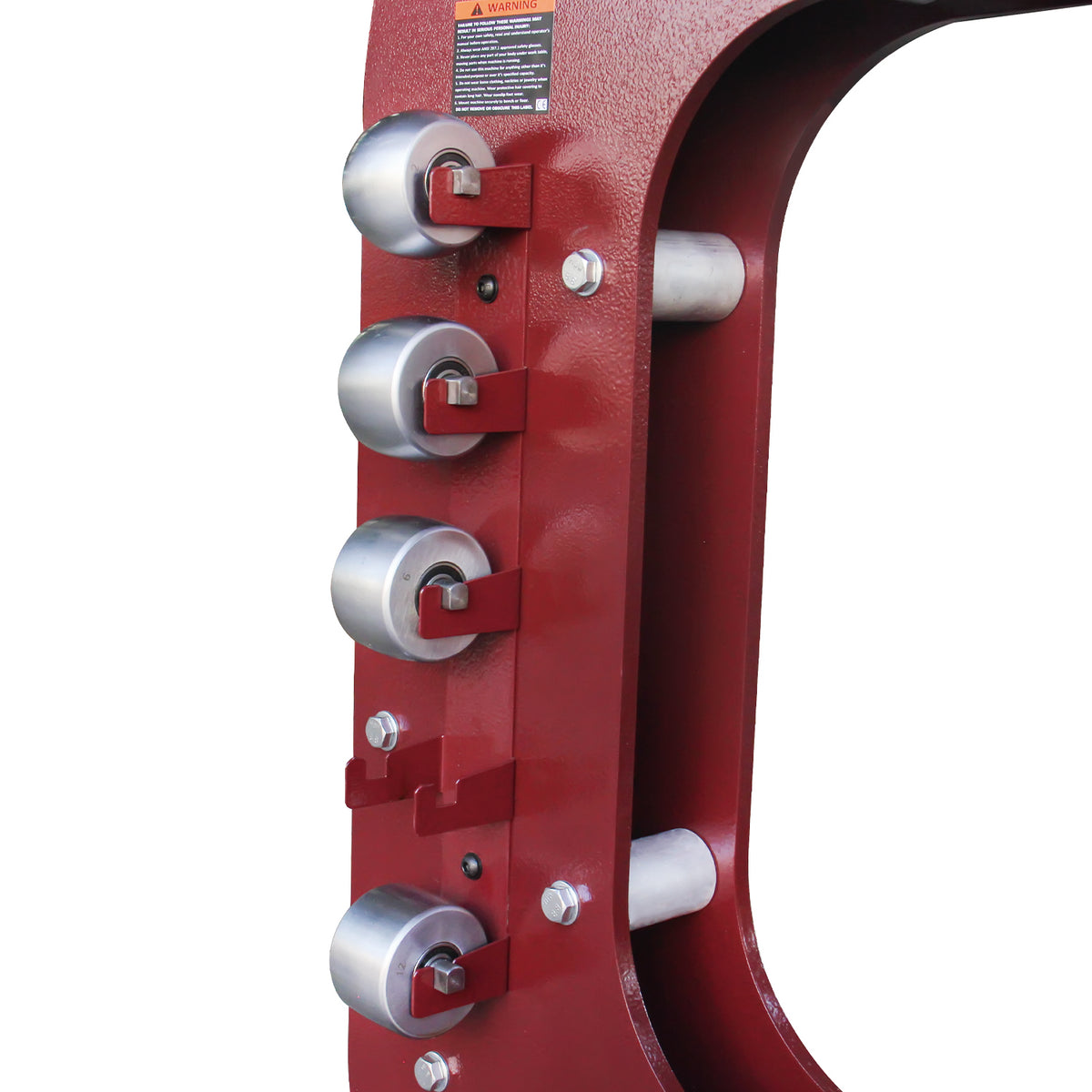

- 6 hardened lower anvils: Flat, 2, 4, 6, 8, and 12 in radius.
- Adjustable caster and camber of the bottom anvil.
- Quick-release anvil cradle: Fast anvil changes and easy panel removal.
- Steel plate frame: Rigid floor-model construction.
Common Applications
- Auto body restoration: roofs, hoods, and other formed panels
- Custom fabrication and metal shaping
- Compound curves and flat work within the machine capacity
Specifications
- Model: F2.0x630 (SKU 173272)
- Mild steel capacity: 2.0 mm (14 gauge)
- Throat depth: 630 mm (24.8 in)
- Upper wheel: Ø203.2 x 76.2 mm (8 x 3 in), 45–50 HRC
- Lower anvils: 6 (flat, 2, 4, 6, 8, 12 in radius), hardened
- Overall dimension: 39.4 x 31.5 x 63.8 in (100 x 80 x 162 cm)
- Net / gross weight: 366 / 410 lb (166 / 186 kg)
Notes
Use material within the listed capacity. Check floor space, unloading, and installation requirements before ordering.
