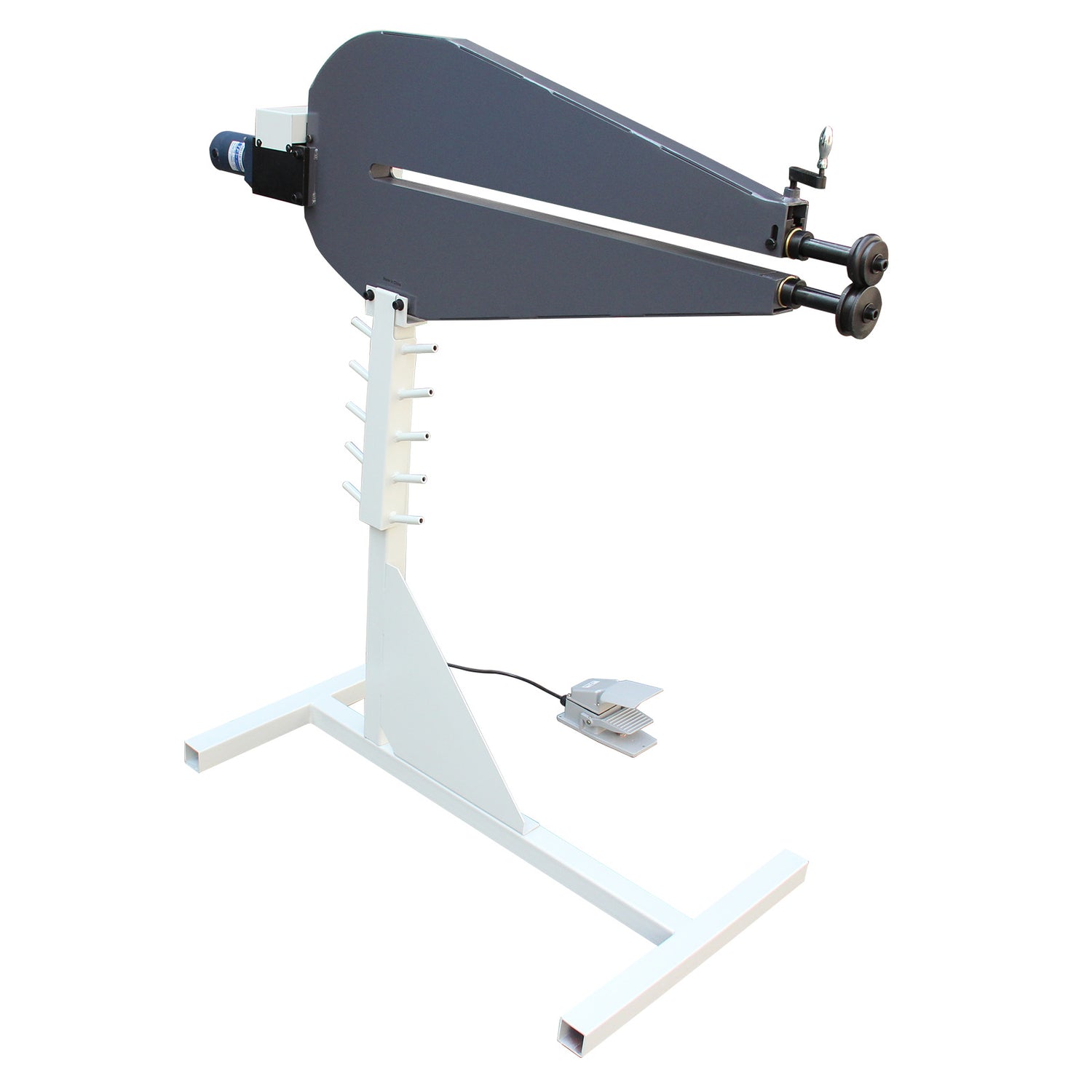

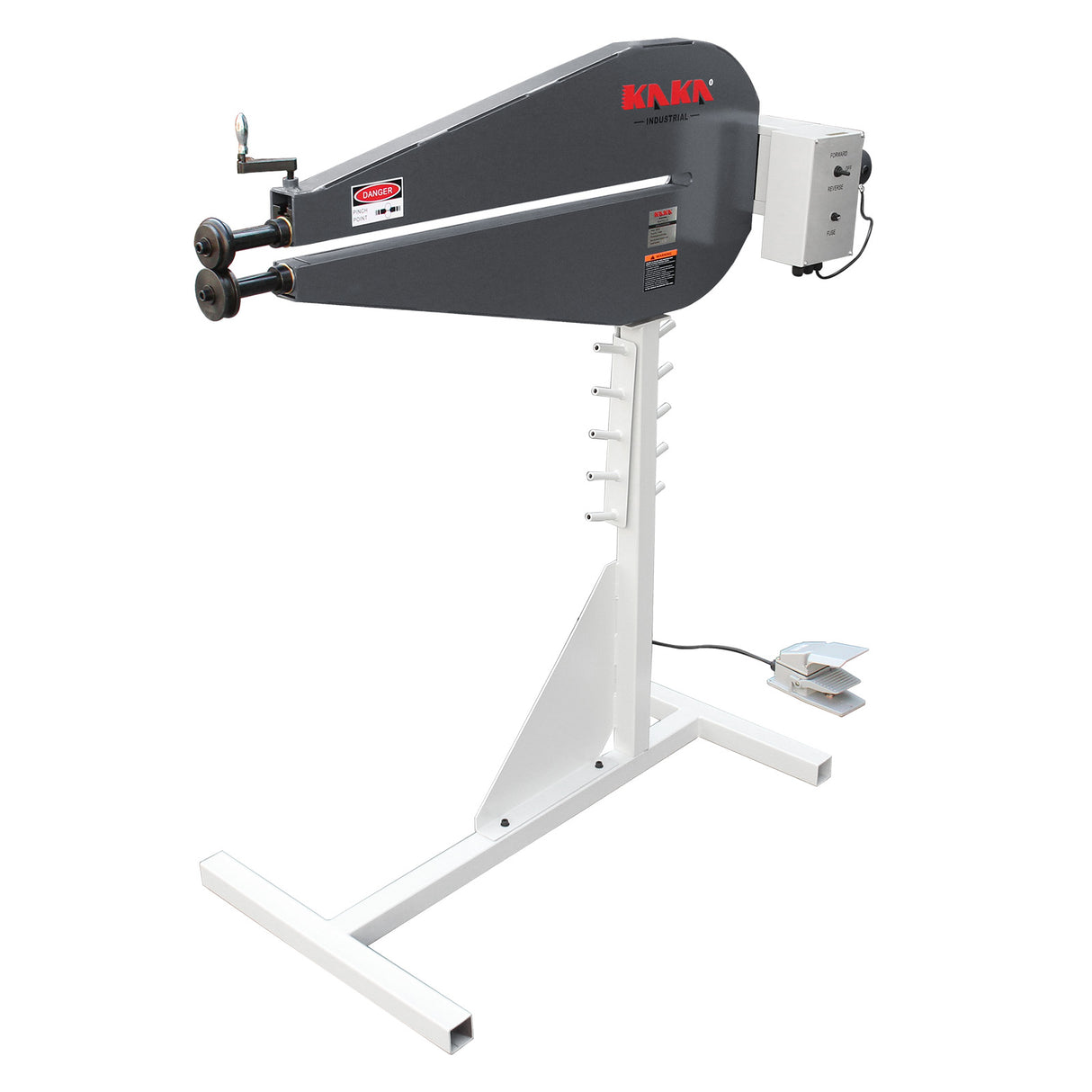

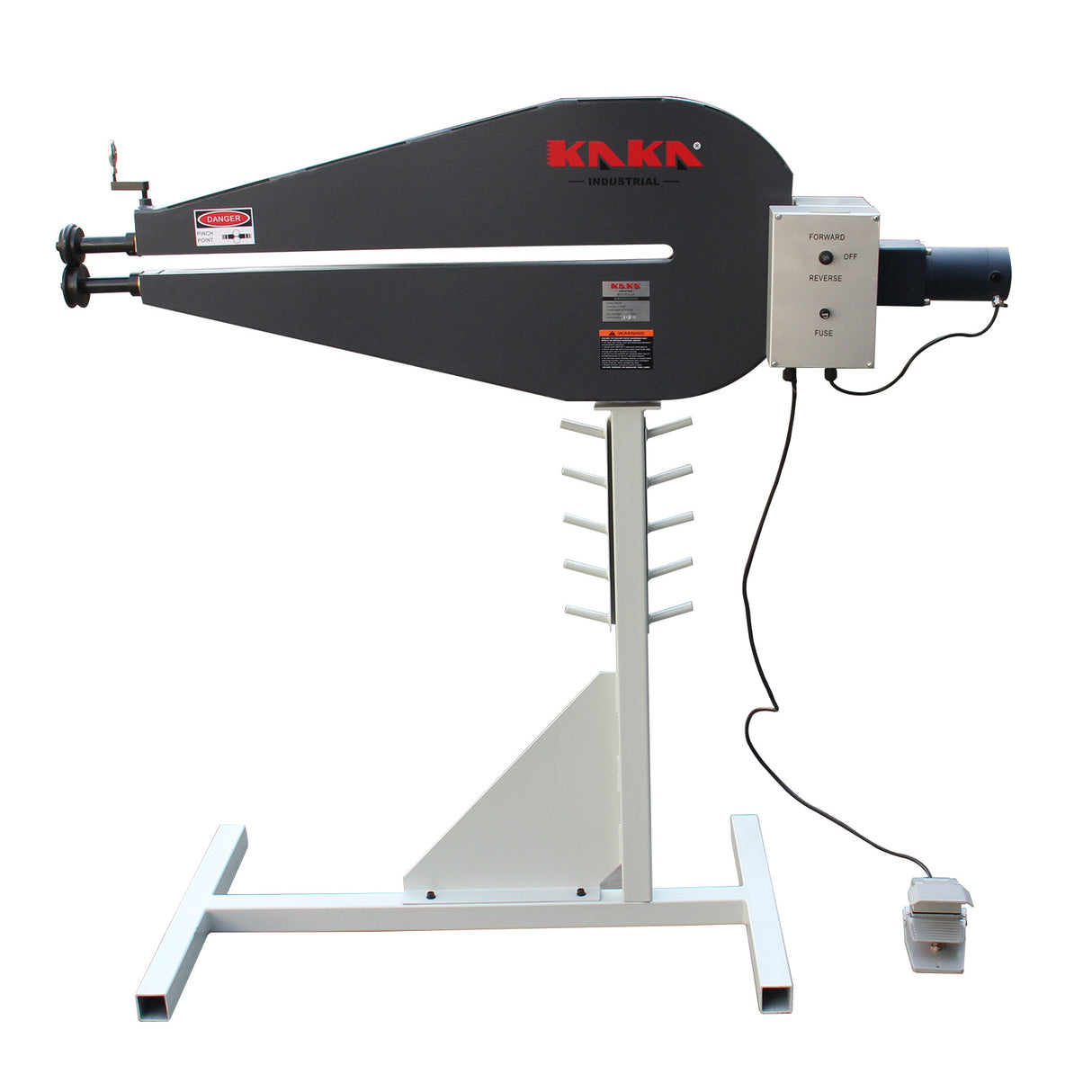

1. The bead bending machine makes swaged plates, connections, and circular pipes, which refer to crushing the thin plates into the ribs in specific shapes.
2. The rigidity of the plates, pipes or metal components is strengthened.
3. Rated for up to 16 gauge mild steel and 14 gauge aluminum
4. Heavy-duty all fabricated plate steel construction

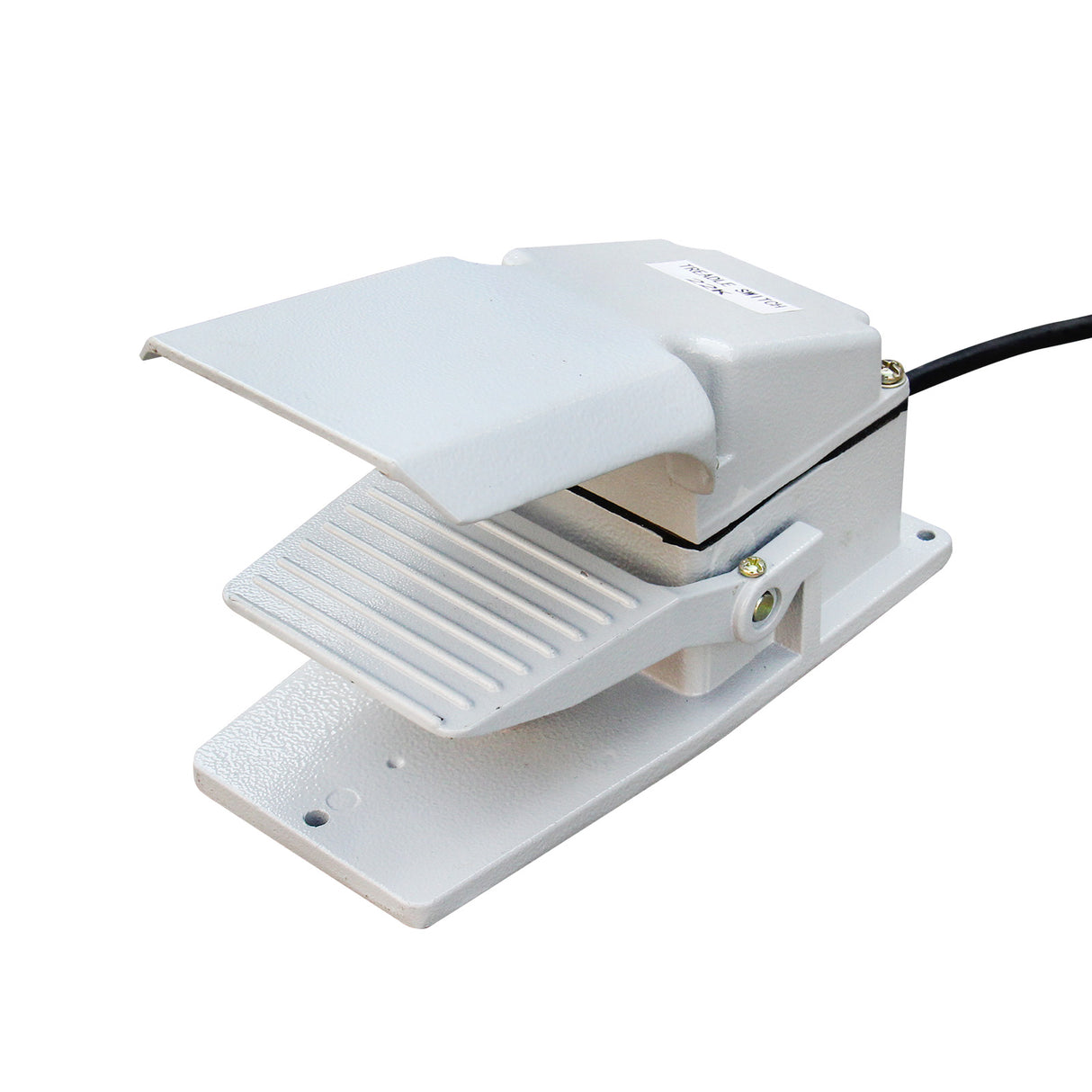

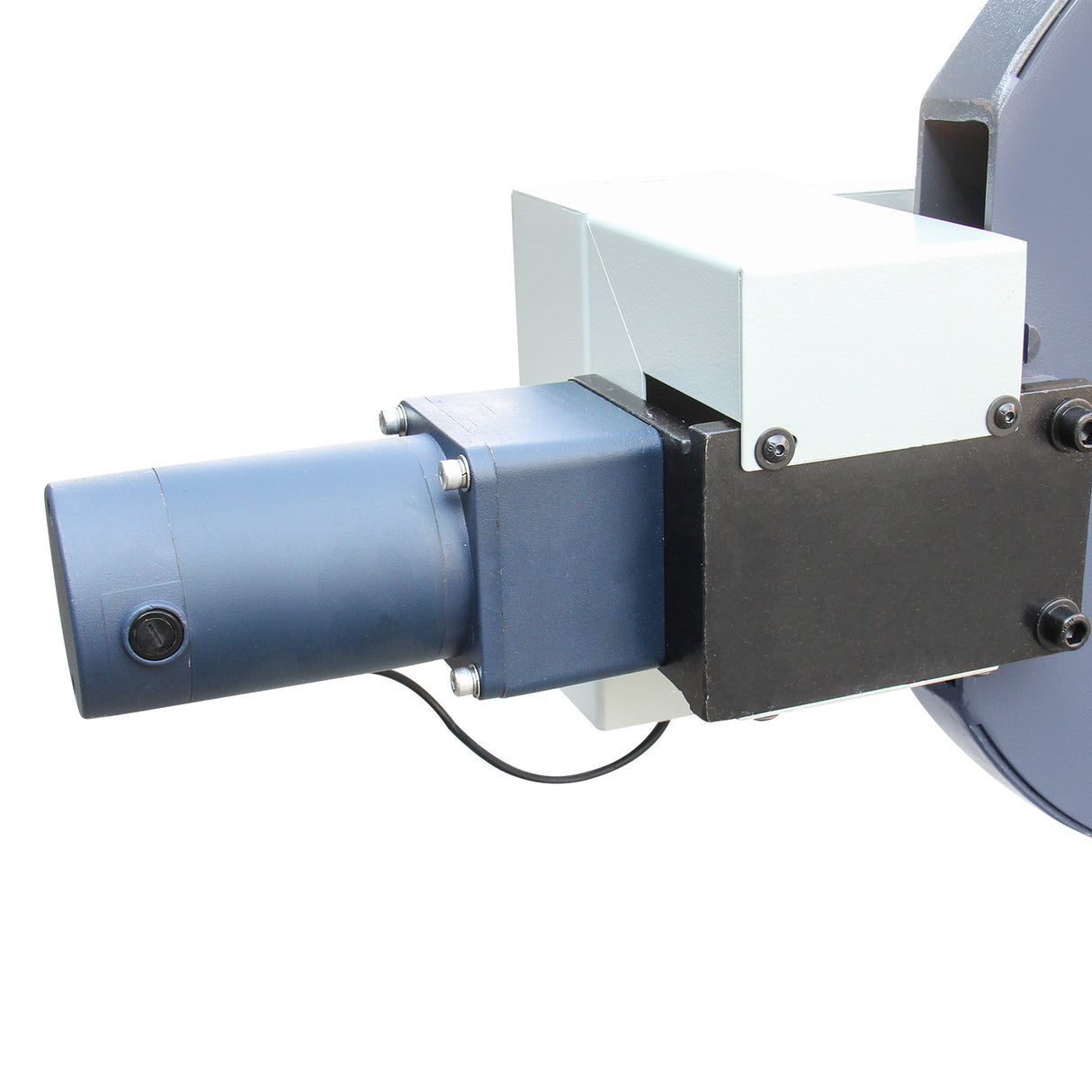

5. Variable speed foot control for hands-free operation
6. Oilite bushing at all rotation points for long life

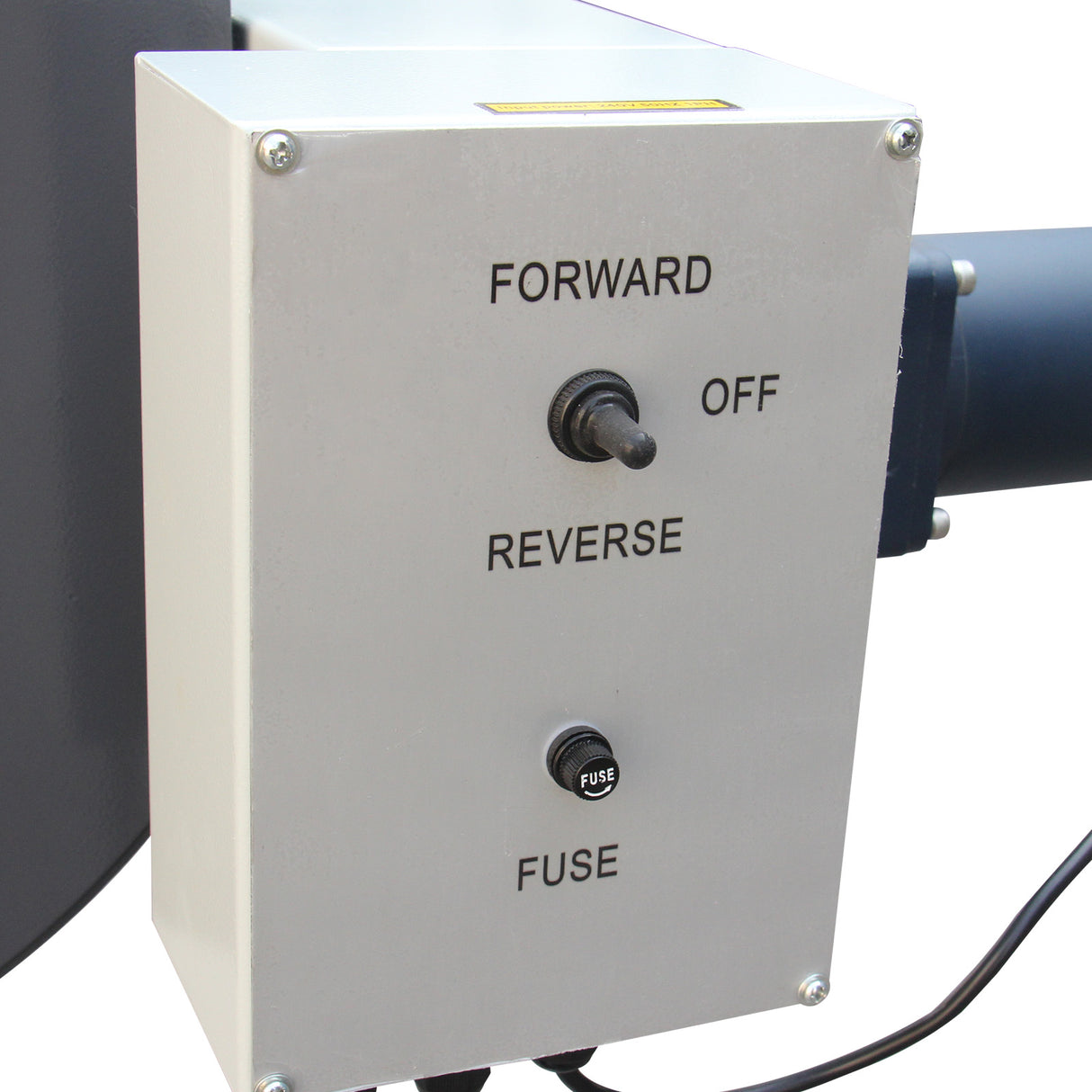

7. Forwarder and reverse switch for left or right side operation
8. Heat-treated gears for years of trouble-free operation
9. Industrial finish for good looks and durability

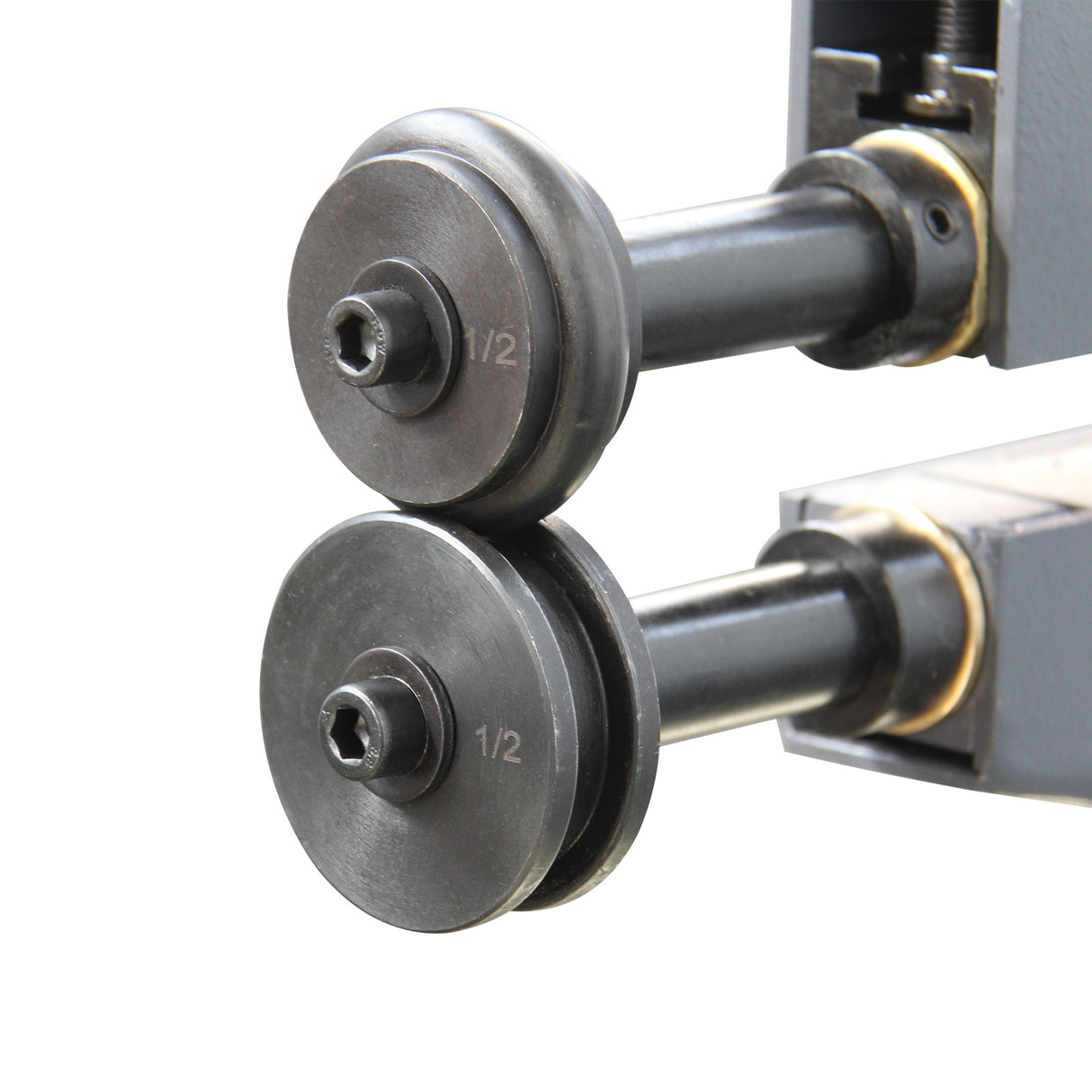

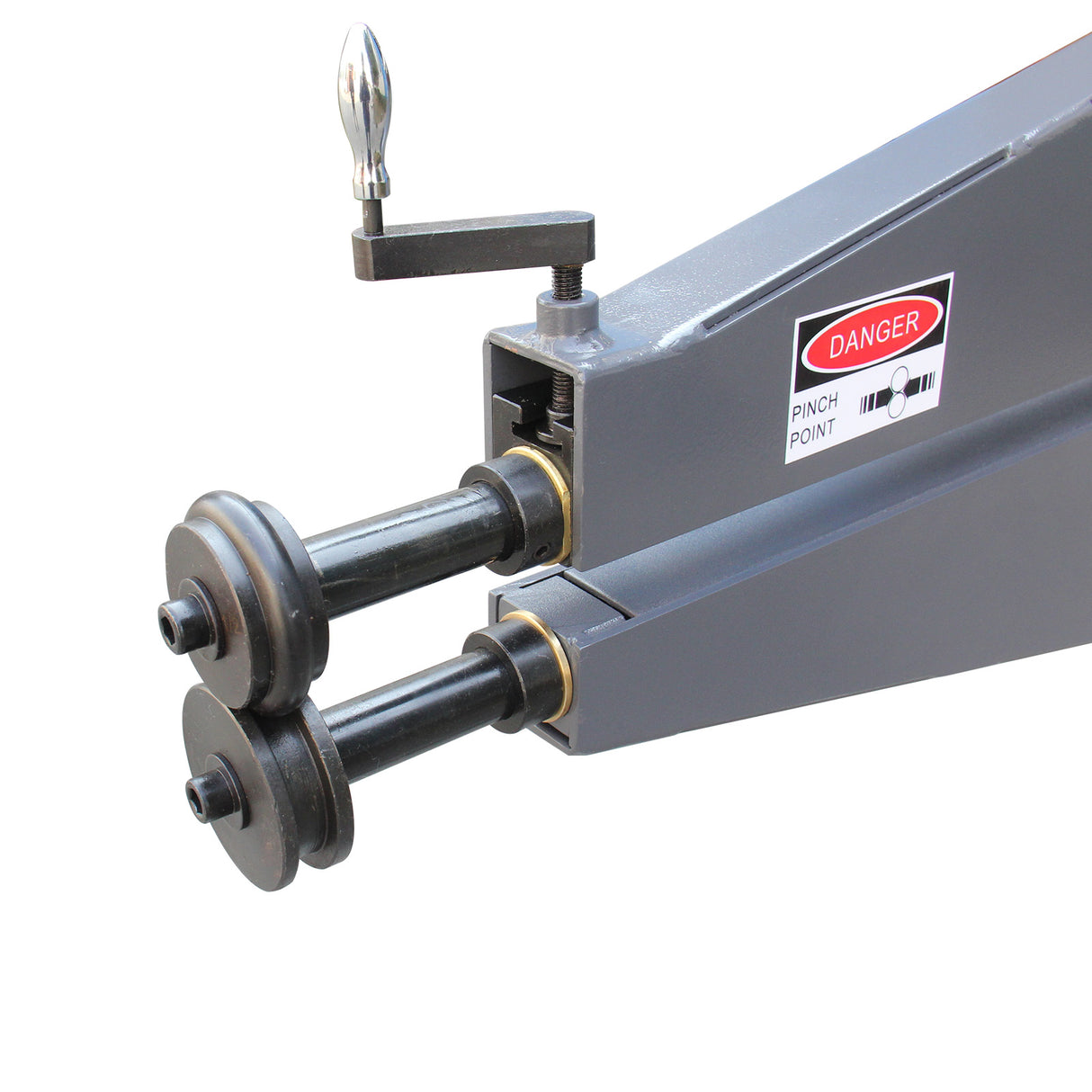

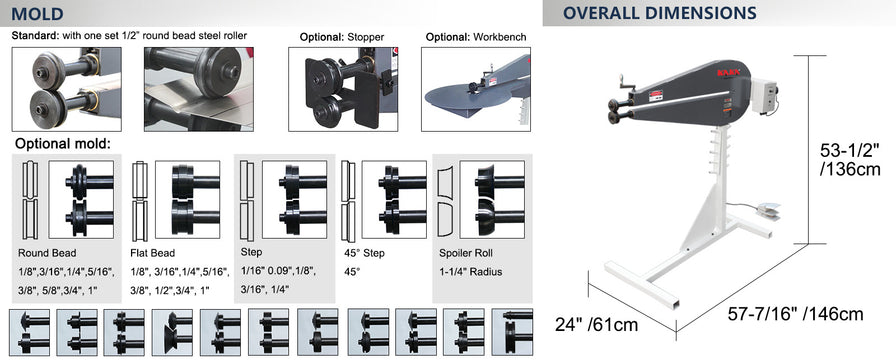

10. With one set 1/2” round bead steel roller (standard)
11. Largest selection of heat-treated rollers to choose
The shaft size for optional die sets is 3/4" in diameter.
|
Item No.
|
173806
|
|
Model
|
RM-36
|
|
Motor Horsepower
|
1/6
|
|
Capacity
|
16Ga
|
|
Throat depth
|
910mm/36”
|
|
Packing size (in)
|
60"x 28"x 11"
|
|
N.W./G.W.
|
74/90kg
|
|
163/198 lb
|
KAKA Industrial provides 12 months warranty for this product.
1.10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted after this time.
2.You must obtain a Kaka Industral issued RGA number PRIOR to returning any materials.
3.Returned materials must be received at Kaka Industrial in new condition and in original packaging.
4.Altered items are not eligible for return.
5.Buyer is responsible for all shipping charges.
6.A 15% re-stocking fee applies to all returns.
