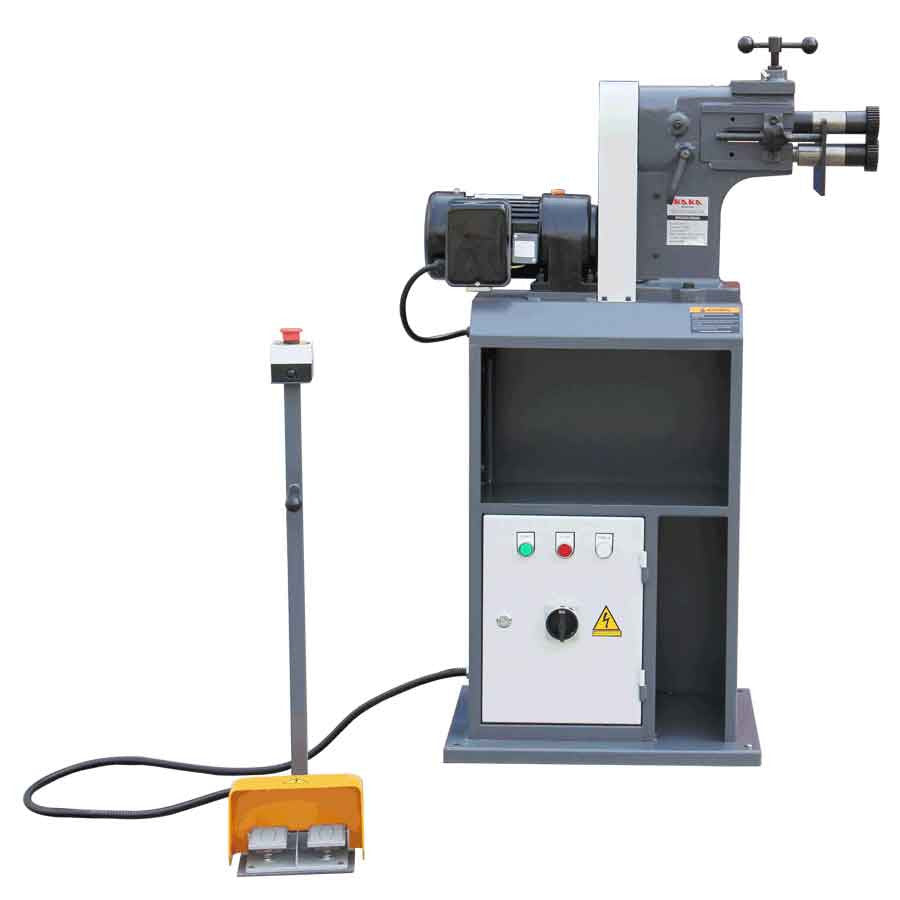

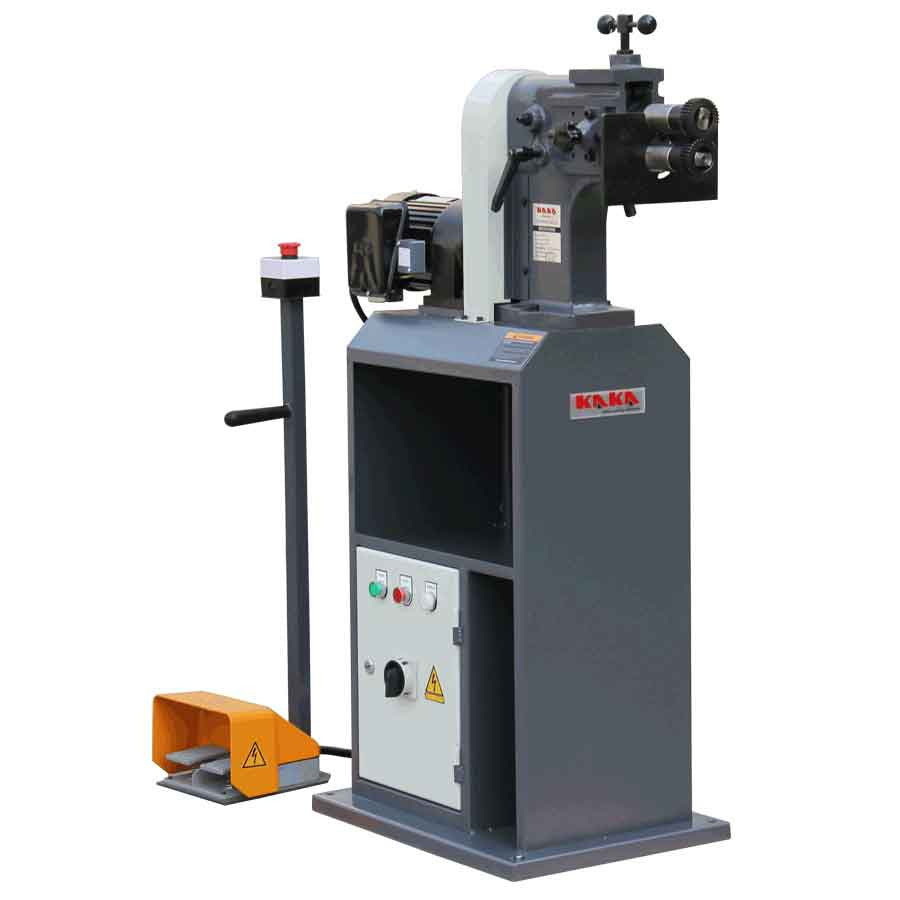

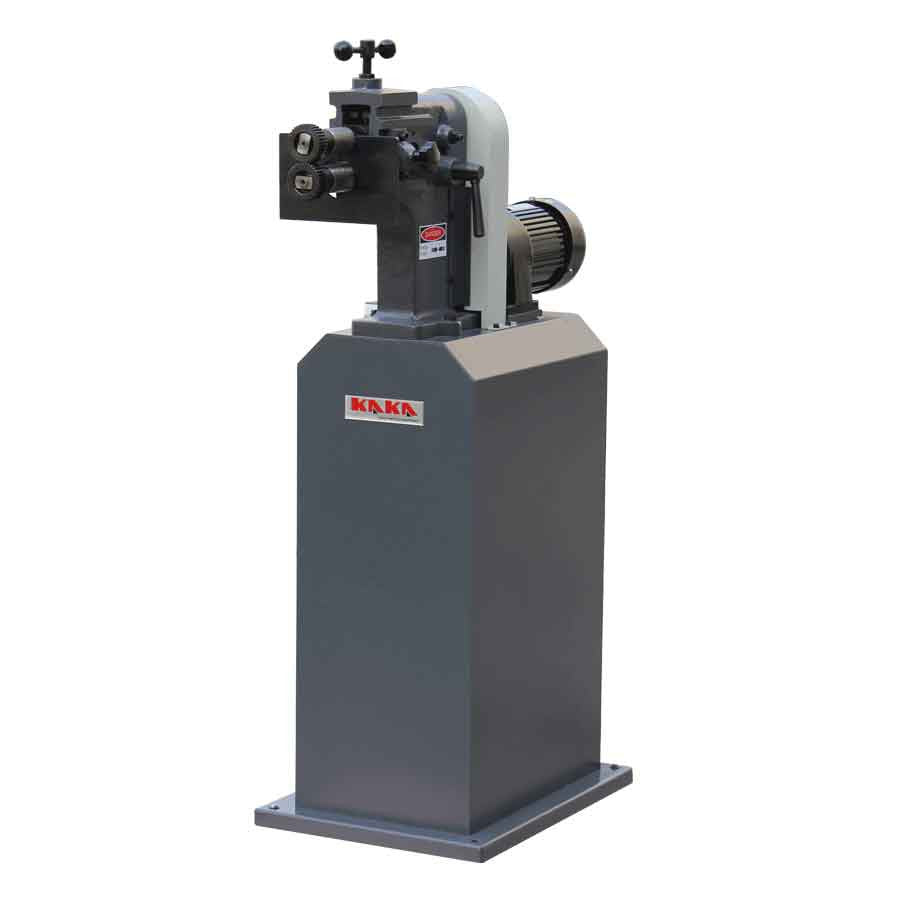

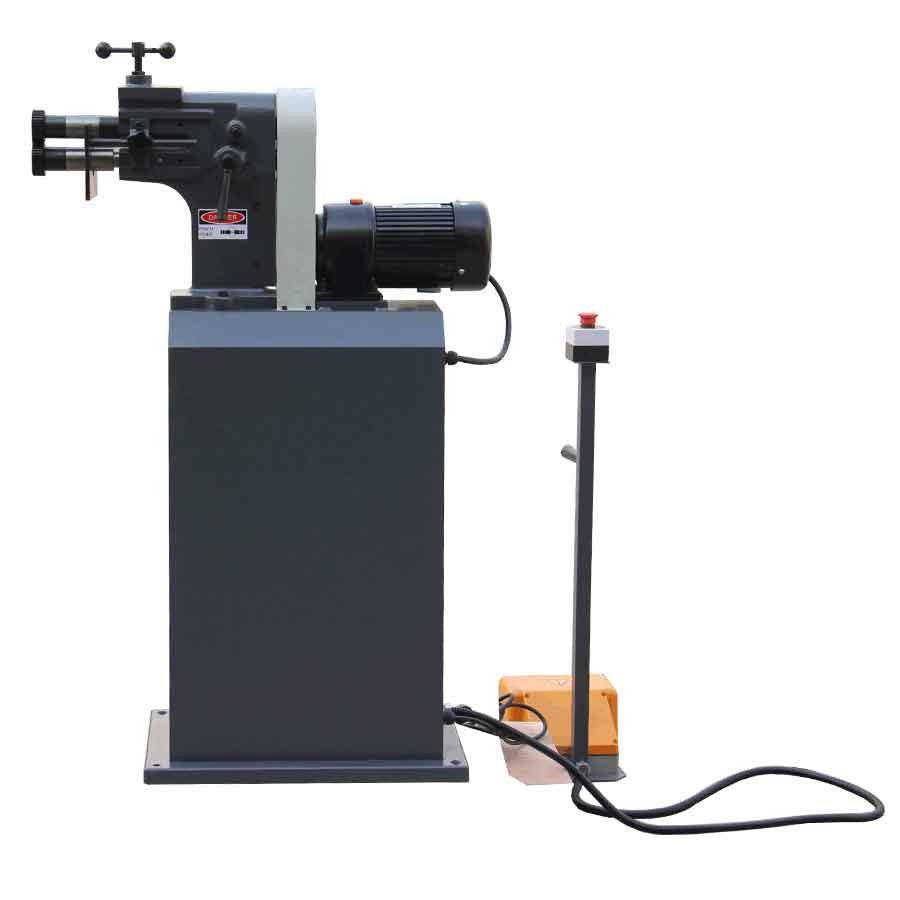

1. The Bead bending machine makes swaged plate, connection and so on of circular pipes, which refer to crushing the thin plates into the ribs in certain shapes.
2. The rigidity of the plates, pipes or metal components is strengthened.
3. Heavy and solid cast iron construction
4. Special steel adjustable bottom spindle
5. Self braking motor with subframe
6. Easy to operate with foot pedal control
7. 4 sets standard rollers
|
Item No.
|
173802
|
|
Model
|
ETB-12
|
|
Thickness max
|
1.2mm/18Ga.
|
|
Cylinder length
|
140mm/ 5-1/2”
|
|
Throat depth
|
200mm / 8”
|
|
Cylinder speed
|
32rpm
|
|
Motor power
|
0.75kW / 1HP
|
|
Net weight
|
120kg/265lb
|
|
Packing size
|
110x48x148cm
43x19x58 in
|
KAKA Industrial provides 12 months warranty for this product.
