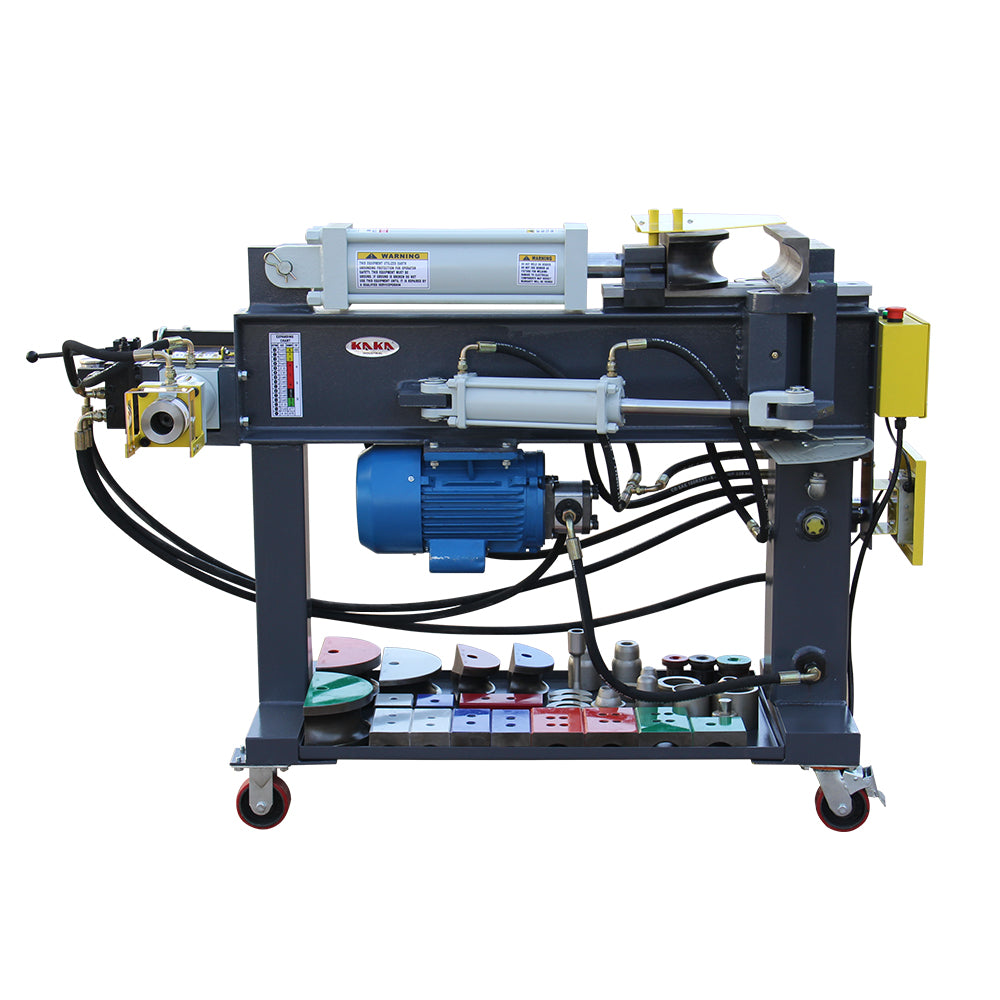

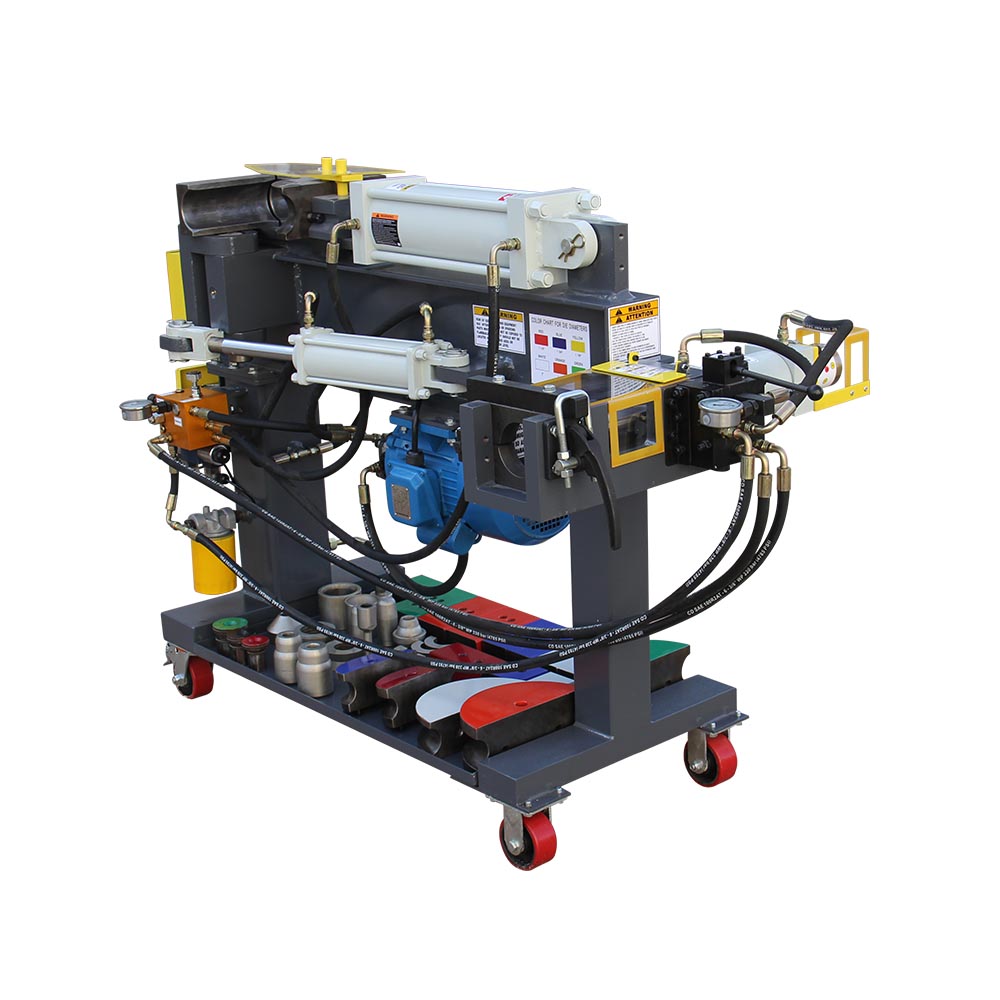

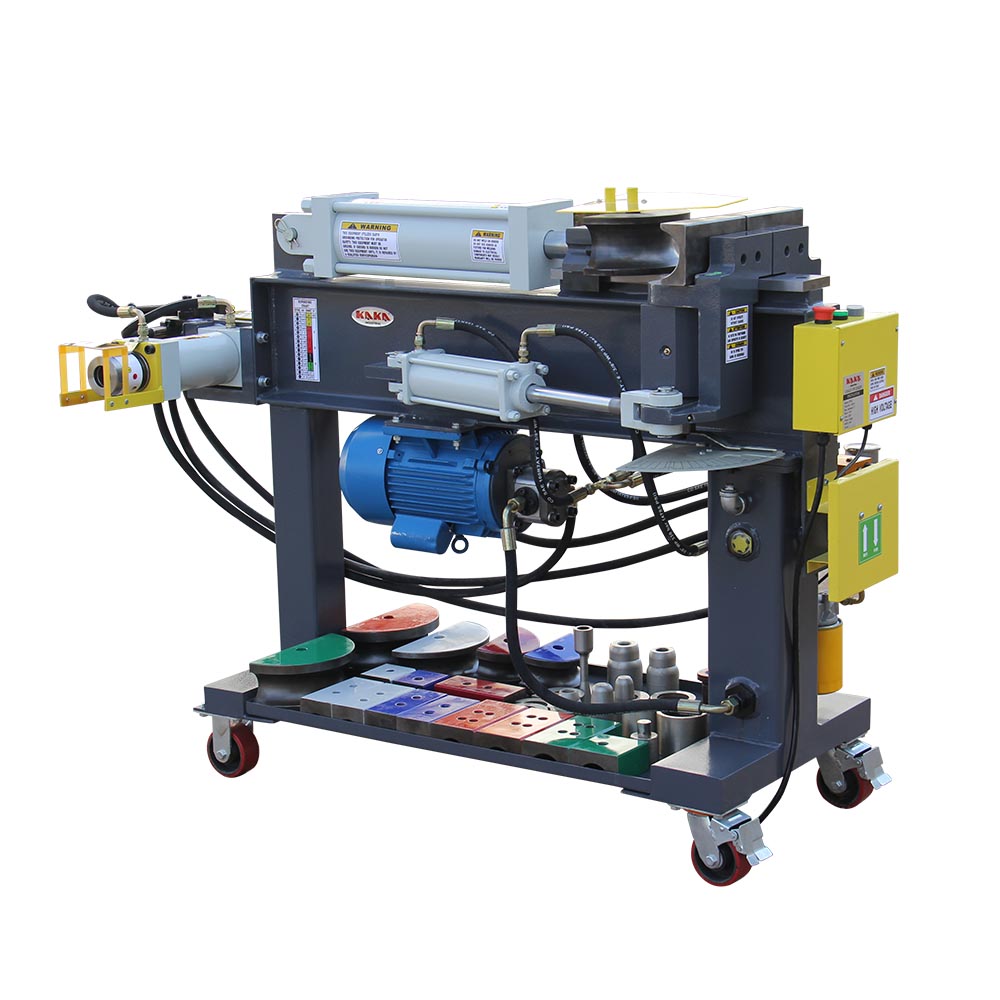

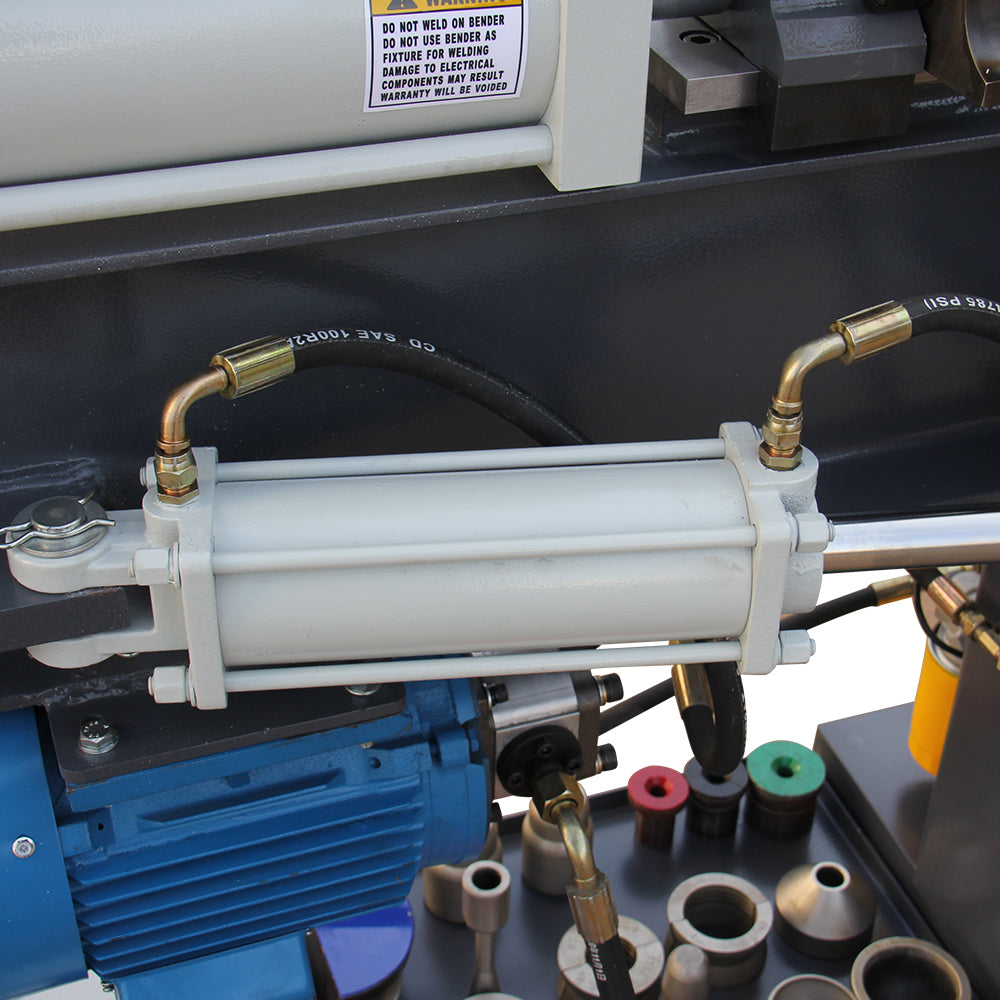

220V Single-Phase Hydraulic System: The EPB-3 175011V220 uses a 220V single-phase power configuration for shops that need exhaust pipe bending capability without a three-phase power supply. -

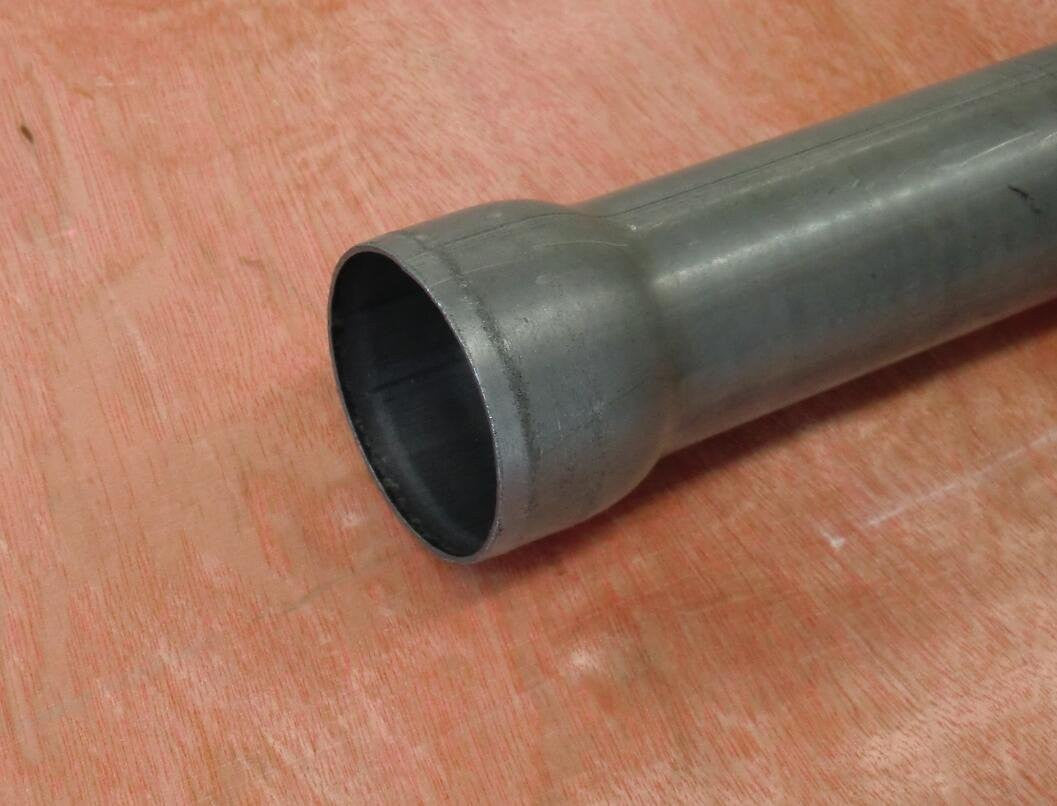

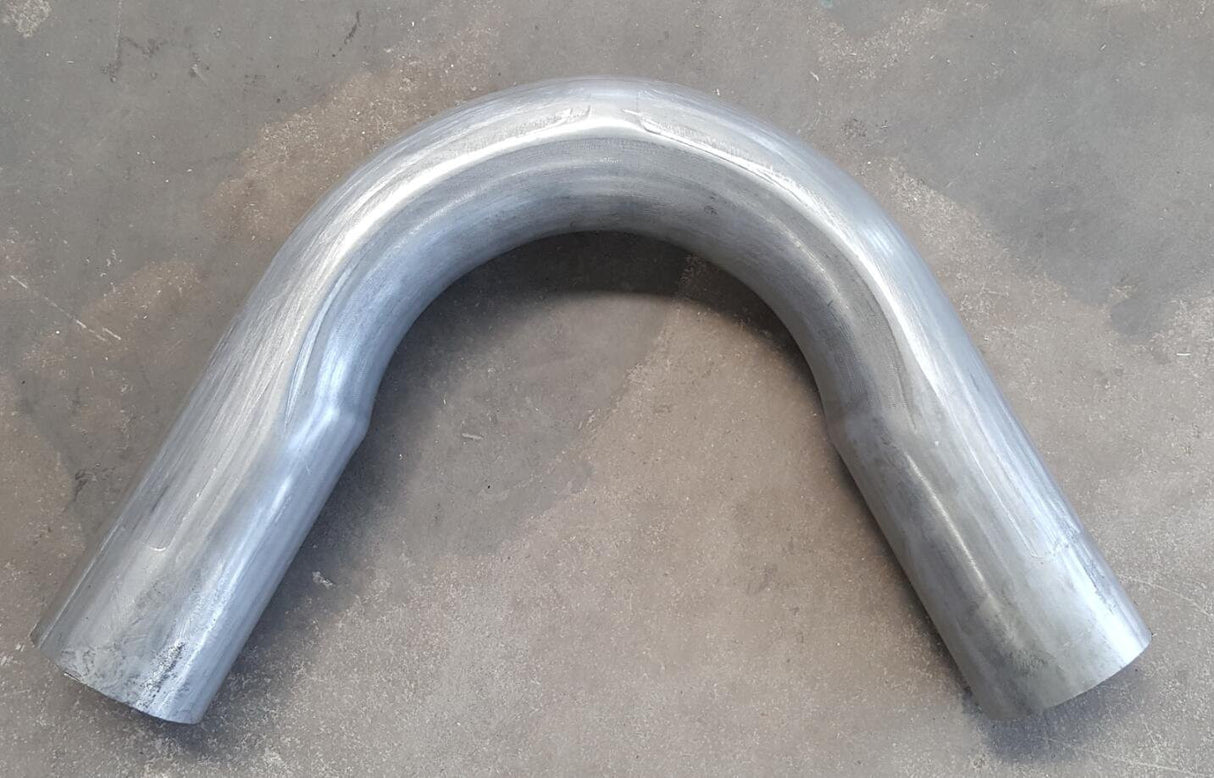

Bending, Swaging, and Expanding Functions: The EPB-3 supports exhaust tube bending plus end-forming work such as swaging, expanding, flaring, and reducing, helping shops handle more exhaust fabrication steps on one machine. -
1-1/2 in to 3 in OD Exhaust Tubing: Supports 1-1/2 in to 3 in OD tubing. For 2-1/4 in to 3 in OD tubing, 12-gauge mild steel wall thickness is required. -

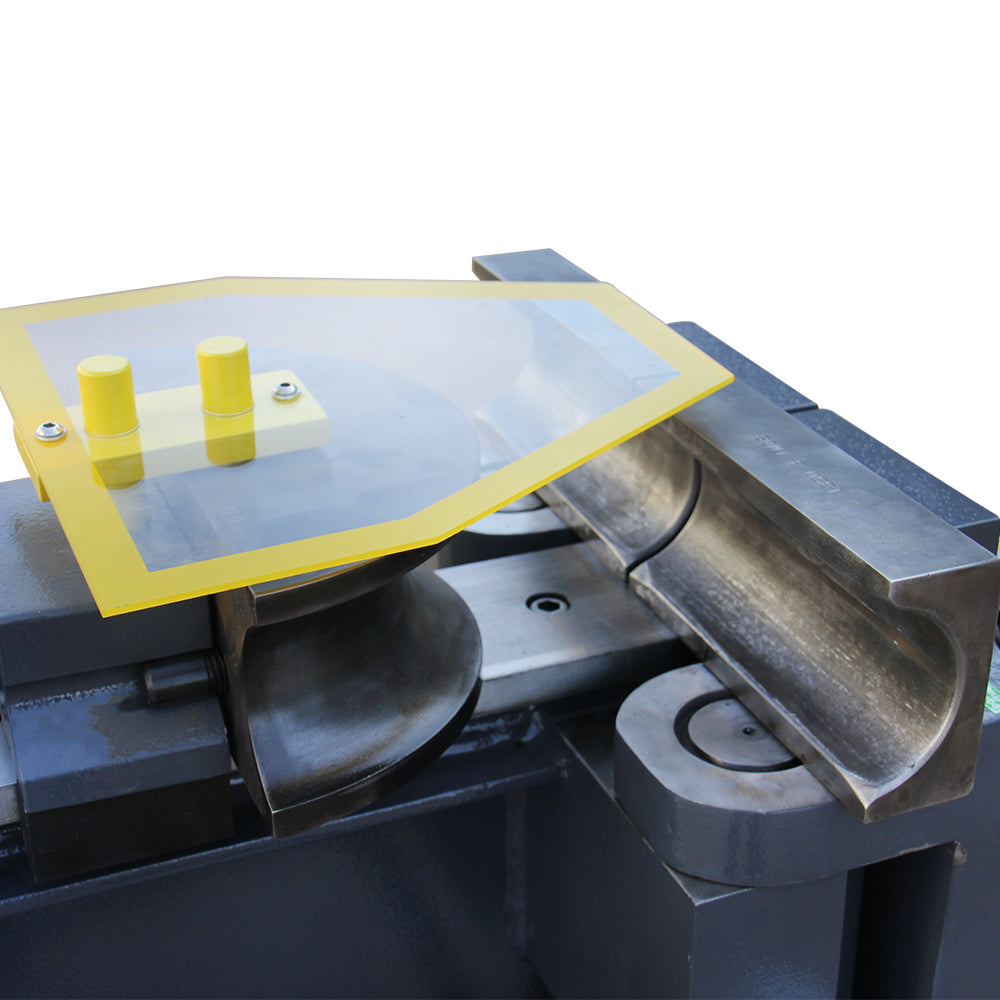

Radius Dies and Back Shoes Included: The tooling package includes 5 in, 4 in, and 3 in radius dies with matching full back shoes and half shoes for common exhaust tube bend setups. -
Swage, Flare, and Expander Tooling: Collets, flare tooling, male ball dies, swage dies, arbor tips, segments, reducing dies, holders, pins, spacers, springs, and O-rings are included for exhaust tube end-forming work. -

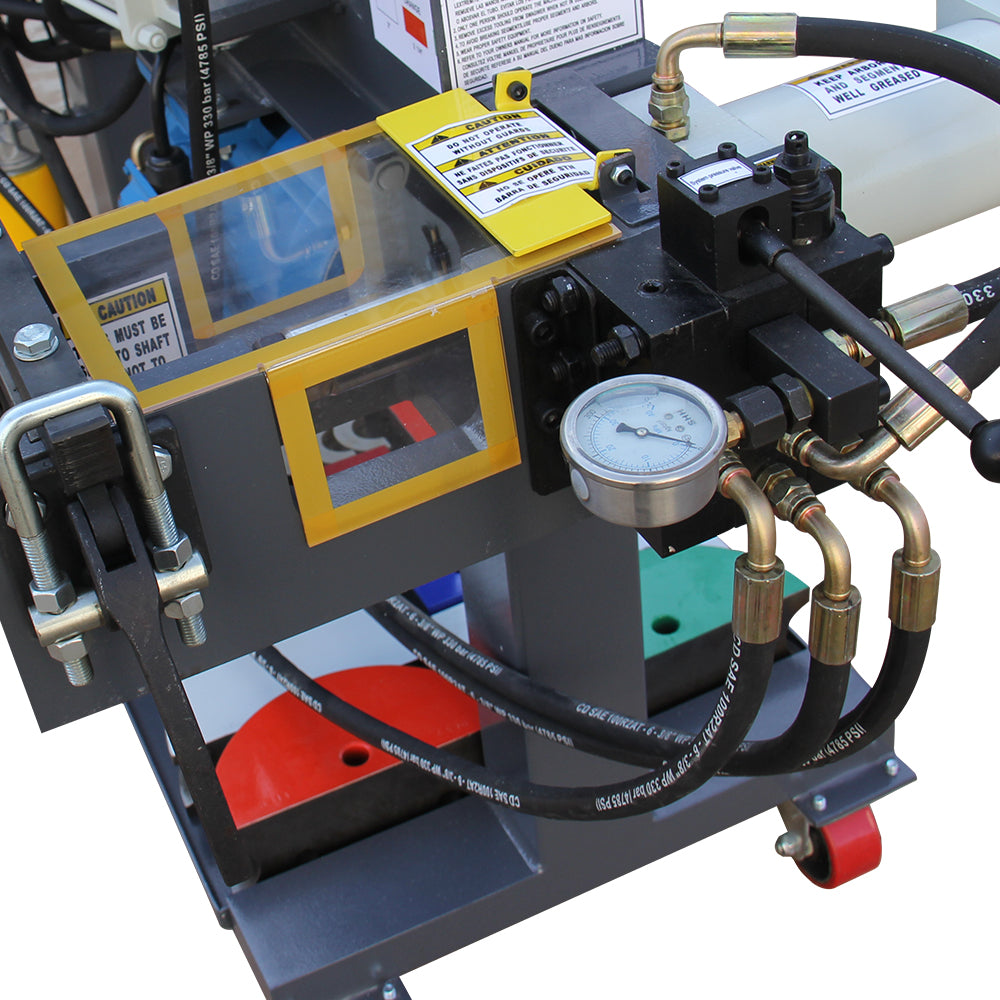

Knee Pedal Control and Shop Mobility: Knee pedal operation helps control machine movement during setup and bending, while front swivel casters with brakes support shop positioning.
Specifications
Model: EPB-3
SKU: 175011V220
Power Supply: 220V, single phase
Motor: 5 HP single-phase motor, pending final nameplate confirmation
Capacity: 1-1/2 in to 3 in OD tubing
Tubing Requirement: 12-gauge mild steel wall thickness required for 2-1/4 in to 3 in OD tubing
Functions: Hydraulic bending, swaging, expanding, flaring, and reducing
Control: Knee pedal control
Packing Size: 70 x 33 x 51 in
N.W./G.W.: 1406.54 / 1666.45 lb
8. Tooling Package Included
Radius Dies
- 5530 5 in Radius Die, 3 in
- 5412 5 in Radius Die, 2-1/2 in
- 5414 5 in Radius Die, 2-1/4 in
- 5200 5 in Radius Die, 2 in
- 4414 4 in Radius Die, 2-1/4 in
- 4200 4 in Radius Die, 2 in
- 3134 3 in Radius Die, 1-3/4 in
- 3112 3 in Radius Die, 1-1/2 in
Full Back Shoes
- 1350 Full Back Shoes, 3 in, quantity 2
- 4412 Full Back Shoes, 2-1/2 in, quantity 2
- 4211 Full Back Shoes, 2-1/4 in, quantity 2
- 1200 Full Back Shoes, 2 in, quantity 2
- 1134 Full Back Shoes, 1-3/4 in, quantity 2
- 1112 Full Back Shoes, 1-1/2 in, quantity 2
Half Shoes
- 4410 Half Shoe, 2-1/2 in
- 4416 Half Shoe, 2-1/4 in
- 1045 Half Shoe, 2 in
- 1040 Half Shoe, 1-3/4 in
- 1038 Half Shoe, 1-1/2 in
Collets
- 1750 Collet, 2-1/2 in
- 1725 Collet, 2-1/4 in
- 1720 Collet, 2 in
- 1734 Collet, 1-3/4 in
- 1712 Collet, 1-1/2 in
Flare, Swage, and Expander Tooling
- 853 Flare Tool, 1-1/2 in to 3 in
- 550 Male Ball Die, 1-3/4 in, swage 2 in
- 552 Male Ball Die, 2 in, swage 2-1/4 in
- 553 Male Ball Die, 2-1/4 in, swage 2-1/2 in
- 554 Male Ball Die, 2-1/2 in, swage 2-3/4 in
- 555 Male Ball Die, 1-3/4 in to 1-7/8 in
- 556 Male Ball Die, 2-1/4 in to 2-1/2 in
- 112 Swage Die, 1-3/8 in to 1-1/2 in
- 134 Swage Die, 1-5/8 in to 1-3/4 in
- 508 Arbor, 1-3/8 in to 3-1/2 in
- 498 Arbor Tip, 1-1/2 in to 1-3/4 in
- 499 Arbor Tip, 1-3/4 in to 3-1/2 in
- 474 Segment, 1-1/2 in to 2 in
- 476 Segment, 2-5/8 in to 3 in
- 478 Segment, 2 in to 2-1/2 in
- 782 Reducing Die, 2-1/2 in to 2-1/4 in
- 783 Reducing Die, 3 in to 2-1/2 in
Holders, Pins, Spacers, and Service Parts
- 815 Die Holder for 853
- 816 Die Holder Pin
- 855 Die Pins M18
- 1079 Full Shoe Spacer
- 1080 Half Shoe Spacer
- 97050 Die Spring
- 870 O-Ring Kit
