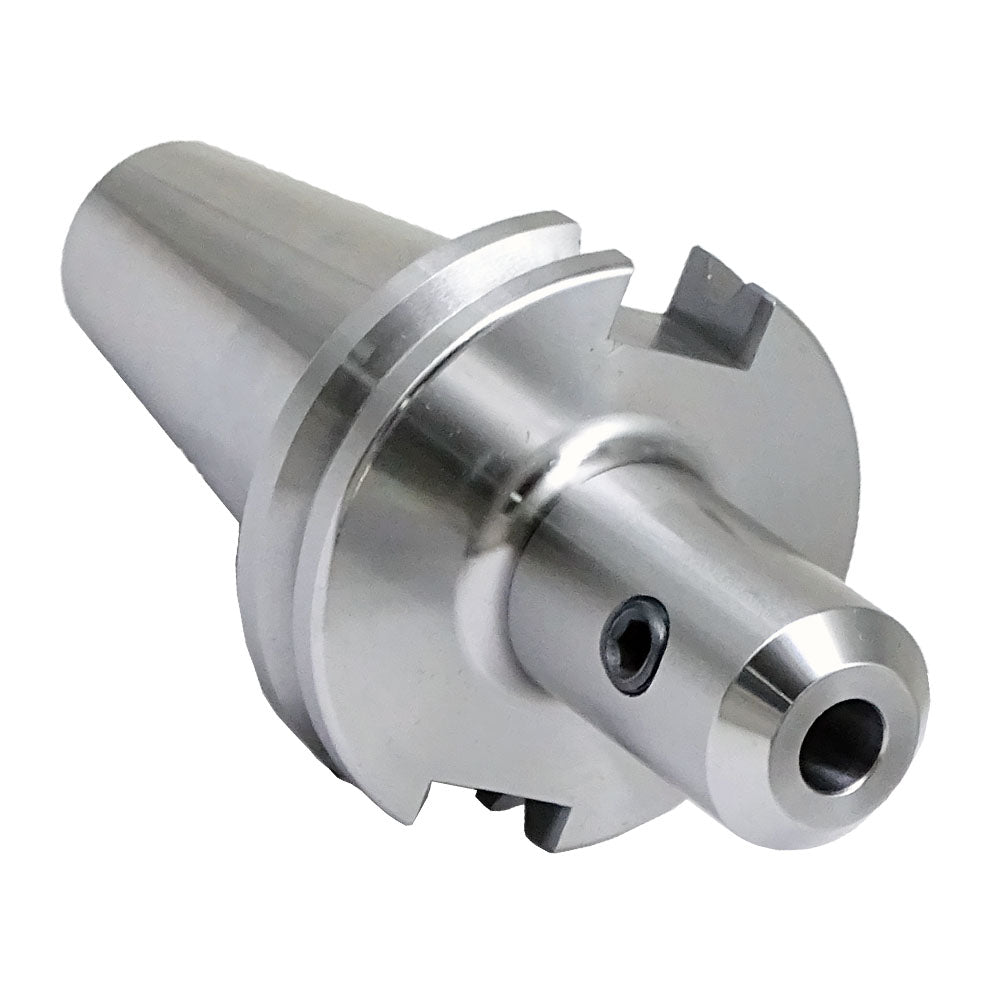

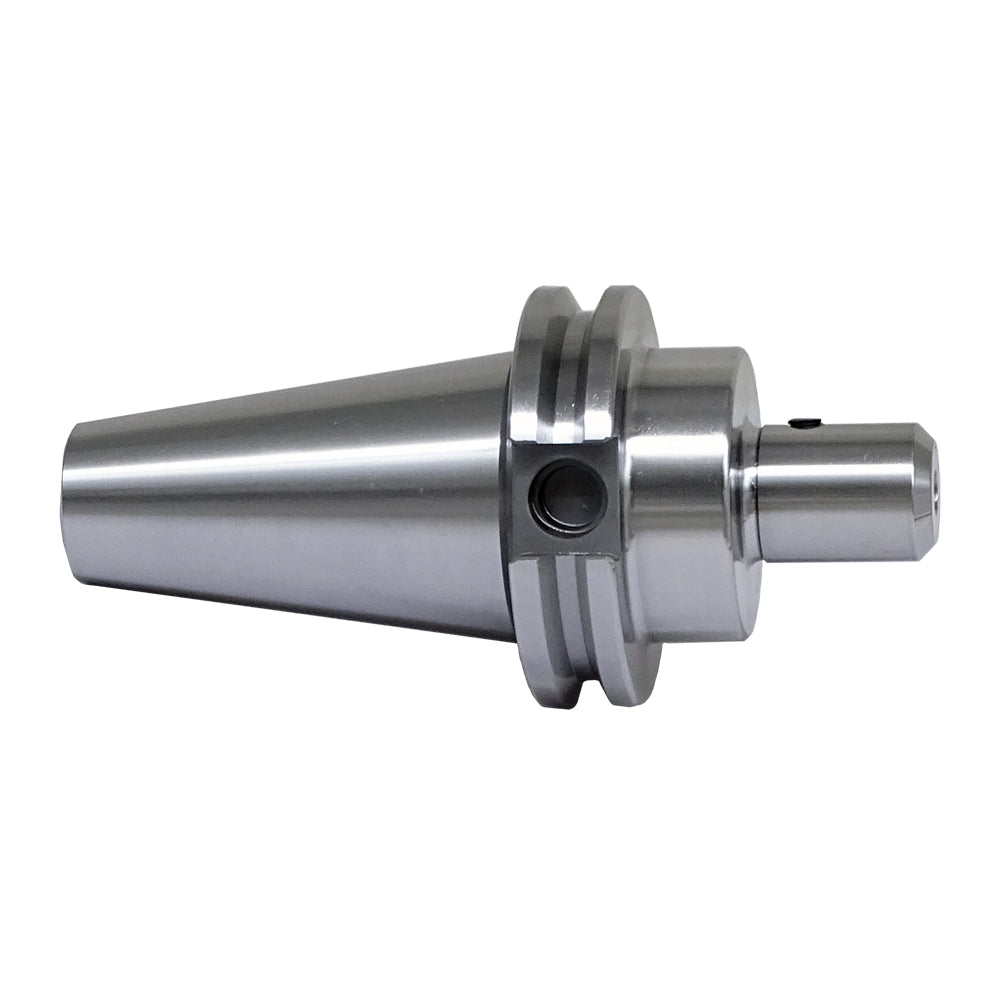

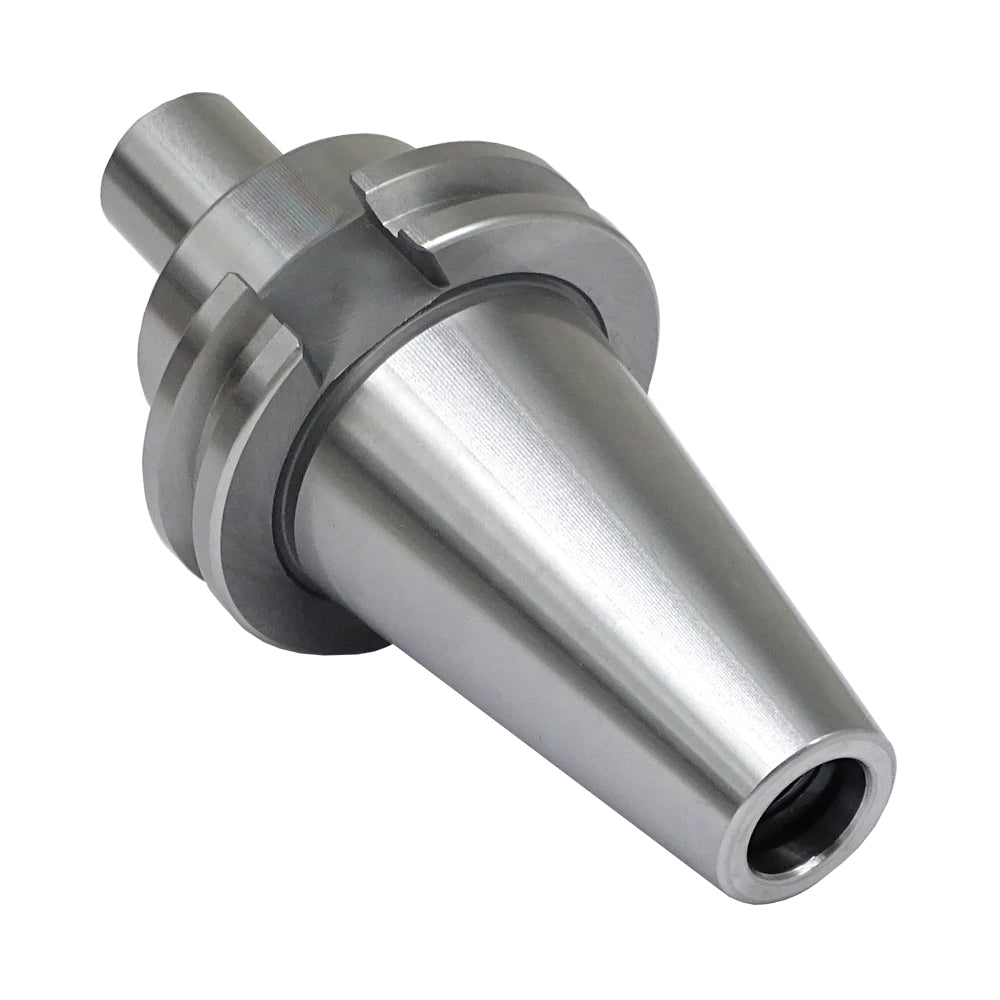

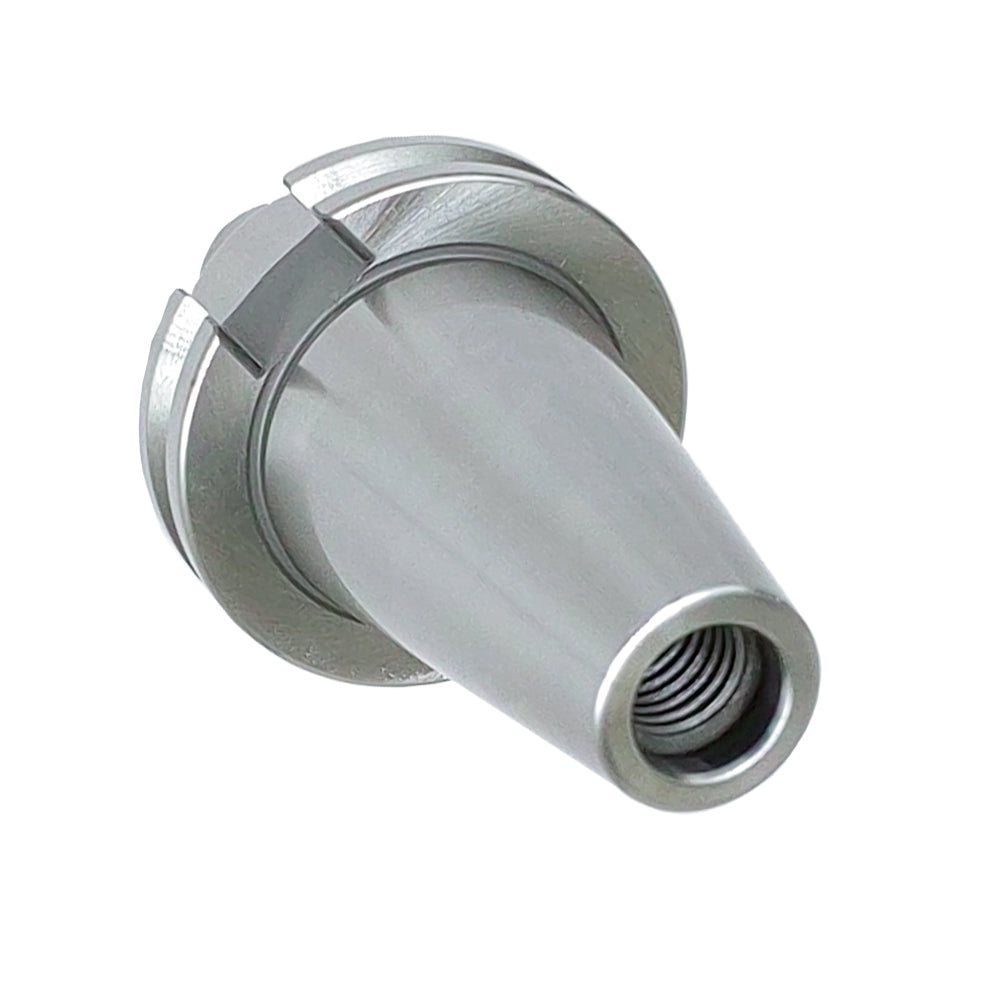

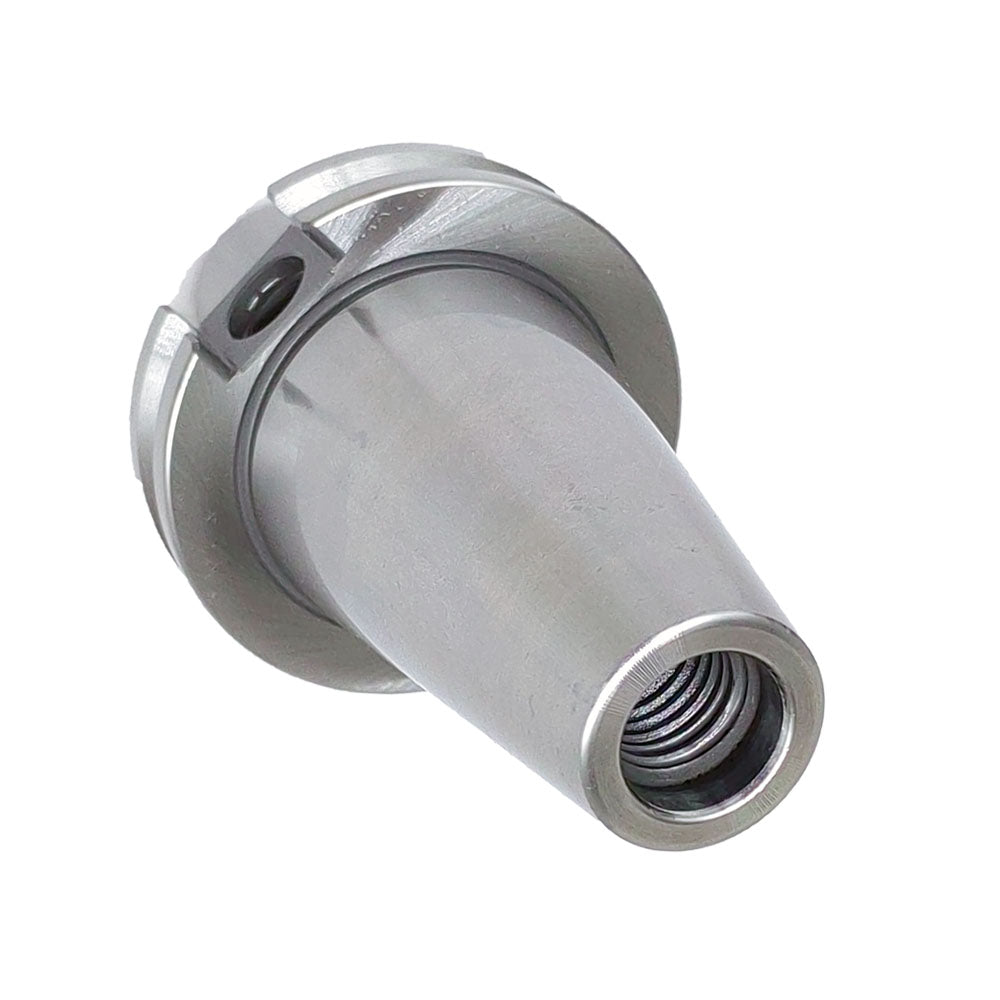

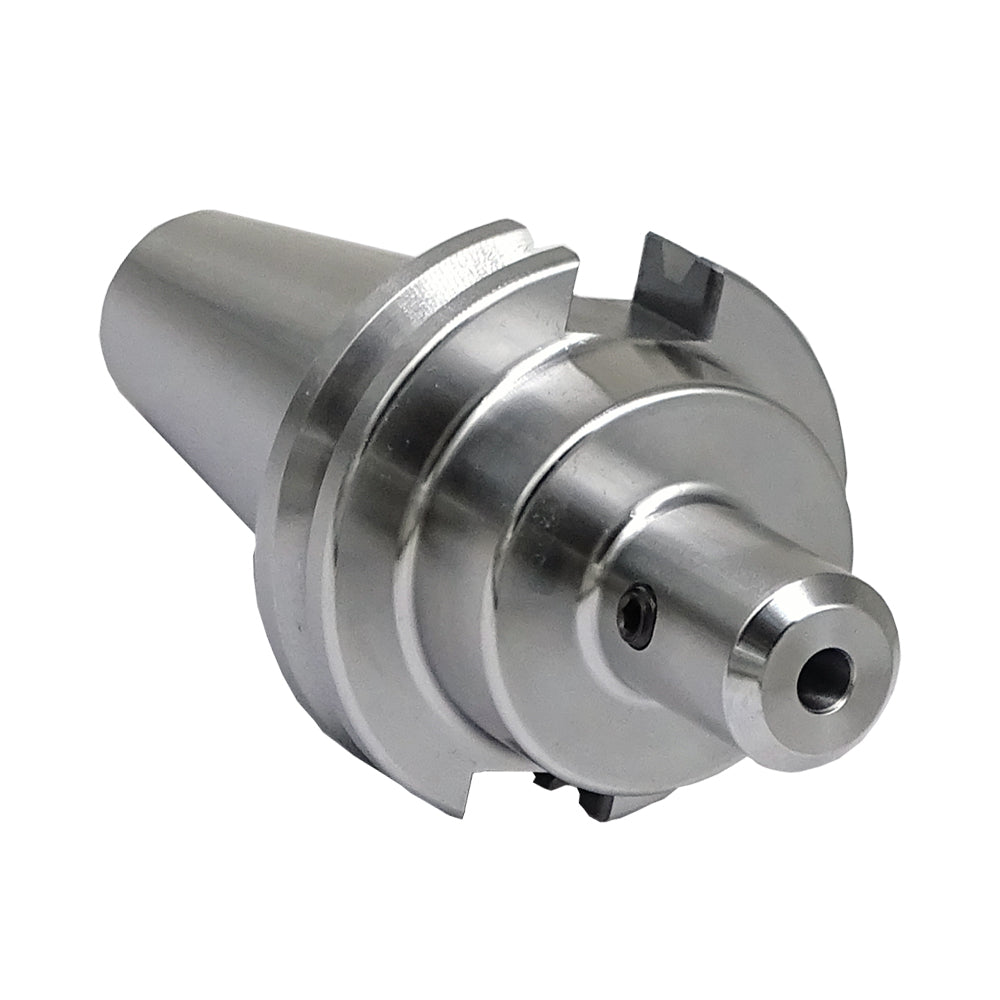

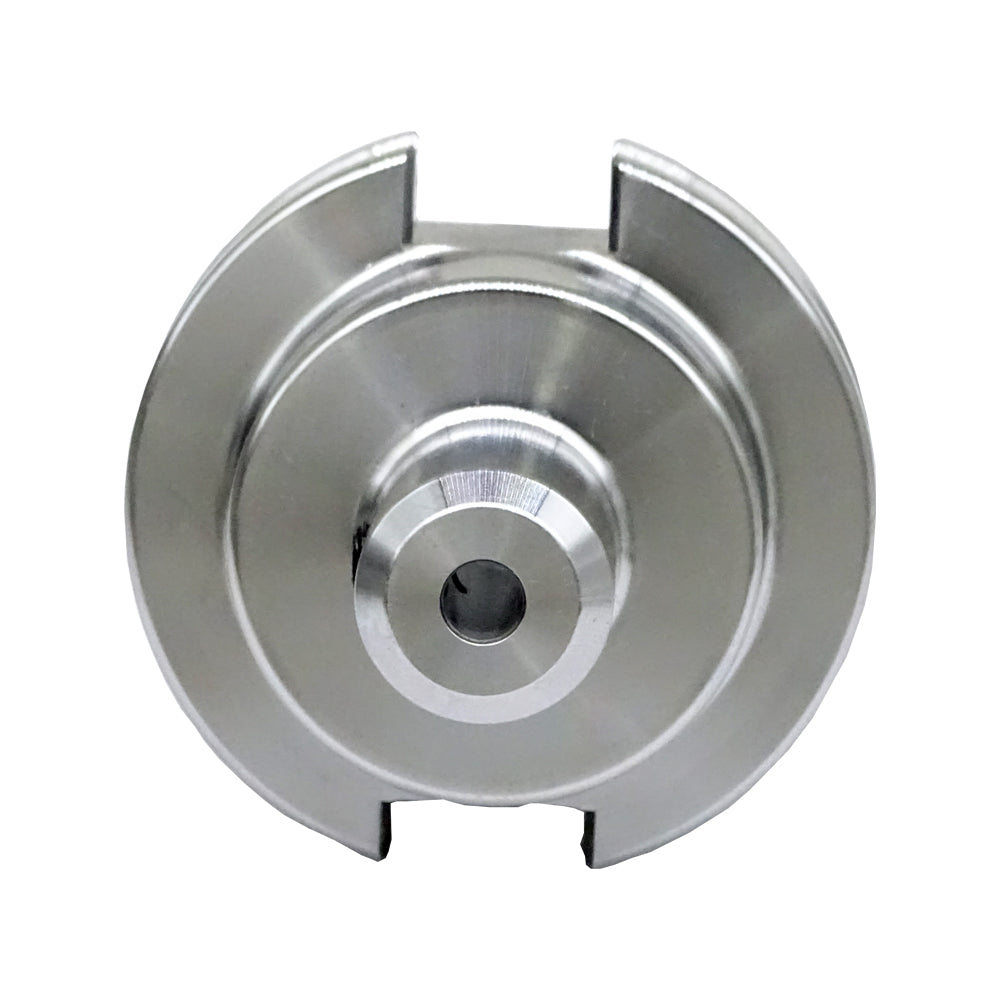

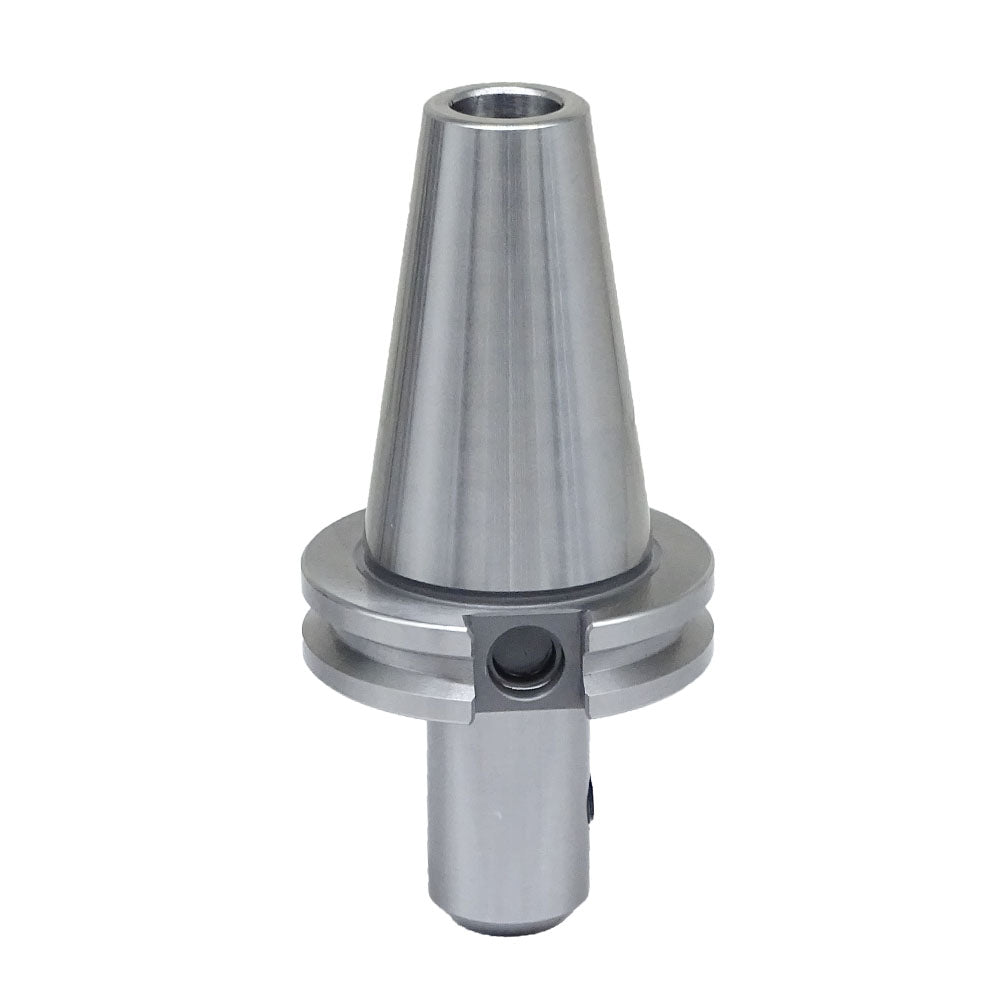

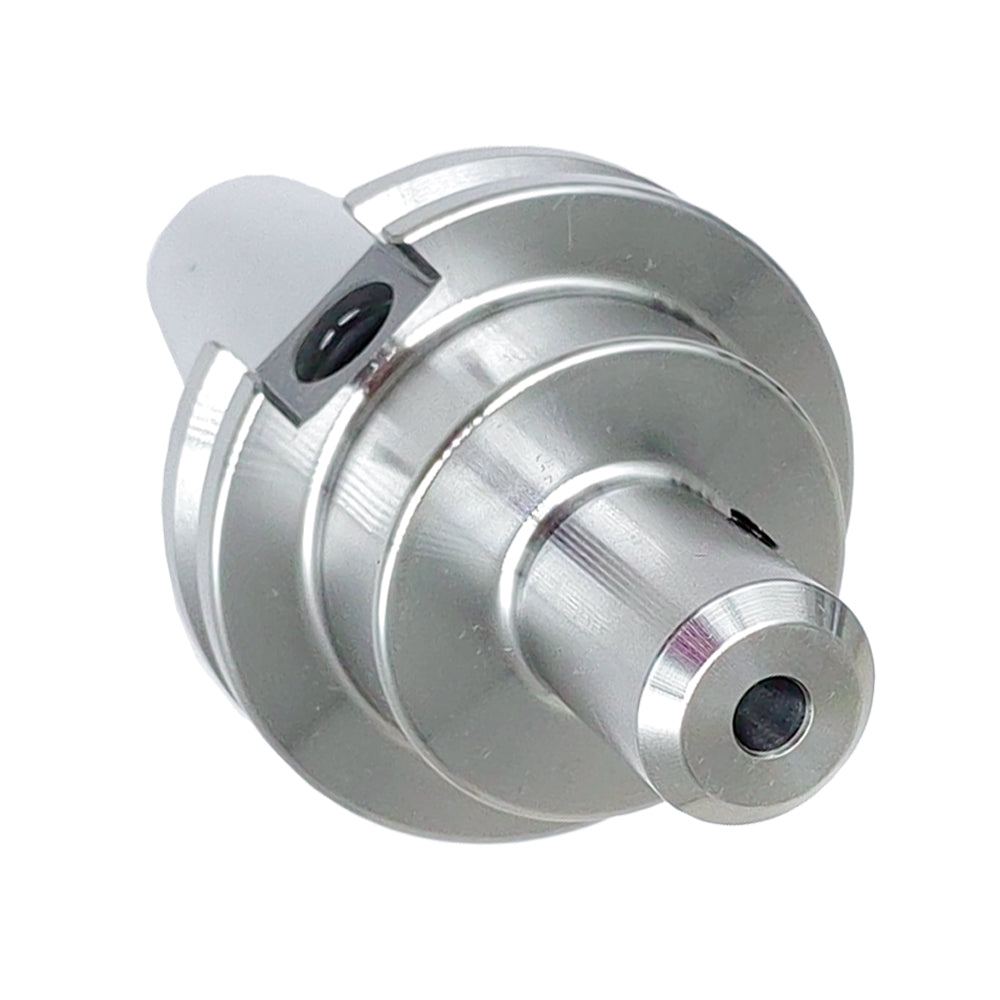

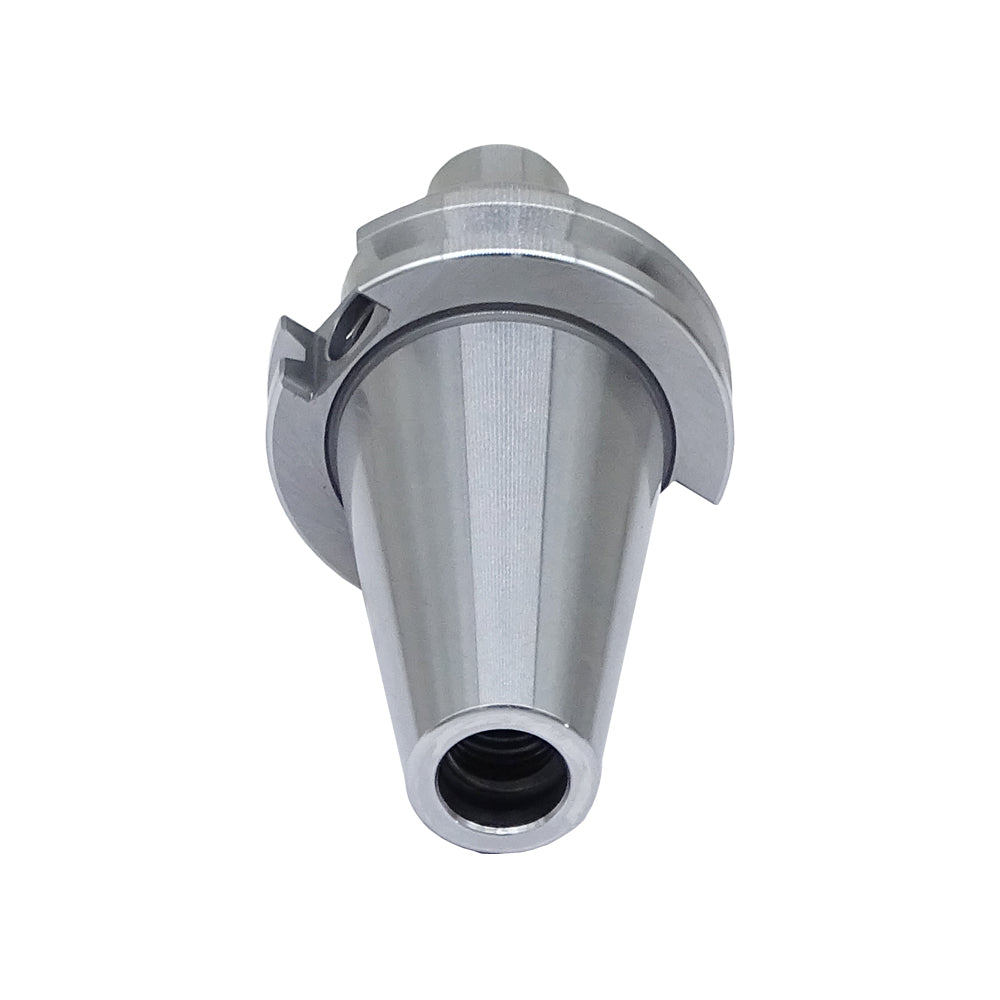

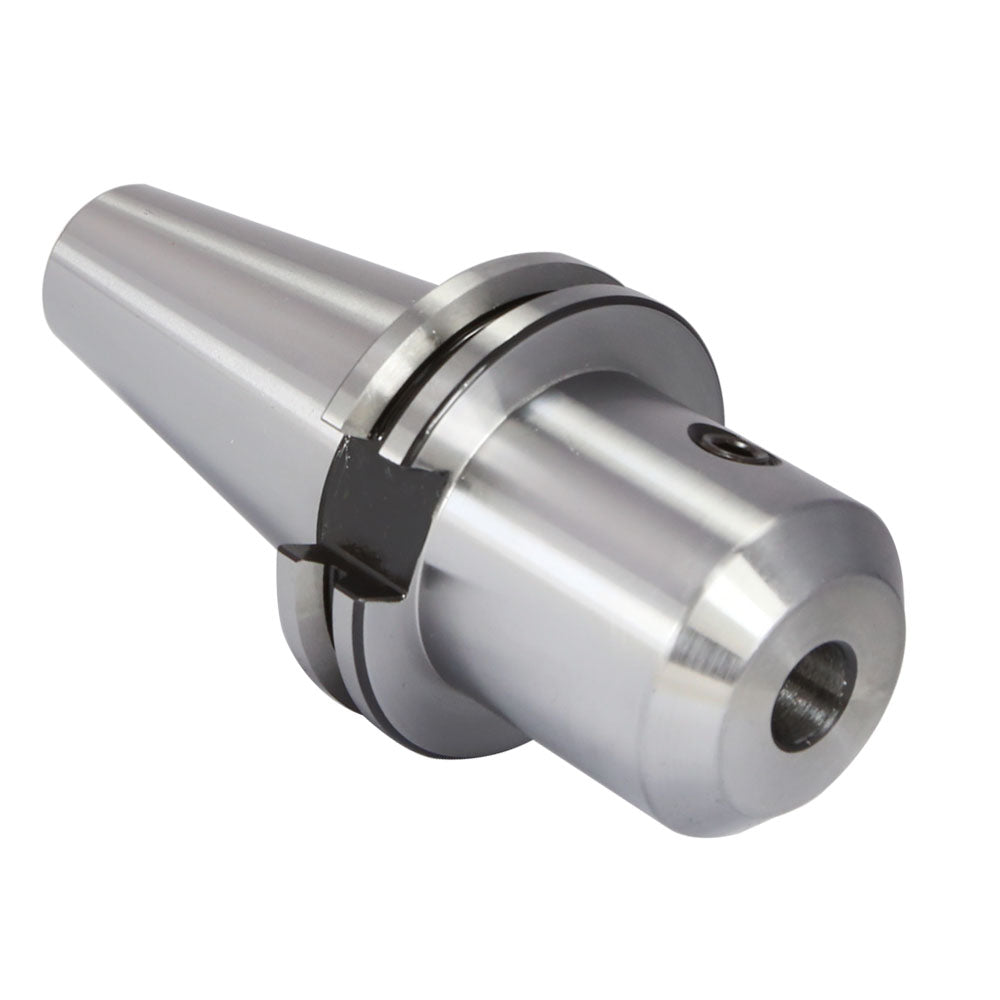

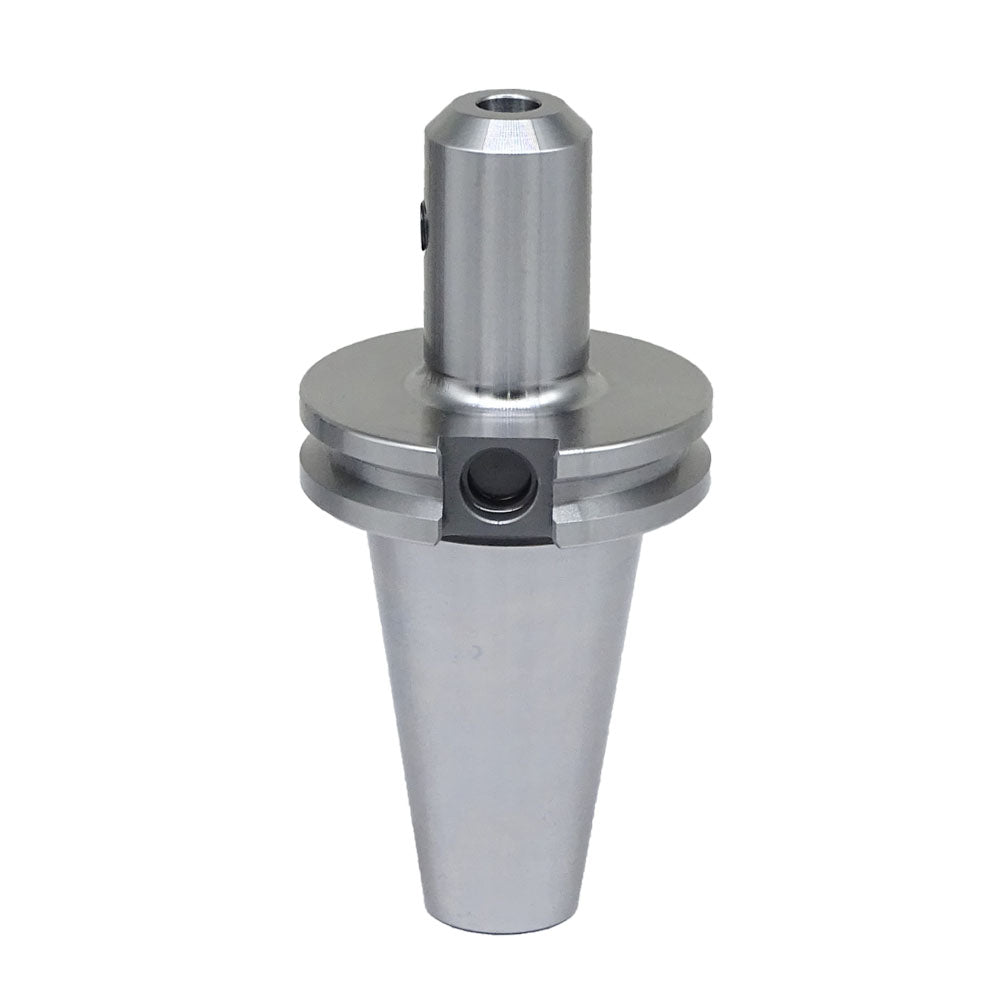

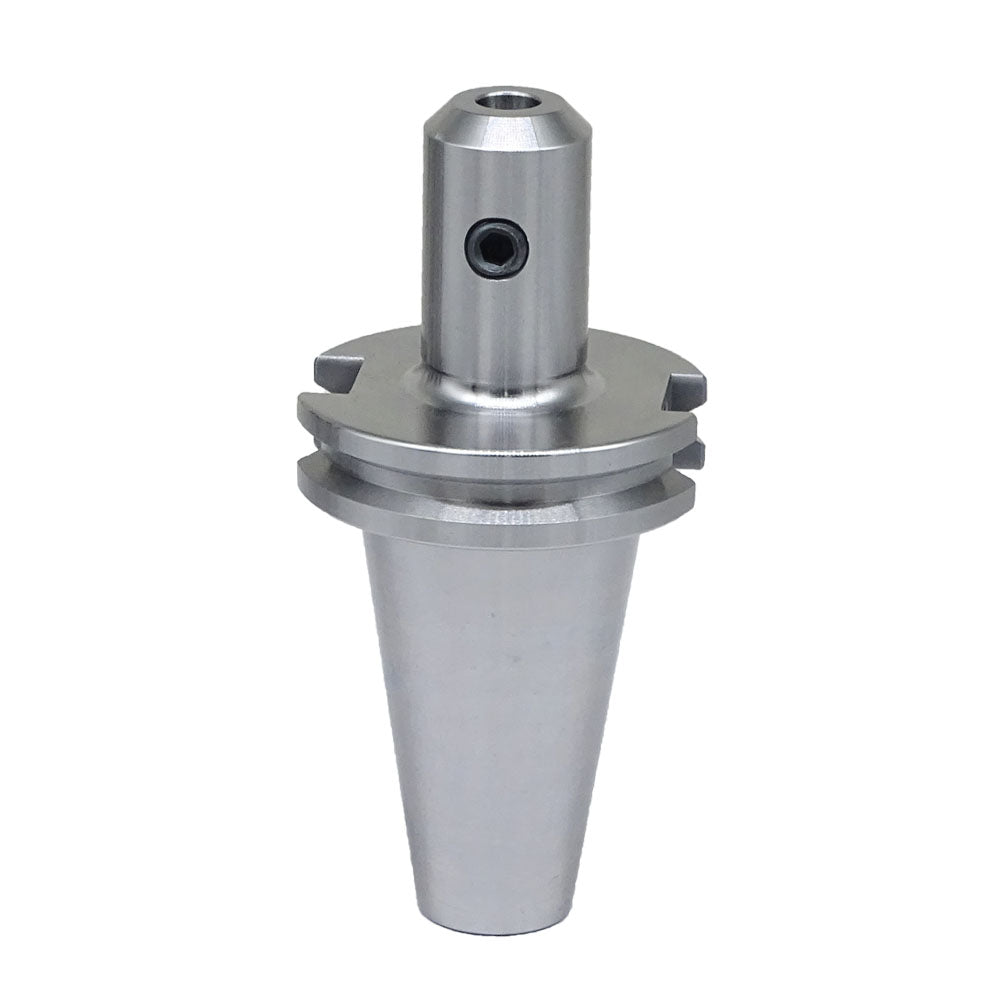

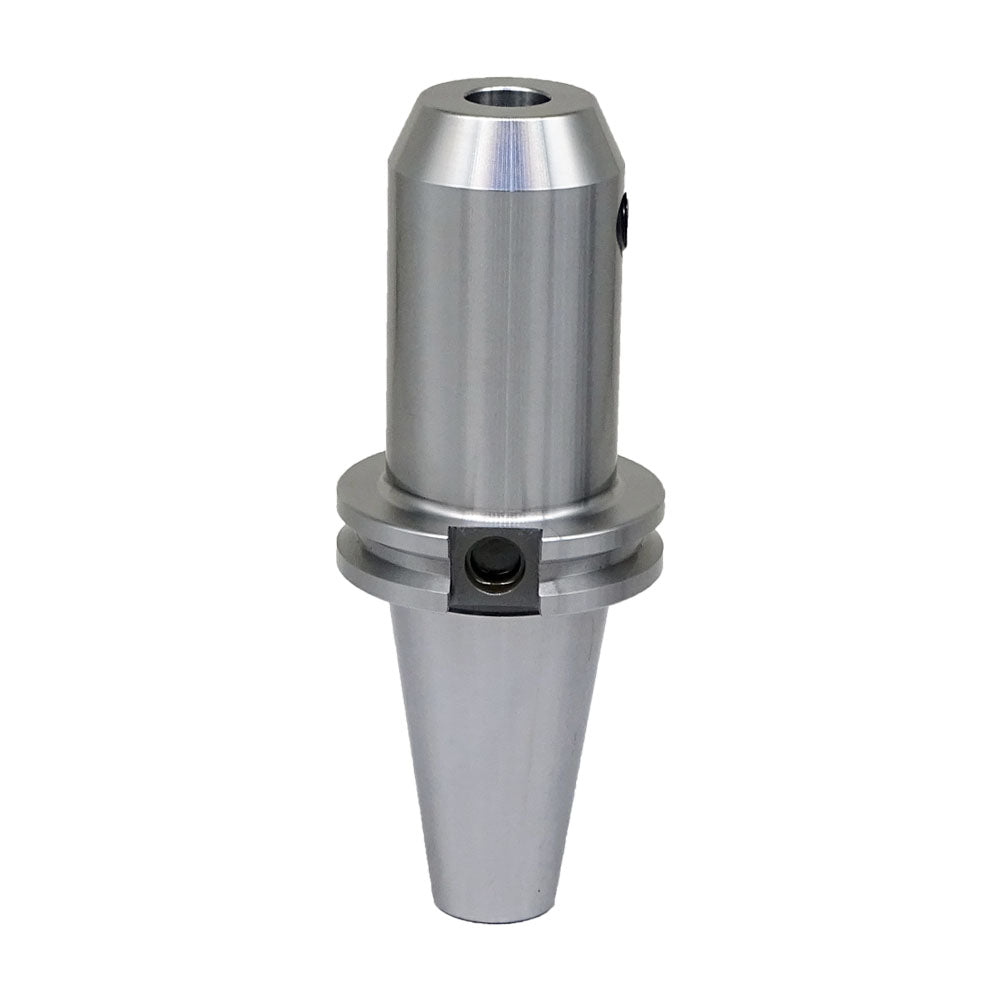

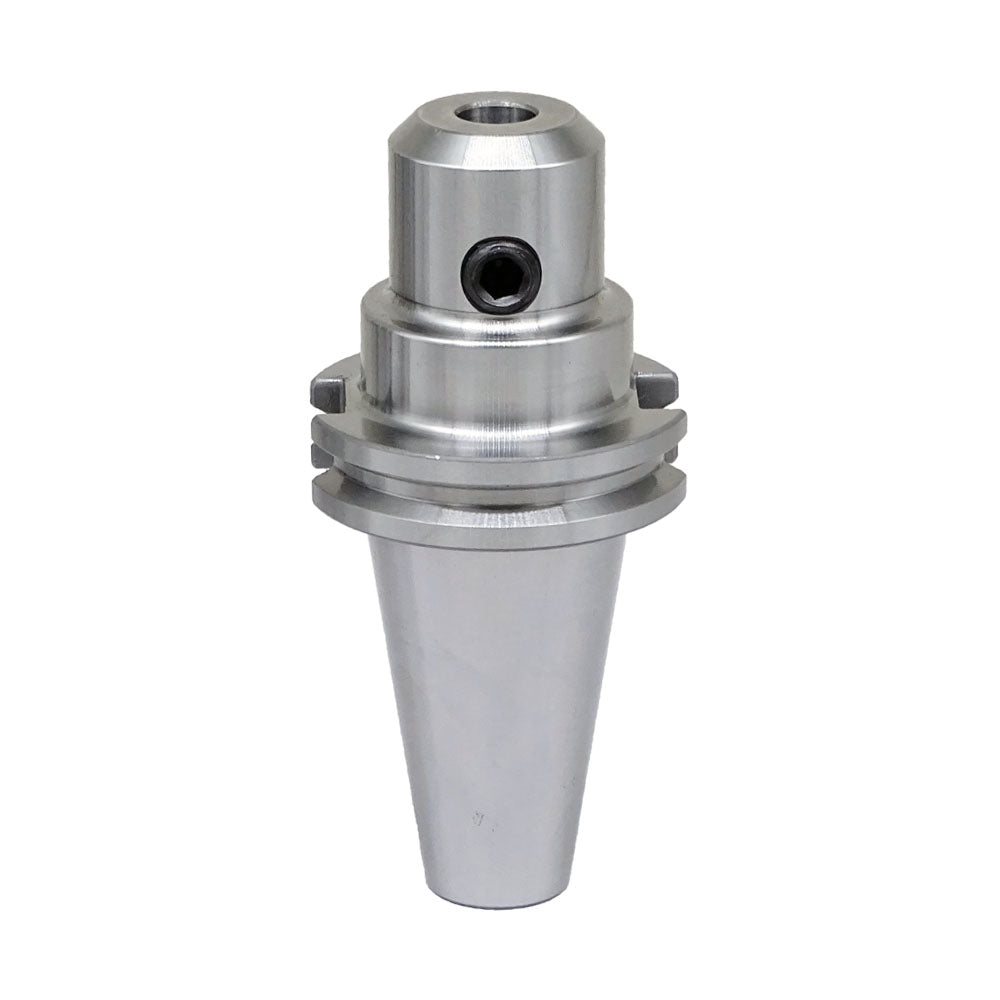

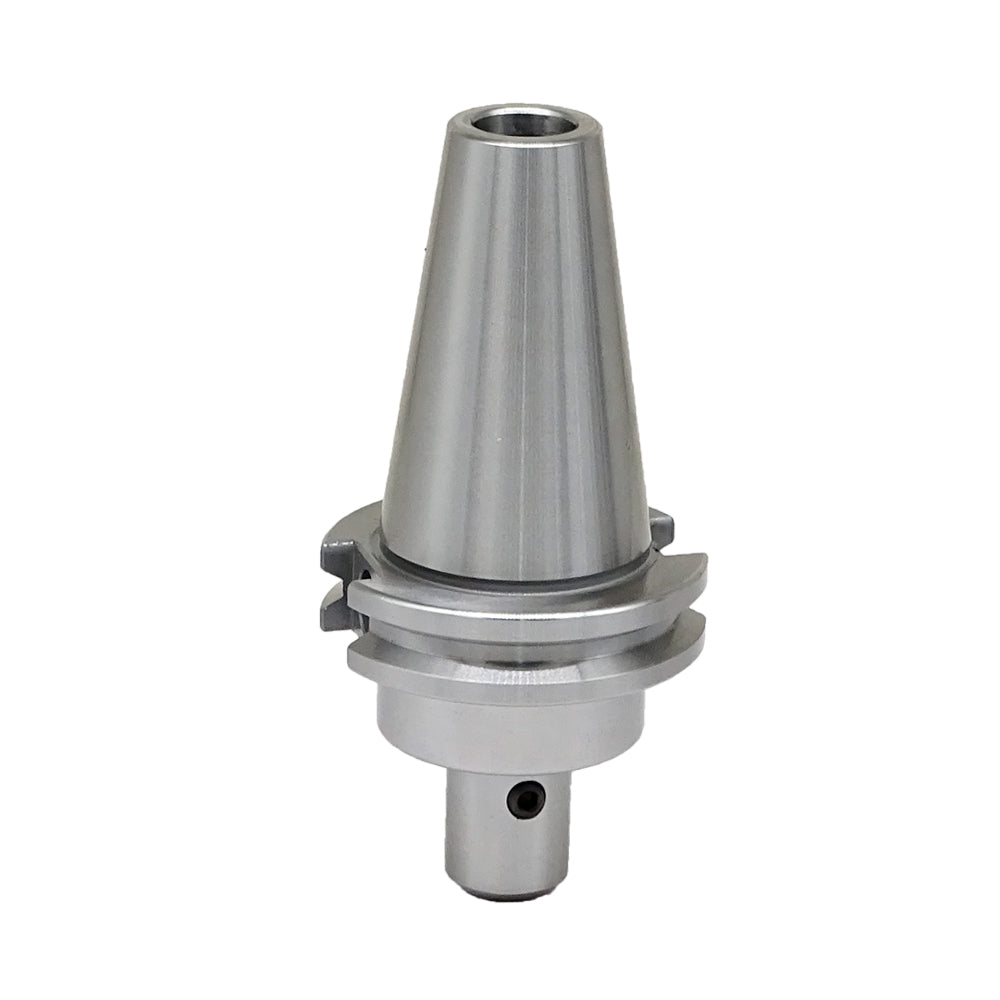

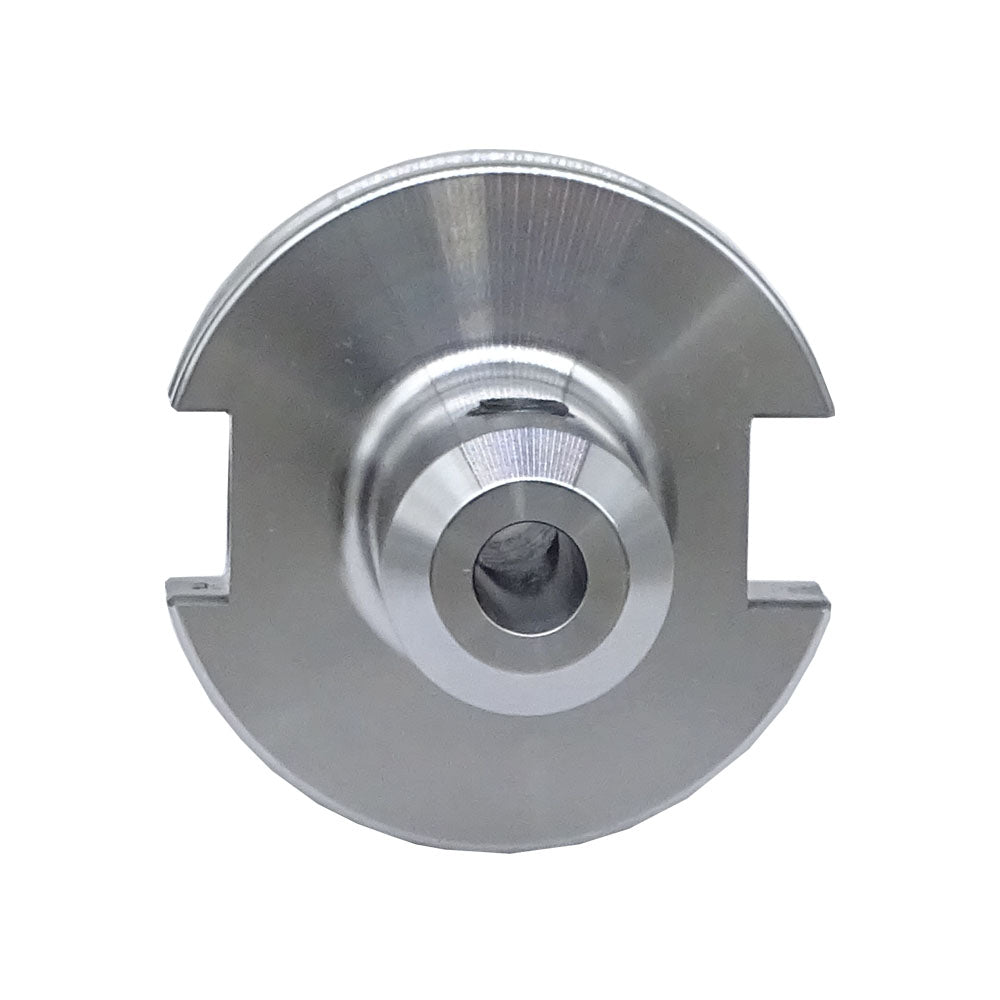

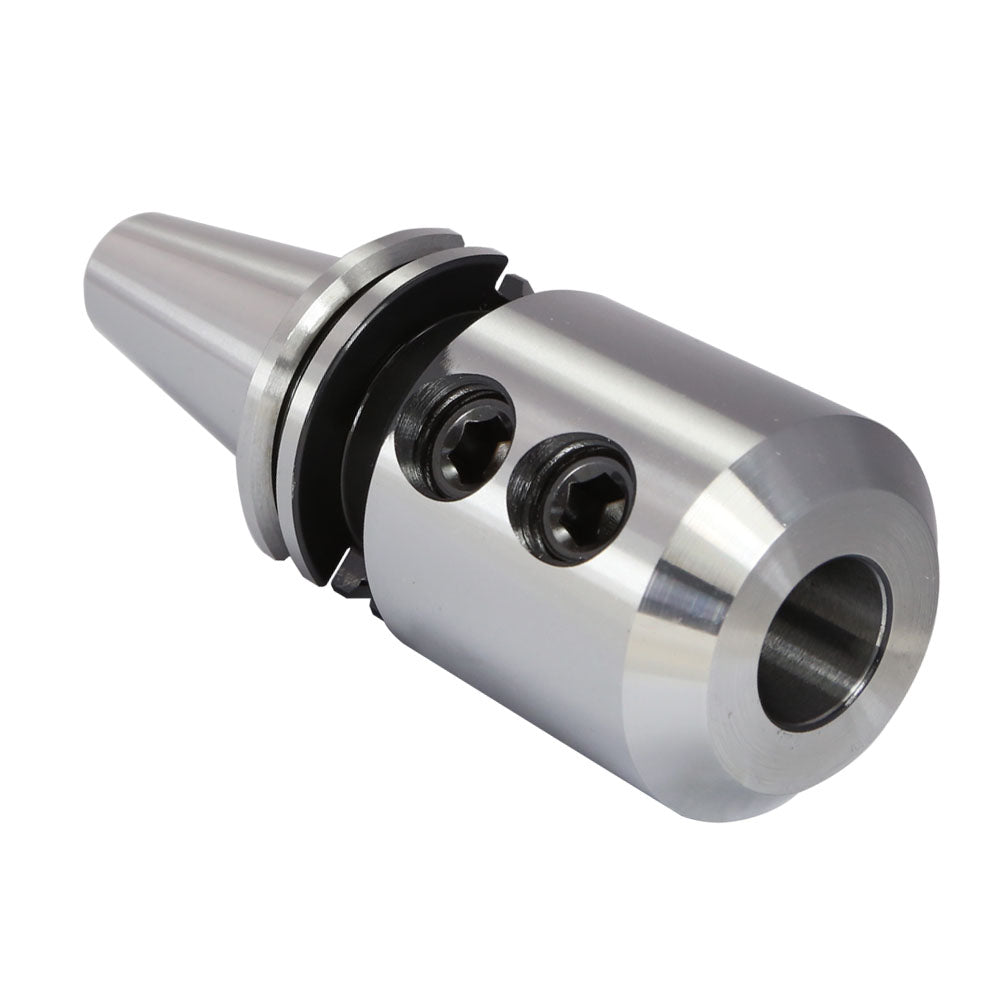

Bodee CAT40 End Mill Holders
Bodee CAT40 End Mill Holders - EM1/4"-2.5 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
- The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This End Mill Tool holder accepts all 0.25 shank tooling
All critical tool holder surfaces precision ground
Made from alloy steel hardened to 48-52rc
Gage length is 2.5 inches
Nose diameter is 0.812 Inches
Concentricity is less than 0.00012
Rear thread for pull stud is 5/8-11
1. Hole diameter 1/4", H5 Hole Tolorance
2. Runout: .00012" TIR
3.Balanced G2.5 @ 20000 RPM
4. Rear thread for pull stud is 5/8"-11
5. Fit for Drilling Machine, Milling Machine CNC Chuck or Holder.
| Brand Name | Bodee | Taper Size | CAT40 |
| SKU | BA0301006 | Tool Type | End Mill Holder |
| Drawbar Thread Size | 5/8"-11 | TIR | 0.0002" |
| Through Coolant | YES | Hole Diameter (d) | 1/4" |
| Nose Diameter (D) | 0.812" | Projection (L1) | 2.5" |
| Net Weight | 2.20 lbs | E | 0.781" |
| Gross Weight | 2.43 lbs | T | 1/4"-20 |
| Meas | 7.9×2.95×2.95 in. | Overall Length (L) | 5.187" |
| Brand Name | Bodee | Taper Size | CAT40 |
| SKU | BA0301010 | Tool Type | End Mill Holder |
| Drawbar Thread Size | 5/8"-11 | TIR | 0.00012" |
| Through Coolant | YES | Hole Diameter (d) | 3/8" |
| Nose Diameter (D) | 1" | Projection (L1) | 2.5" |
| Net Weight | 1.98 lbs | E | 25/32" |
| Gross Weight | 2.20 lbs | T | 3/8"-16 |
| Meas | 7.9×2.95×2.95 in. | Overall Length (L) | 5.187" |
| Brand Name | Bodee | Taper Size | CAT40 |
| SKU | BA0301016 | Tool Type | End Mill Holder |
| Drawbar Thread Size | 5/8"-11 | TIR | 0.00012" |
| Through Coolant | YES | Hole Diameter (d) | 5/8" |
| Nose Diameter (D) | 1.75" | Projection (L1) | 3.75" |
| Net Weight | 3.42 lbs | T | 15/16" |
| Gross Weight | 3.64 lbs | E | 1/2"-13 |
| Meas | 7.9×2.95×2.95 in. | Overall Length (L) | 6.437" |
| Brand Name | Bodee | Taper Size | CAT40 |
| SKU | BA0301013 | Tool Type | End Mill Holder |
| Drawbar Thread Size | 5/8"-11 | TIR | 0.0002" |
| Through Coolant | YES | Hole Diameter (d) | 1/2" |
| Nose Diameter (D) | 1.375" | Projection (L1) | 2.5" |
| Net Weight | 2.56 lbs | T | 0.875" |
| Gross Weight | 2.76 lbs | E | 1/2"-13 |
| Meas | 7.9×2.95×2.95 in. | Overall Length (L) | 5.187" |
| Brand Name | Bodee | Taper Size | CAT40 |
| SKU | BA0301020 | Tool Type | End Mill Holder |
| Drawbar Thread Size | 5/8"-11 | TIR | 0.00012" |
| Hole Diameter (D1) | 1" | Projection (L1) | 4" |
| Nose Diameter (D2) | 2.375" | L2 | 1.125" |
| Net Weight | 4.63 lbs | L3 | 1 |
| Gross Weight | 4.85 lbs | T | 3/4"-10 |
| Meas | 7.9×2.95×2.95 in. | Overall Length (L) | 6.687" |
