KAKA INDUSTRIAL LLC | SKU:
BA0502001

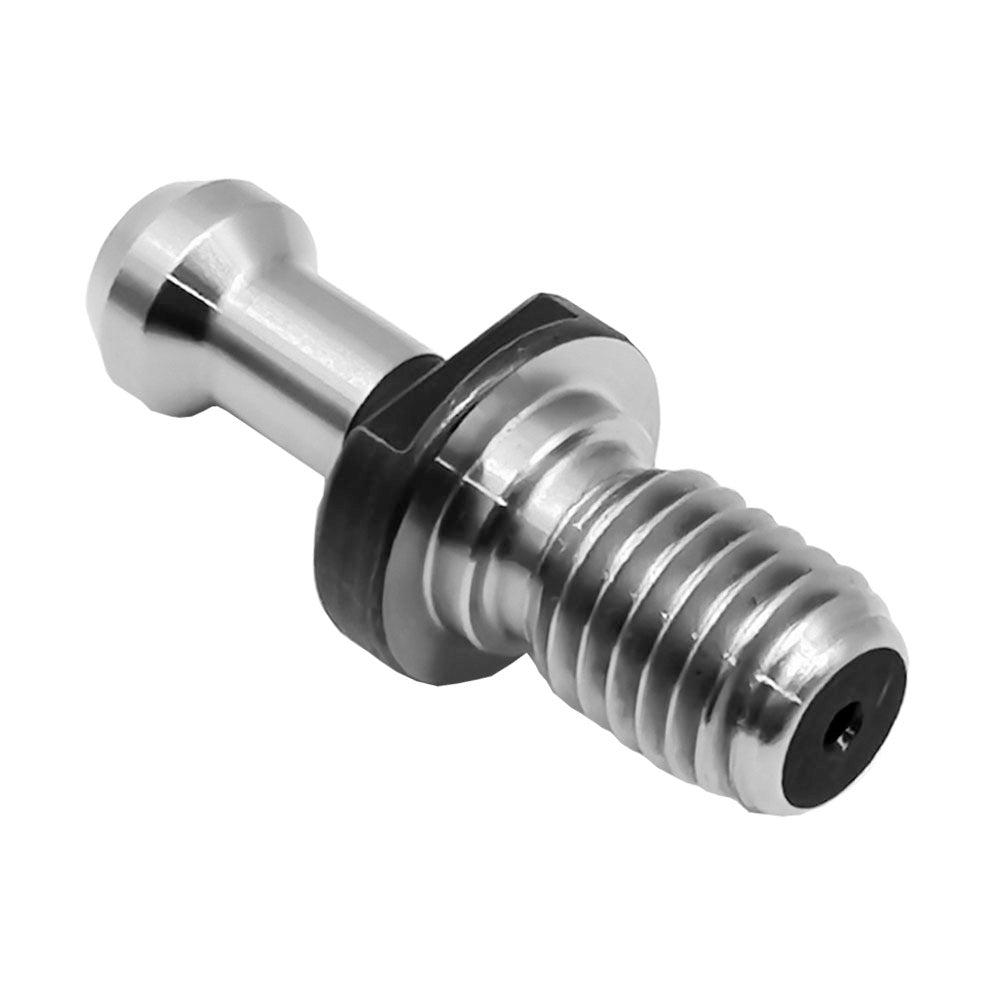

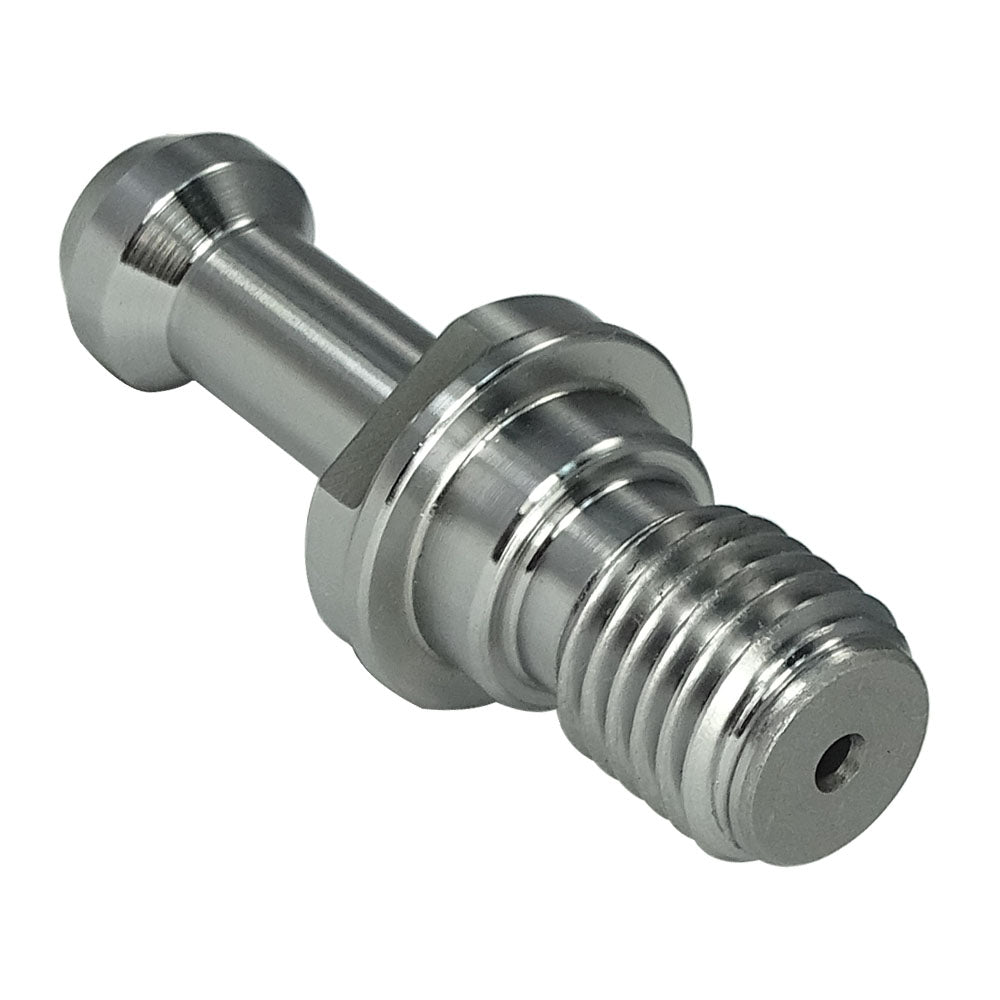

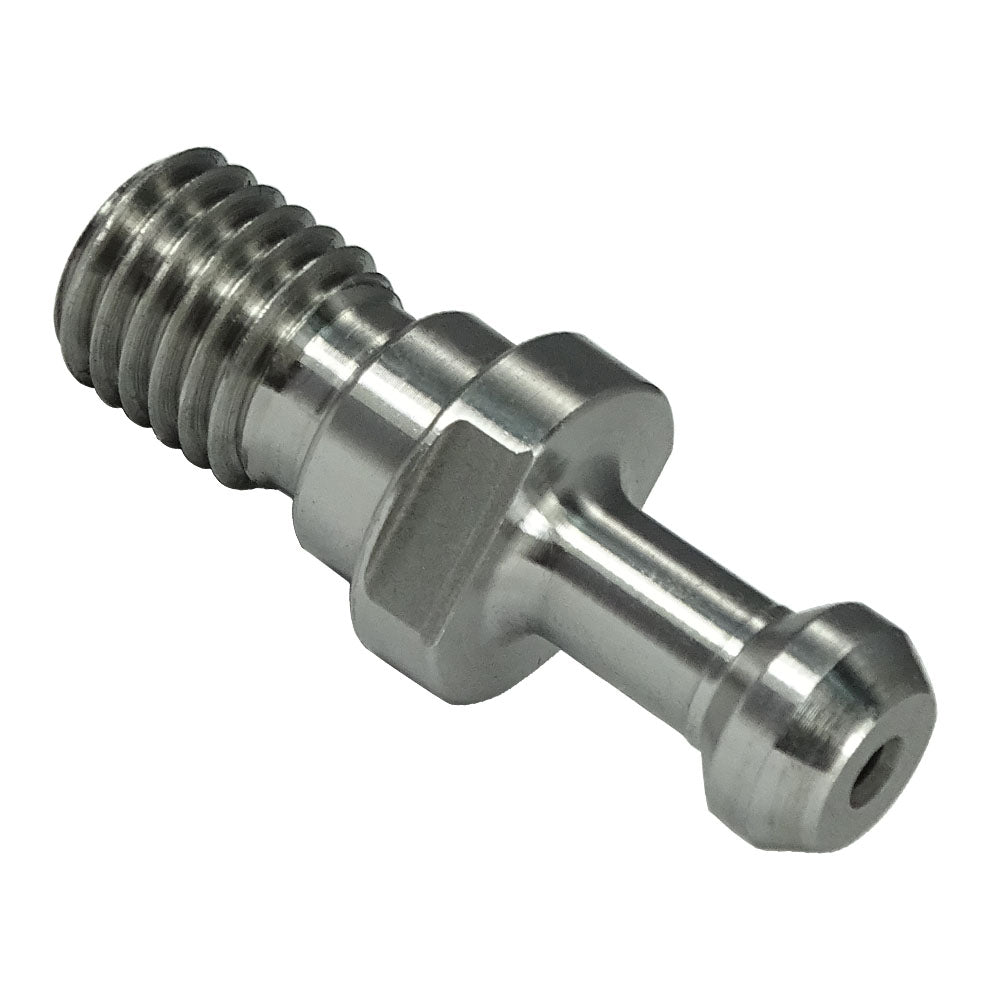

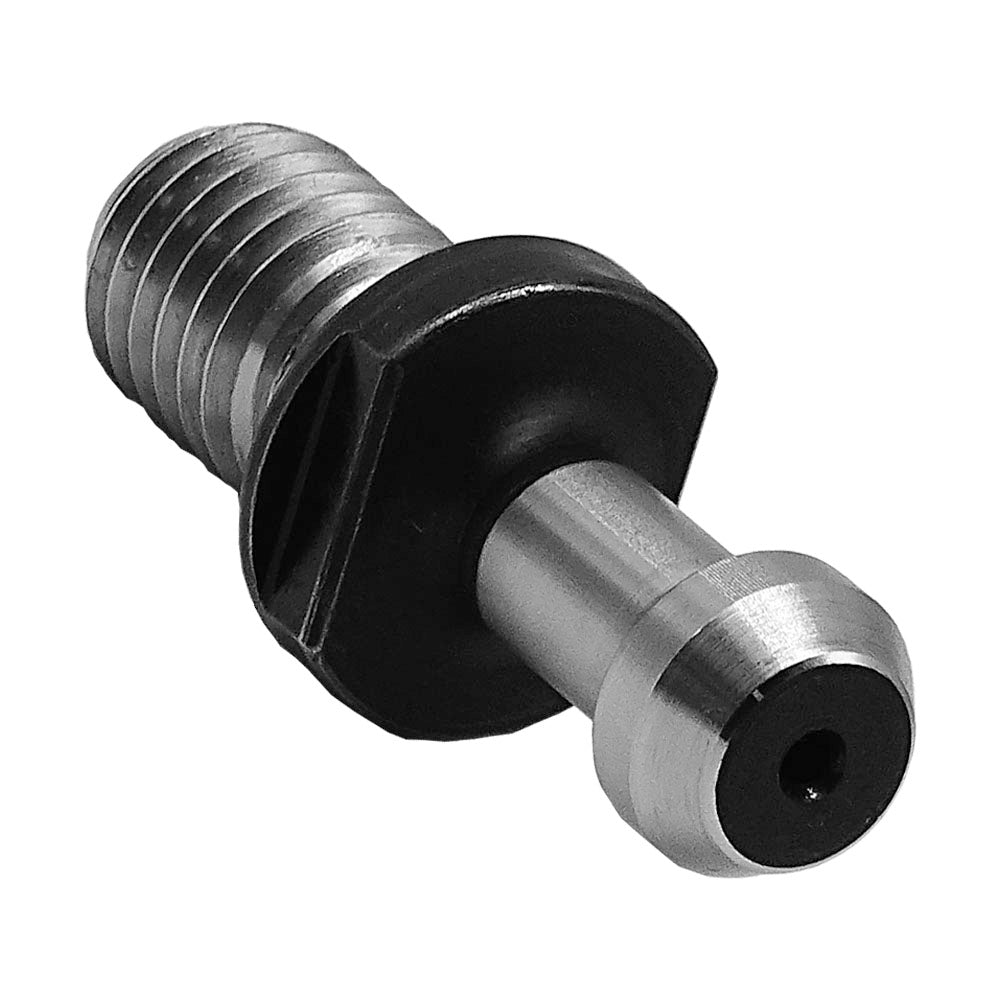

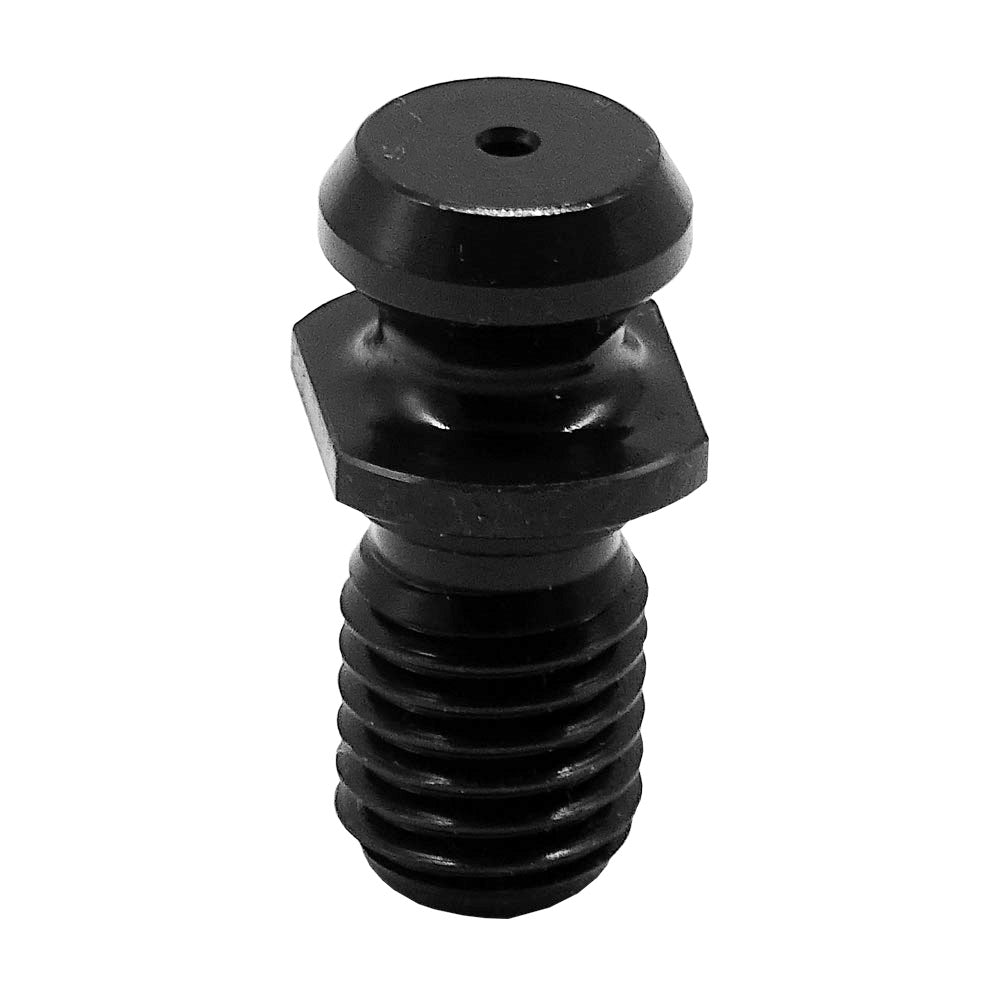

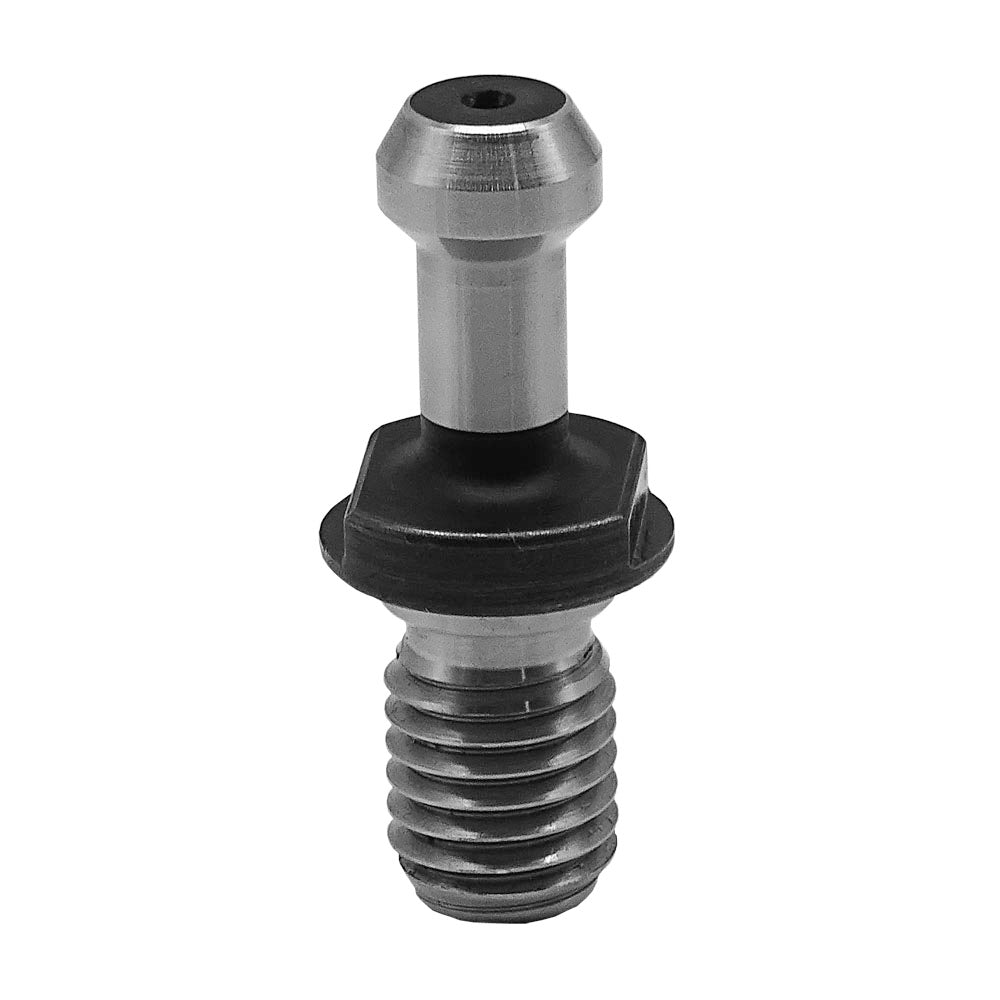

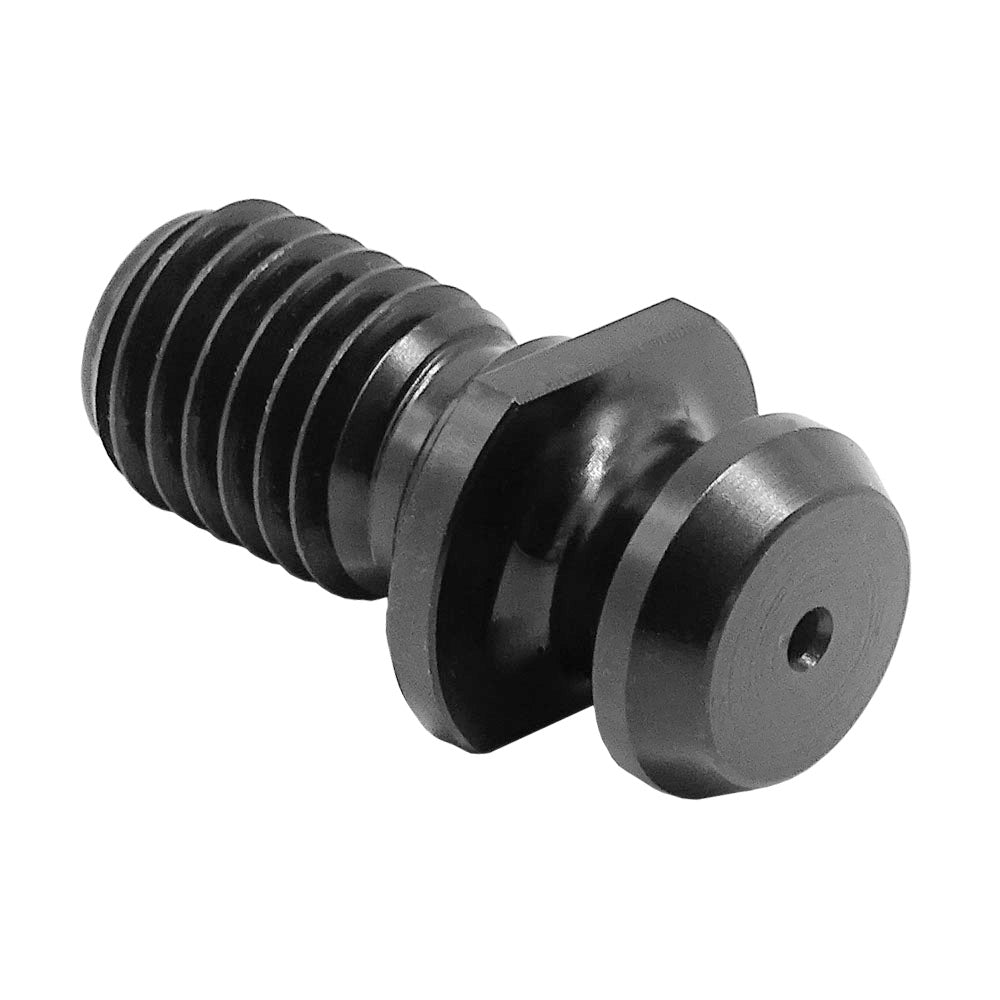

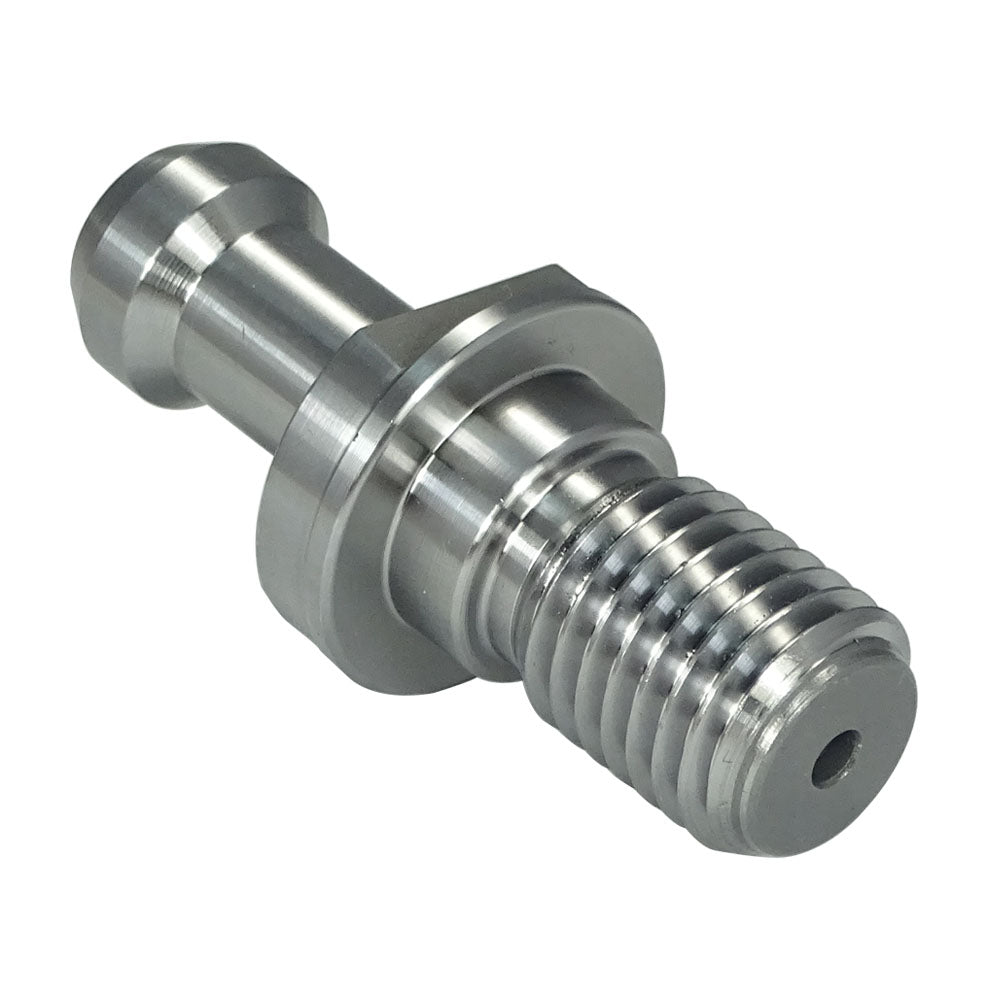

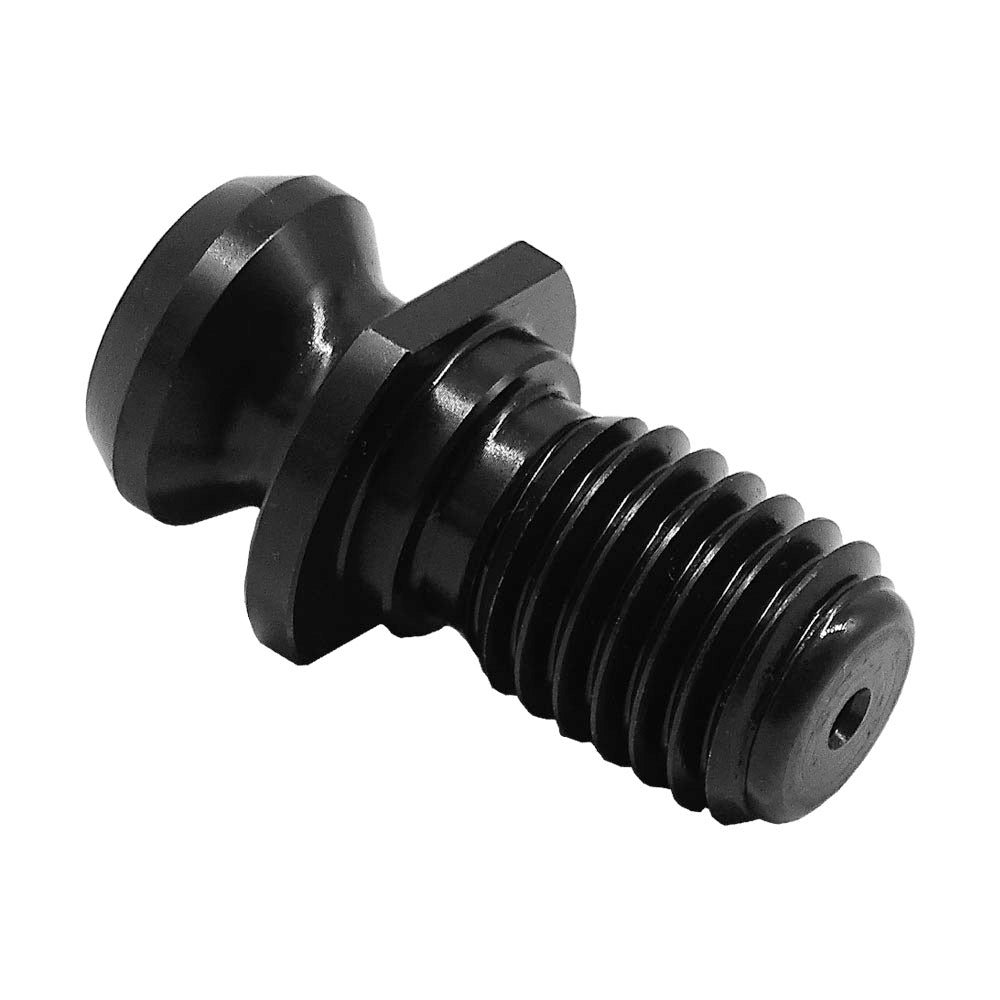

Bodee 45 Degree Angle Radius Pull Stud Retention Knob
$5.18
Unit price /
Unavailable
Shipping calculated at checkout.
Bodee 45 Degree Angle Radius Pull Stud Retention Knob - BT30 Taper M12 x 1.75 Non coolant-thru is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
- The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Retention Knob For BT Tool HOLDERS - MAS 403 Style
Type | E° | L | L1 | L2 | D | B | A | C | d | M | N.W./G.W. | Meas |
BT30×45° | 45 | 43 | 23 | 18 | 16.5 | 11 | 7 | 12.5 | - | M12 | 0.1/0.11 | 0.79 × 0.79 × 1.85 in |
BT40×45° | 45 | 60 | 35 | 28 | 23 | 15 | 10 | 17 | - | M16 | 0.38/0.42 | 1.1 × 1.1 × 2.64 in |
BT40×45° | 45 | 60 | 35 | 28 | 23 | 15 | 10 | 17 | 4 | M16 | 0.14/0.15 | 1.1 × 1.1 × 2.64 in |
BT50×45° | 45 | 85 | 45 | 35 | 38 | 23 | 17 | 25 | - | M24 | 0.63/0.64 | 1.69 × 1.69× 3.7 in |
Type | L | L1 | L2 | D | C | B | A | d | M | N.W./G.W. | Meas |
CAT40×45° | 1.5 | 0.64 | 0.44 | 0.94 | 0.641 | 0.74 | 0.49 | - | 5/8"-11 | 0.15/0.176 | 1.38 × 1.38× 1.7 in |
CAT50×45° | 2.3 | 1 | 0.7 | 1.44 | 1.031 | 1.14 | 0.82 | - | 1"-8 | 0.4/0.44 | 1.1 × 1.1 × 2.64 in |
CAT50×45° | 2.3 | 1 | 0.7 | 1.44 | 1.031 | 1.14 | 0.82 | 0.394 | 1"-8 | 0.33/0.35 | 1.1 × 1.1 × 2.64 in |
CAT50-BT×45° | 3.355 | 1.779 | 1.385 | 1.5 | 0.905 | 0.669 | 1.026 | 5.000 | 1"-8 | 0.55/0.57 | 1.93 × 1.93× 3.58 |
CAT40-BT×45° | 2.25 | 1.265 | 0.989 | 0.905 | 0.589 | 0.392 | 0.636 | 4.000 | 5/8"-11 | 0.11/0.13 | 1.38 × 1.38× 2.45 |
CAT40-BT×45° | 2.25 | 1.265 | 0.989 | 0.905 | 0.589 | 0.392 | 0.636 | - | 0.11/0.13 | 1.38 × 1.38× 2.45 |
