1. Runout: .0002" TIR.
2. Rear thread for pull stud is 1/2"-13
3. Collet Capacity 0.054" - 0.75"
4. All critical tool holder surfaces precision ground and surface smoothing
5. Made from alloy structural steel hardened to HRC48 - 52
6. Hardened and precision taper ground to AT3 accuracy

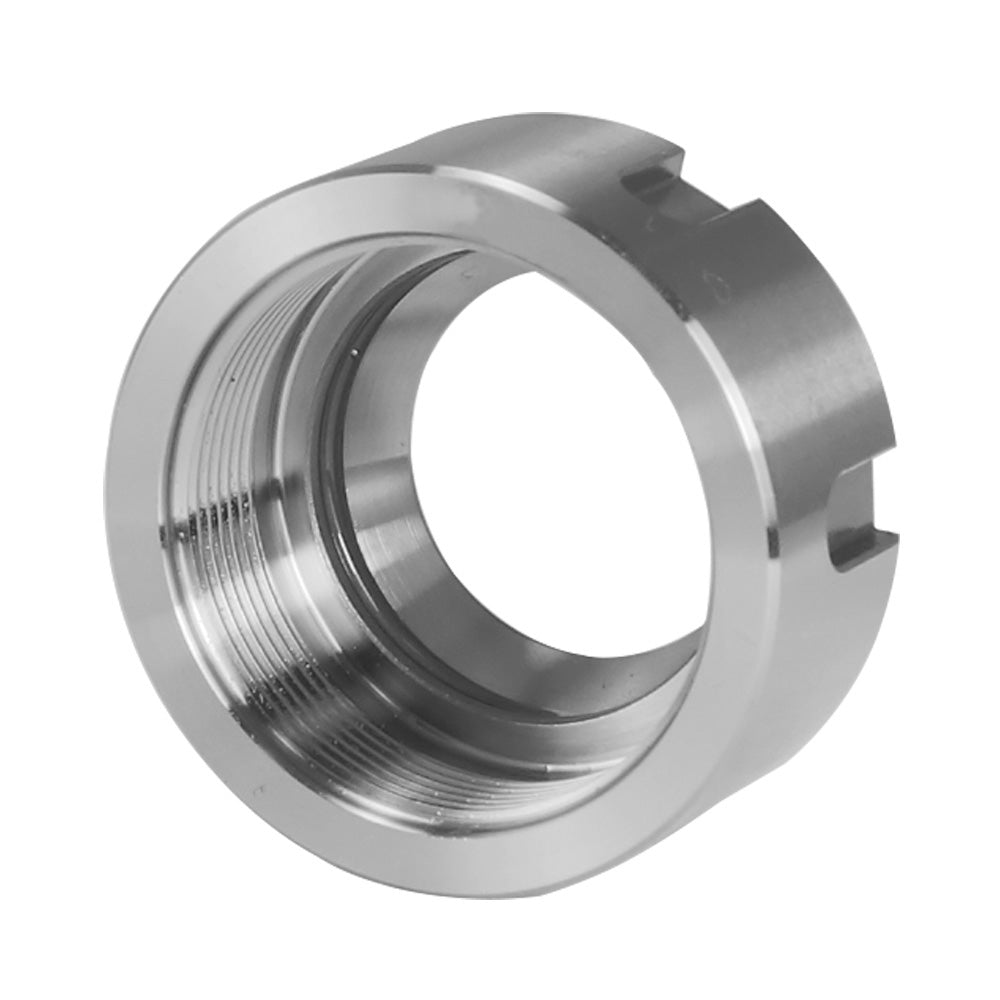

7. Collet nut is included
8. Fit for Drilling Machine, Milling Machine CNC Chuck or Holder
| Brand Name |
Bodee |
Size(D2) |
MT3(23.825mm) |
| SKU |
BA0105003 |
Style Name |
ER32 Type |
| Through Coolant |
YES |
TIR |
0.0002" |
| Actuator Type |
Wrench |
Collet Nut Diameter(D) |
1.97" |
| Collet Range(d) |
0.054" - 0.75" |
D1 |
1.89" |
| Net Weight |
1.32 lbs |
Draw Bar Thread (M) |
1/2"-13 |
| Gross Weight |
1.43 lbs |
Projection (L1) |
2.36" |
| Meas |
2.13 × 2.13 × 5.67 in. |
Overall Length(L) |
5.55" |
