KAKA INDUSTRIAL LLC | SKU: 161306

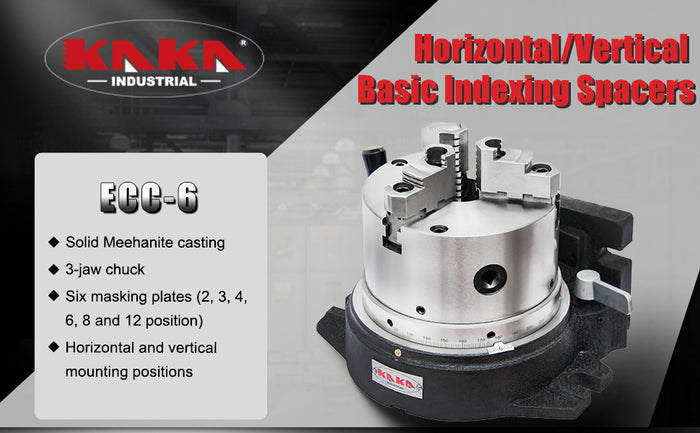

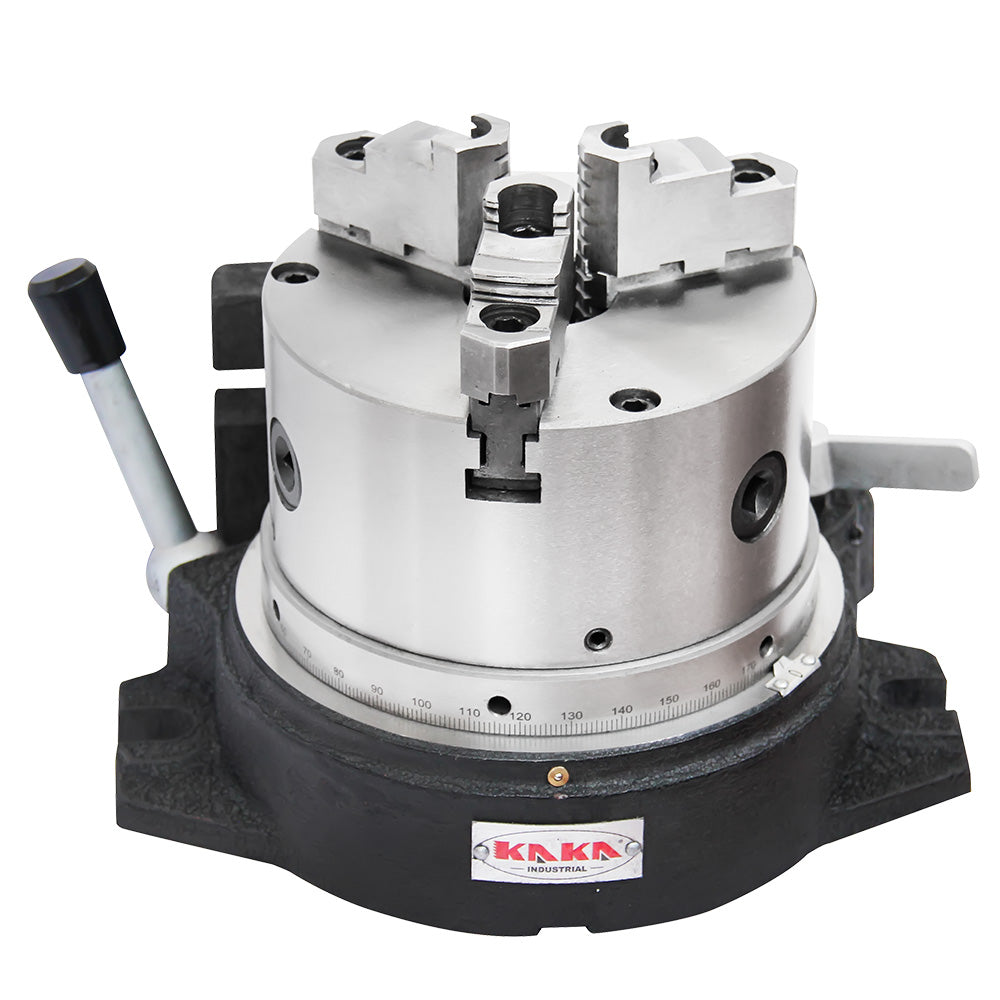

Kaka ECC-6 Horizontal/Vertical Basic Indexing Spacers

$605.00 ~~$668.00~~

Shipping calculated at checkout.

Description
Video
Manual
Summary of Return Policy
Warranty
Delivery and Shipping

Solid Meehanite castings are designed for milling, drilling, and dulling, making them an ideal choice for demanding machining applications.
Precision ground steel spindle provides exceptional accuracy and smooth operation for all machining processes.
Heavy-duty shoe-type spindle brake ensures maximum rigidity for milling cuts.

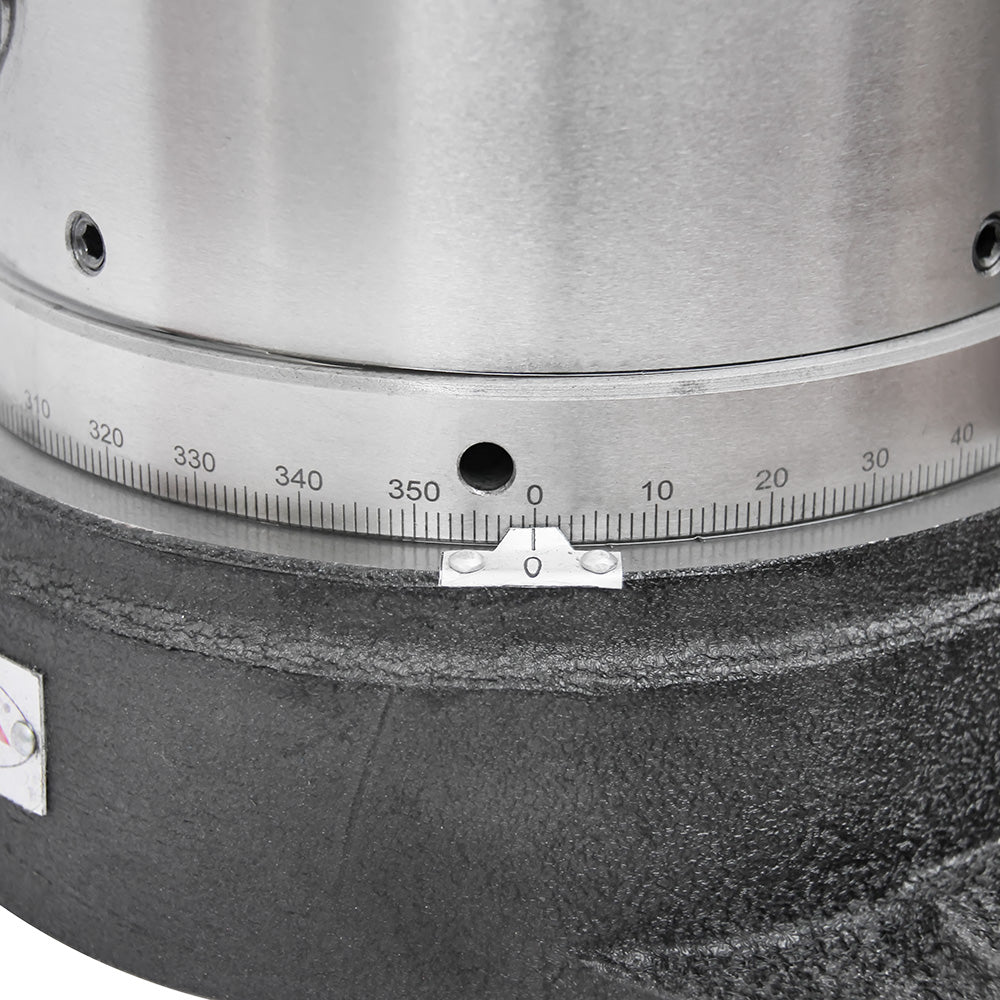

The chrome-plated graduated ring features a five-minute vernier reading for precise measurements, enhancing accuracy.
Large center through hole accommodates large and long workpieces, making it suitable for various applications.
The critical guide block system allows quick and accurate center corrections, streamlining setup time.
Horizontal and vertical mounting positions provide installation flexibility to meet different project requirements.

10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted after this time.
You must obtain a Kaka Industral issued RGA number PRIOR to returning any materials.
Returned materials must be received at Kaka Industrial in new condition and in original packaging.
Altered items are not eligible for return.
Buyer is responsible for all shipping charges.
A 15% re-stocking fee applies to all returns.

KAKA Industrial provides 12 months warranty for this product from the date of purchase.
Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.
The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.

The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

1. Solid Meehanite casting. specially designed for milling,  drilling, and boring.

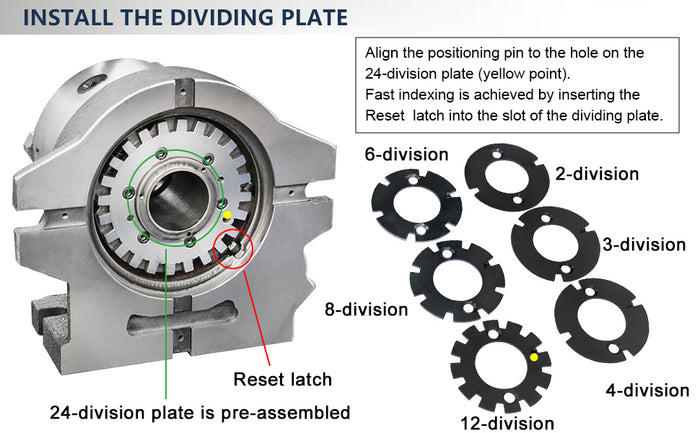

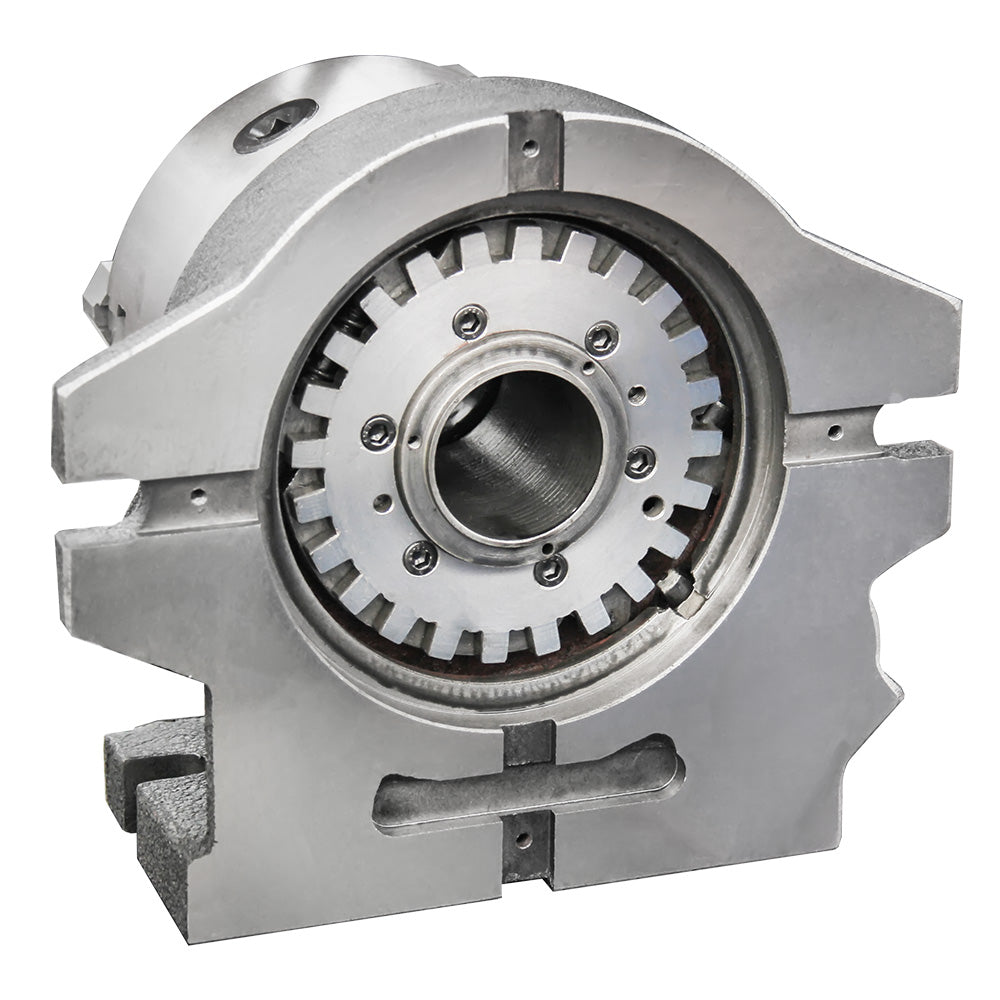

2. Hardened and ground 24 position master plate.
3. Precision-ground steel spindle.
4. Heavy-duty shoe type spindle brake ensuring maximum rigidity for milling cuts.

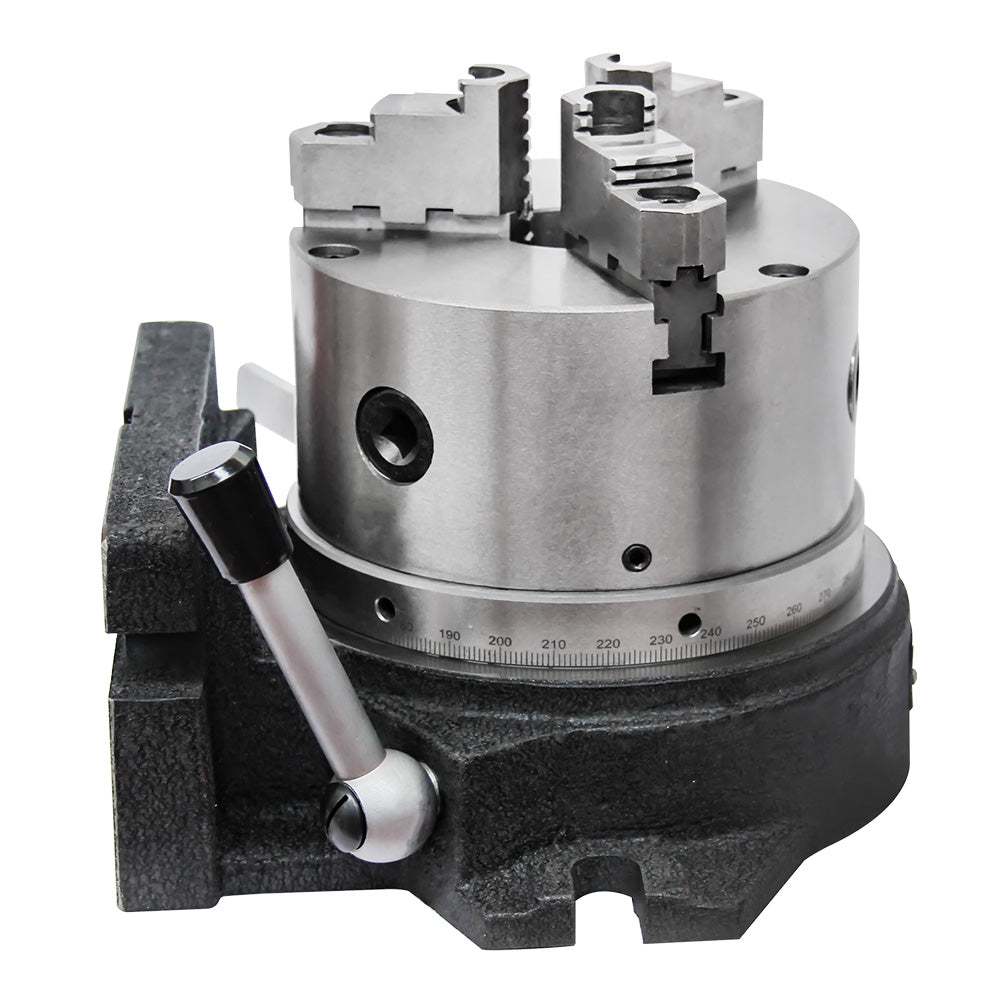

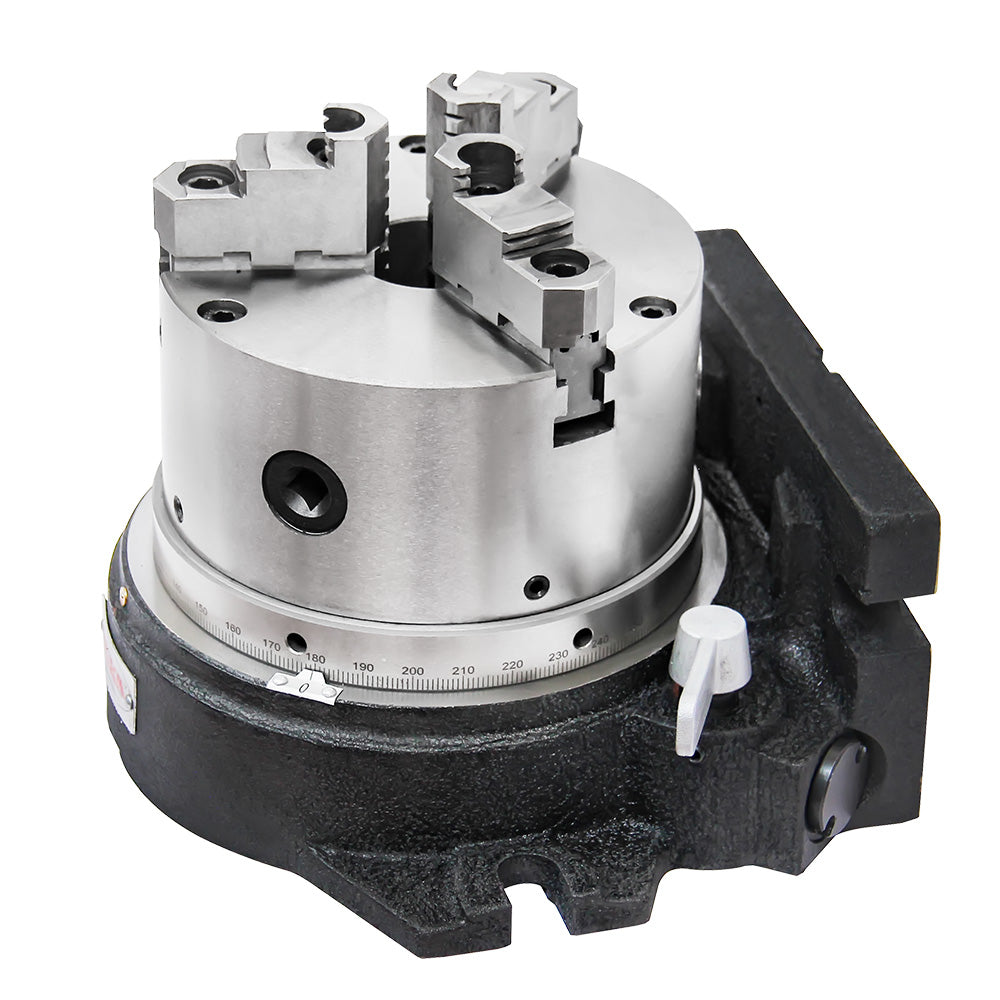

5. Chrome-plated graduated ring with five minutes of vernier reading.
6. The center through hole is big to be suitable for the large and long workpiece.
7. Used the key guide block. the center can be corrected both quickly and accurately.

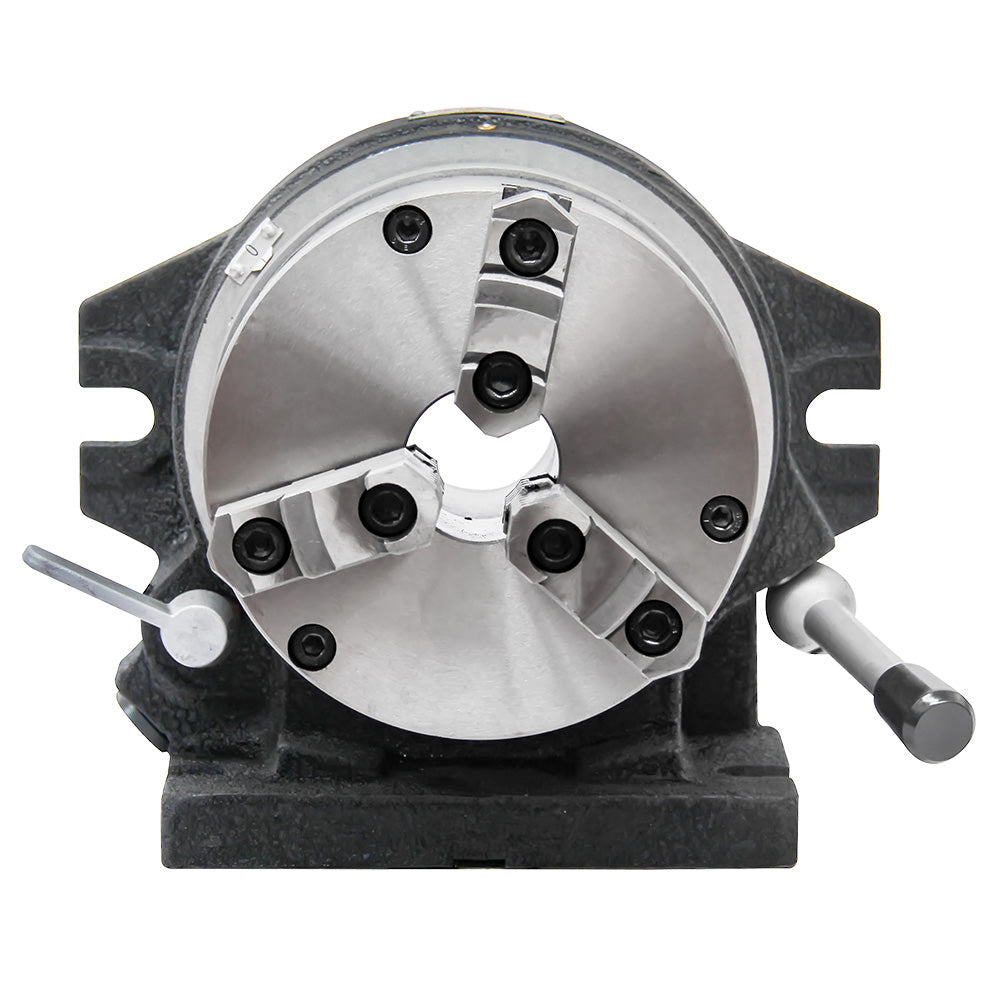

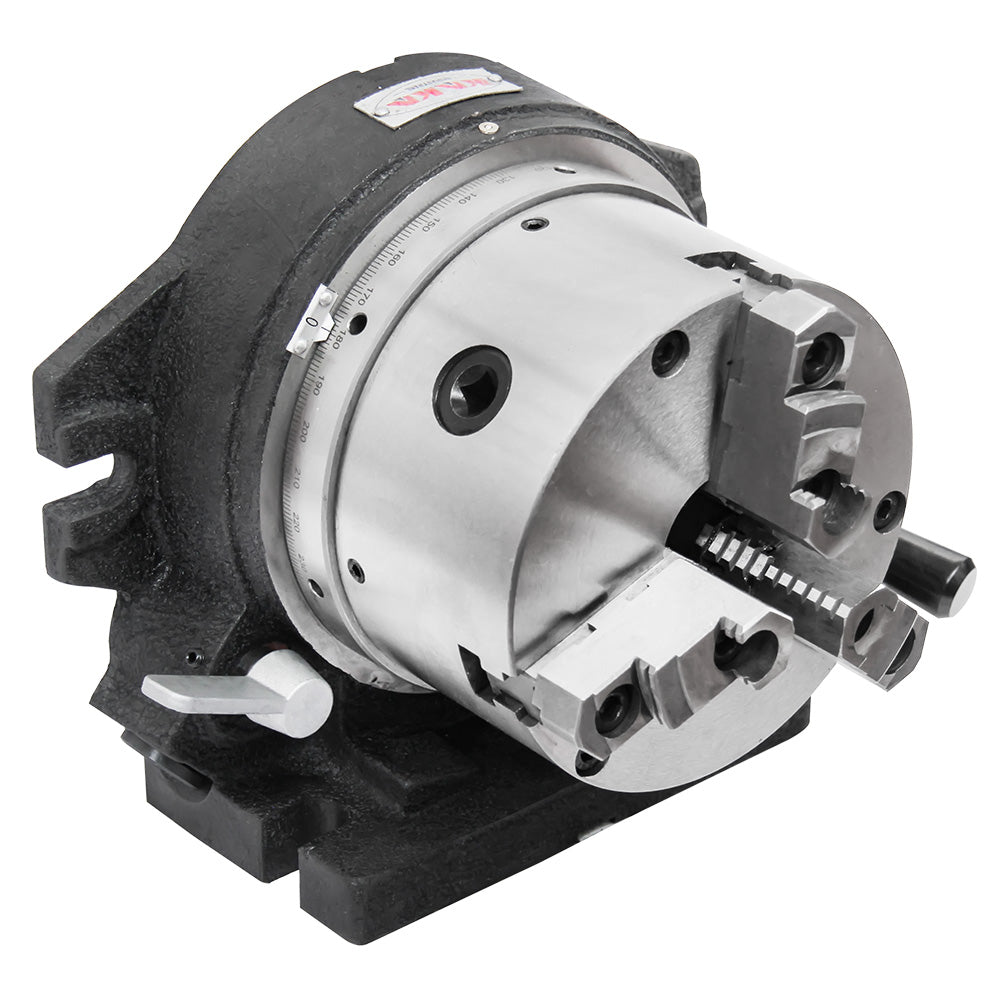

8. Horizontal and vertical mounting positions.

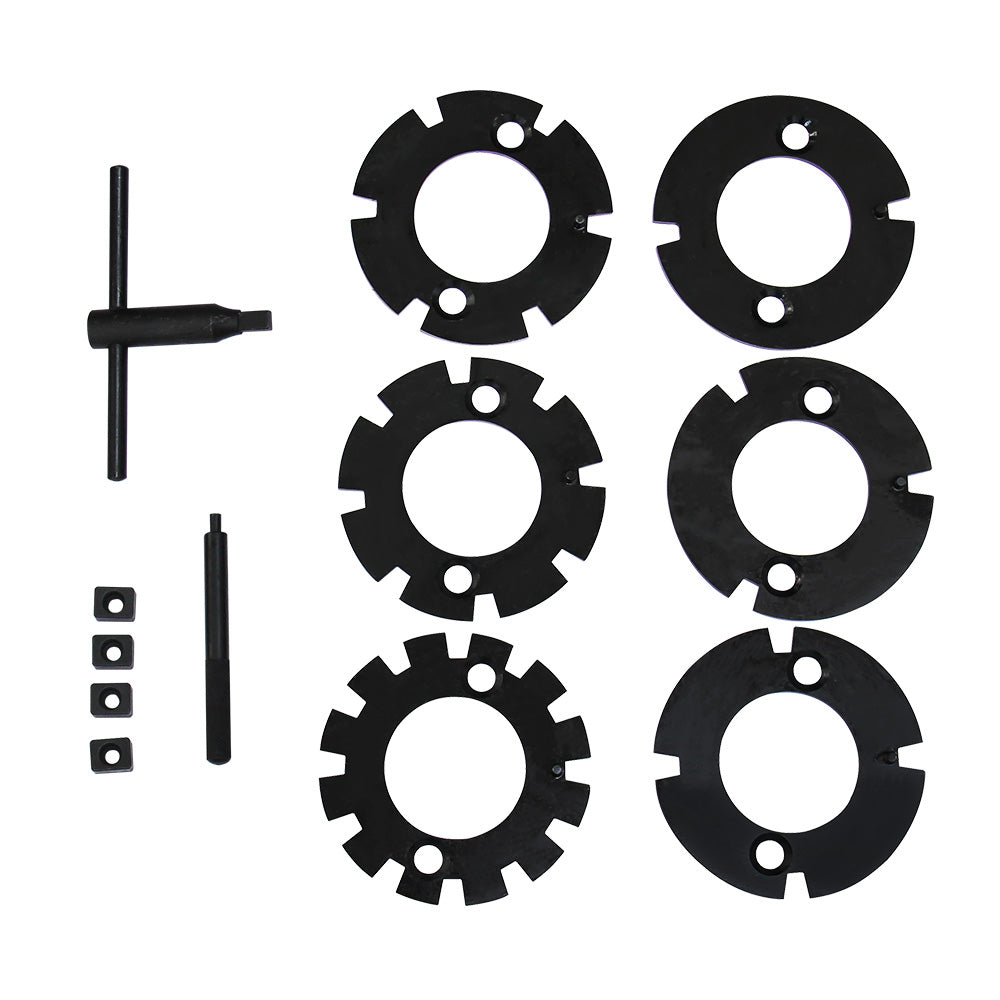

9. Standard Accessoriesv：◆ 3-jaw chuck ◆ Six masking plates(2,3,4,6,8 and 12 position)

Item No.		161306
Model		ECC-6
Chuck	Outer Dia.	6.3" /160mm
	Thru Hole Dia.	1.57" /40mm
	Inner Jaw	0.12"-3.35" /3-55mm
	Outer Jaw	2.17"-5.71" /55-145mm
Guide Block		0.63" /16mm
Turret Hole Dia.		1.97" /50mm

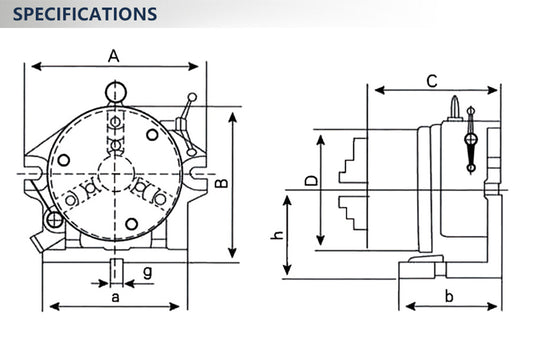

A		10.04" /255mm
B		8.86" /225mm
C		5.98" /152mm
D		6.3" /160mm
a		7.48" /190mm
b		4.53" /115mm
h		5.12" /130mm
Packing size		14"x12"x13"
N.W./G.W.		64/75 lbs

Similar Products

A table comparing the facets of 4 products
Facet	View details	View details	View details	View details
Title

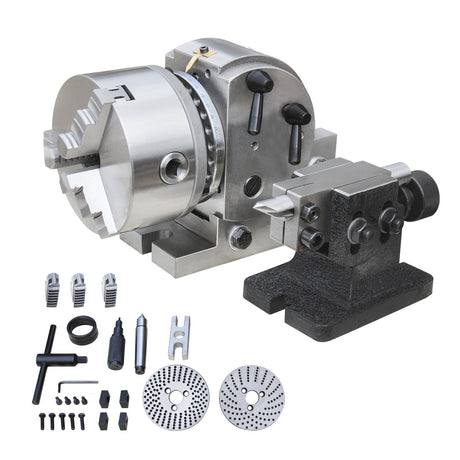

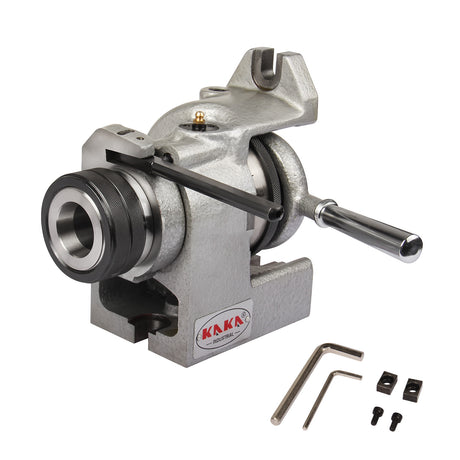

Title	KAKA INDUSTRIAL Semi-Universal Dividing Head Sets BS-0/BS-1 Dividing Head Set 5"/6",with 5"/6" Chuck, Tailstock, Dividing Plates, 3-jaw Chuck Semi Universal Milling Set	Kaka Industrial FNL-100B Horizontal vertical collet index	Kang Industrial HVP-41, Rotary Table with Dividing Plate DP-1, 4 Inch Rotary Table Milling Machine Horizontal Vertical Indexing Plate	KAKA INDUSTRIAL HVP-61, Rotary Table with Dividing Plate DP-1, 6 Inch Rotary Table Milling Machine Horizontal Vertical Indexing Plate
