48 in Pneumatic Magnetic Sheet Metal Brake 16 gauge steel, 6 ton clamping, foot pedal, open-ended, 220V, optional shear attachment, HVAC duct KAKA INDUSTRIAL EB-4816Q

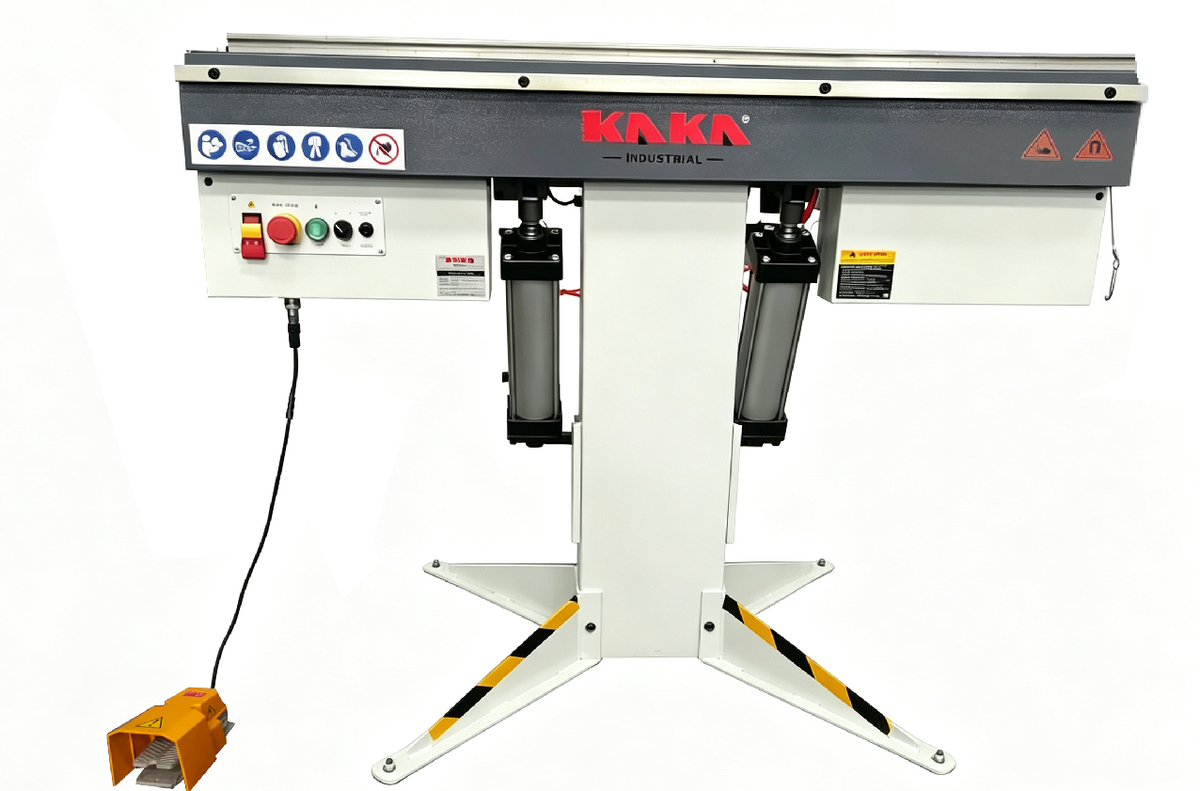

KAKA INDUSTRIAL EB-4816Q 48 in Pneumatic Magnetic Sheet Metal Brake – 16 Gauge Mild Steel, 6 Ton Electromagnetic Clamping, Air-Cylinder Lift

The EB-4816Q is a 48 in magnetic sheet metal brake for sheet metal, HVAC, automotive repair, and shop fabrication work. Instead of a mechanical clamping beam, it uses electromagnetic clamping to hold the workpiece along the beam during bending. Air cylinders do the lifting instead of manual lifting, and a foot pedal keeps both hands free to position the sheet. It has a 16 gauge (1.6 mm) mild steel capacity.

The open-ended layout helps form boxes, pans, enclosed ducts, channels, and longer return bends that are difficult on many side-frame brakes. Choose the correct clamp bar for the bend layout, match material thickness to machine capacity, and follow the duty cycle and thermal cut-out limits during operation.

Key Features

• 6 ton electromagnetic clamping: Holds the workpiece along the beam.
• Air-cylinder lift: Replaces manual lifting. Requires a compressed air supply.
• Foot pedal control: Both hands free to position the sheet.
• Open-ended design: For boxes, pans, enclosed ducts, channels, and return bends.
• Clamp bars: For straight bends and segmented setups.
• Thermal cut-out: 158 degrees F (70 degrees C).

Optional Shear Attachment (Sold Separately)

• Shears sheet up to 0.8 mm (0.031 in)
• Not included with the brake; order separately if needed
• Attachment weight: 22 kg (48.5 lb)
• Attachment packing size: 126 x 23 x 19 cm (49.6 x 9.1 x 7.5 in)

Common Applications

• HVAC ductwork, channels, and enclosed ducts
• Automotive repair and restoration panels and brackets
• Boxes, pans, trays, and enclosures in fabrication shops

Specifications

• Model: EB-4816Q
• Product type: Pneumatic magnetic sheet metal brake
• Nominal capacity: 48 in x 16 gauge mild steel (1250 x 1.6 mm)
• Clamping force: 6 ton
• Lift: Air cylinders (compressed air required)
• Duty cycle: 30%
• Power: 220V-60Hz-1PH
• Thermal cut-out: 158 degrees F (70 degrees C)

Notes

Warning: this machine creates a strong magnetic field. Keep people with pacemakers or other implanted medical devices away from the machine, and keep magnetic items away from the clamping area. Confirm power supply, compressed air supply, clamp bar selection, material type, material thickness, and bend length before operation. Do not exceed the listed duty cycle or material capacity. Keep hands clear of the clamping area during bending.
