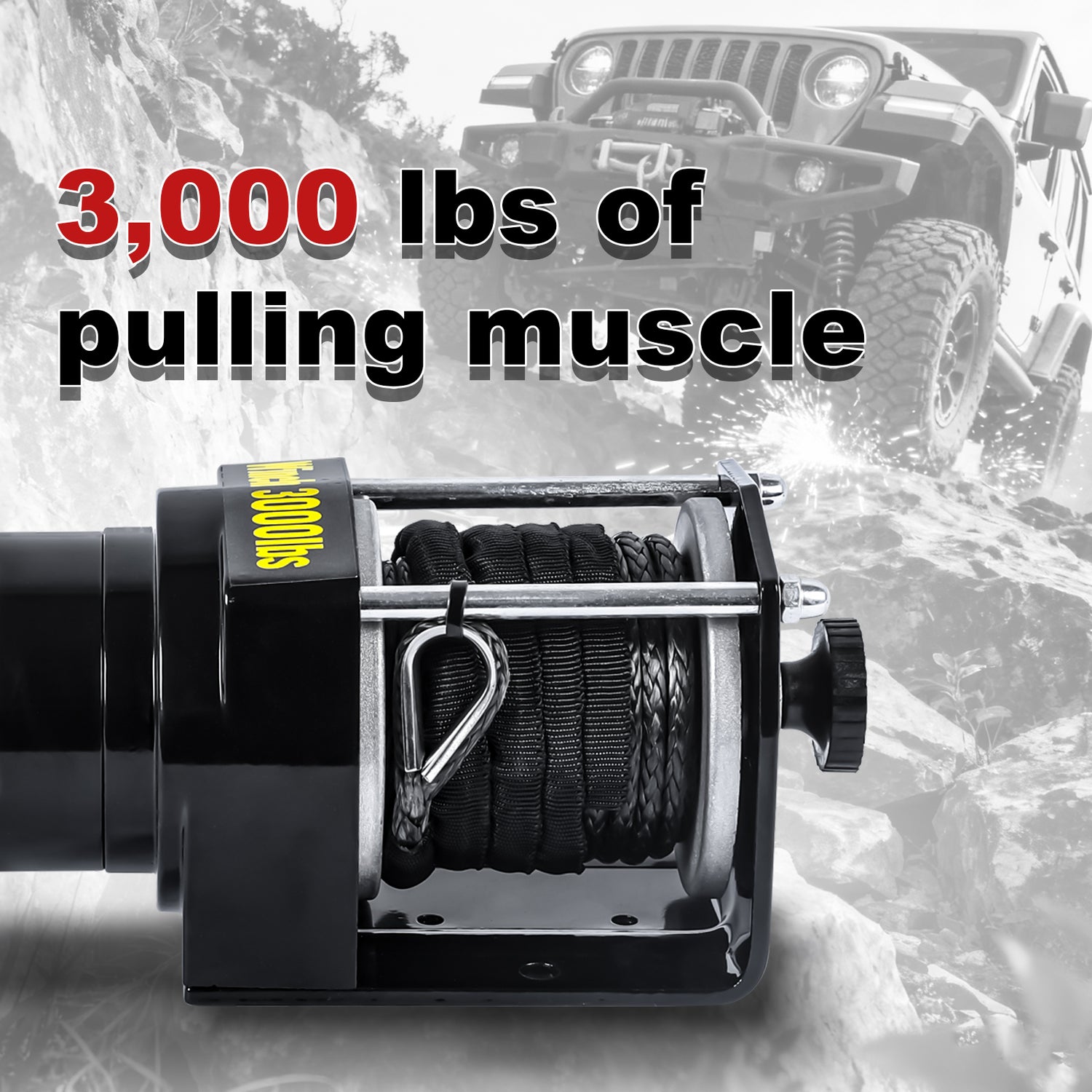

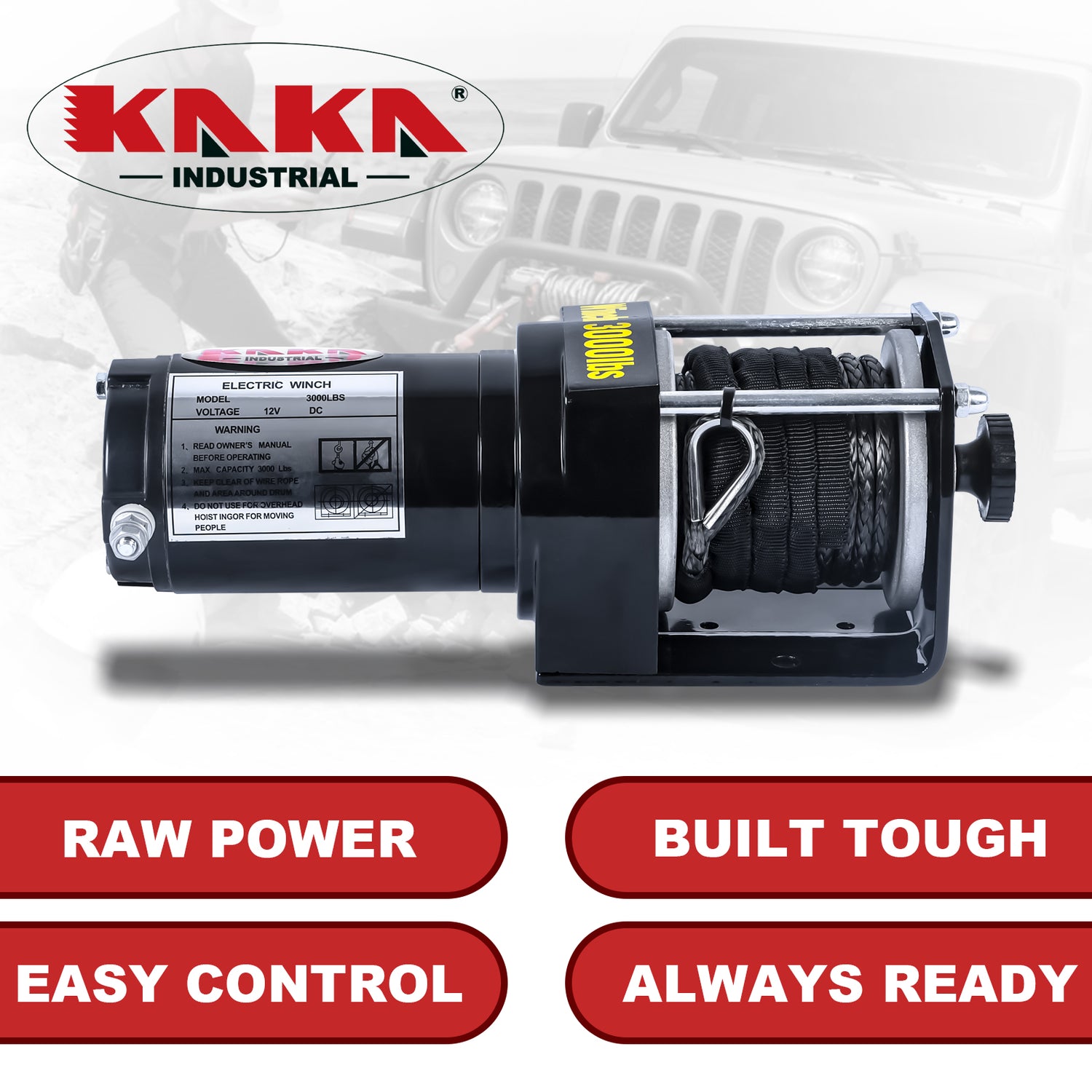

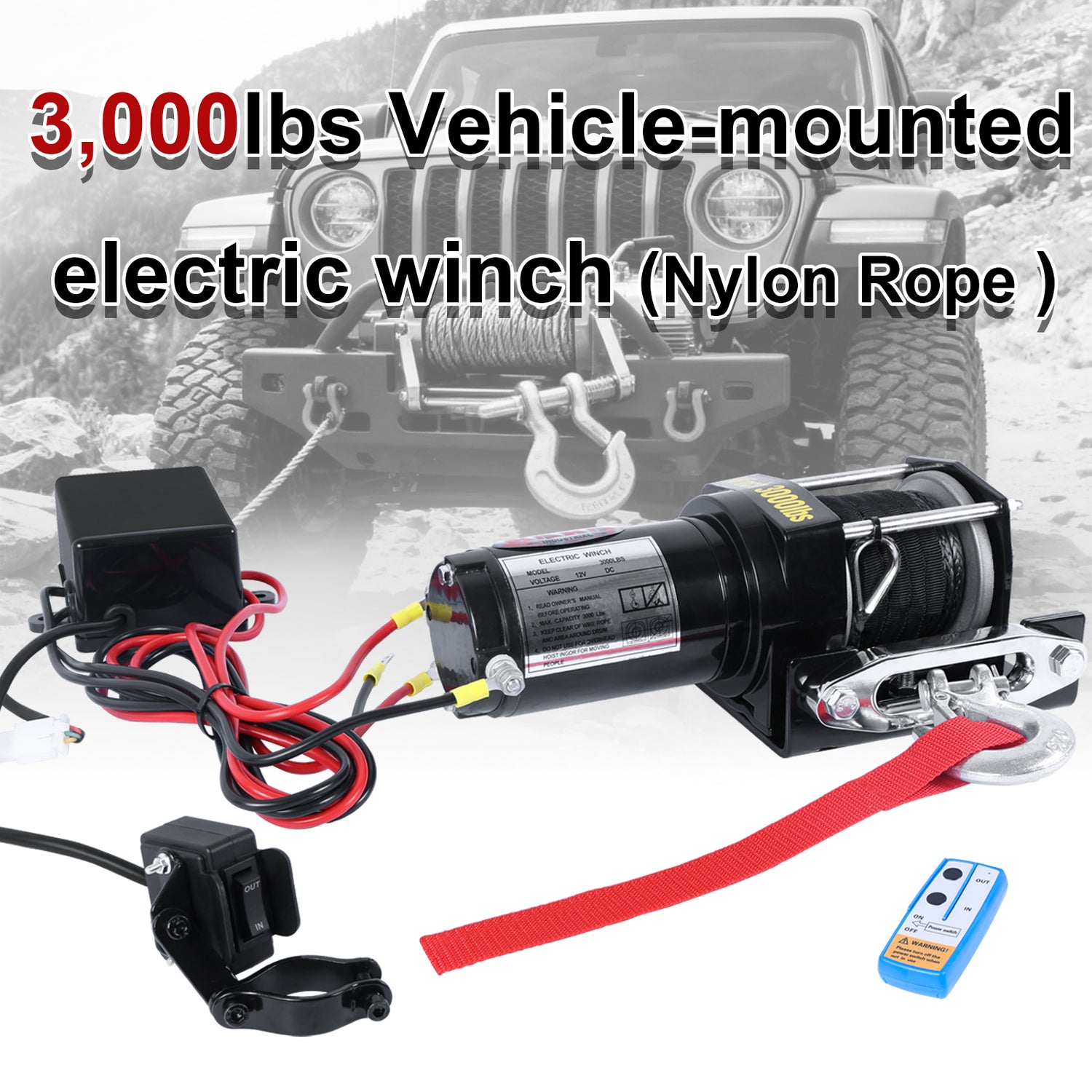

The ATV-3000S 3000LB 12V Electric Winch is engineered for off-road enthusiasts who require a reliable and compact recovery solution for their ATVs and UTVs. Combining a 1.1kW 12V DC motor with a 153:1 single-stage planetary gear system, this winch delivers a 3000-pound (1361 kg) pulling capacity. It comes equipped with a highly visible and durable red synthetic rope (0.19-inch diameter, 30-foot long), making it an essential recovery tool for off-road adventures .
Key Features & Benefits

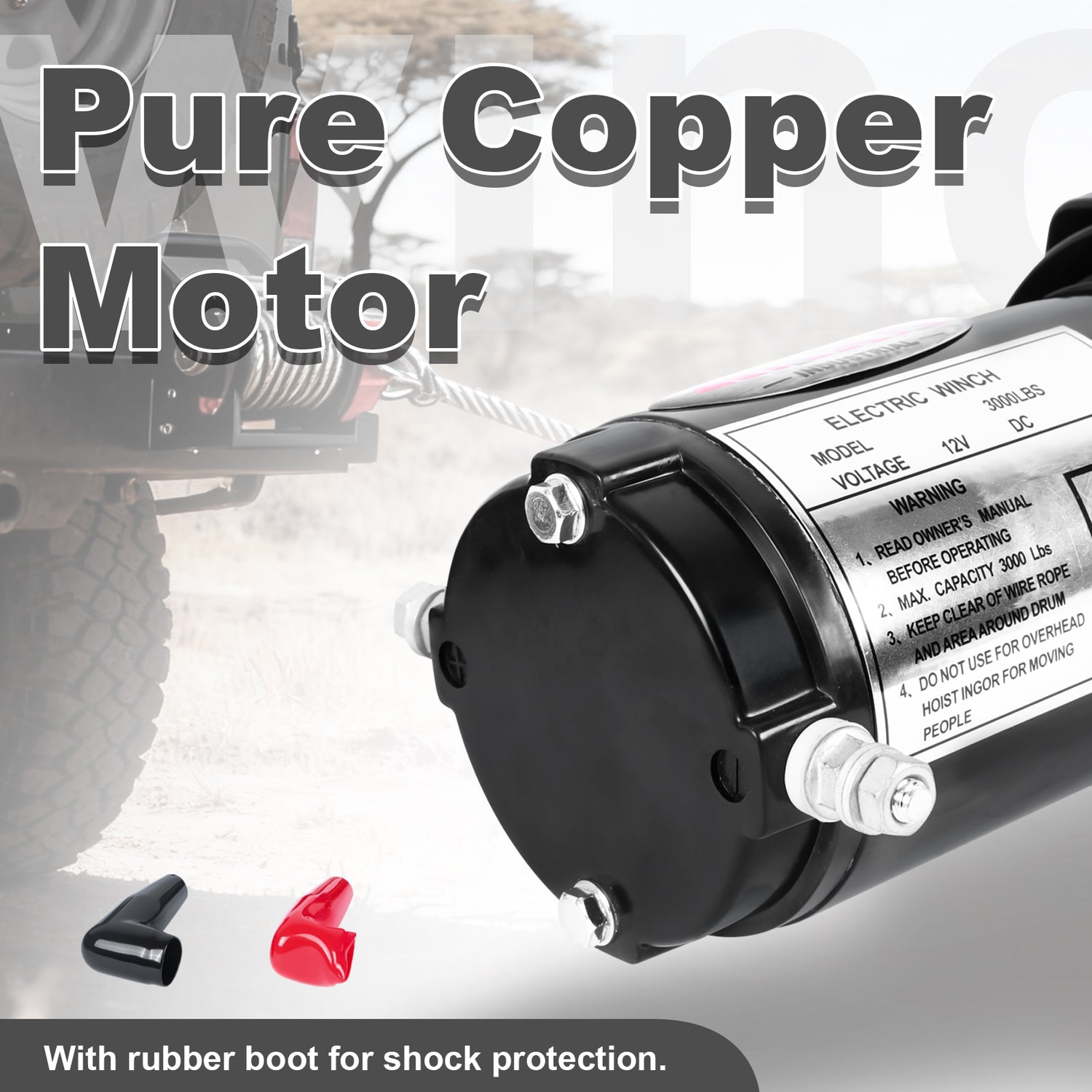

- High-Capacity Pulling Power: The 3000LB rated line pull provides ample strength for most ATV and UTV recovery situations. The efficient 12V DC motor (1.1kW) ensures reliable performance when you need it most, drawing 15A under no-load and 140A under full load for optimal power delivery .
- Robust Synthetic Rope: The 0.19-inch (4.8 mm) diameter synthetic rope with a length of 30 feet (9 m) offers a high breaking strength of 4,409 pounds (2,000 kg). It is lightweight, floats on water, and is safer to handle compared to steel cable, reducing the risk of injury if it snaps .

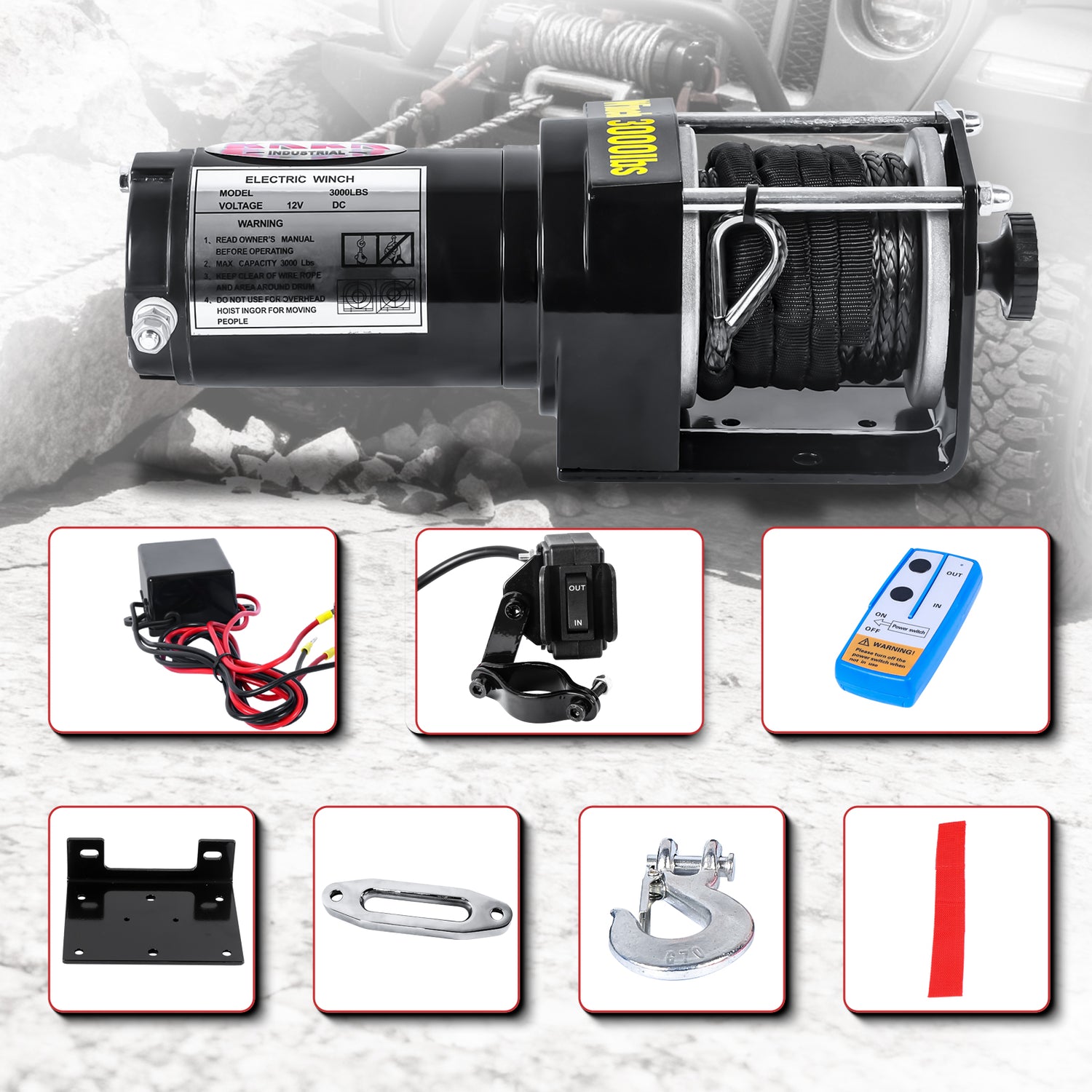

- Efficient Gear System & Remote Control: The single-stage planetary gear system with a 153:1 reduction ratio provides smooth power transmission. The included wireless remote control (10.5 feet / 3.2 m) allows for safe and convenient operation from a distance .
- Compact Design for Easy Installation: With a light net weight of 17.6 lbs (8 kg) and compact size, this winch is designed for easy installation on a variety of ATVs and UTVs, making it a versatile tool for off-road adventures .
Technical Specifications (Dual Units)
- Model: ATV-3000S
- Rated Line Pull: 3,000 lbs (1,361 kg)
- Motor Power: 1.1 kW (12V DC)
- Rope Size: 0.19 inch x 30 ft (4.8 mm x 9 m)
- Rope Breaking Strength: 4,409 lbs (2,000 kg)
- Gear Reduction Ratio: 153:1, Single-Stage Planetary Gear
- Remote Control: 10.5 ft (3.2 m)
- Net Weight: 17.6 lbs (8 kg)
- Gross Weight: 19.8 lbs (9 kg)
Ideal for ATV and UTV owners, the ATV-3000S winch provides a dependable solution for off-road recovery. Always follow the manufacturer's instructions and safety guidelines during operation .
