3000LB 12V Electric Winch, 0.19Inch x 30Ft Steel Wire Rope, 1.1kW Motor, 153:1 Gear Ratio, Remote Control, for ATV UTV Off-Road Recovery ATV-3000W
3000LB 12V Electric Winch, 0.19Inch x 30Ft Steel Wire Rope, 1.1kW Motor, 153:1 Gear Ratio, Remote Control, for ATV UTV Off-Road Recovery ATV-3000W is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
- The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

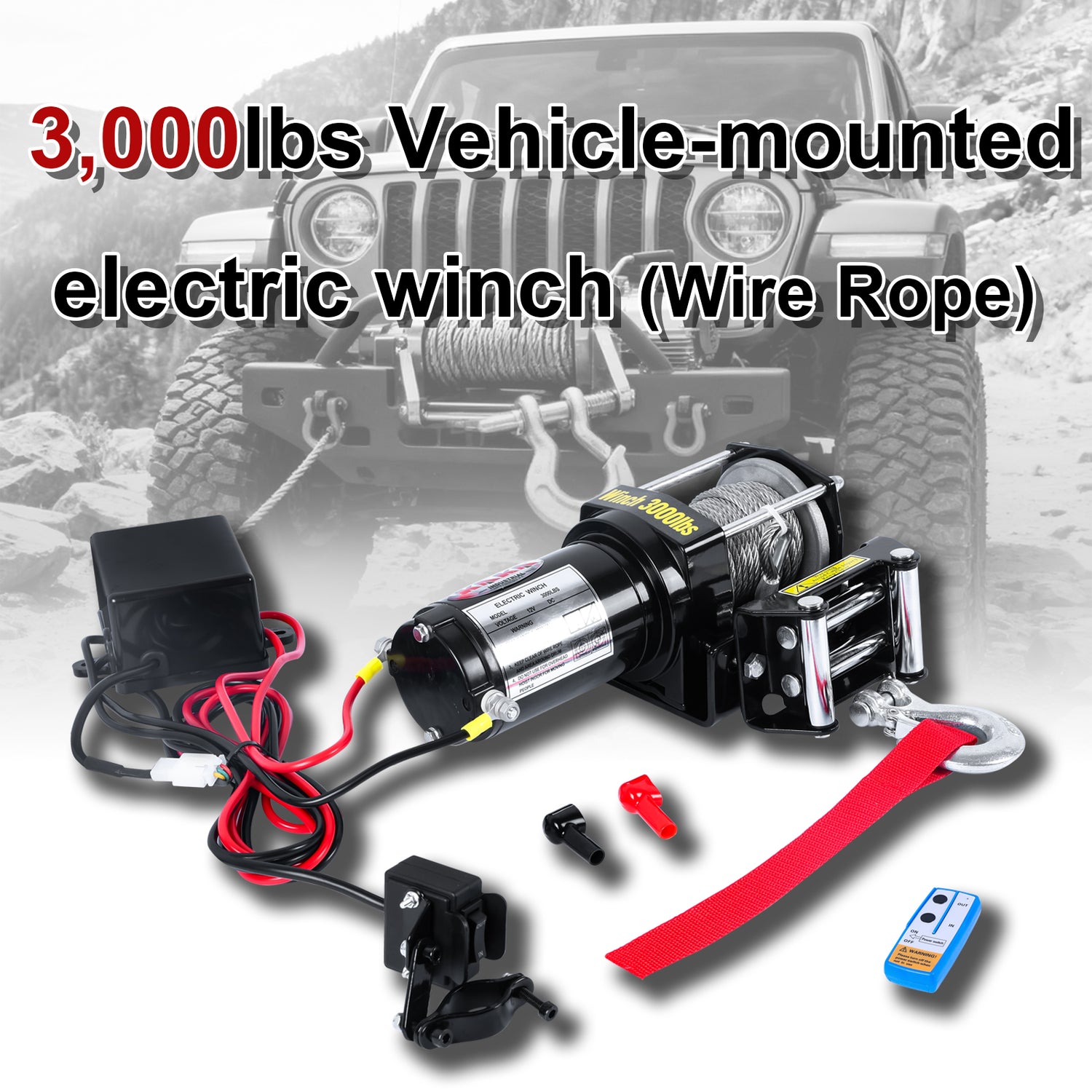

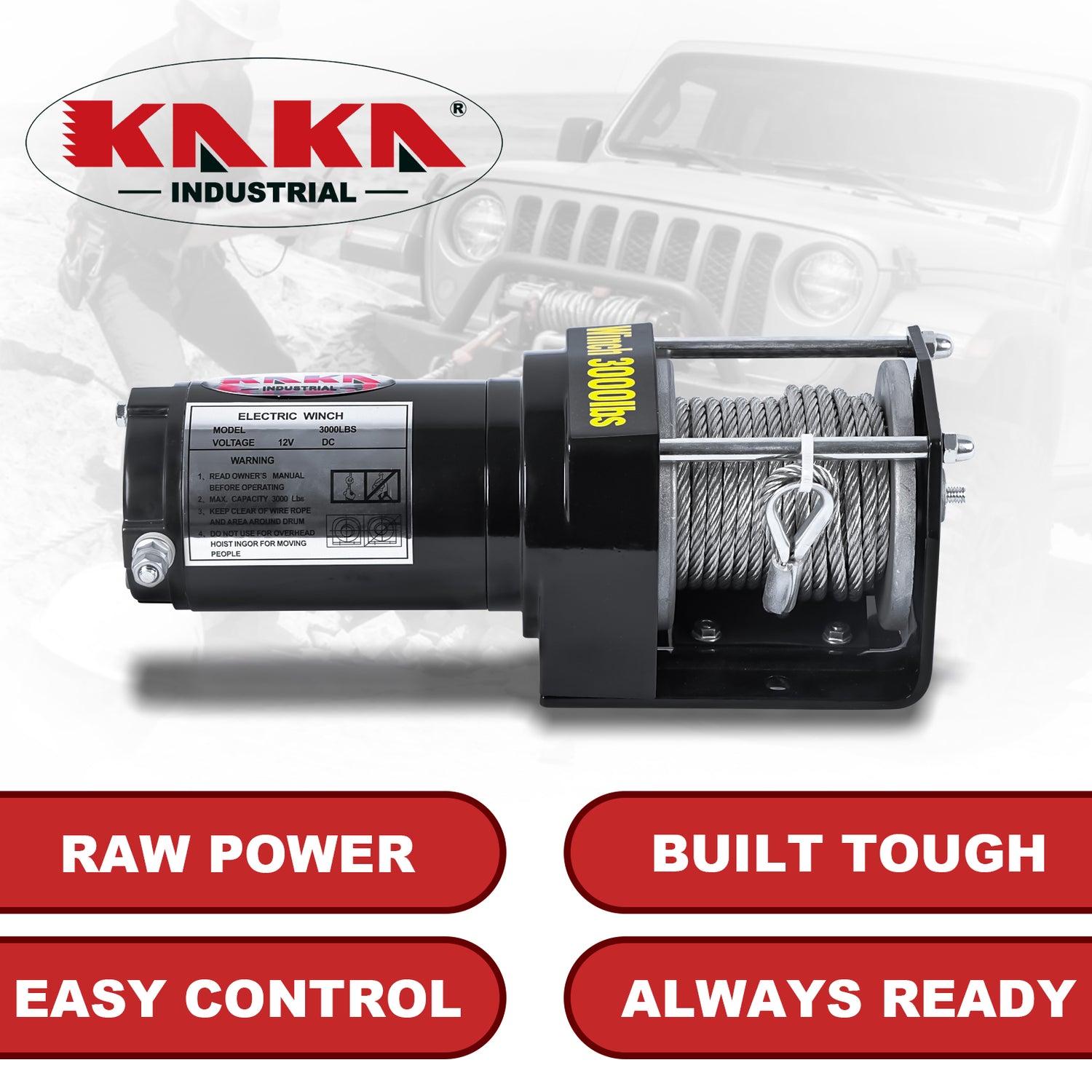

The ATV-3000W 3000LB 12V Electric Winch is designed for off-road enthusiasts who require a reliable and compact recovery solution. Featuring a 1.1kW 12V DC motor and a 153:1 single-stage planetary gear system, this winch delivers a 3000-pound (1361 kg) pulling capacity. It comes with a 0.19-inch diameter, 30-foot long steel wire rope (4.8 mm x 9 m), making it an essential tool for ATV and UTV recovery in challenging conditions .
Key Features & Benefits

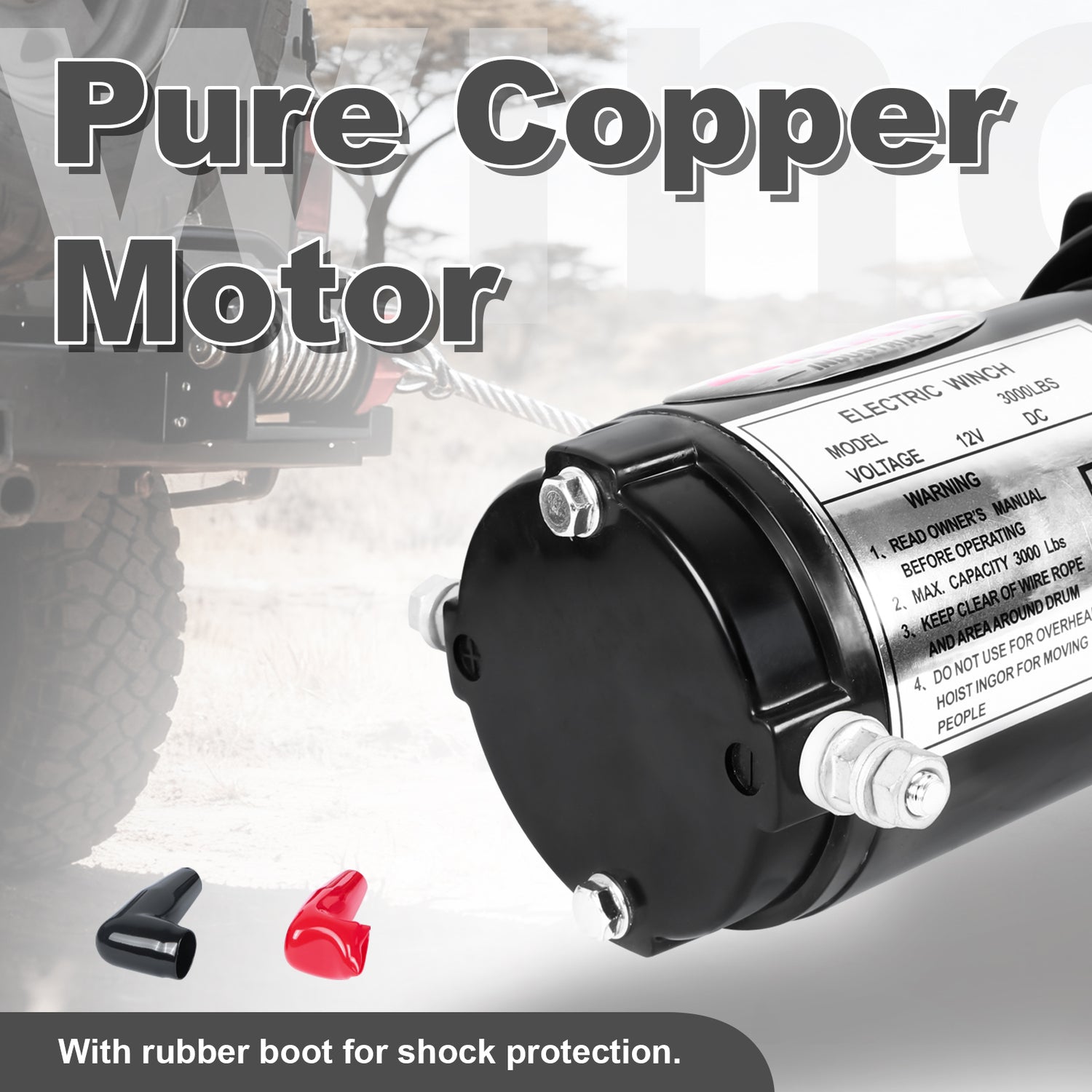

- Effective Pulling Power: The 3000LB rated line pull provides ample strength for most ATV and UTV recovery situations. The efficient 12V DC motor (1.1kW) ensures reliable performance, drawing 15A under no-load and 140A under full load for balanced power delivery .

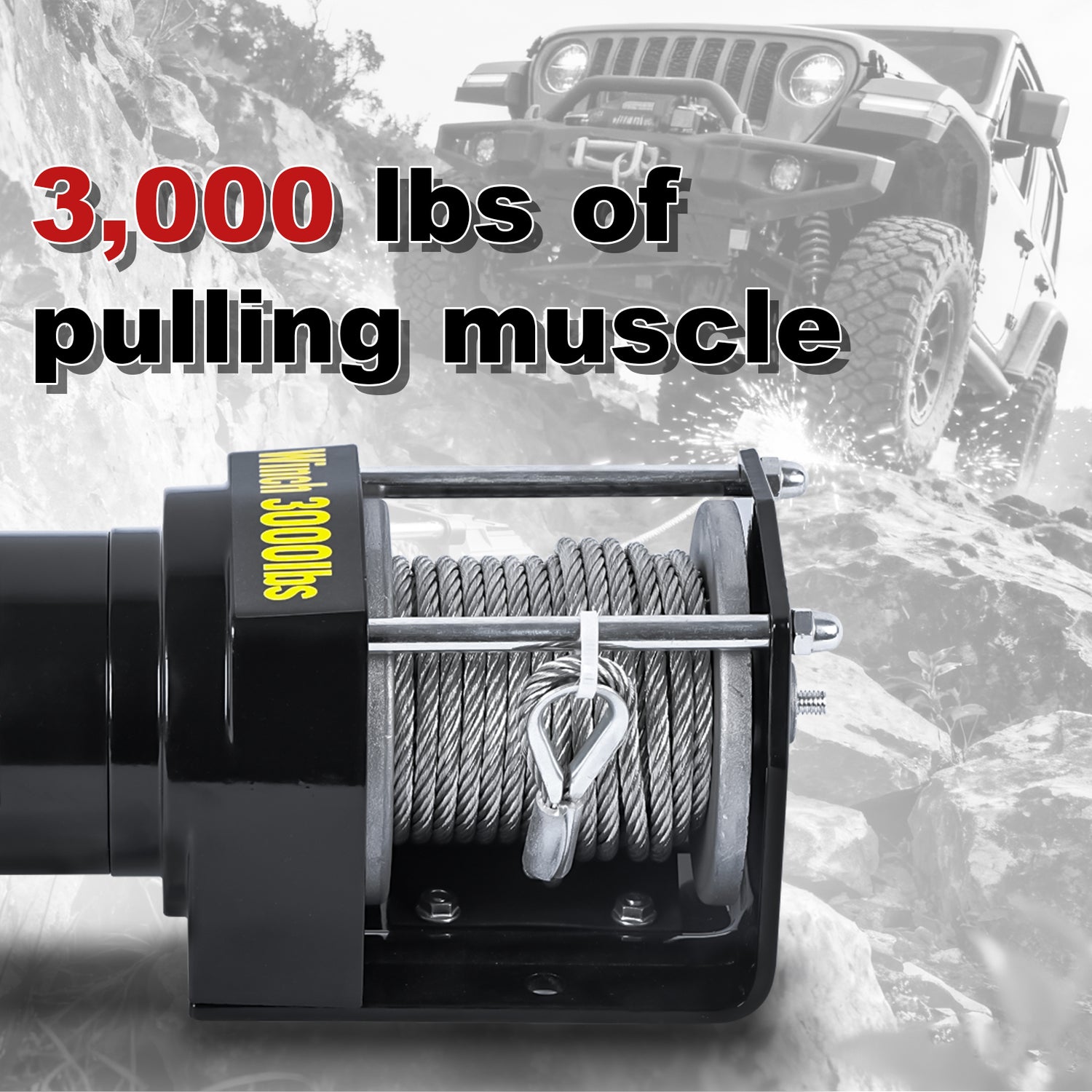

- Robust Steel Wire Rope: The 0.19-inch (4.8 mm) diameter steel wire rope with a length of 30 feet (9 m) offers a high breaking strength of 4,409 pounds (2,000 kg), ensuring durability and safety during recovery tasks .

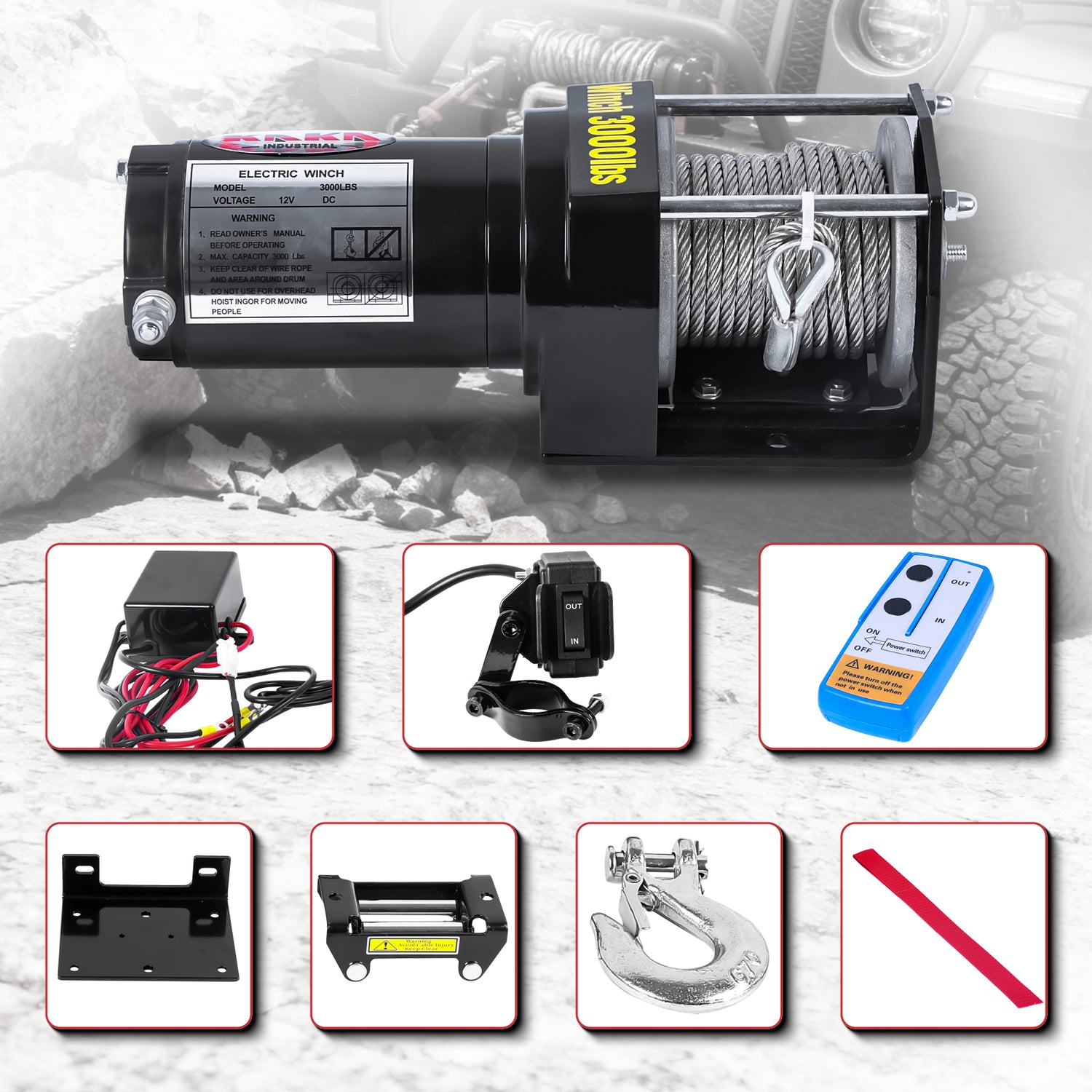

- Efficient Gear System & Remote Control: The single-stage planetary gear system with a 153:1 reduction ratio provides smooth power transmission. The included remote control (10.5 feet / 3.2 m) allows for operation from a safe distance .
- Compact Design for ATV/UTV Use: With a light net weight of 17.6 lbs (8 kg) and compact size, this winch is designed for easy installation on a variety of all-terrain vehicles, making it a versatile tool for off-road adventures .
Technical Specifications (Dual Units)
- Model: ATV-3000W
- Rated Line Pull: 3,000 lbs (1,361 kg)
- Motor Power: 1.1 kW (12V DC)
- Rope Size: 0.19 inch x 30 ft (4.8 mm x 9 m)
- Rope Breaking Strength: 4,409 lbs (2,000 kg)
- Gear Reduction Ratio: 153:1, Single-Stage Planetary Gear
- Remote Control Length: 10.5 ft (3.2 m)
- Net Weight: 17.6 lbs (8 kg)
- Gross Weight: 19.8 lbs (9 kg)
- Packing Size: 16.1 x 11.0 x 7.5 inches (41 x 28 x 19 cm)
