Folding Pipe Jacks

KAKA Industrial V Head Pipe Stand, Folding Pipe Jacks,Folding Pipe Stands

$114.99

Shipping calculated at checkout

SKU: 178295

Only 5 left!
1 9f4c74d2 52d3 4829 b800 6b1aea776ee1

Quality

assured

2

Caring

service

3

Guide

operation

Description Warranty Summary of Return Policy

Folding Pipe Jacks

SPECIFICATIONS

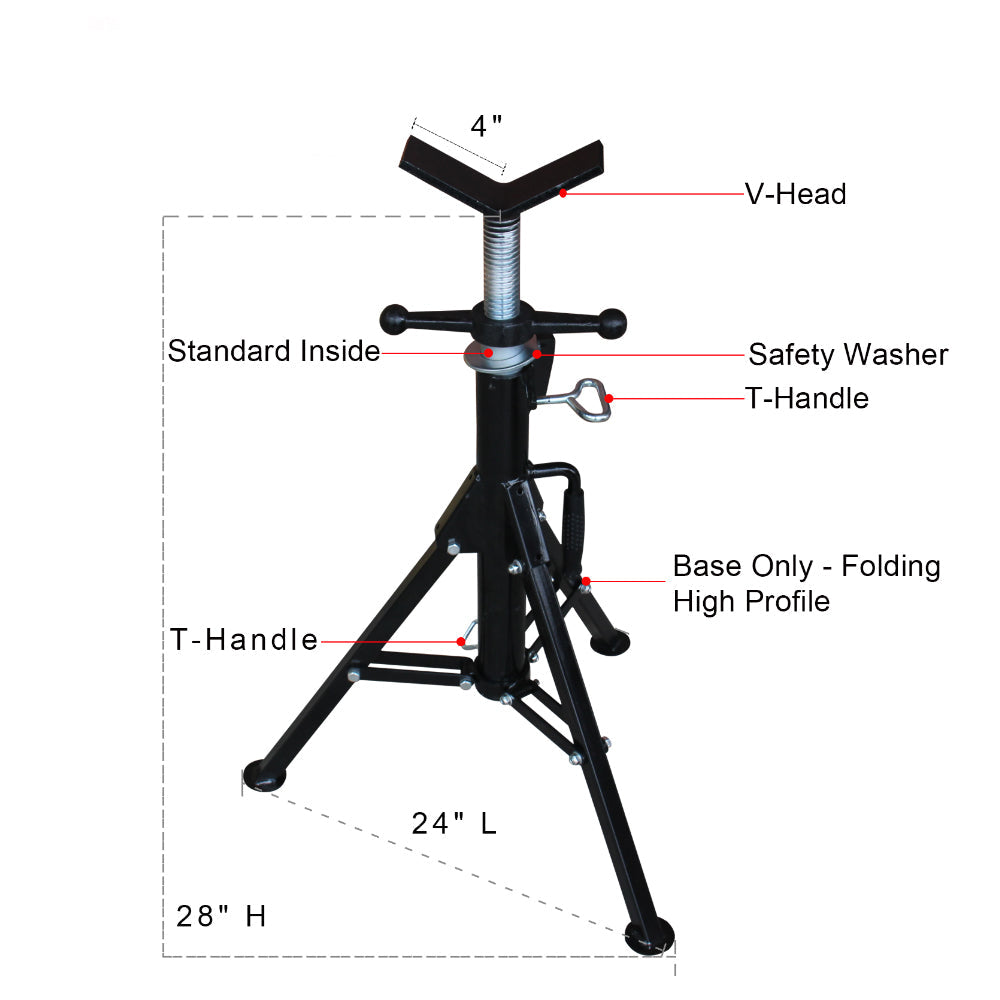

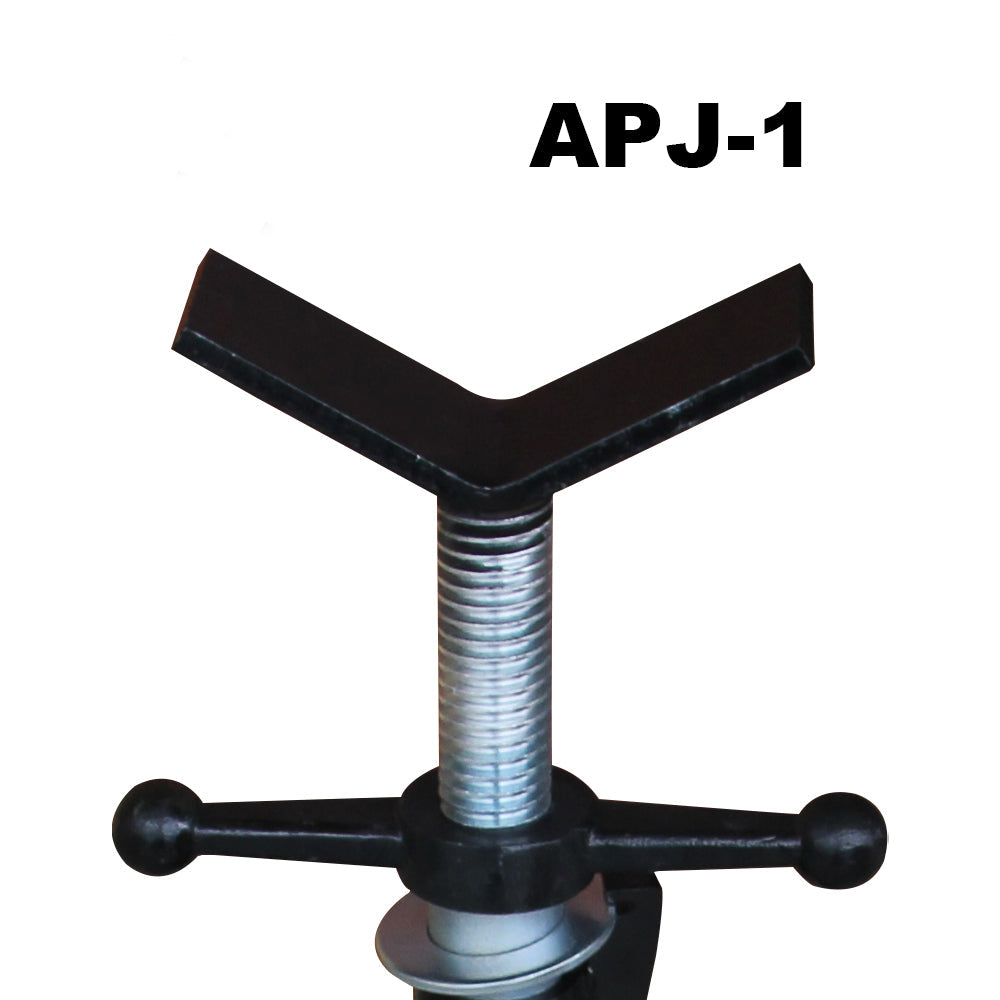

  • Increased V-Head dimension.

  • 1 1/2" Acme threaded rod.

  • 1" tube steel legs and tube steel brace supports.

  • Multiple head options.

  • Optional safety ring secures safety washer to base.

  • 1/4" T-handle lock reduces wobble in fit-up.

  • The bottom tube washer offers extra lateral rigidity.

  • Powder-coated safety red.

  • Fully welded carry handle doubles as a security lock point.

Specification:

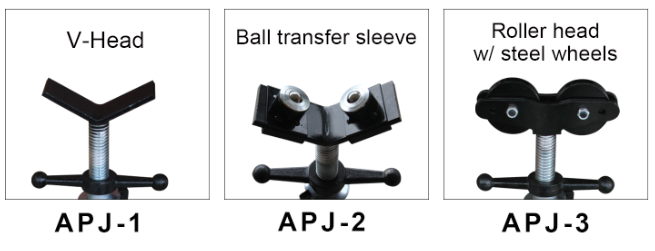

Item No. 178295 178296 178297

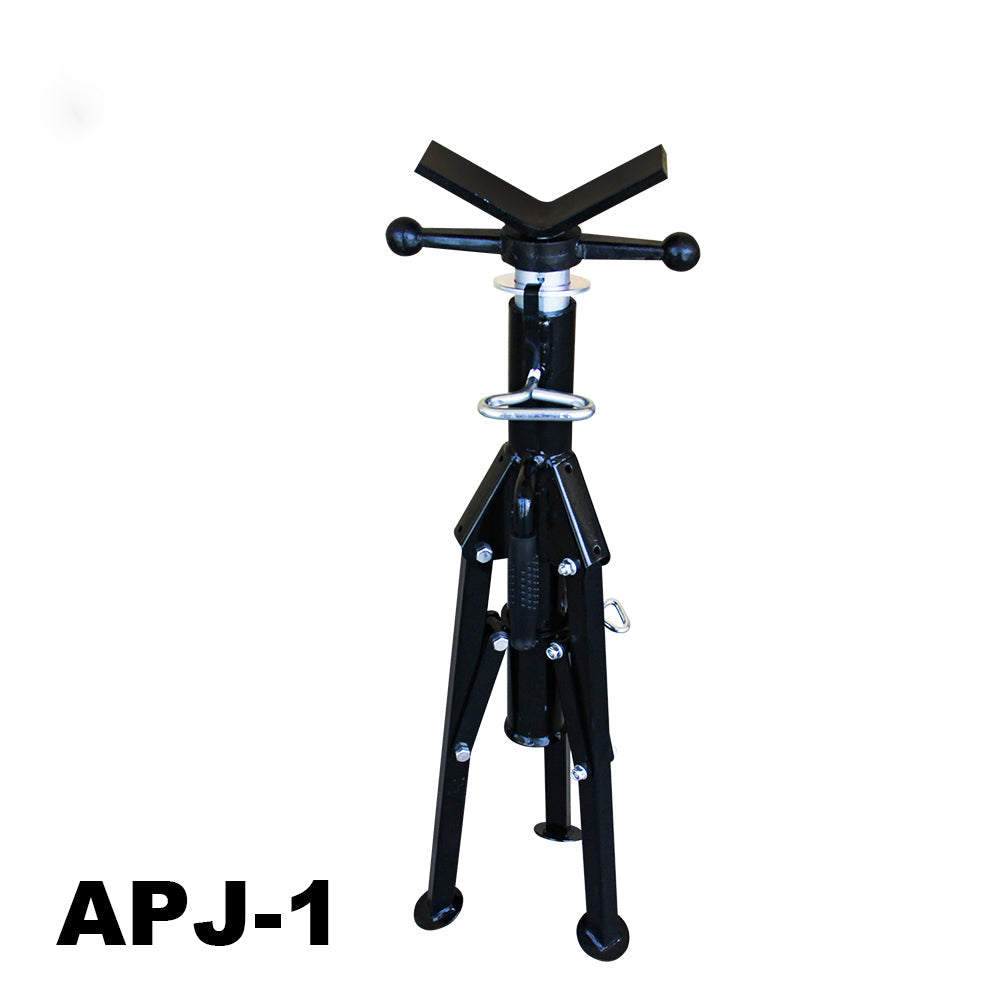

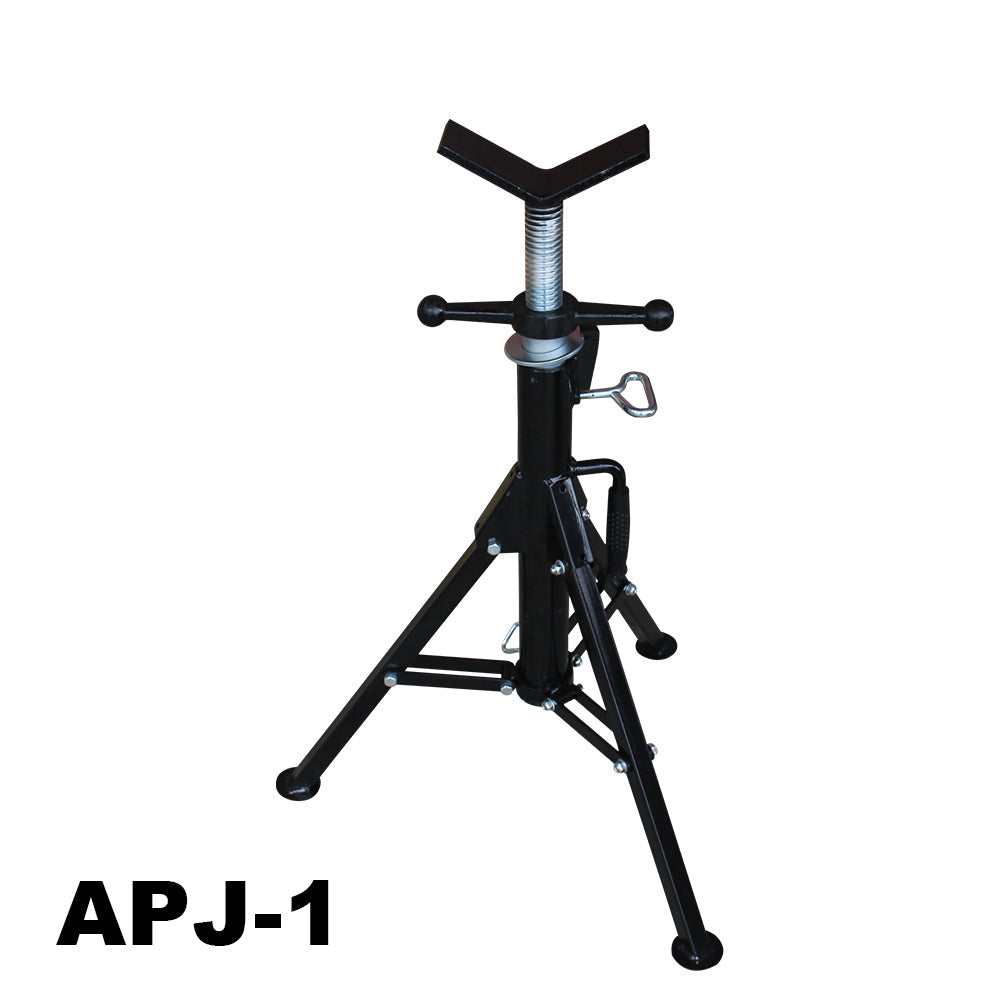

Model APJ-1 APJ-2 APJ-3

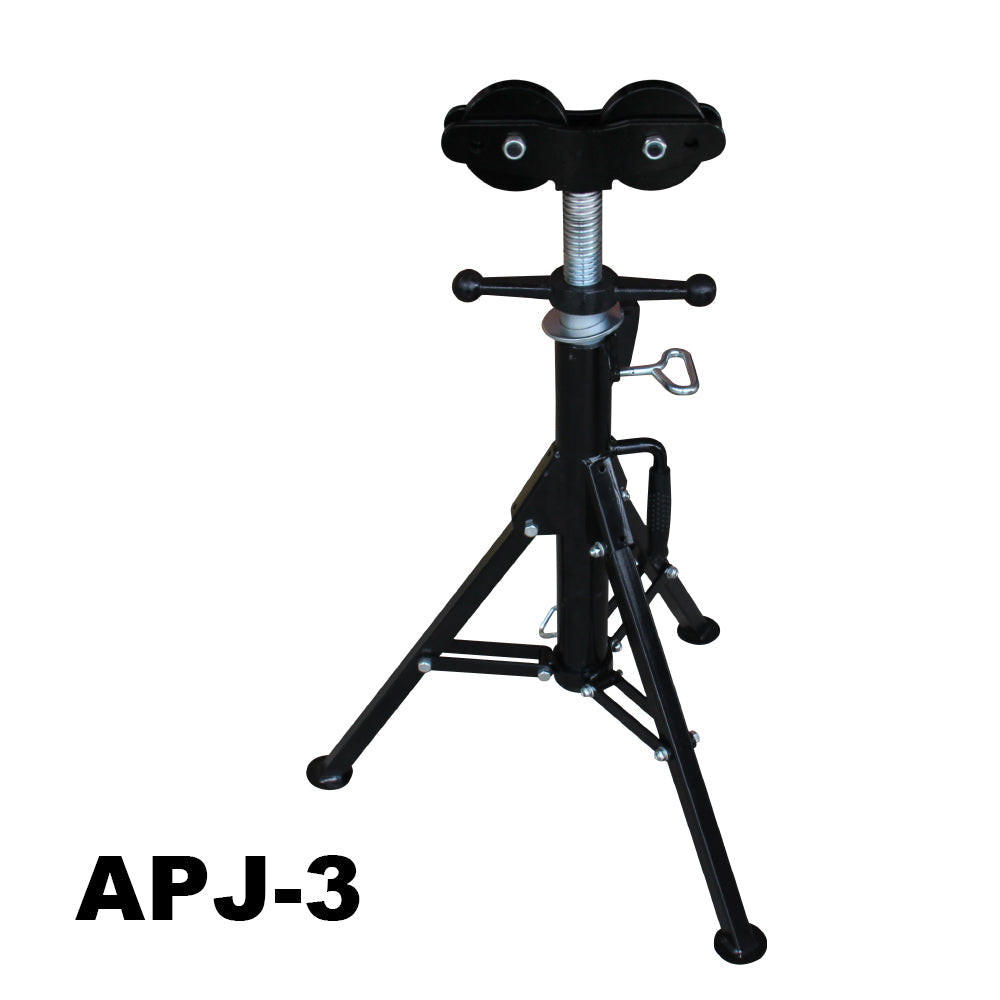

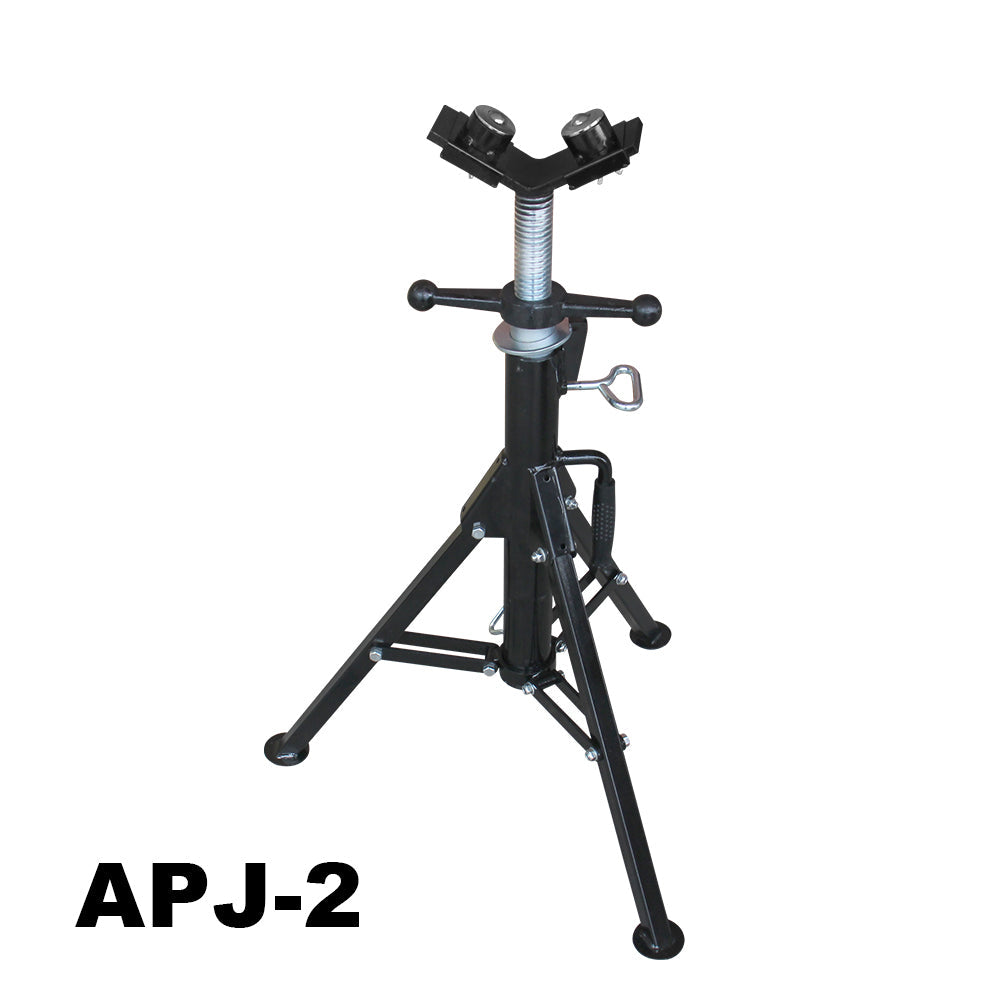

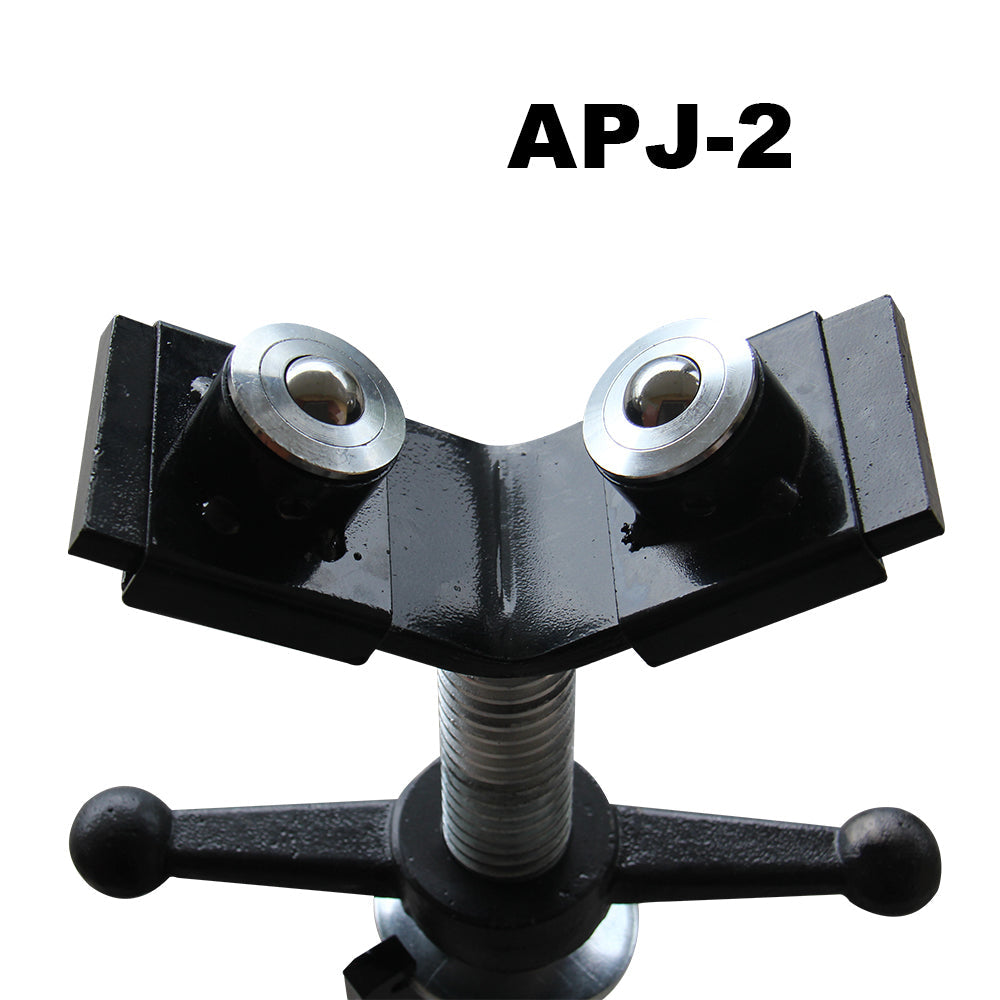

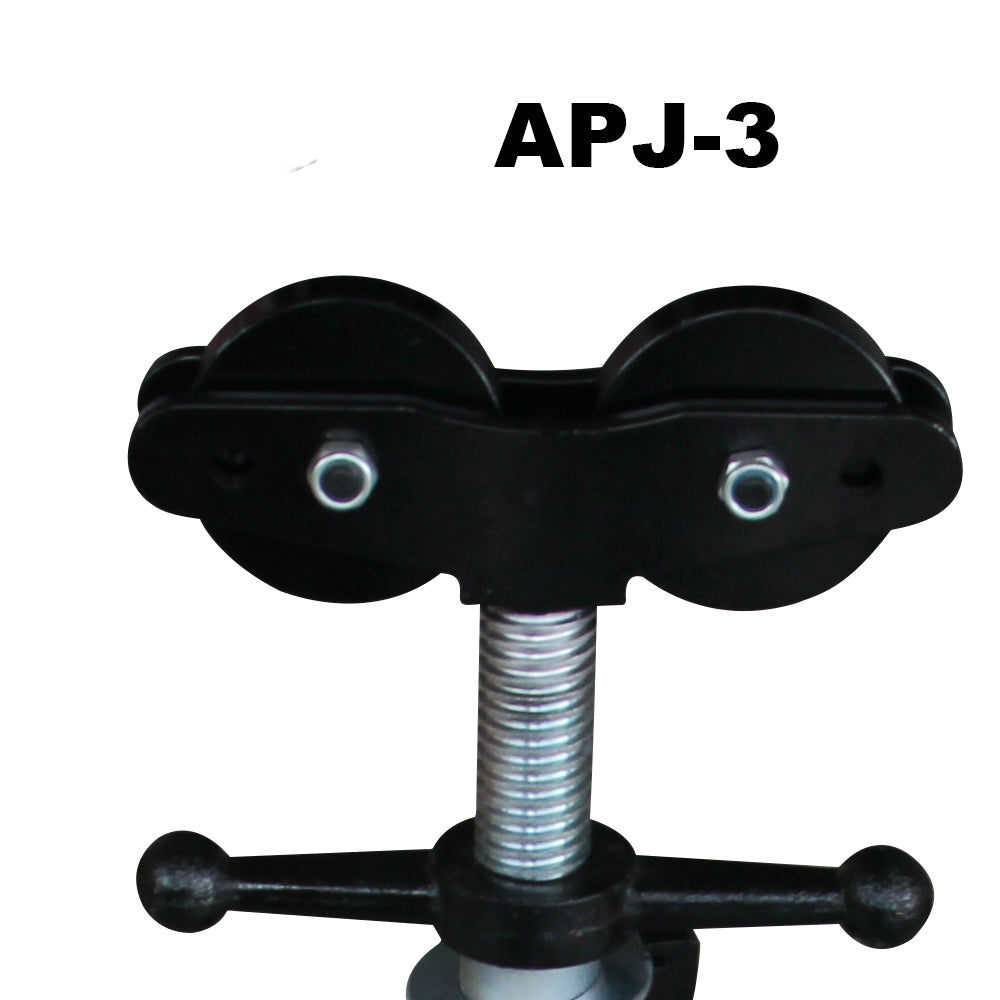

Name V-Head pipe jack Ball transfer sleeve Roller head w/ steel wheels
Weight capacity 1100kg/2400lbs 450kg/1000lbs 450kg/1000lbs
Adjustment height 28"-51" 28"-51" 28"-51"
N.W./G.W. 29/31 lbs 31/33 lbs 29/31 lbs
Packing size 31x9.8x7.8 in
 31x9.8x7.8 in 31x9.8x7.8 in
