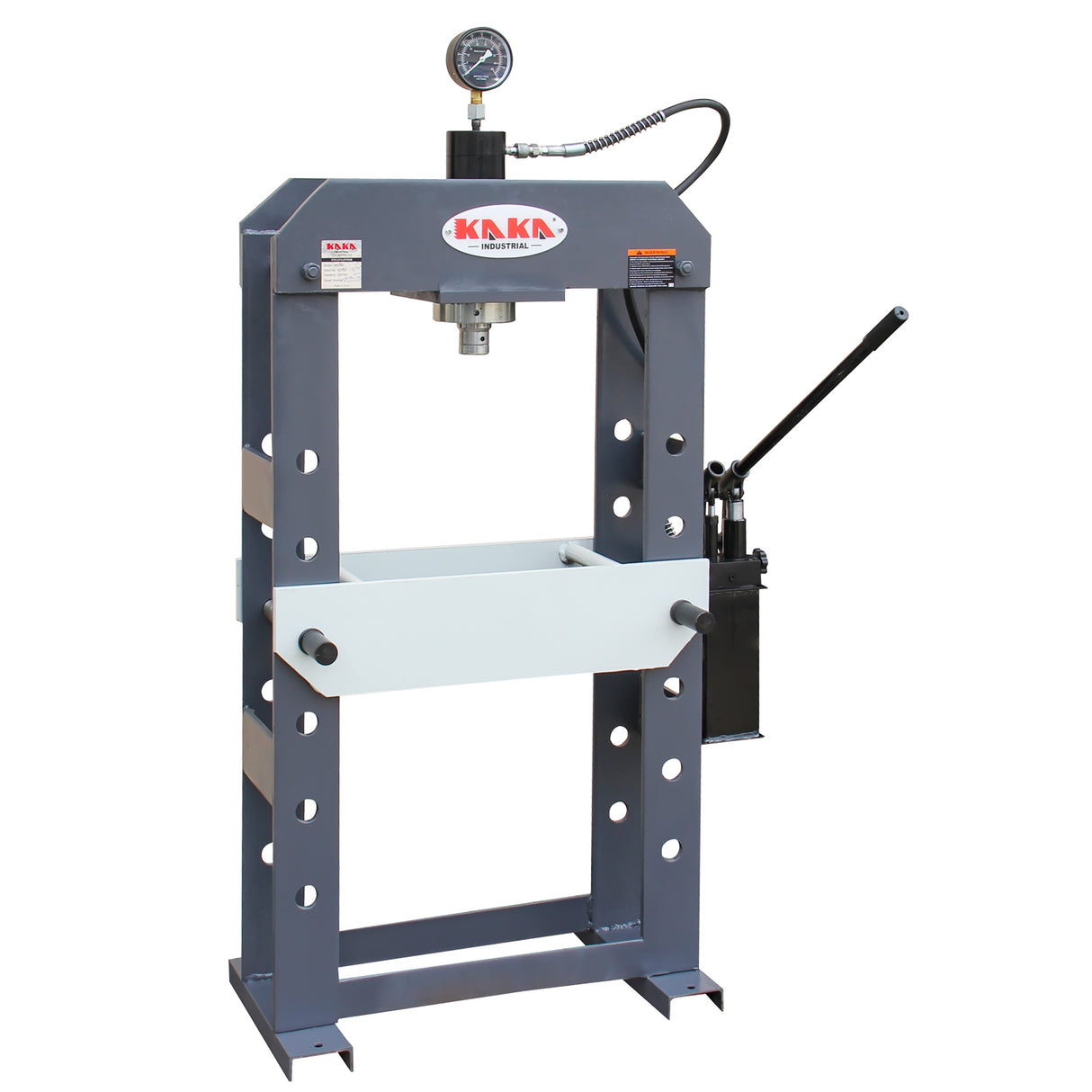

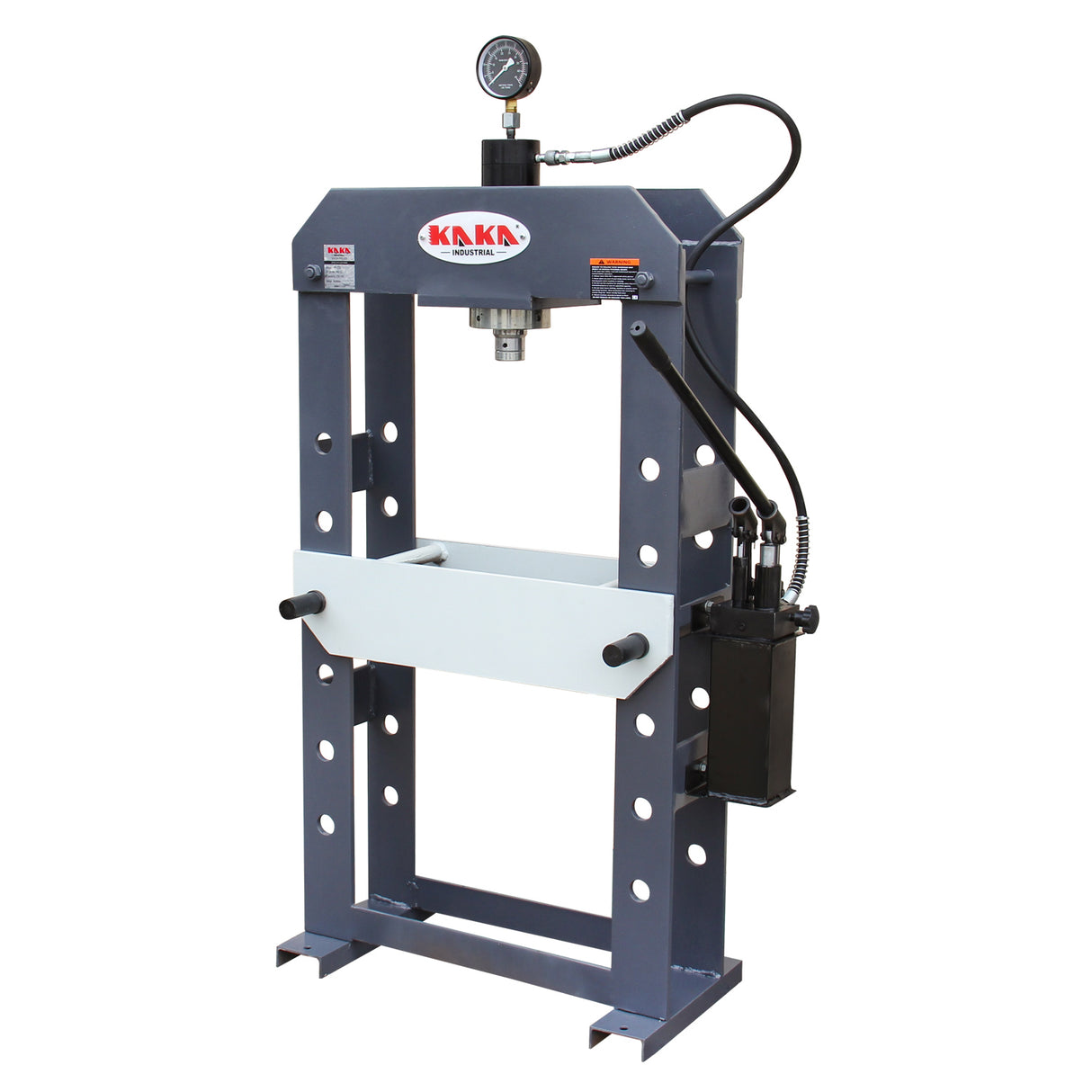

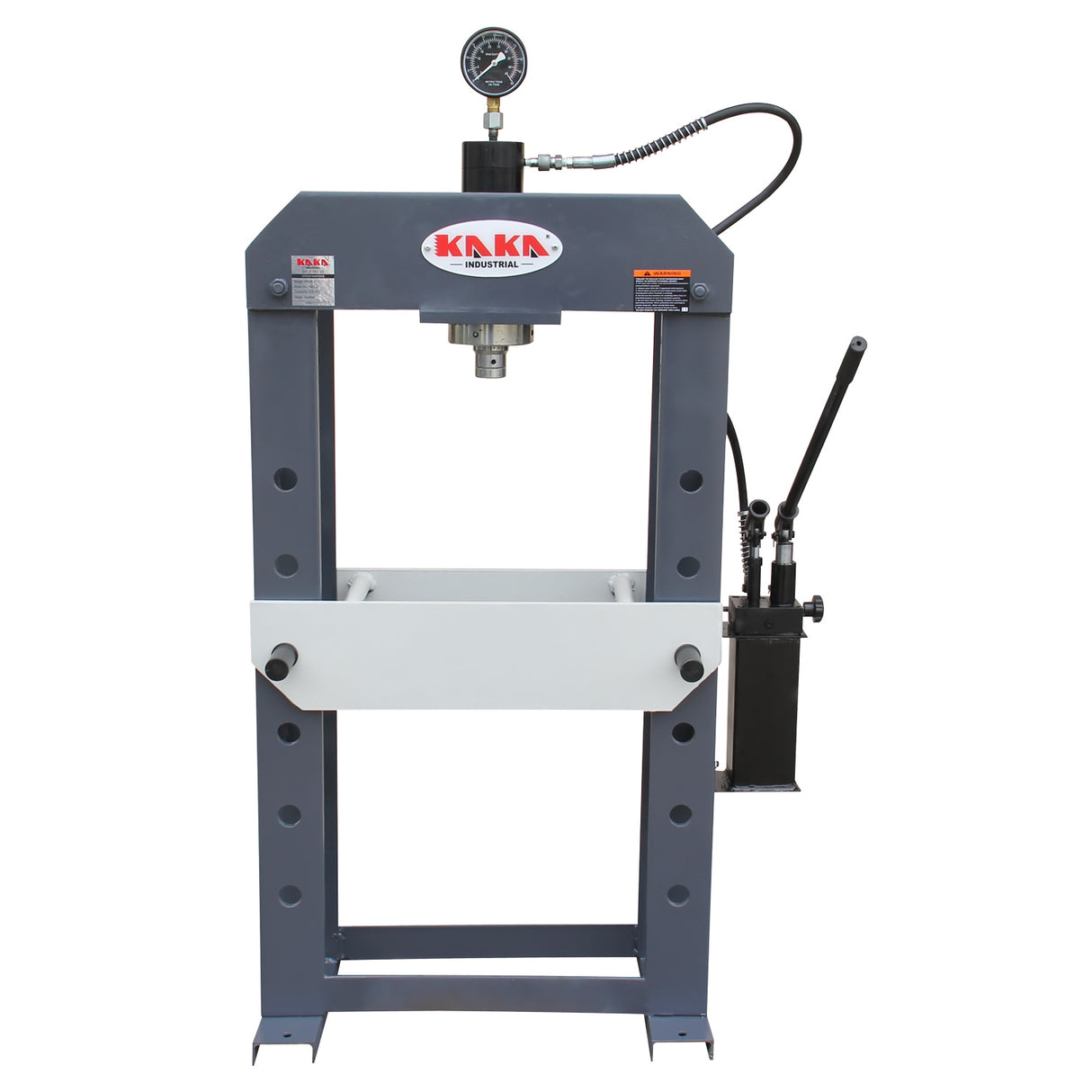

KAKA INDUSTRIAL HP-25S Hydraulic Shop Press, H-Frame Hydraulic Press with Manual Double Speed Pump,25 ton Press Capacity,7 in Stroke

$1,329.00 $2,559.00
Shipping calculated at checkout.

Care information

Delivery and Shipping

  1. The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
  2. The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

Payment & Security

Payment methods

  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Working Capacity:25 ton Press Capacity,H-Frame Frame,7 in Stroke
  • Reliable quality: The table press is designed to be durable. The spray-painting process protects the steel and makes it anti-corrosion, ensuring a long service life. The thickened column is sturdy and durable. It comes standard with a set of V-shaped blocks.

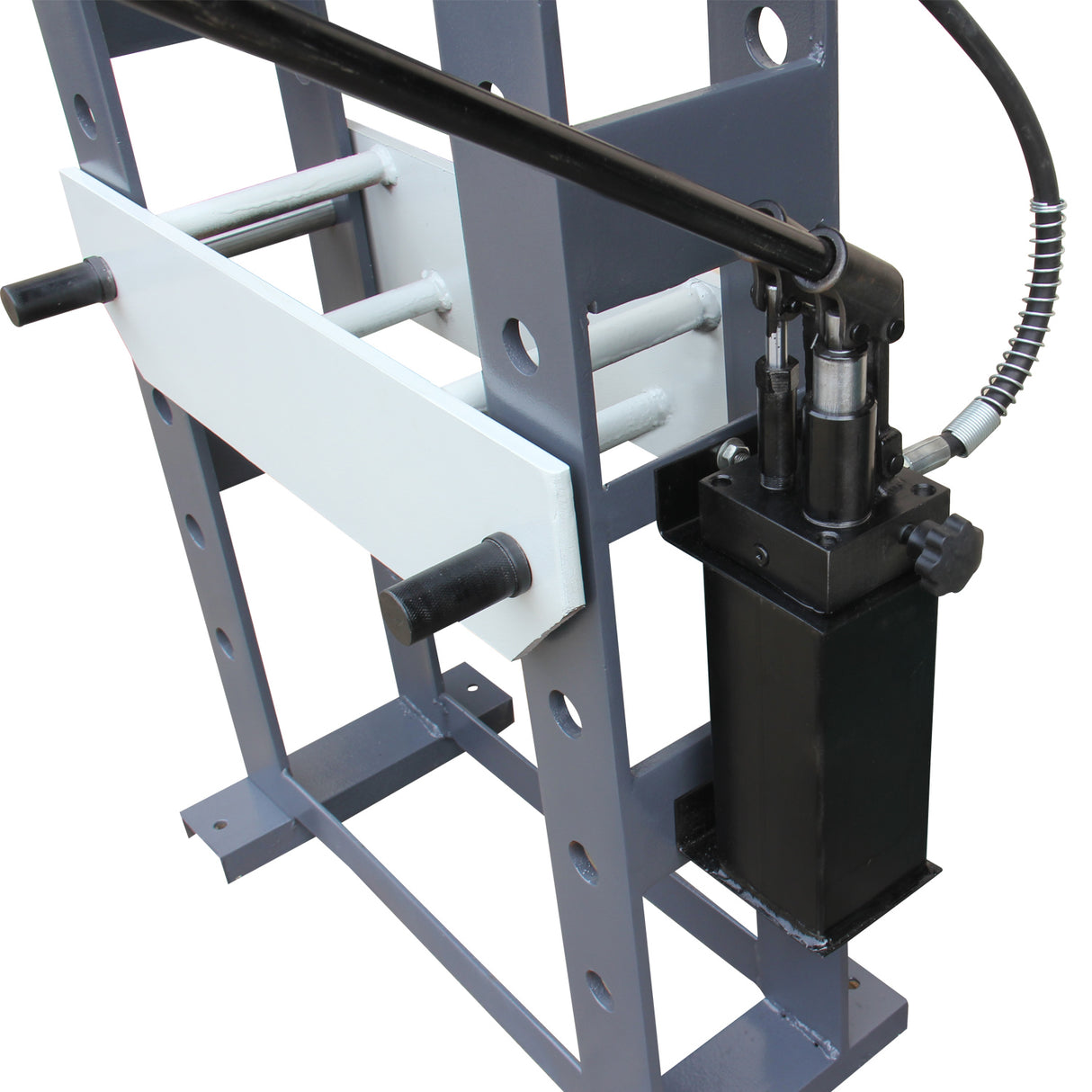

  • Easy to use: Easily operate the hydraulic press by simply pressing the pump handle; the benchtop press's two-speed pump improves efficiency, giving you more time to complete more projects

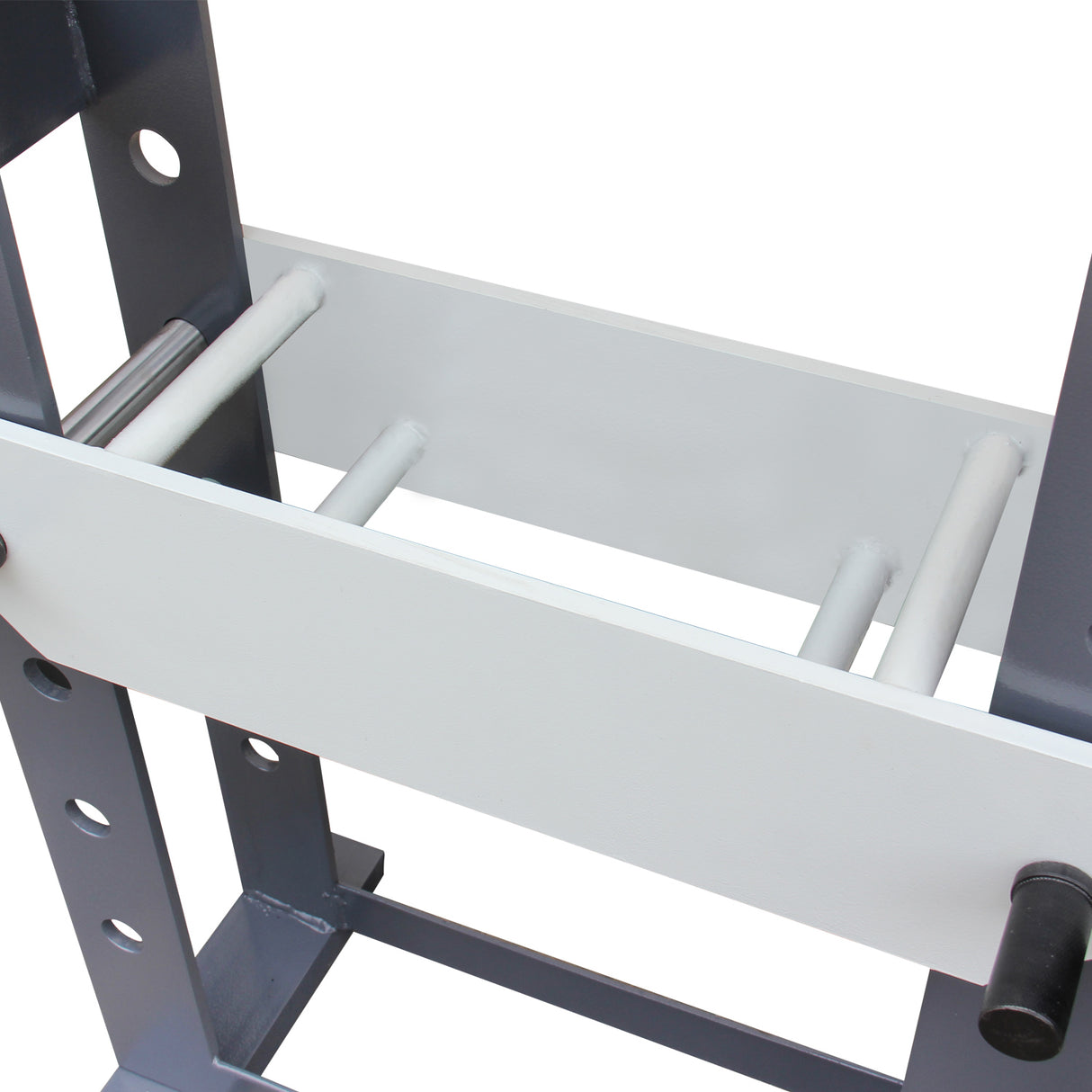

  • Adjustable Workbench: The hydraulic shop press has 6 holes on each side for adjusting the height of the workbench. You can easily find the perfect working height for a comfortable and productive experience.

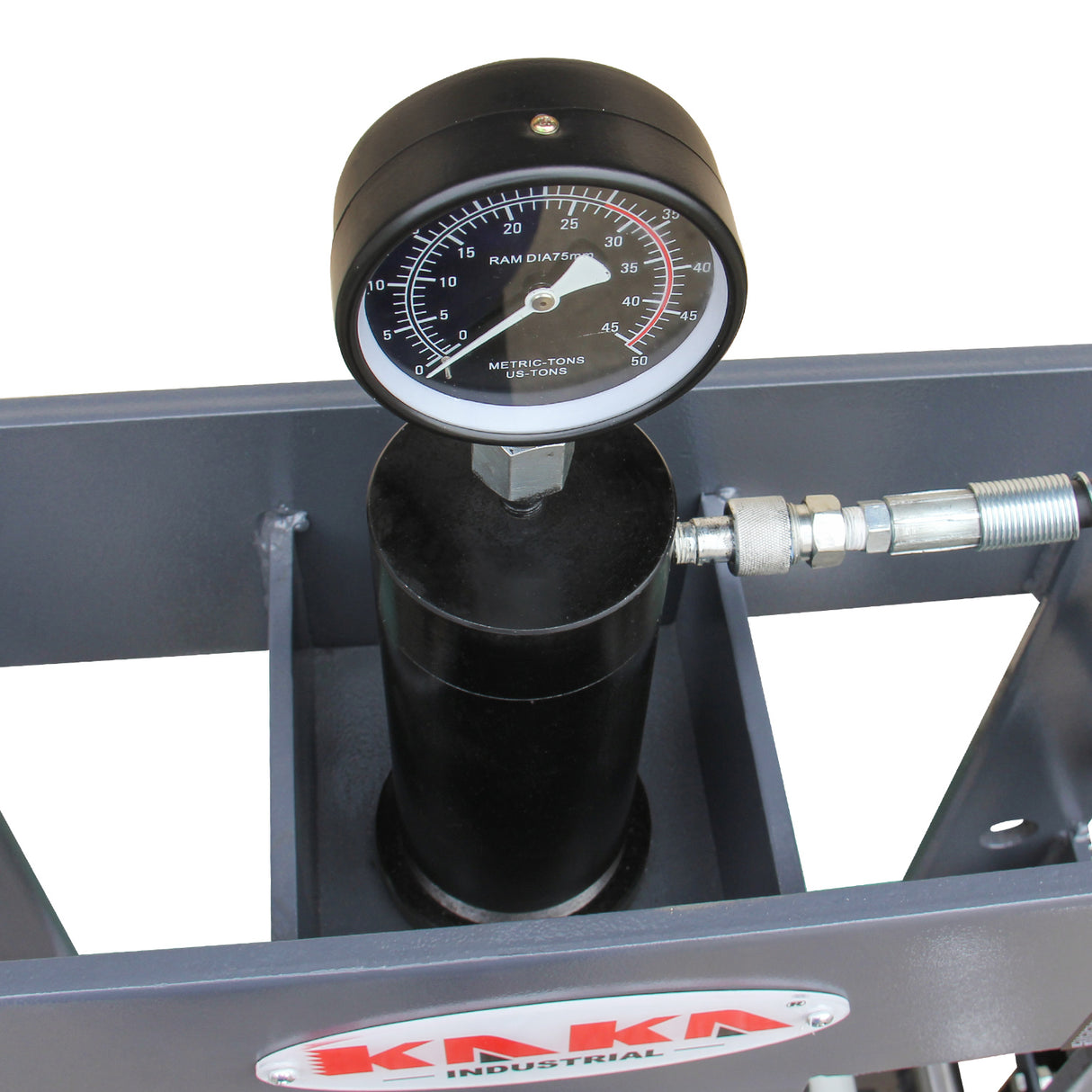

  • Accurate Readings: The fluid-filled dual-scale pressure gauge on your hydraulic press is highly accurate, stable and reliable, with high-visibility markings for accurate readings so you know exactly how much pressure you need to apply.
  • Wide Application: H-frame hydraulic shop presses are made of high-quality steel, strong and durable. It can be used for Bending,Forming, Pressing, Punching, Staking, Clamping and Straightening. Ideal for workshop, garage, small shops, or home use.


Model: HP-25S
Frame Type: H-Frame
Frame Capacity: 25 ton
Features: Bolted Channel Frame
Pump Type: Hydraulic Manual
Cylinder Type: Single Acting
Hose Length: 47.24 in
Pump: Manual Double Speed
Reservoir Capacity: 2L
Ram Maximum Applied Force: 25 ton
Ram Maximum Stroke: 7.09 in
Ram Diameter: 3.15 in
Ram speed 0.12 in/press
Maximum Distance to Table: 17.72 in
Minimum Distance to Table: 0 in
Base Length: 11.81 in
Base Width: 7.87 in
Bed Support Pin Diameter: 1.18 in
Number of Bed Adjustment Holes: 0.24 in
Bed Adjustment Hole Spacing: 5.31 in
Overall Height: 60 in
Overall Width: 15.75 in
Overall Length: 35.43 in
N.W/G.W. 370/463lbs
Includes: Table Plates; V-Blocks
Application: Bending; Forming; Pressing; Punching; Staking and Clamping; Straightening

 HP-25S Manual

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
