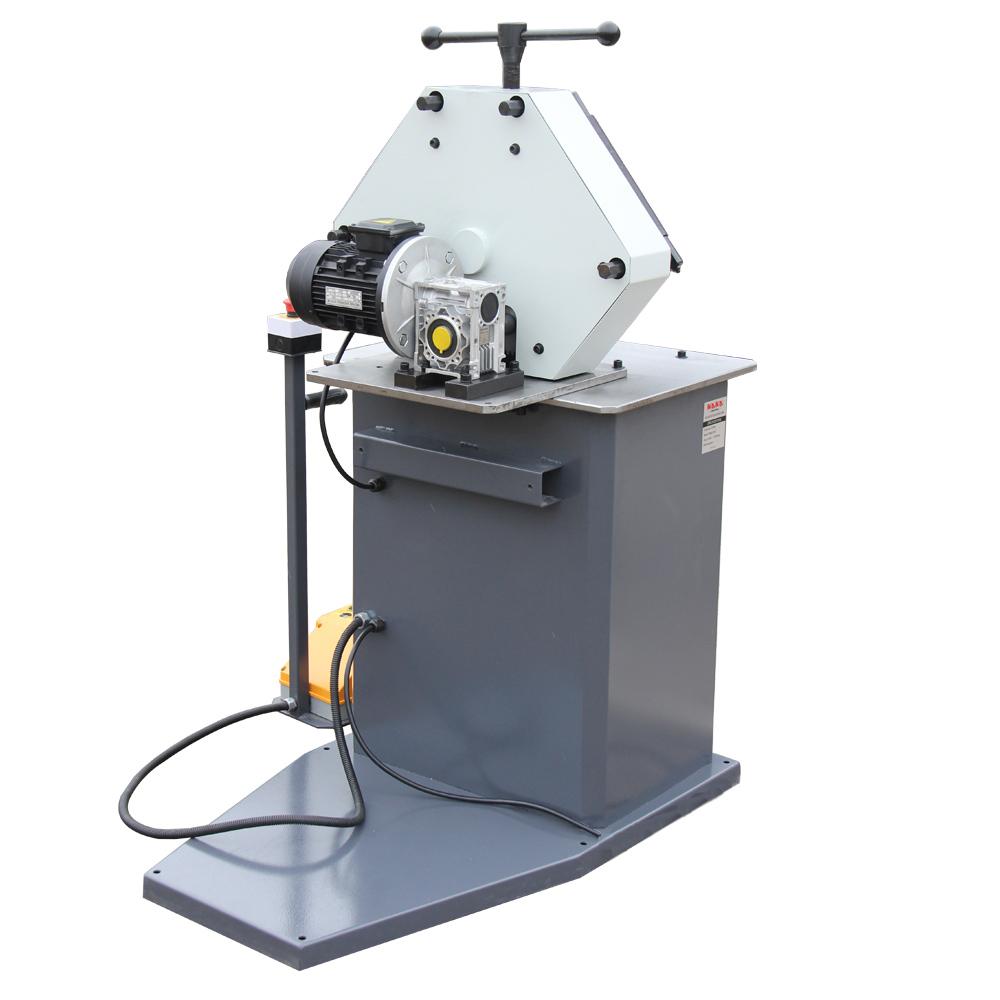

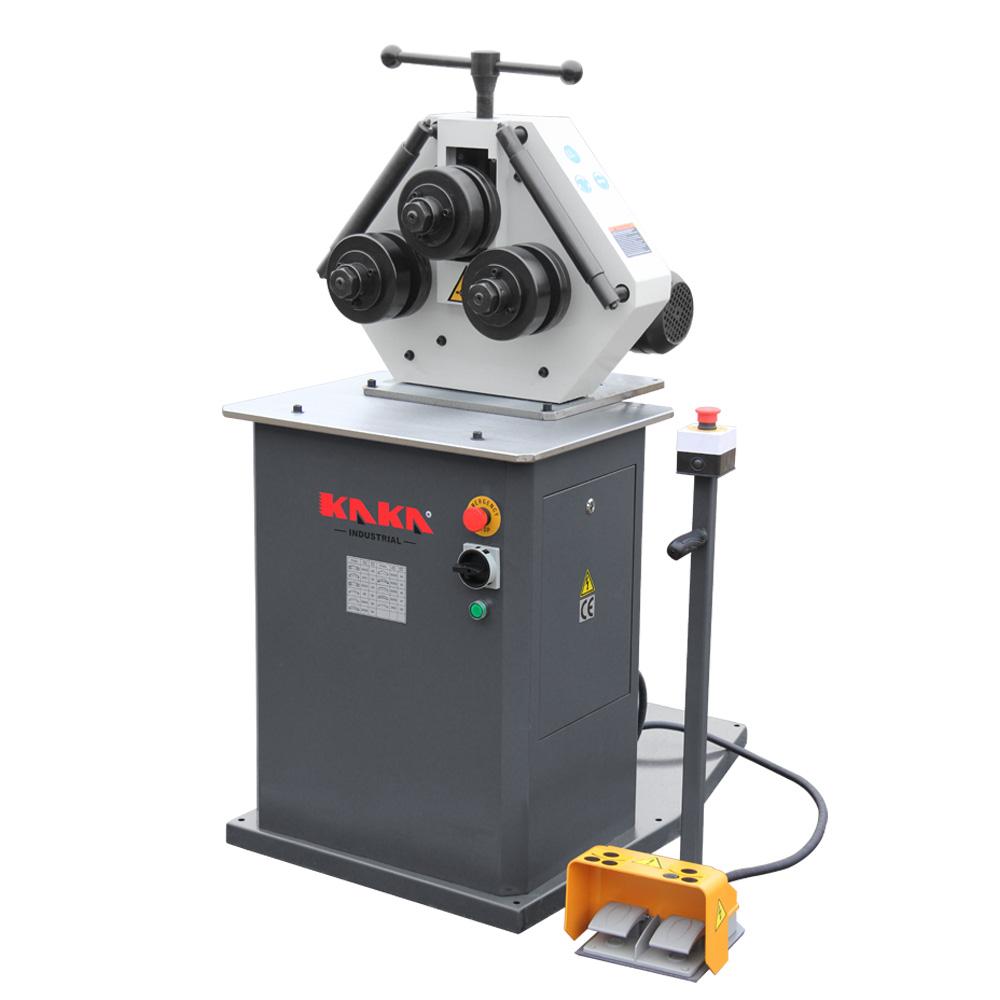

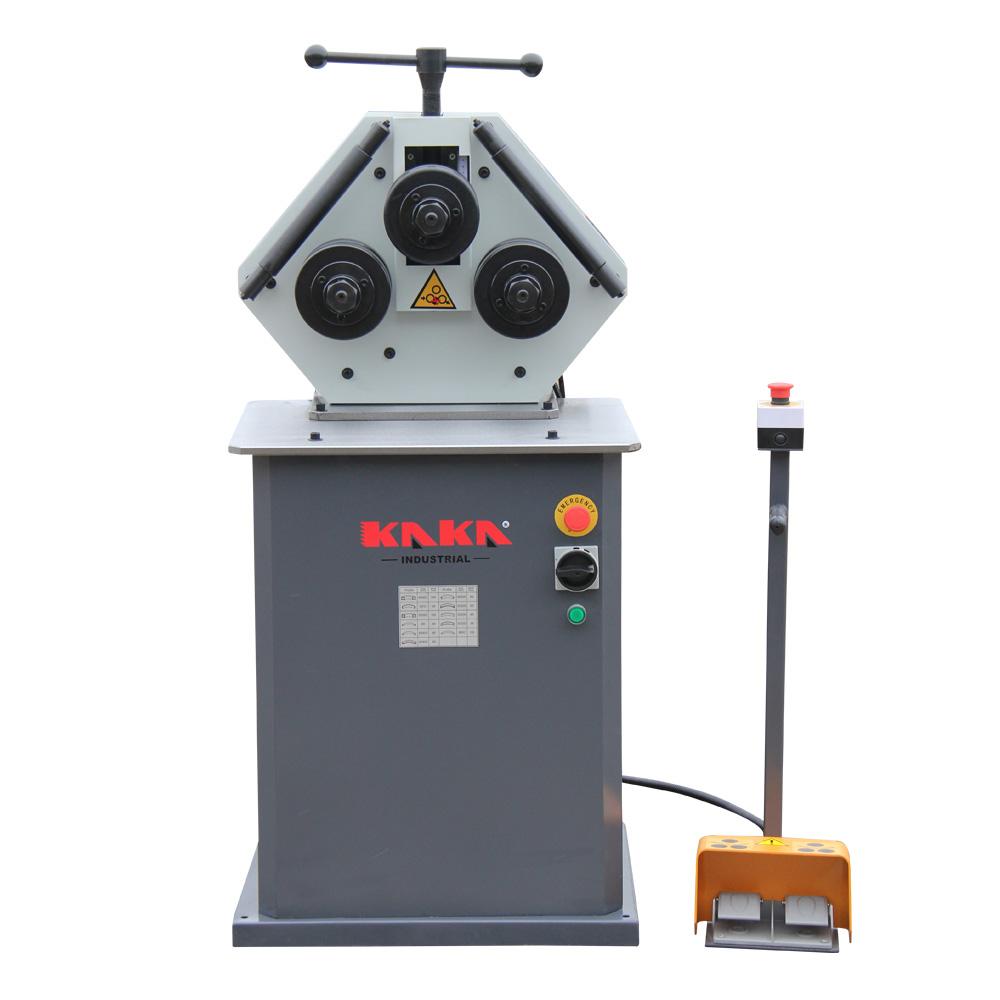

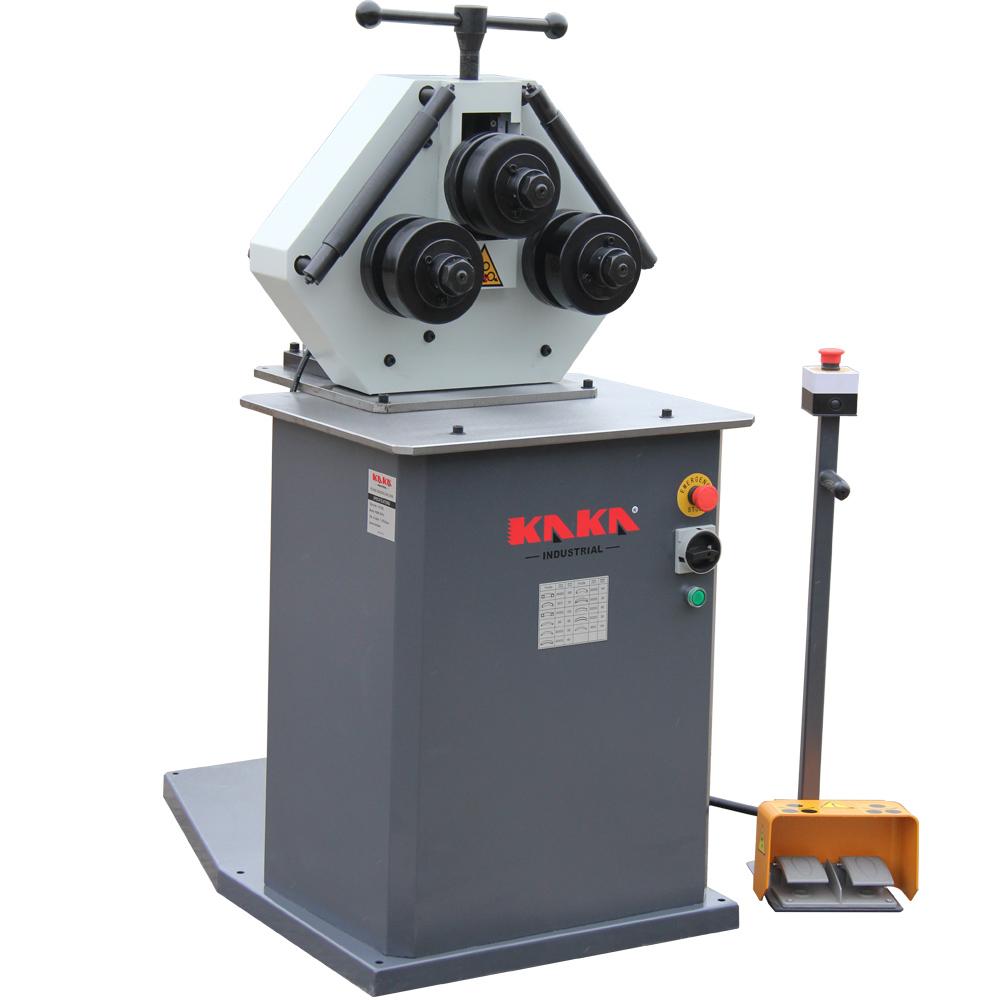

KAKA INDUSTRIAL Roll Bending Machine, 3-Roll Profile Bender for Square Tube 1.57"x1.57", Flat Bar 1.97"x0.59", Round Bar 1.18", Angle & T-Section Steel, 0.75kW Horizontal/Vertical Operation RBM-30HV

Its standard tooling handles square tubes up to 1.97"x1.97"x0.12" (50x50x3mm) with a minimum bending diameter of 39.37" (1000mm), flat bars of 1.97"x0.59" (50x15mm) down to 13.78" (350mm), and solid round bars from ø0.59" to ø1.18" (15-30mm) with a minimum diameter of 23.62" (600mm). The machine also processes angle steel (1.57"x1.57"/40x40mm, thickness 0.08"-0.20"/2-5mm), T-section steel (1.97"x1.97"/50x50mm), and C-section steel (1.97"x0.98"/50x25mm), achieving tight bends as small as 11.81" (300mm) for outward-rolled profiles. Optional rollers extend capabilities to round tubes (ø1.38"-2.36"/35-60mm, wall thickness 0.08"/2mm) with a 39.37" (1000mm) minimum bending diameter.

PRECISION 3-ROLL SYSTEM & DUAL OPERATION - Features a robust three-roll pyramid design with hardened steel rollers. The machine operates in both horizontal and vertical positions, enabling the formation of complex arcs, full circles, and precise bends on pipes, channels, and flat bars. The adjustable top roll allows for exact control over the bending radius.

INDUSTRIAL-GRADE CONSTRUCTION FOR DURABILITY - Built with a special cast steel frame, hardened steel shafts, and full-material milled gears to resist deformation under continuous heavy-duty use. This robust construction ensures processing stability and an extended service life in demanding workshop environments.

EFFICIENT FOOT CONTROL & SAFETY SYSTEMS - Includes a reversible foot pedal for hands-free operation, enhancing productivity and control. An integrated emergency stop button allows for quick and efficient machine shutdown, complying with industrial safety standards and ensuring operator protection.

VERSATILE APPLICATIONS ACROSS INDUSTRIES - A fundamental tool for a wide range of tasks in metalworking workshops, construction sites, and automotive repair shops. It is perfectly suited for creating hoops from tubing, bending T-bar for structural frames, and forming components for HVAC ductwork and metal sculptures.

Specification:

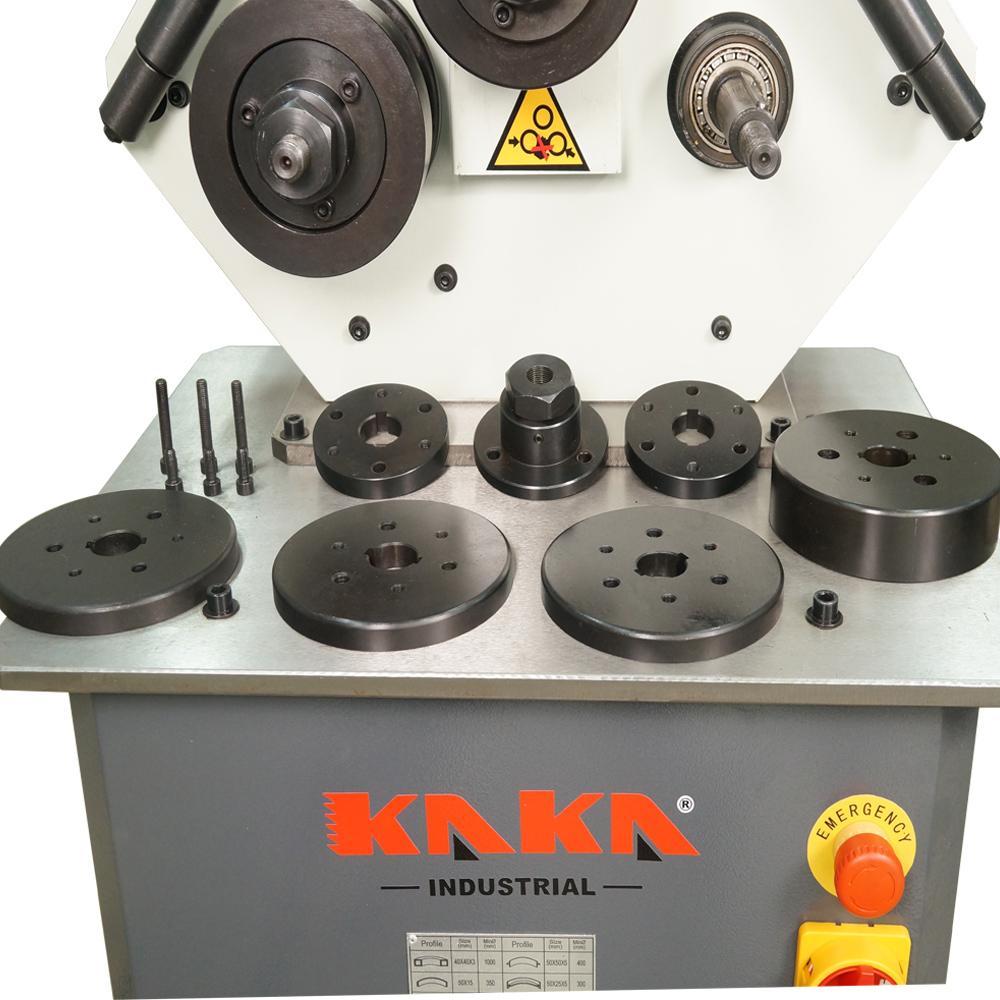

● All the above processing capacities can be finished by one set of  standard combination roller

Special Roller

● We can design the rollers for you as per your special requirement. And we can make the rollers in various materials such as nylon

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
