KAKA Industrial W-1220A 12-Inch Box and Pan Brake, Solid Construction, High Accuracy Sheet Metal Box Pan Brake, 20 Gauges Sheet Metal Brake

Shipping calculated at checkout.

Care information

Delivery and Shipping

  1. The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
  2. The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

Payment & Security

Payment methods

  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

About KAKA Industrial: A Company Delivers High Quality Products with Fast Shipment and Lowest Price Possible. We Always Fulfill What We Have Promised

12-Inch Box and Pan Brake

High Accuracy Sheet Metal Box Pan Brake

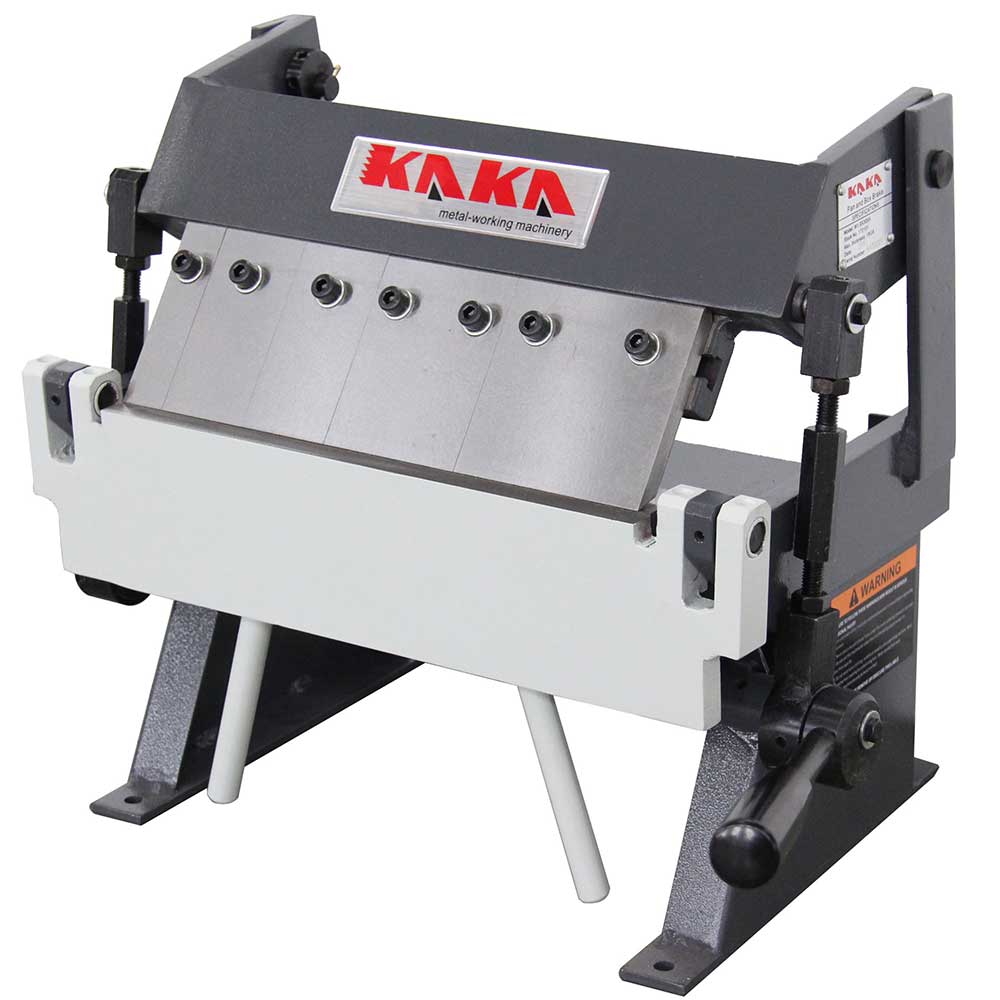

KAKA Industrial 12-inch Pan and Box Description

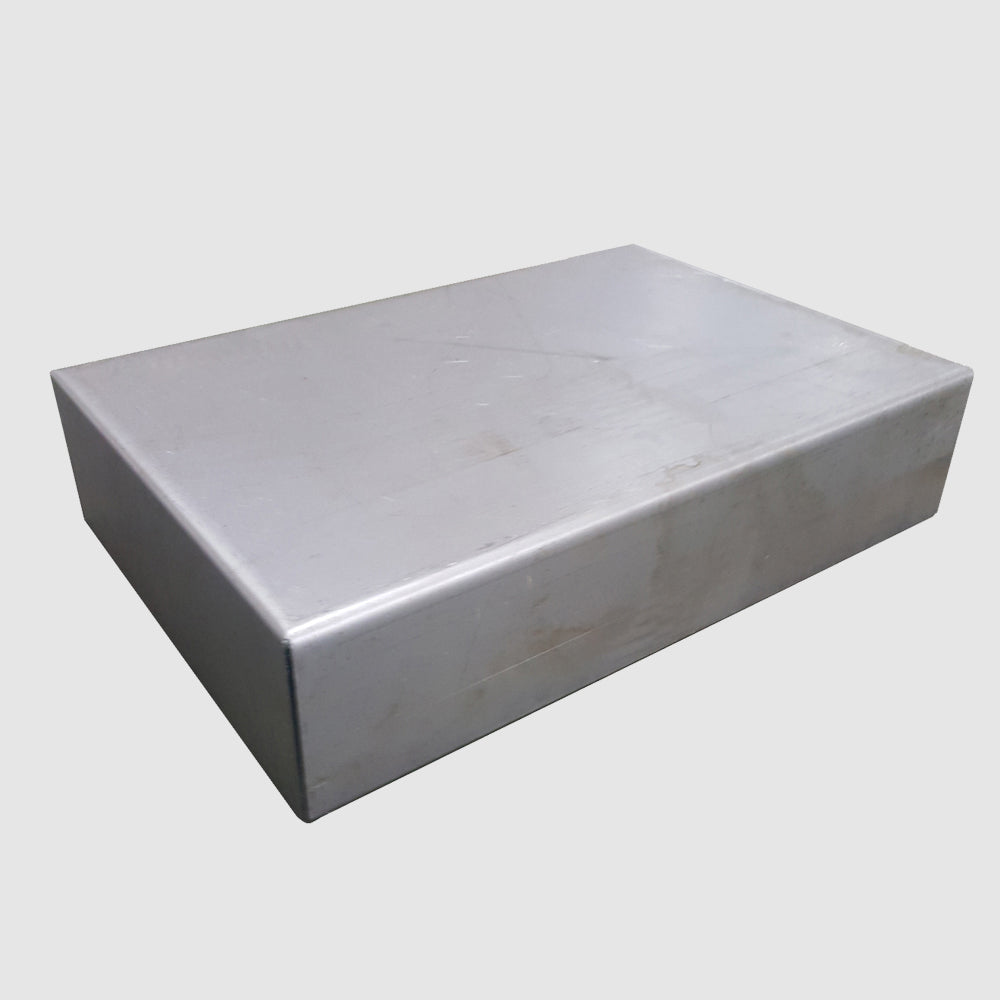

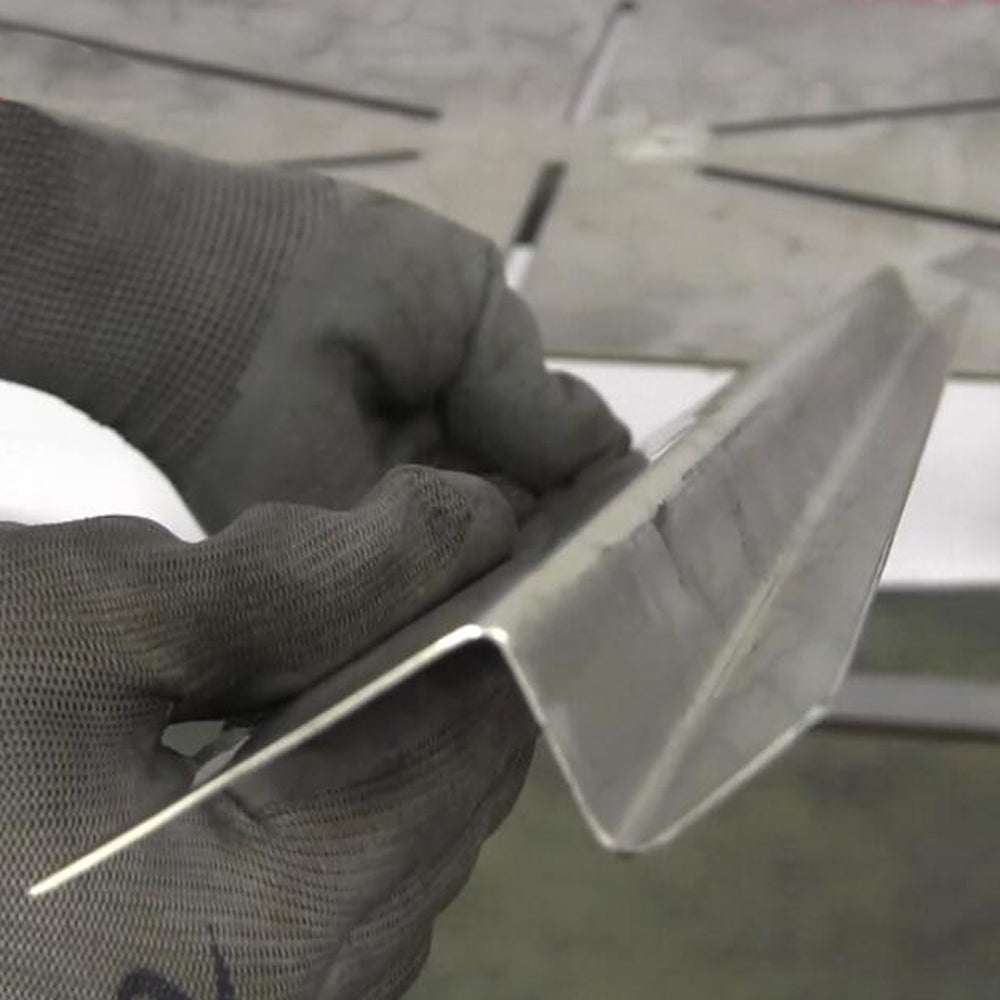

KAKAIND 12in sheet metal brake is an ideal tool if you need to increase the strength of sheet metal plates with bends, or you intend on fabricating more complicated brackets, such as gussets, boxes, or fixtures. It can bends mild steels up to 20 gauge thick, 12-inches wide with angle 0-135 degrees.

High Quality Construction, and Versatility Kaka 12-inch Pan and Box

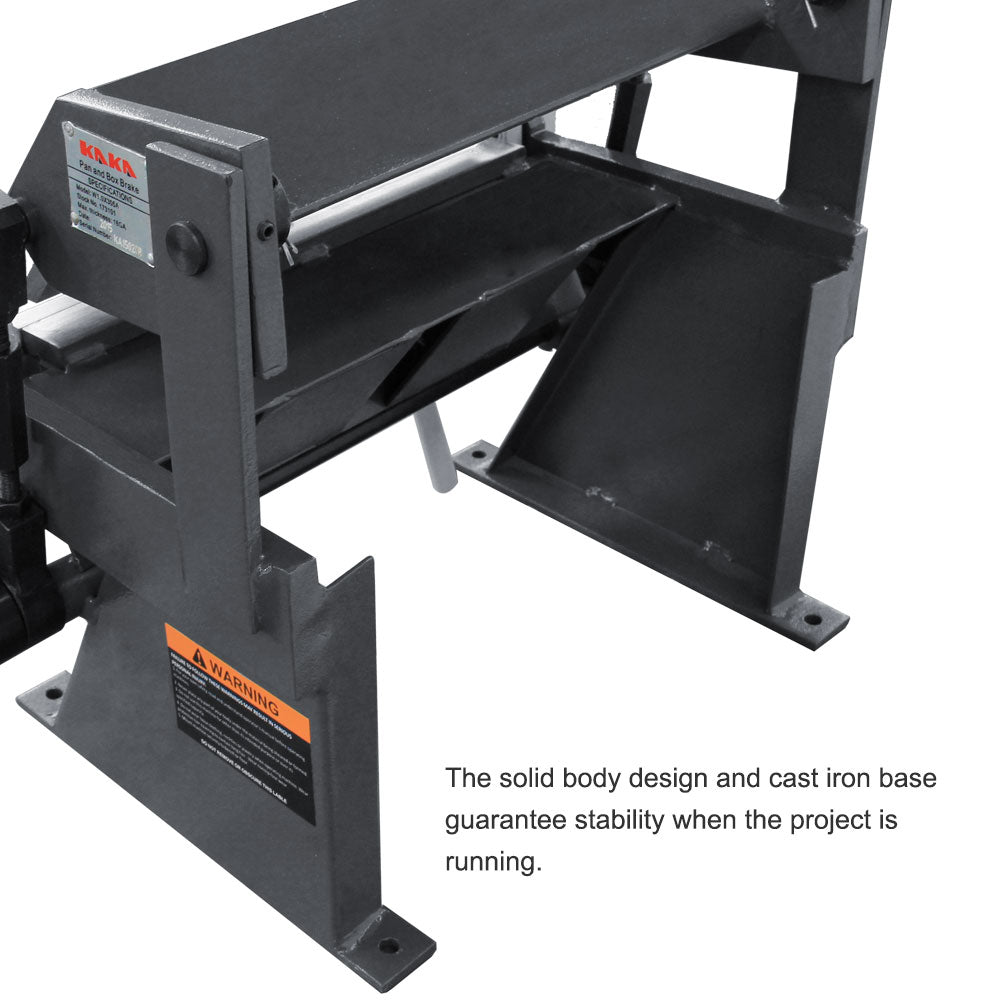

KAKA Industrial 12-Inch pan and box brake is tested to survive after many years heavy use. The solid body design and cast iron base guarantee stability when the project is running. This pan and box can bends mild steels up to 20 gauge thick,12-inches wide with angle 0-135 degrees.

If You Want to Have a Pan and Box Brake With Easy Adjustment, High Precision and Light Weight, You May Want to Click Add to Cart Now

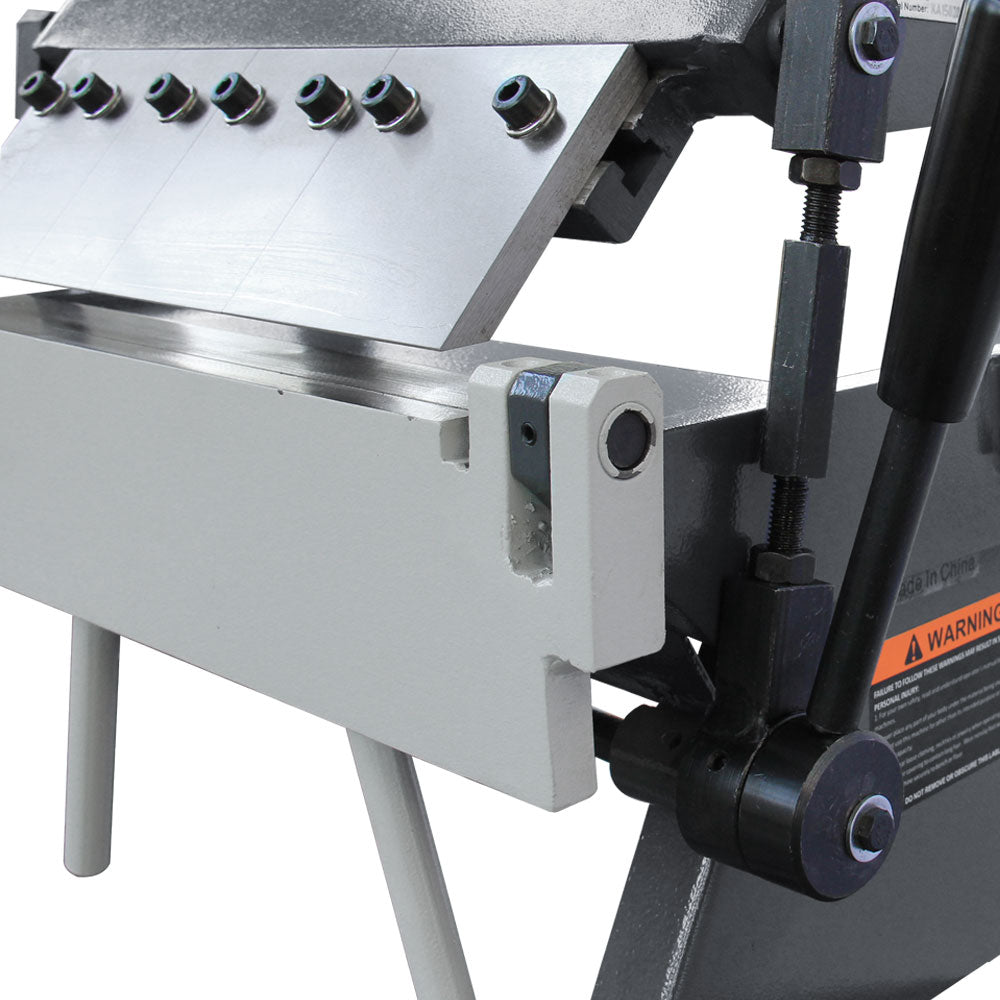

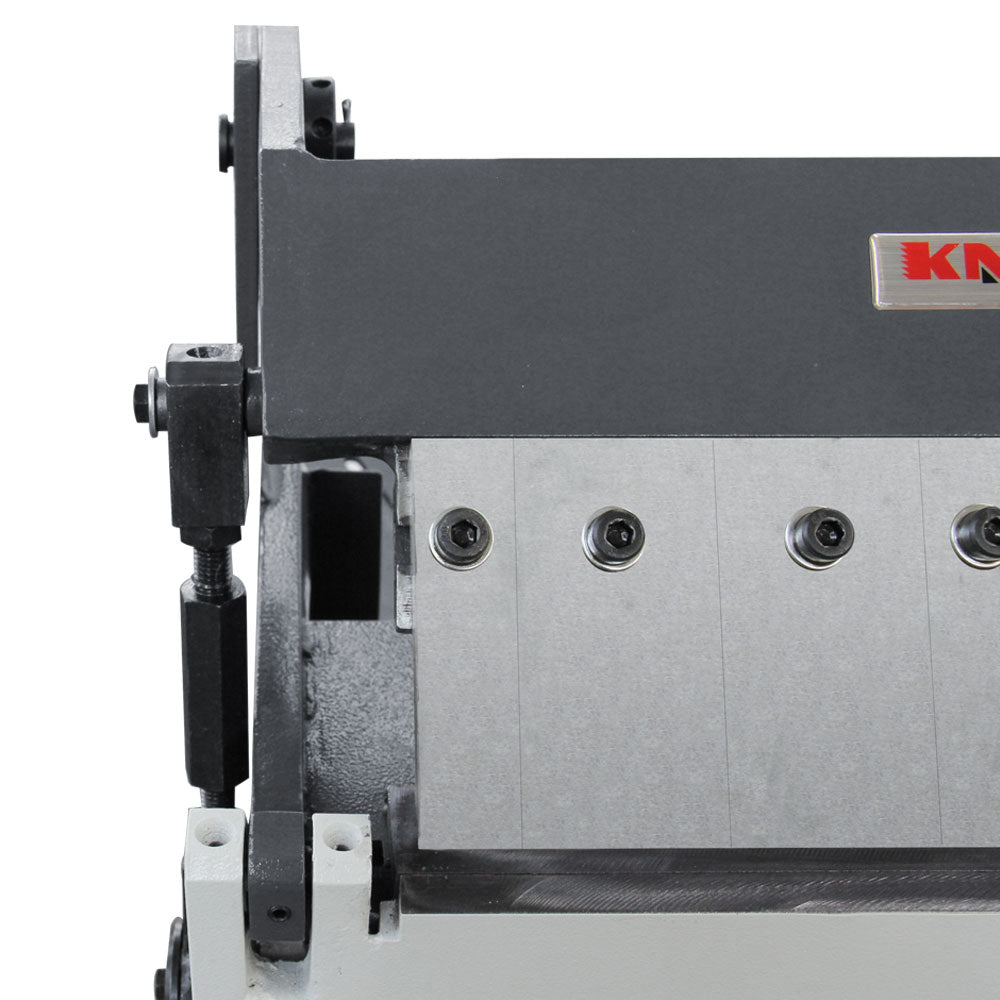

KAKAIND 12In box and pan has a removable and adjustable fingers; it can be installed in a variety of positions to accommodate varying widths of metal. It is easy to adjust needed size to ensure accuracy. It is a money saver since you will use fewer raw materials to finish your project. The sheet metal box and pan is lightweight and easy handle. When you have limited space, and after you use it, you can store it anywhere you want.


  • Item No.173101
  • ModelW-1220A
  • Width(in)12
  • Thickness(in)20gauge
  • Angle0-135°
  • Finger Sizes(in) 1 x 1pc, 2 x 2pcs, 3 x 1pc, 4 x 1pc
  • Packing size(in)19-3/4x13-3/4x16-1/4
  • N.W./G.W.(lb)62/66

Standard Accessories


Balance hammer

Optional accessories

No optional accessories.

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
