If you've ever wondered how car parts, metal enclosures, or even the spoon in your kitchen drawer are made so precisely and in such high volume, the answer often lies in a powerful machine called a “mechanical eccentric press”. This workhorse of the manufacturing industry is responsible for stamping, punching, and shaping metal with incredible force and speed.
But how does it actually work? What makes an "eccentric" press different from other presses?
In this comprehensive guide, we’ll break down the inner workings of the mechanical eccentric press in a clear, step-by-step process. You’ll learn about its key components, its operational cycle, and why it’s such a vital piece of equipment in factories worldwide.
The Core Concept: Turning Rotation into a Powerful Punch
At its heart, an eccentric press is a master of transformation. It takes the simple, constant rotational force of an electric motor and converts it into a controlled, vertical, and incredibly powerful linear force. This force is what punches holes in steel, cuts out precise shapes, or bends metal into new forms.
The secret sauce? The eccentric shaft — a clever mechanical component that gives this press its name.
The Key Components: A Team of Power and Precision
Imagine a machine with one job: to move a heavy weight up and down with immense force. Here’s the team of components that makes it happen inside an eccentric press:
1. Electric Motor: The starting point. It provides the initial rotational power.
2. Flywheel: The energy reservoir. This heavy wheel is constantly spun by the motor, storing massive amounts of kinetic energy. Think of it as a battery that charges up and then releases its power in a sudden burst during the punch.
3. Clutch & Brake System: The control center. The clutch engages to connect the spinning flywheel to the eccentric shaft, starting the press cycle. The brake disengages the clutch and stops the shaft precisely at the top of its stroke.
4. Eccentric Shaft: The heart of the machine. This is not a perfectly straight shaft. It has an off-center section called a **journal**. As the main shaft rotates, this journal moves in a small circle, creating the eccentric motion.
5. Connecting Rod (or Eccentric Strap): The link. It connects the eccentric journal to the...

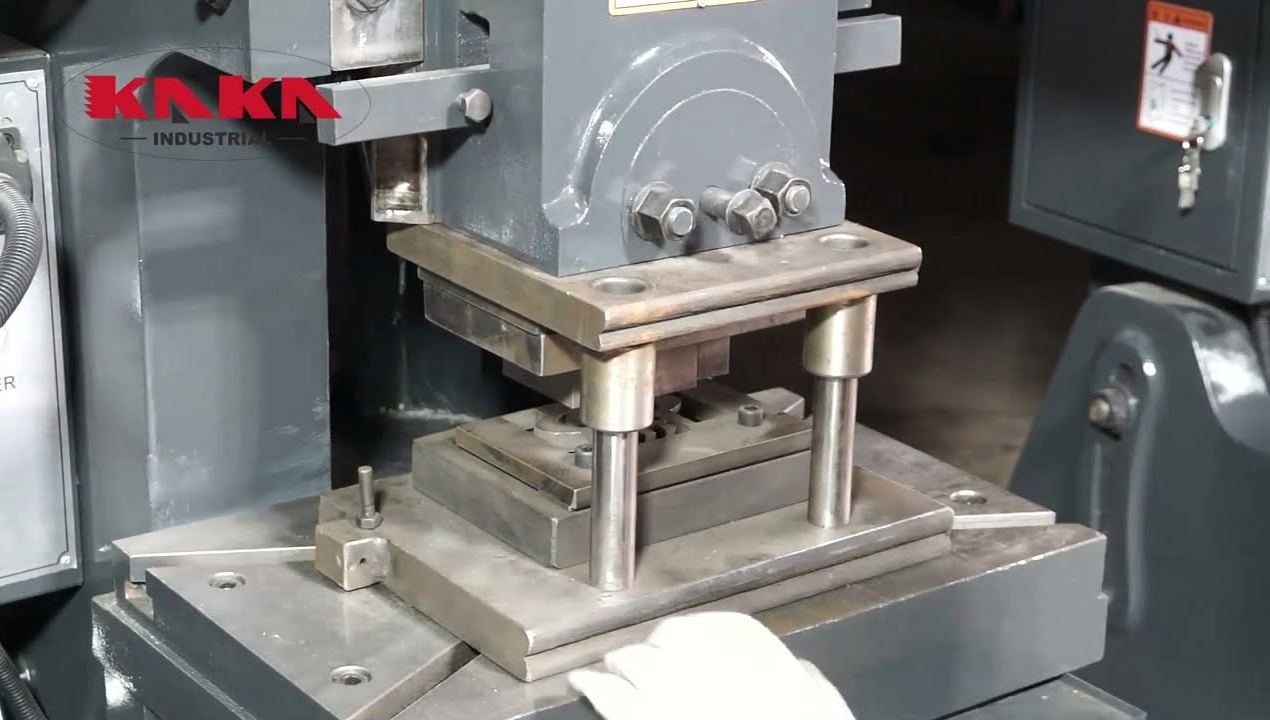

6. Ram (or Slide): The business end. This is the massive, precision-machined block that moves up and down. The upper half of the tool and die is attached to it.
7. Bed & Bolster Plate: The anvil. This is the sturdy table where the lower half of the die is mounted and the metal workpiece is placed.
