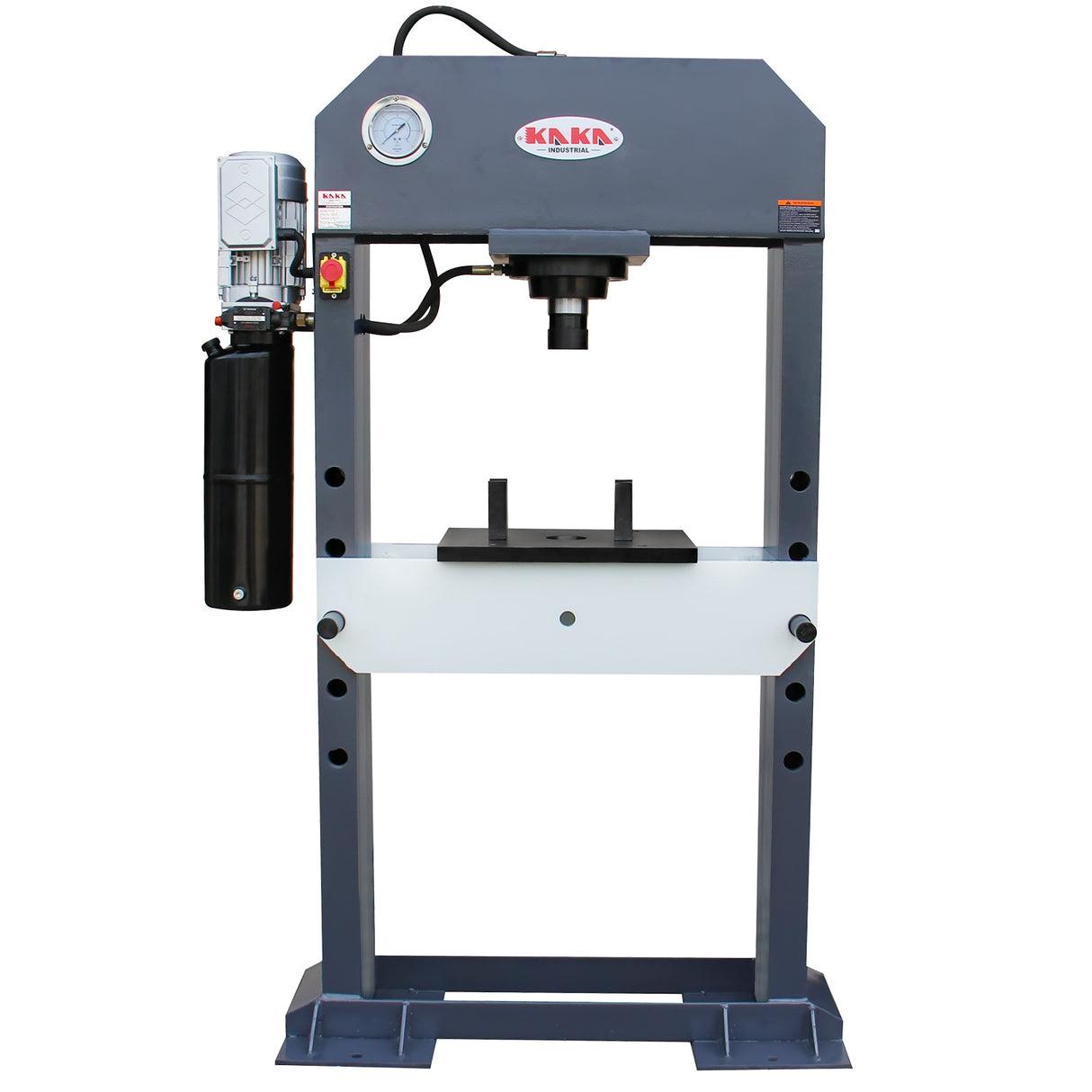

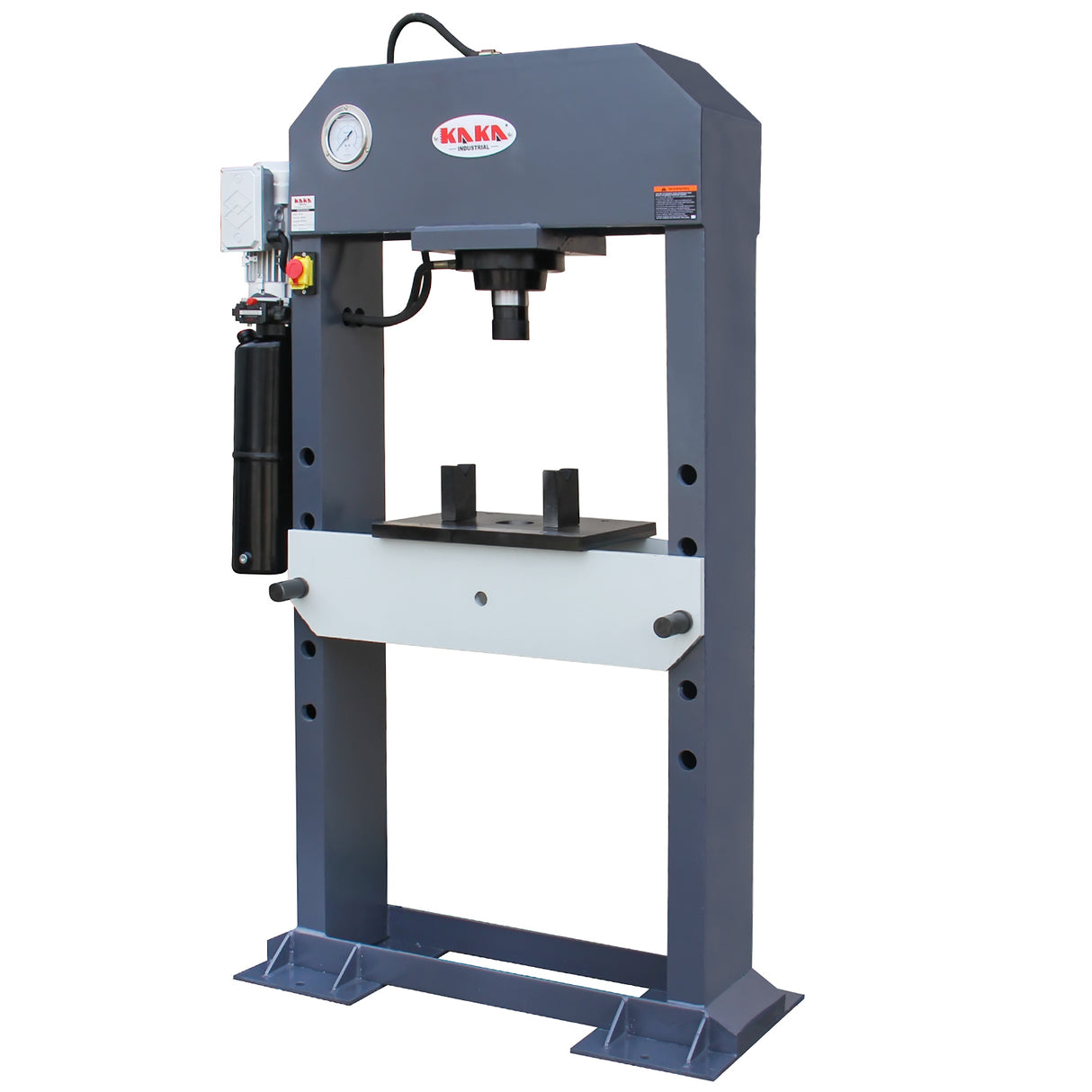

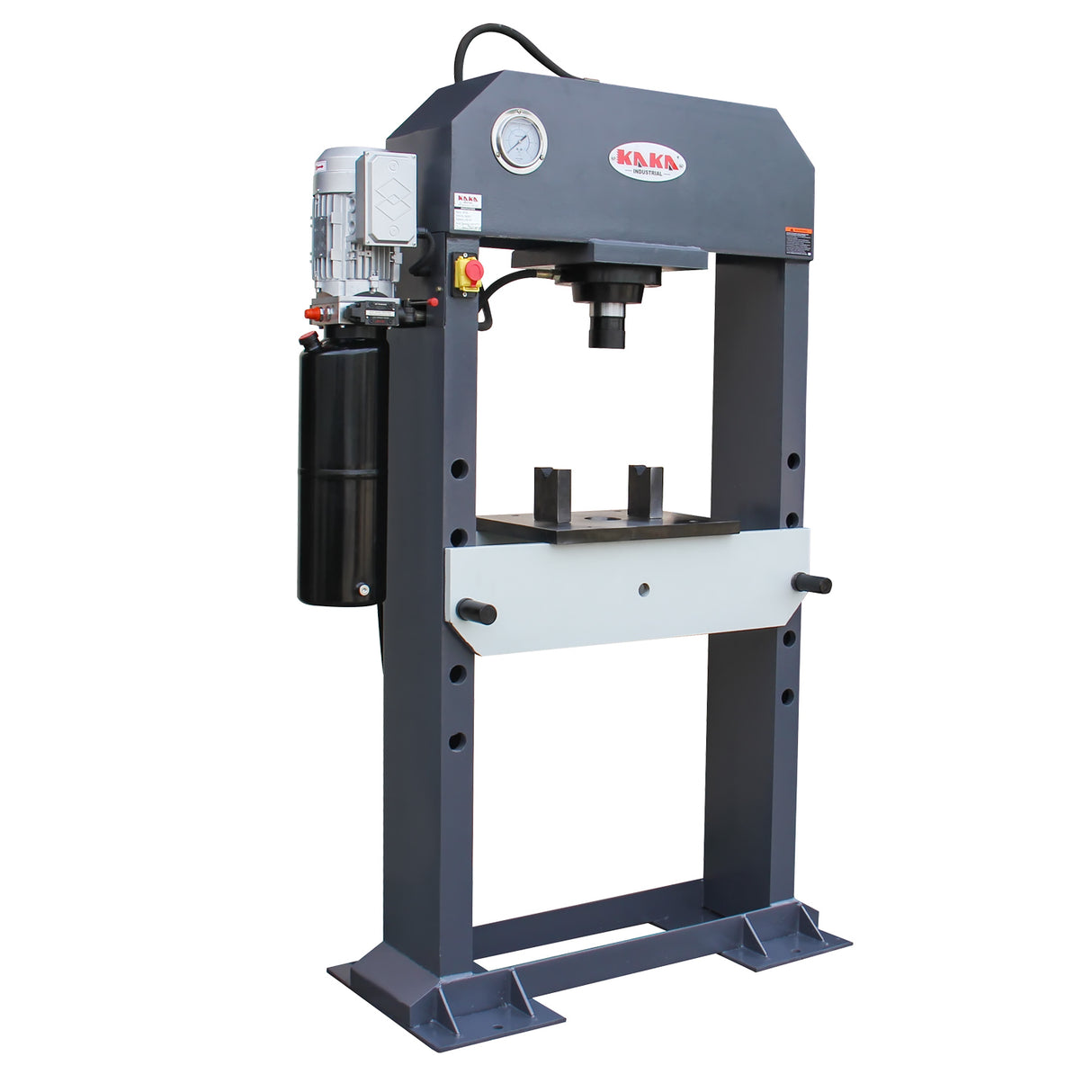

KAKA INDUSTRIAL HP-50 Electric Hydraulic Press，Hydraulic Electric Pump, H-Frame Shop Press with Gear pump,50 ton Frame Capacity, 8.6 in Stroke 220V Single phase
KAKA INDUSTRIAL HP-50 Electric Hydraulic Press，Hydraulic Electric Pump, H-Frame Shop Press with Gear pump,50 ton Frame Capacity, 8.6 in Stroke 220V Single phase is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
- The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
- Working Capacity:50 ton Press Capacity,H-Frame Frame,8.6 in Stroke
- Reliable quality: The electric hydraulic press is designed to be durable. The spray-painting process protects the steel and makes it anti-corrosion, ensuring a long service life. The thickened column is sturdy and durable. It comes standard with a set of V-shaped blocks.

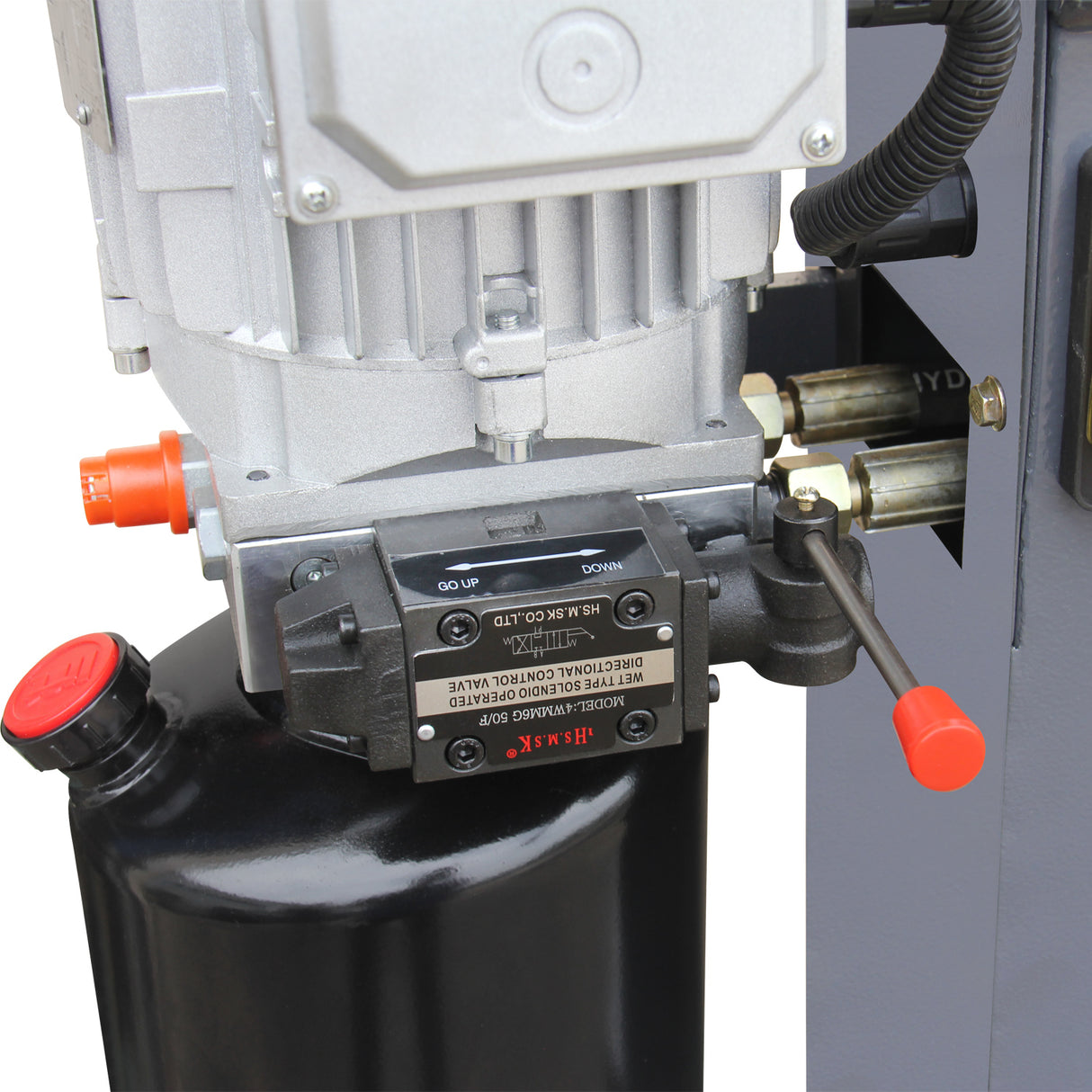

- Easy to use: Just press the switch and move the rocker up or down to easily operate the hydraulic press; Double-acting cylinder provides smooth ram motion in both directions, enabling precise positioning
- Adjustable Workbench: The hydraulic shop press has 5 holes on each side for adjusting the height of the workbench. You can easily find the perfect working height for a comfortable and productive experience.
- Accurate Readings: The fluid-filled dual-scale pressure gauge on your hydraulic press is highly accurate, stable and reliable, with high-visibility markings for accurate readings so you know exactly how much pressure you need to apply.
- Wide Application: H-frame electric hydraulic presses are made of high-quality steel, strong and durable. It can be used for Bending,Forming, Pressing, Punching, Staking, Clamping and Straightening. Ideal for workshop, garage, small shops, or home use.
Specifications
| Model: | HP-50 |
| Frame Type: | H-Frame |
| Frame Capacity: | 50 ton |
| Features: | Bolted Channel Frame |
| Pump Type: | Hydraulic electrical |
| Cylinder Type: | Double Acting |
| Hose Length: | M18*1.8*15.75 in、17.72 in、19.69 in, each 1 pc |
| Pump: | Gear pump |
| Reservoir Capacity: | 12L |
| Ram Maximum Applied Force: | 50 ton |
| Ram Maximum Stroke: | 8.66 in |

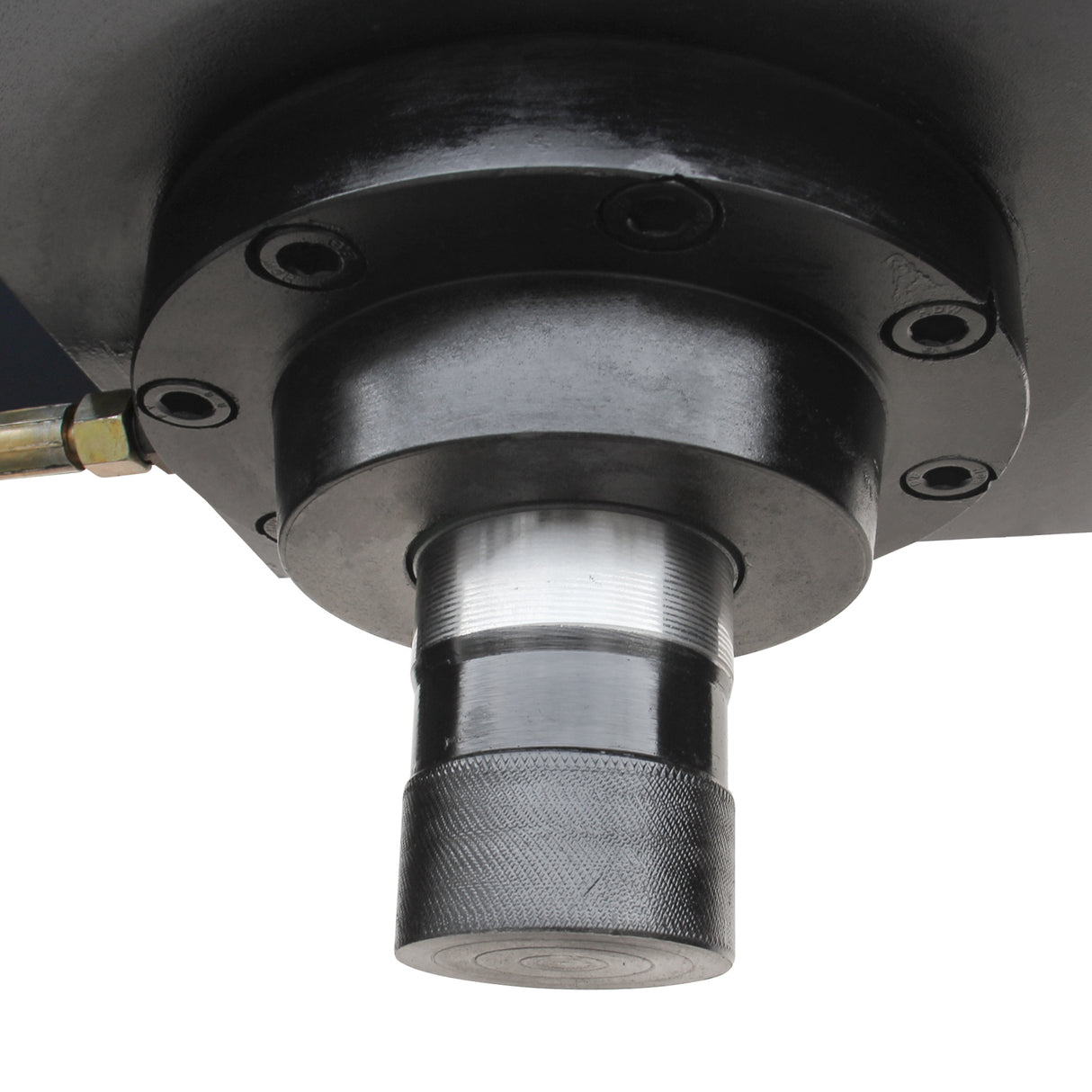

| Ram Diameter: | 6.3 in |
| Ram speed | Down: 0.24 in/Sec Up: 0.31 in/Sec |
| Maximum Distance to Table: | 27.56 in |
| Minimum Distance to Table: | 0 in |
| Base Length: | 18.9 in |
| Base Width: | 14.17 in |
| Bed Support Pin Diameter: | 1.57 in |
| Number of Bed Adjustment Holes: | 0.2 in |
| Bed Adjustment Hole Spacing: | 5.31 in |
| Overall Height: | 78 in |
| Overall Width: | 19.69 in |
| Overall Length: | 60.24 in |
| N.W/G.W. | 1323/1477lbs |

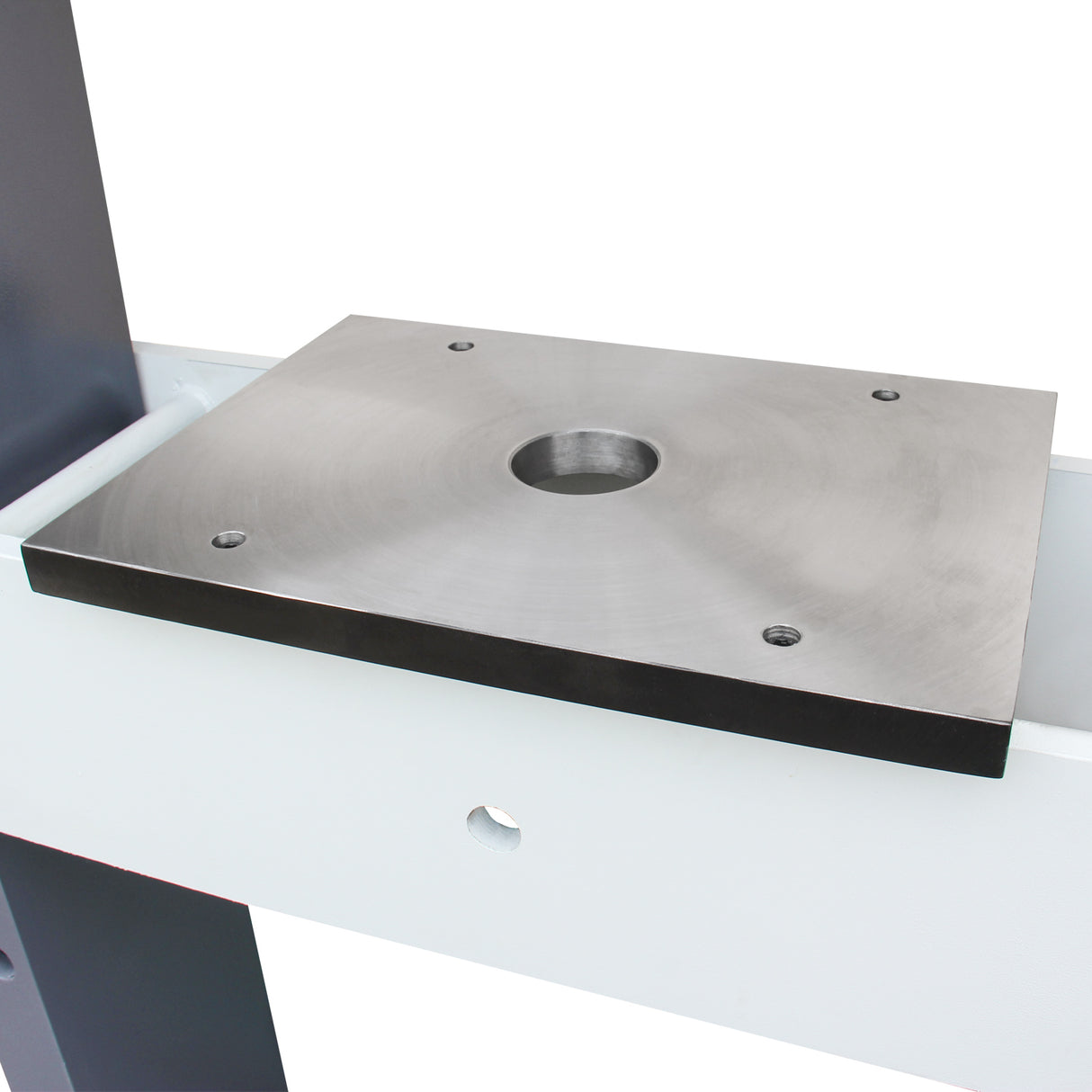

| Includes: | Table Plates; V-Blocks |
| Application: | Bending; Forming; Pressing; Punching; Staking and Clamping; Straightening |
1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.
2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.
3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
