KAKA INDUSTRIAL LLC  |  SKU: BE0101005

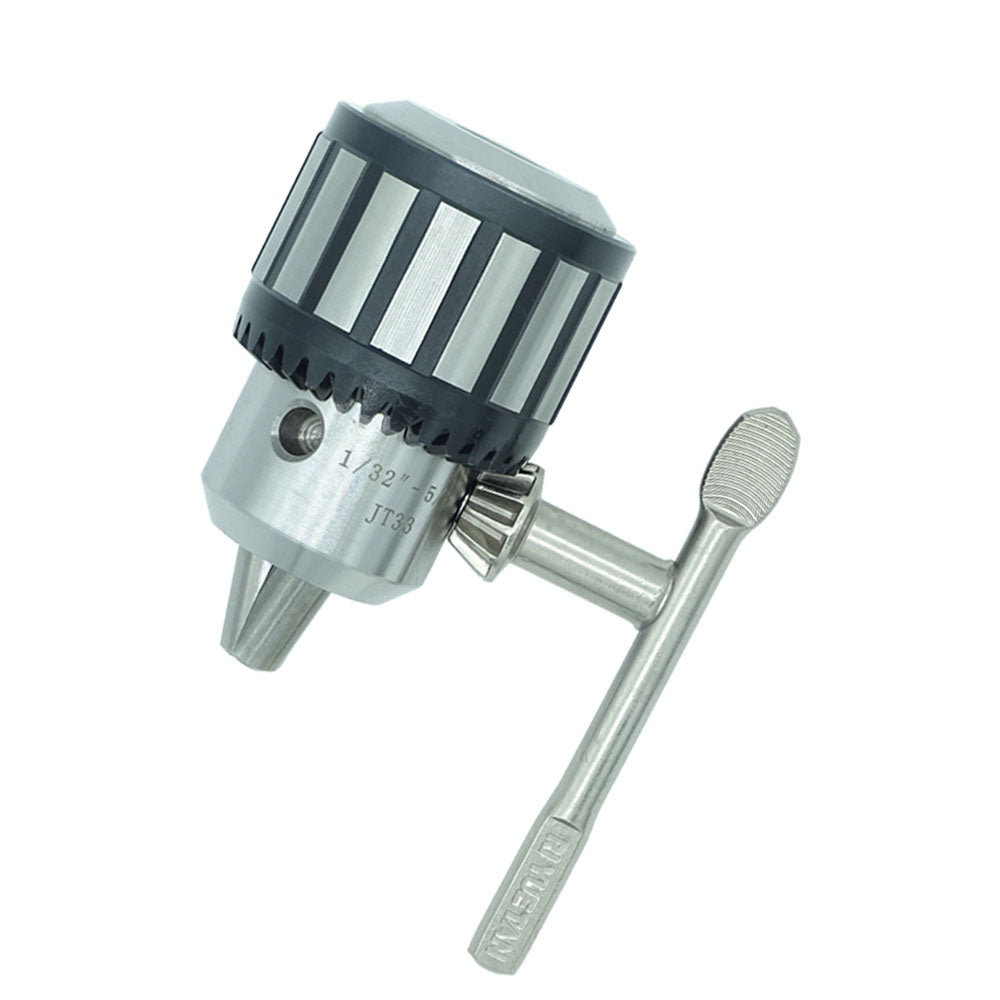

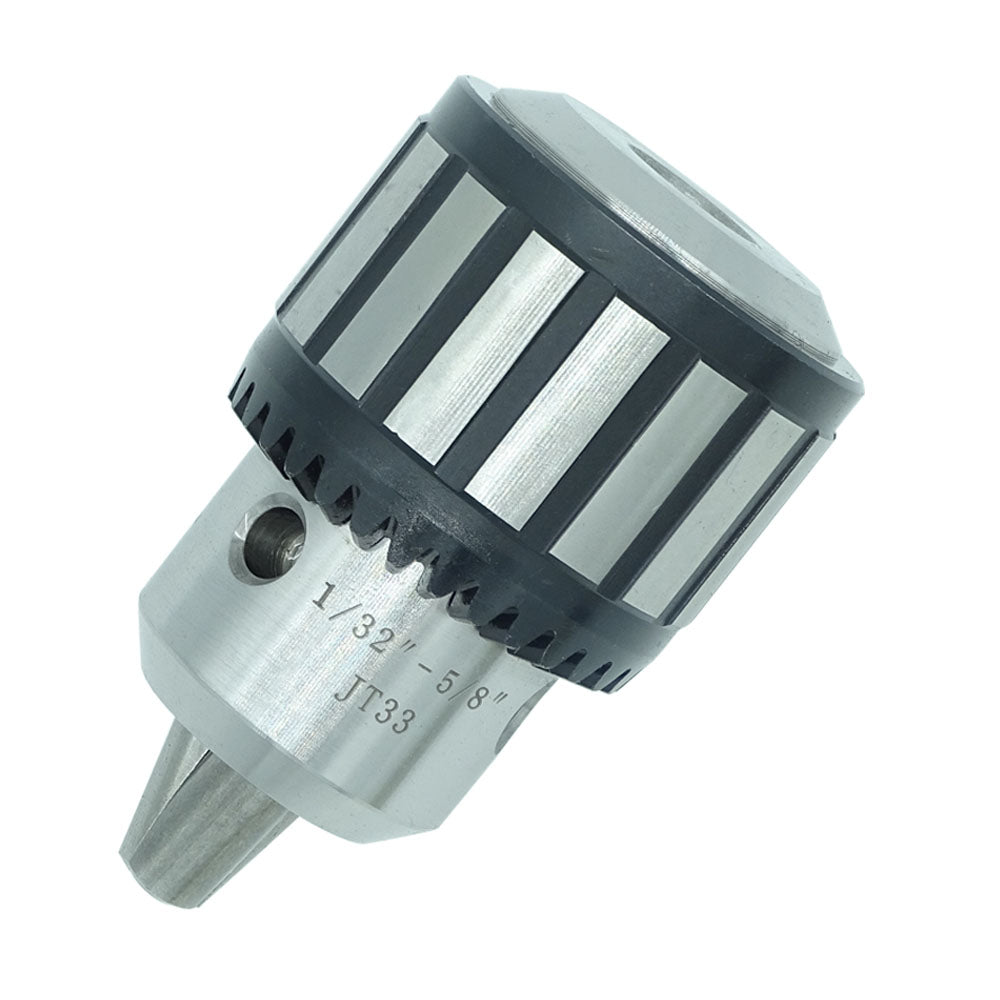

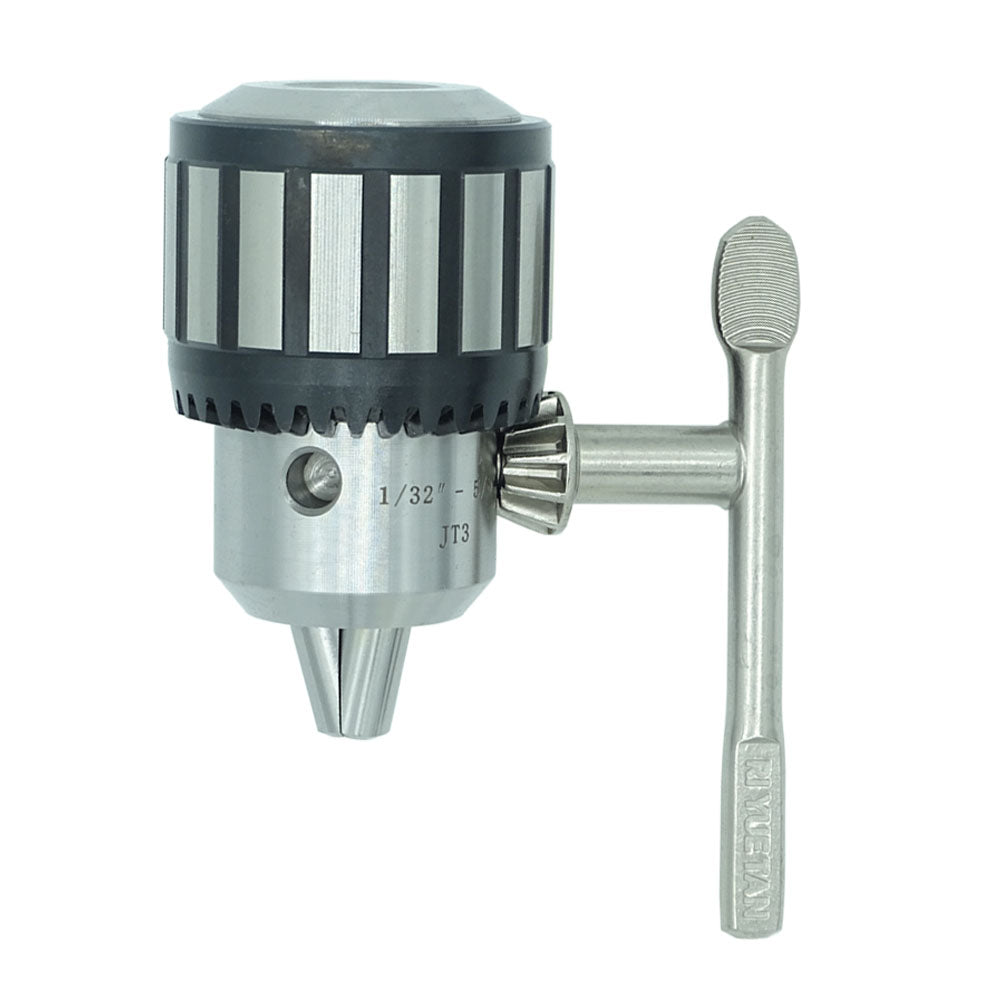

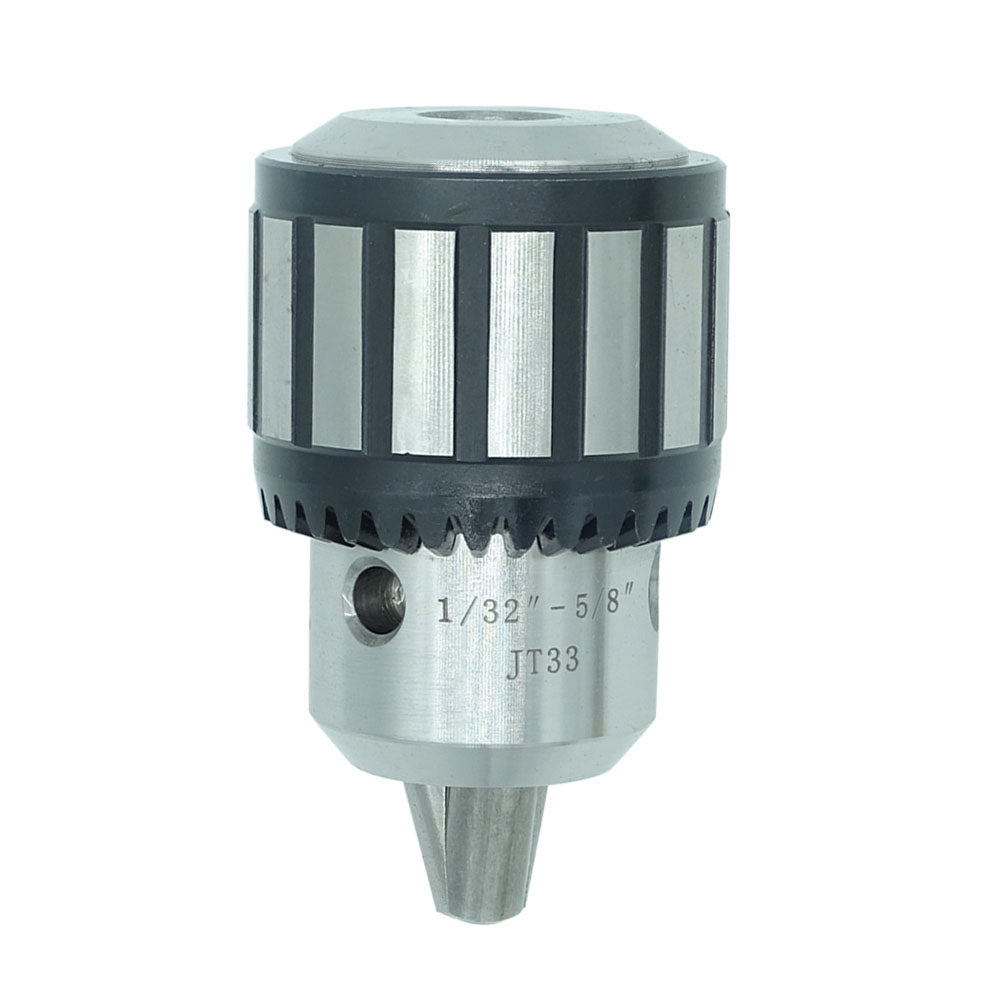

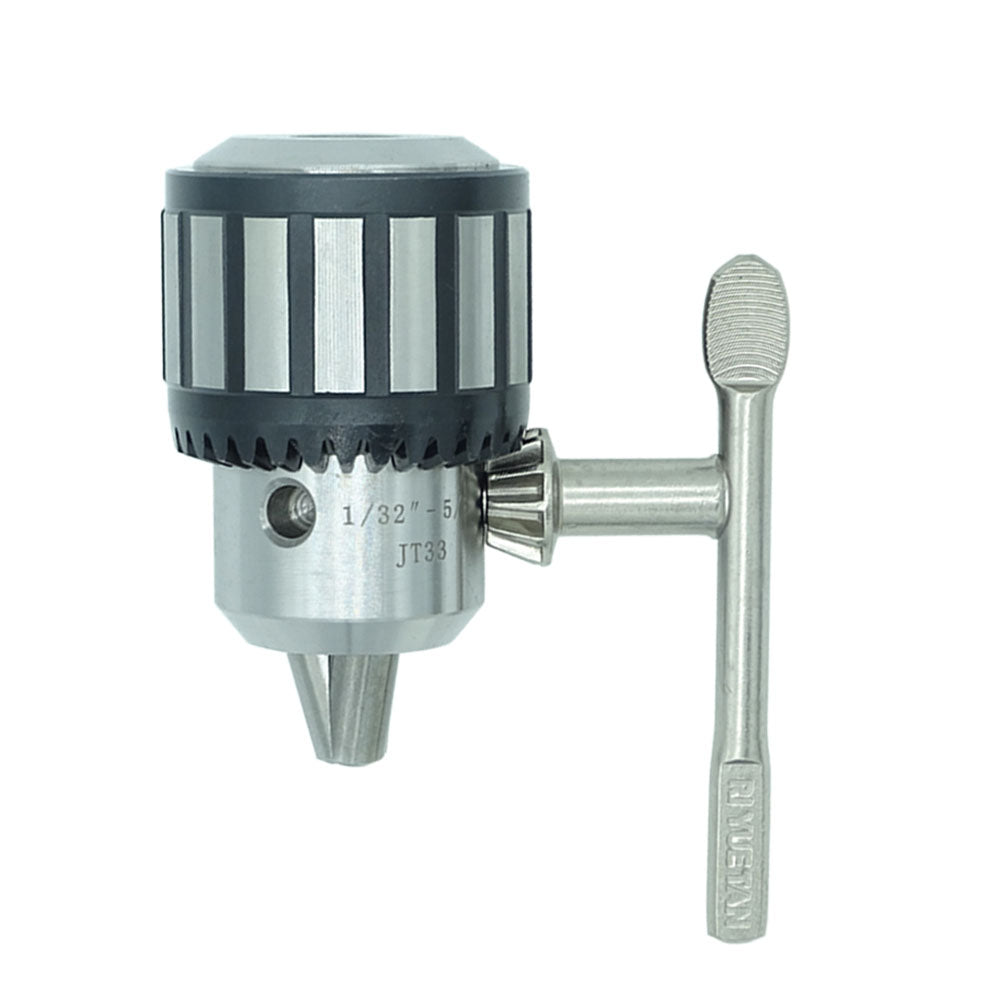

Bodee Heavy-Duty Key Drill Chuck

$20.67
Shipping calculated at checkout.
Size

Care information

Delivery and Shipping

  1. The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
  2. The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

Payment & Security

Payment methods

  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

1. Tapered mount drill chucks have an internal Jacobs Taper (JT) that is press-fit onto a corresponding JT arbor (shank) or spindle
2. Tightens with a chuck key for excellent grip
3. Can be used in either the headstock or tailstock
4. The standard for accuracy and durability on all types of industrial power and machine tools
5. Fully hardened and ground working components offer exceptionally high accuracy and gripping power

Type Clamping Range Taper D
mm
Closed Length
L1
Open Length
 L
L1 Key Number N.W./G.W. Meas
5/8"JT3 1/32"-5/8" JT3
(Ф20.599)
2.24 3.08 3.66 1.38 K5 1.9/2.1 2.5×3×4.4 in
1/2"JT33 1/32"-1/2" JT33
(Ф15.85)
2.09 2.72 3.39 1.14 K5 1.5/1.66 2.5×3×4.4 in
5/8"JT33 1/32"-5/8" JT33
(Ф15.85)
2.244 3.071 3.661 1.14 K5 1.9/2.1 2.5×3×4.4 in
