KAKA INDUSTRIAL LLC  |  SKU: BA0201029

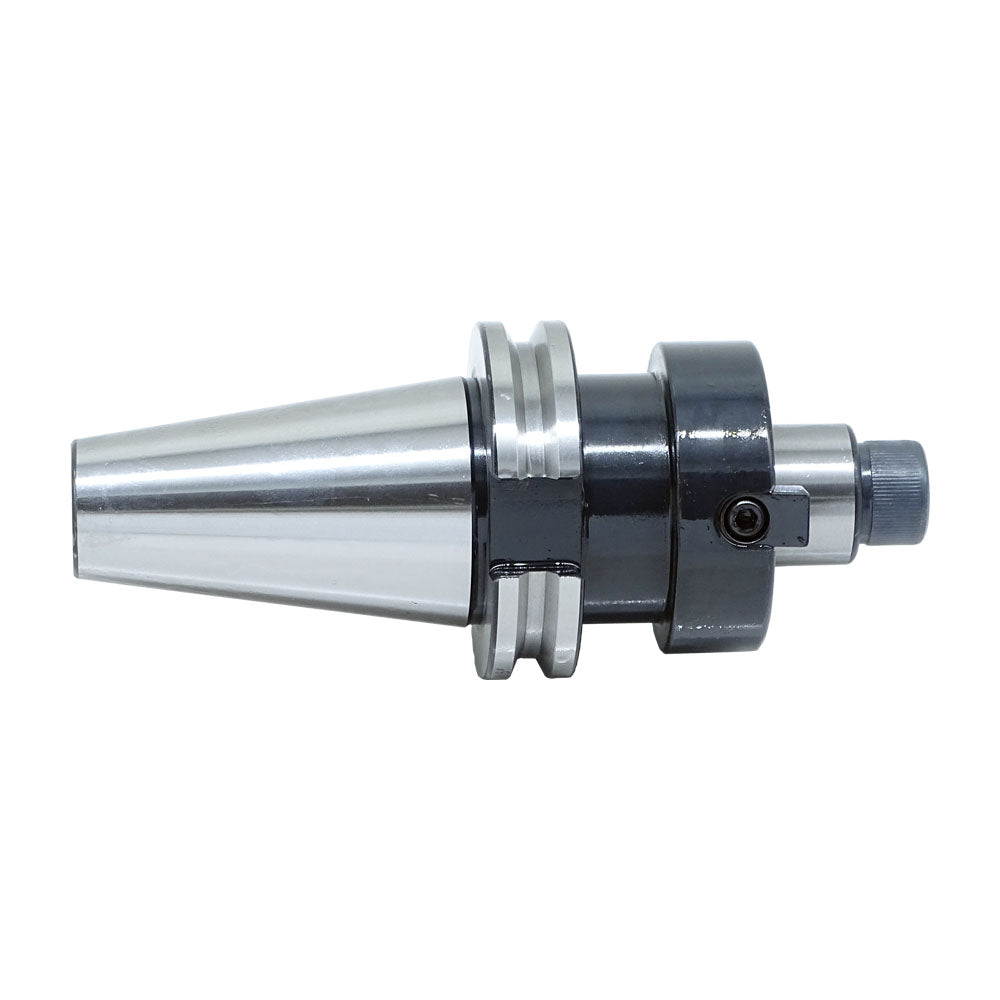

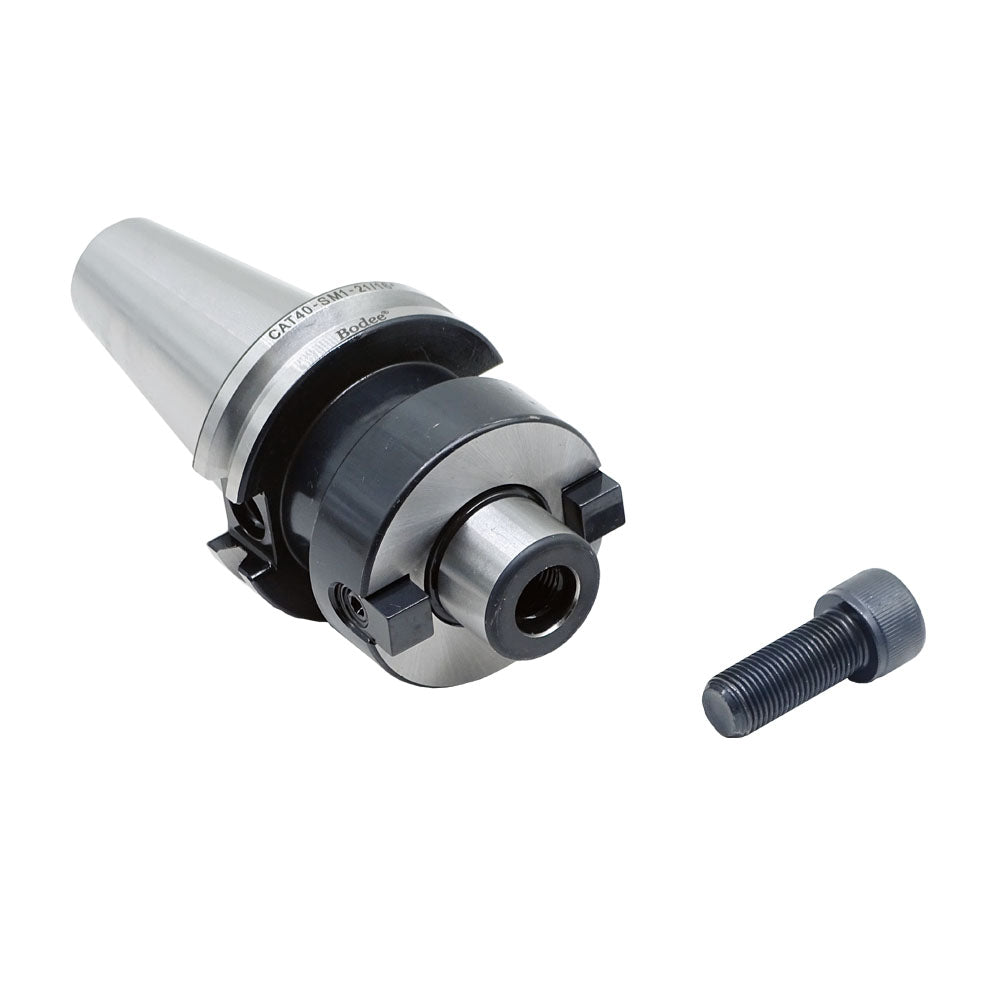

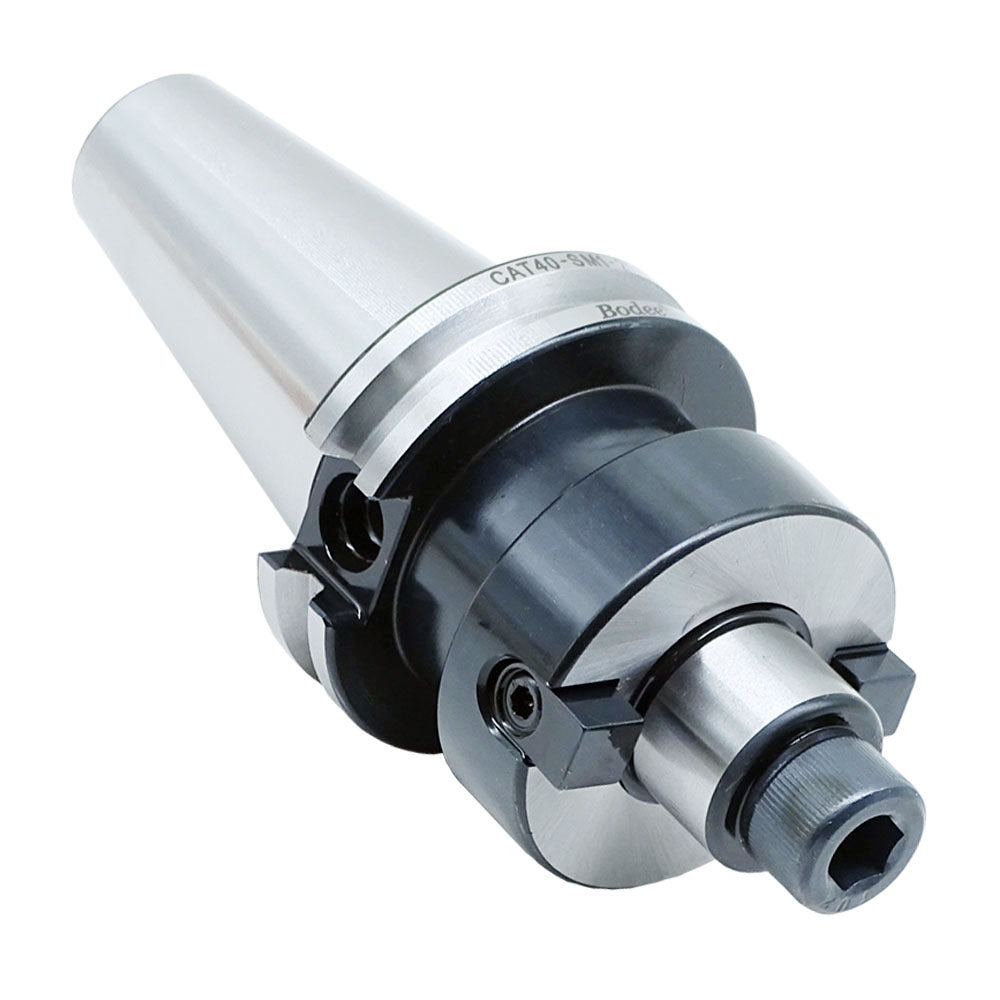

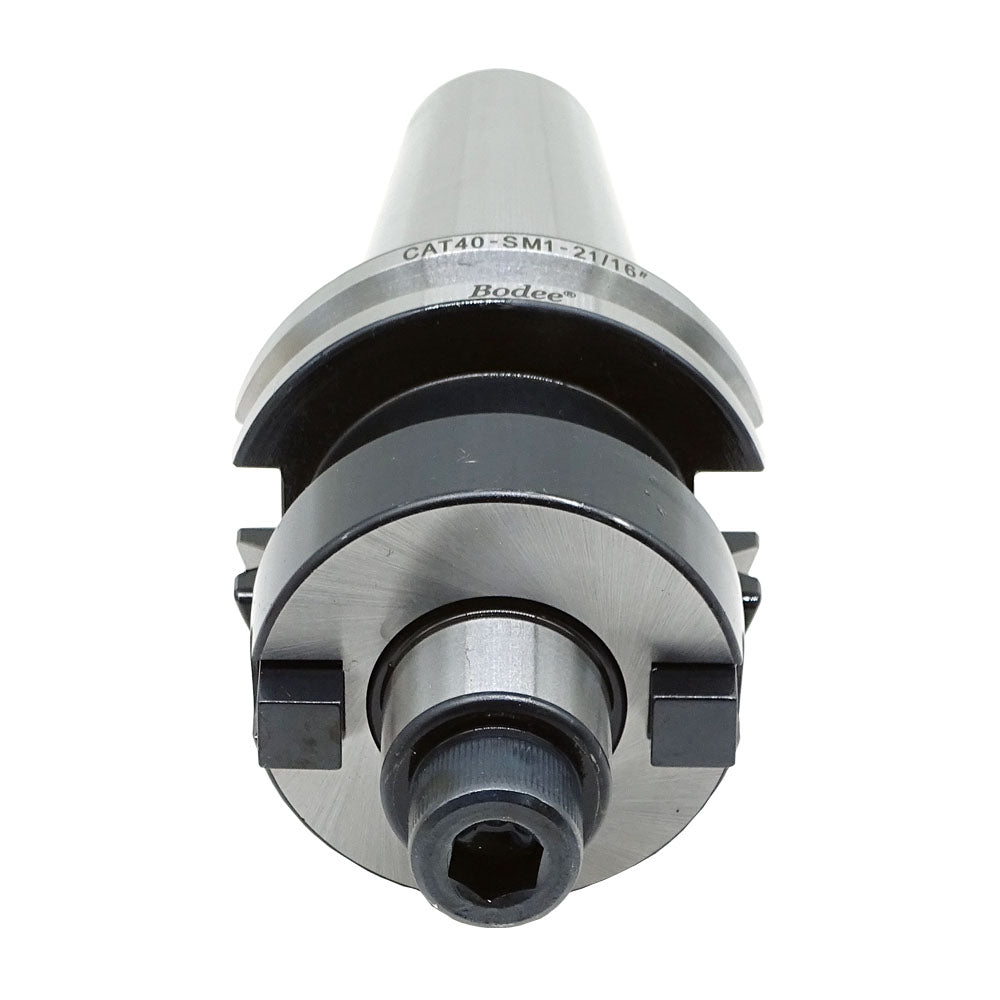

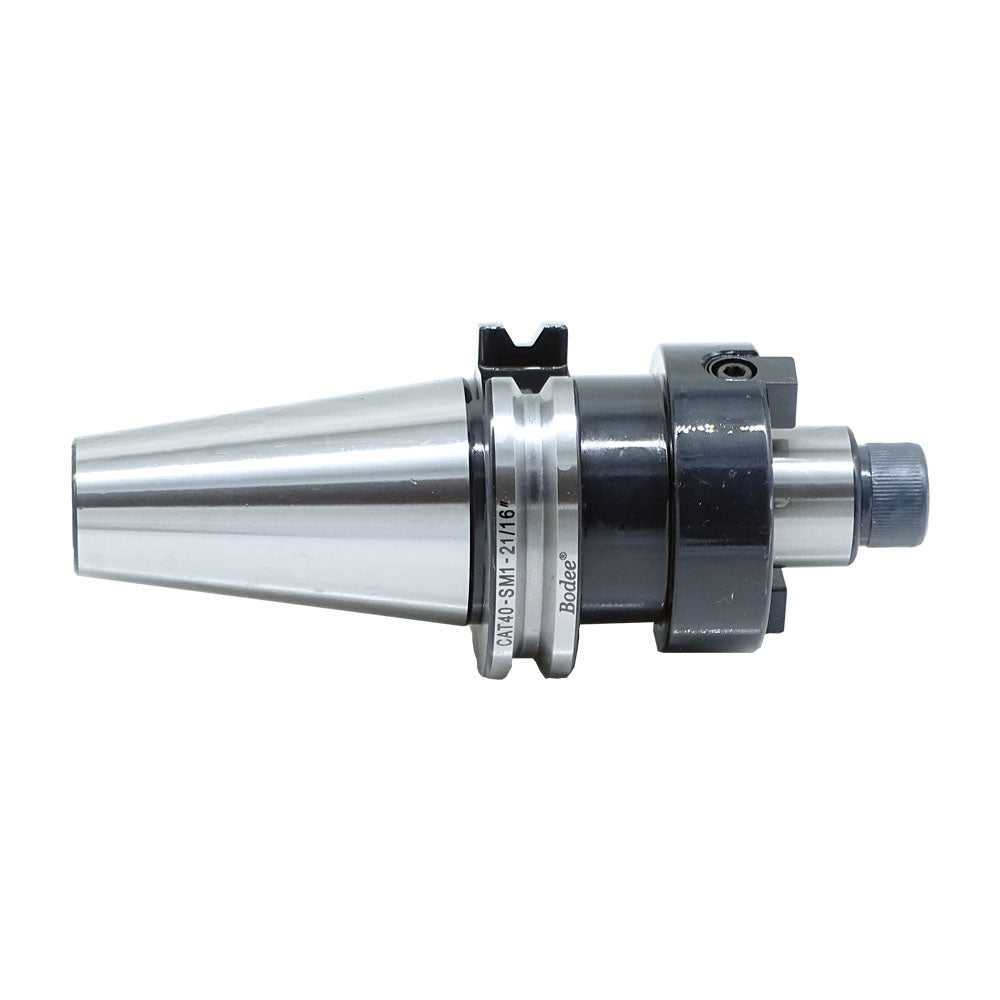

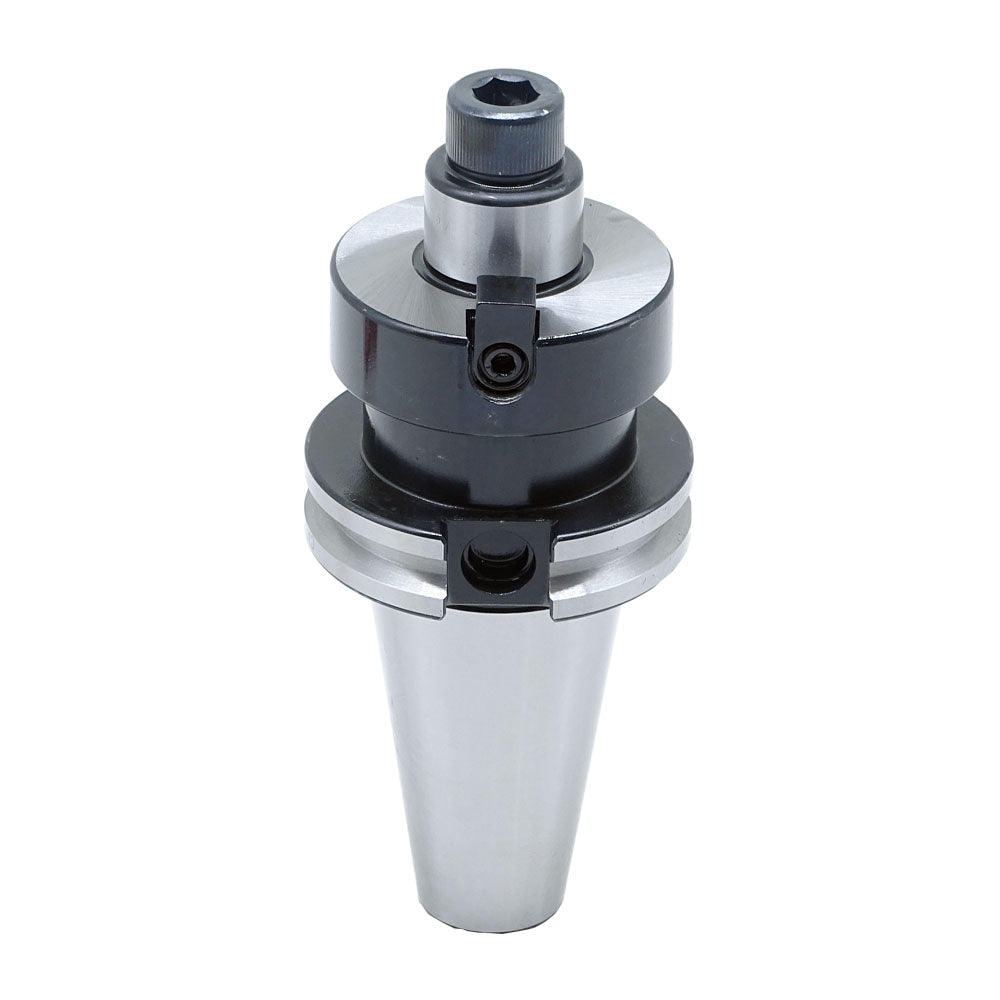

Bodee CAT40 Taper 1" Pilot Diameter 2 1/16" Projection Shell Mill Holders

$55.07
Shipping calculated at checkout.

Care information

Delivery and Shipping

  1. The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
  2. The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

Payment & Security

Payment methods

  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

1. Runout: 0.0002" TIR.
2. Rear thread for pull stud is 5/8"-11
3. All critical tool holder surfaces precision ground and surface smoothing
4. Made from alloy structural steel hardened to HRC48 - 52
5. Meets or exceeds ANSI specifications
6. Fit for Drilling Machine, Milling Machine CNC Chuck or Holder

Brand Name Bodee Size CAT40
SKU BA0201029 TIR  0.0002"
Drawbar Thread Size 5/8"-11 Pilot Diameter(D)  1"
Projection (L1) 2.0625" Nose Diameter(D1)  2.17"
L2 0.688" W 0.375"
Net Weight 2.98 lbs G 1/2"-20
Gross Weight 3.20 lbs D2 0.75"
Meas 7.9×2.95×2.95 in. Overall Length(L) 5.4375"
