Band Saw

KAKA Industrial BS-76G, 7.8"x6.7" horizontal bandsaw, 115V-60HZ-1PH Metal Cutting Band Saw, Solid Design Metal Bandsaw, High Precision Metal Band Saw, Space Saver Metal Cutting Band Saw

$2,625.99

Shipping calculated at checkout

SKU: 188016V115

Only 1 left!
1 9f4c74d2 52d3 4829 b800 6b1aea776ee1

Quality

assured

2

Caring

service

3

Guide

operation

Description Manual Warranty Summary of Return Policy
1. Rigid cast-iron design with steel base serving as the utility shelf
2. Coolant pump ensures the longer service life of saw blade and improve the precision of workpiece

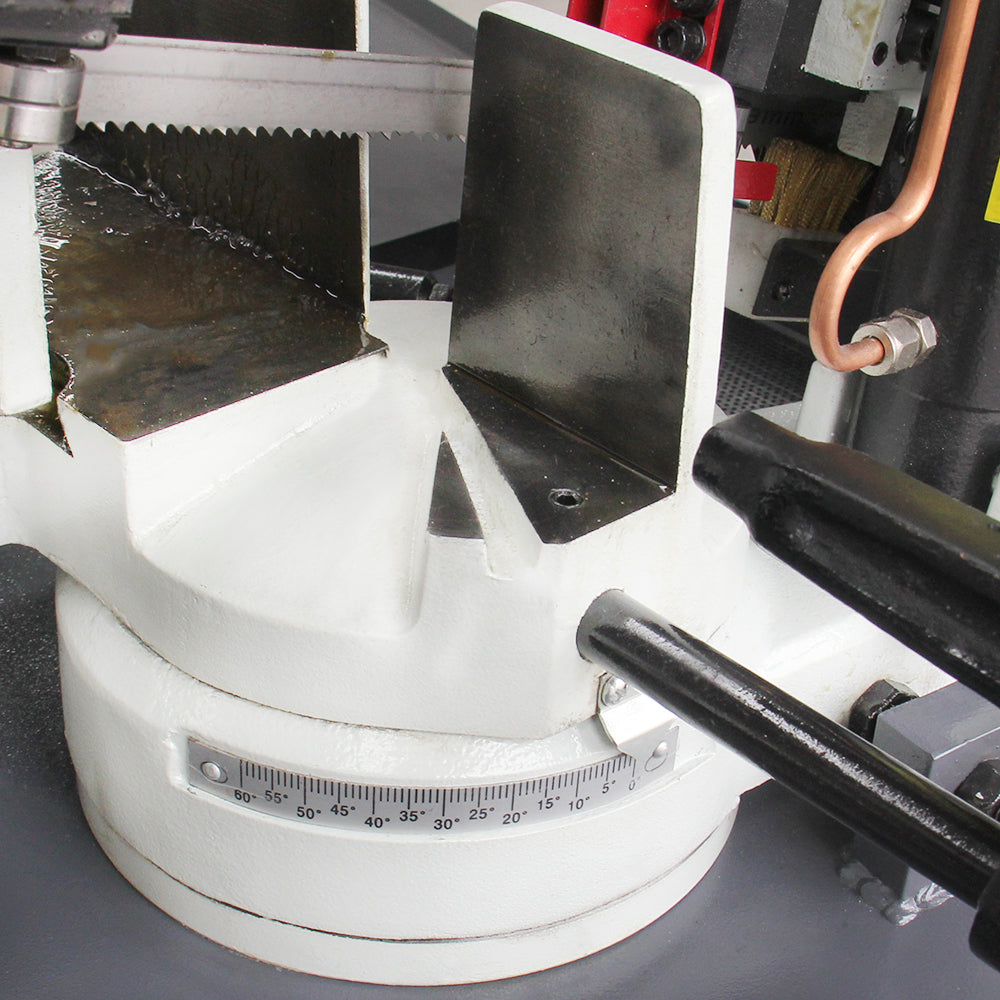

3. Scale on the vise allows easy adjustments for angle cuts
4. Quick adjusting vise for angular cuts—the saw frame swivels, not the material.
5. Hydraulic cylinder for controlled descent
6. Accident preventing devices on the fly wheel casing and on the blade
7. Vertical rotation on bolt with adjustable tapered bearings without backlash
8. Band stretching is obtained by electro-mechanical blade tension with micro switch
9. European design, dovetail-type clamp movement and locking mechanism
10. Worm gear box transmission structure
11. The calibration of the jaw is convenient for adjustment and positioning at any angle (Scale on
the vise allows easy adjustments for angle cuts)
12. The falling speed of saw bow is controlled by hydraulic cylinder
13. The European design band saw has a sizing device (machine will stop automatically after sawing
materials)
14. The European design band saw has power break protection device (machine will power off
automatically when the rear protective cover is opened)
15. It is equipped with a block feeder (with fixed sawing length)
16. The European design band saw has a sizing device (machine will stop automatically after sawing
materials)
17. The European design band saw has power break protection device (machine will power off
automatically when the rear protective cover is opened)
18. It is equipped with a block feeder (with fixed sawing length)
Item No.
188016V115
Model
BS-76G
Capacity
Circular @90°
170 mm (6.7”)
Rectangular @90°
200x170 mm (7.8”x6.7”)
Circular @60°(right)
70 mm (2.7”)
Rectangular @60°(right)
60x60 mm (2.3”x2.3”)
Circular @45° (right)
120 mm (4.7”)
Rectangular @45°(right)
110x110 mm (4.3”x4.3”)
Blade speed @ 50Hz
2P,80 MPM 262 FPM
Blade speed @ 60Hz
4P,40 MPM 131 FPM
Blade size
20X0.9X2085 mm
Motor power
0.75/1.1kw 1/1.5HP(3PH)
Drive
Gear
Packing size (body)
49x28x40 in
Packing size (stand)
Together with in body
N.W./G.W.
381 / 496 lb
