KAKA Industrial Q01-5216 52-Inch Foot Stomp Shear, Solid Construction, High Precision Sheet Metal Foot Shear, 16 Gauge Mild Steel Capacity

$2,567.99 $3,099.99
Shipping calculated at checkout.

Care information

Delivery and Shipping

  1. The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
  2. The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

Payment & Security

Payment methods

  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

About KAKA Industrial: A Company Delivers High Quality Products with Fast Shipment and Lowest Price Possible. We Always Fulfill What We Have Promised

KAKA Industrial 52-Inch Sheet Metal Foot Shear Overview
The 52-inch foot shear is designed for small or medium shops or educational institutions that are running a tight budget. Precision, High Quality, Cast-Iron Frame, Long-Term service life are the essential values this shear possesses. With a cast-iron frame, it stabilize the working process while secures a better shear results. Quality Chromium blades will ensures the long term serivce. It is designed with a high industry standard.

High Precision, Easy Operation, Solid Construction, Great Shearing Capacity Sheet Metal Foot Shear
One benefit of this foot shear is the precise shearing ability. The precise bed and beam alignment ensures shearing accuracy while the adjustable hold down clamp guarantees materials securing during operation so as to prevent errors. Another benefits of this metal foot stomp shear is the easy operation. The easy working application can be achieved via compound leverage which allows the user to perform work within the machine's rated capacity. Purchase one today to try this great metal foot shear!

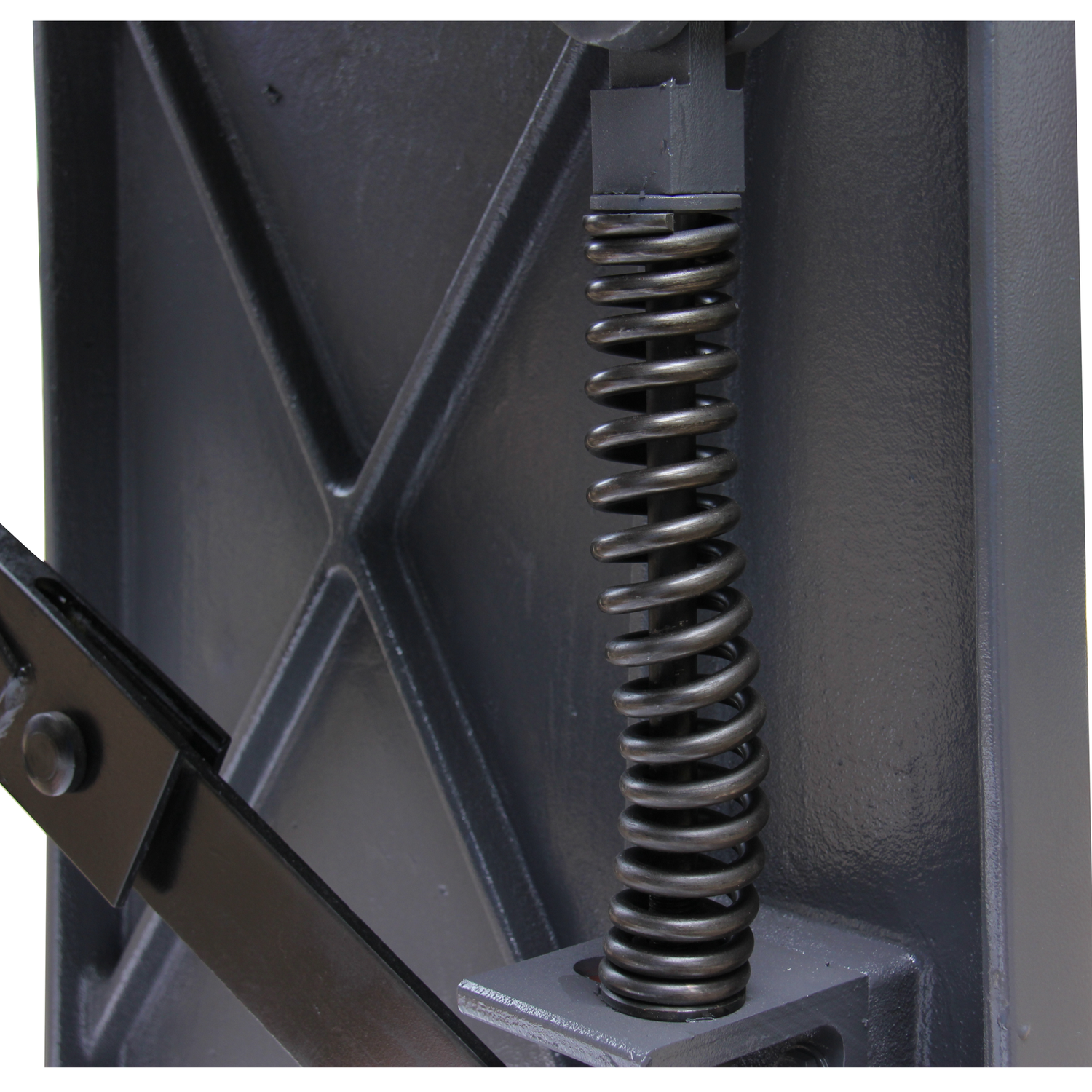

  • Hi-quality cast-iron grade frame to eliminate deflection across the blade-span and blade frame work
  • Adjustable clamping bar keeps material secured during operation
  • Precise bed and beam alignment assures working accuracy
  • Upper blade is a four-way; bottom blade is two-way
  • Rear depth gauges with micro adjustment for precise measurements
  • 16 gauge maximum capacity for mild-steel
  • 14 gauge maximum capacity for aluminum and copper alloys
  • 20 gauge maximum capacity for stainless steel


EQUIVALENCY CHART

Mild steel………………………….0.060

Stainless steel……………………0.036

SAE 1050 cold rolled steel…0.036”

Aluminum…………………………0.100

Soft brass………………………….0.072

1/2 Hard brass………...............0.064

Annealed phosphor bronze……0.064

Soft copper…………………………….0.072

Hard copper……………………………0.064

ABS plastic………………………..……0.200



Specification:

  • Item No. 172002
  • Model Q01-5216
  • Bed width (Inch) 52-Inch
  • Max. shearing thickness (mild Steel)16ga
  • Back gauge range (mm) 0-700
  • Packing size (inch) 66x30x45
  • N.W. / G.W. (lb) 1082/1202

Standard accessories:

  1. Back gauge
  2. Front gauge

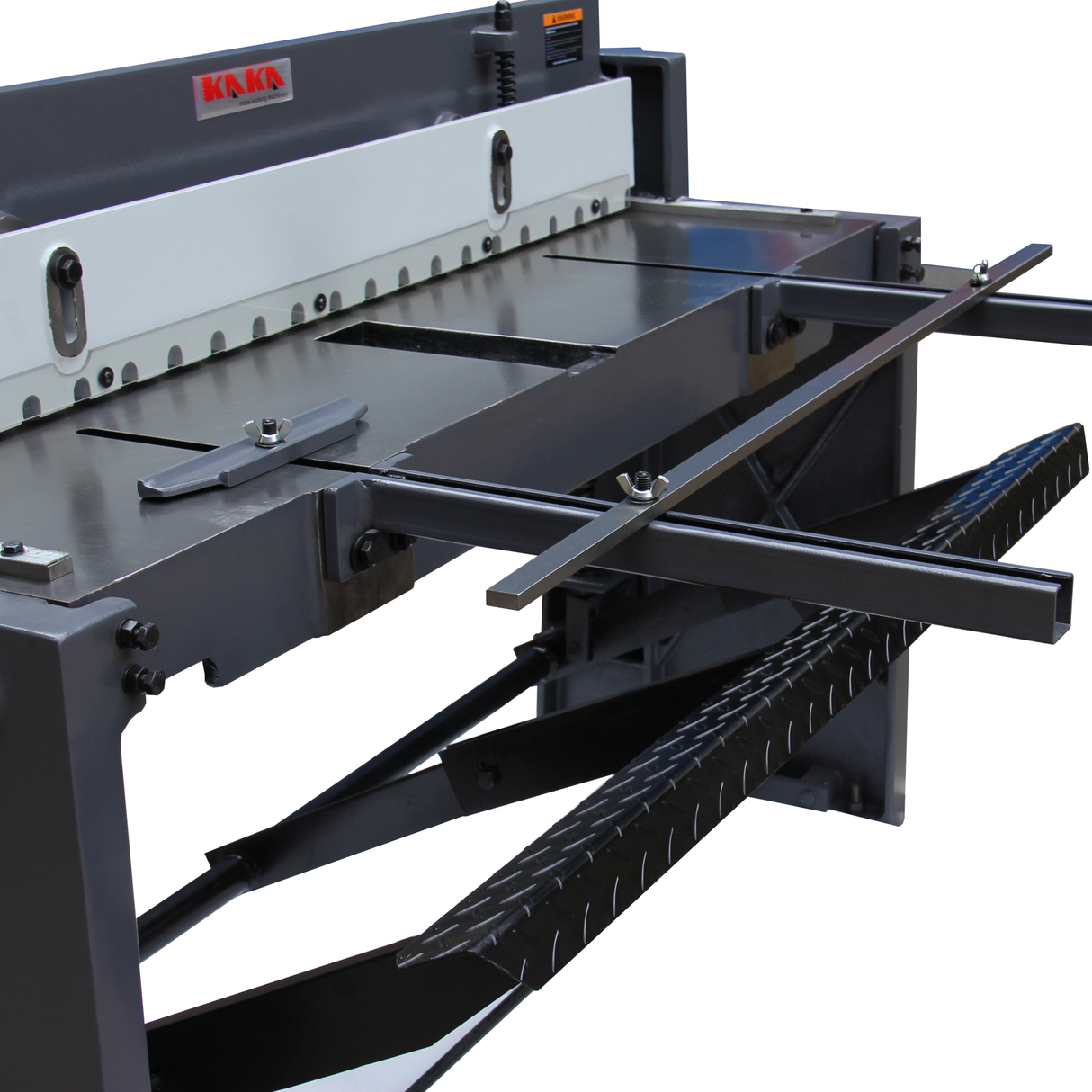

  3. Foot pedal

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
